/Products/Electric Motors/Single Phase/Century/Farm Duty/Cow Cooler/C598 Century 1.5/0.44HP Cow Cooleer Electric Motor, 1725/1140RPM
Click Image to Expand

Product ID: C598

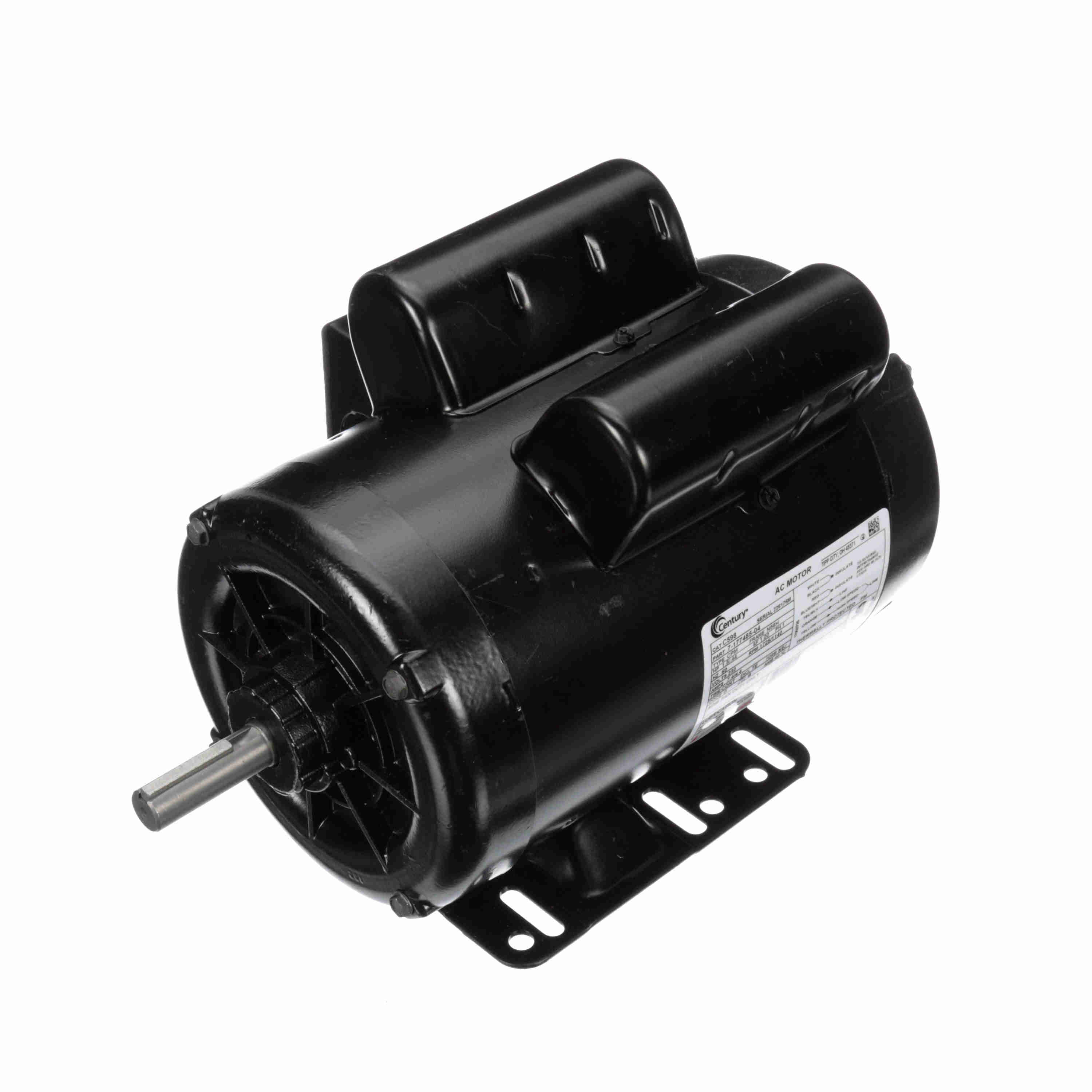

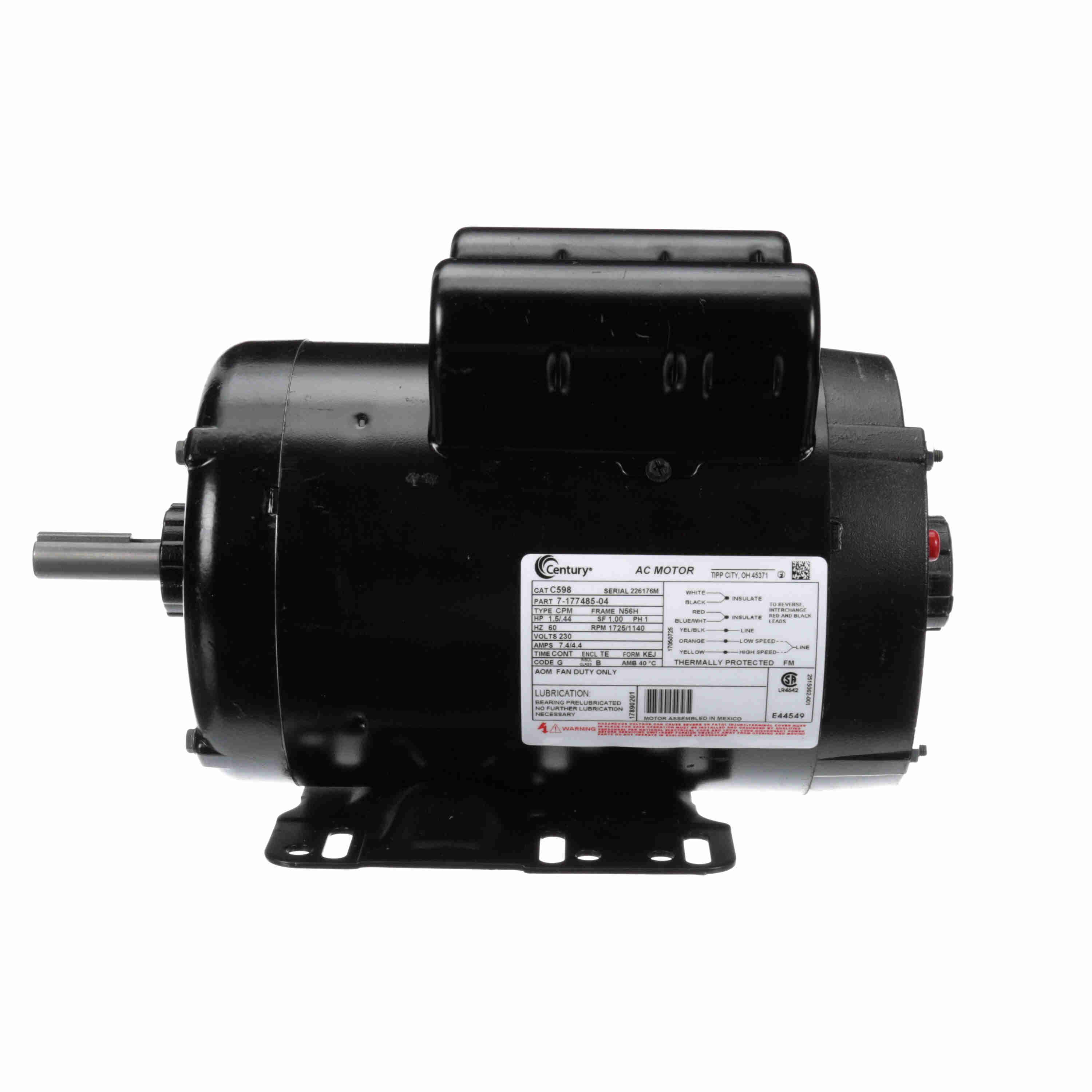

C598 Century 1.5/0.44HP Cow Cooleer Electric Motor, 1725/1140RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C598

Selected accessories will also be added to cart
$636.97 / Each
Quantity:
TEAO, N56H Frame, 230V Single Phase 60Hz, Rigid Base

Features

Features
  • Low starting torque
  • Energy efficient

General Specifications

General Specifications
Model : Catalog No :C598
Part Description :1.5-.44,1725,TEAO,56H,1/60/230 Category :Cow Cooler
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.5/.44 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :230 V
Current :7.4/4.4 A Speed :1725/1140 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :N56H Enclosure :Totally Enclosed Air Over
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, MultiSpeed Starting Method :Across The Line
Poles :4/6 Rotation :Reversible Counterclockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :13.19 in
Frame Length :7.25 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674016362
Weight :45.00 LB

Speed & Load Characteristics
