/Products/Electric Motors/Single Phase/Century/Farm Duty/Cow Cooler/C595 Century 1.5/0.44HP 2 Speed Cow Cooler Electric Motor, 1725/1140RPM
Click Image to Expand

Product ID: C595

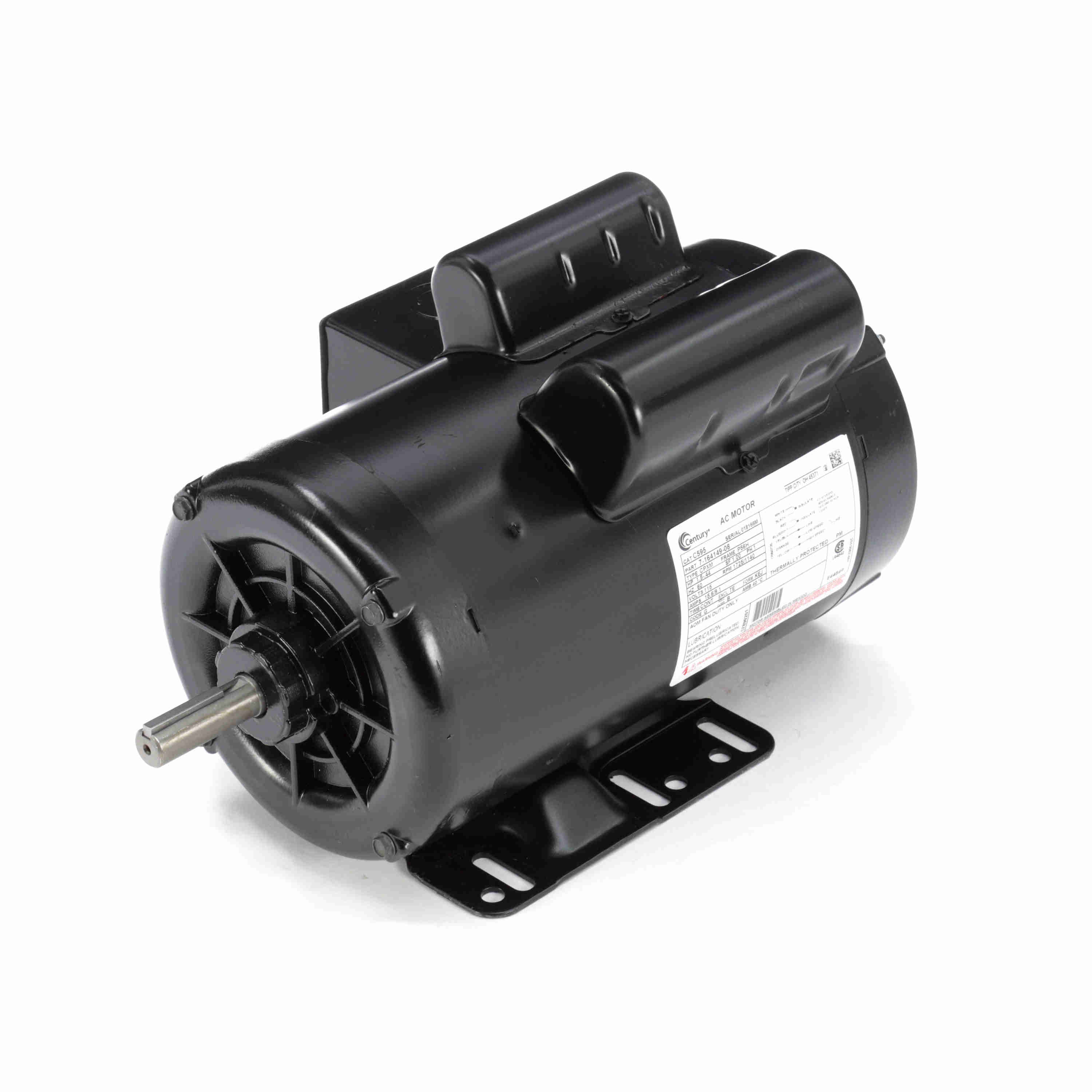

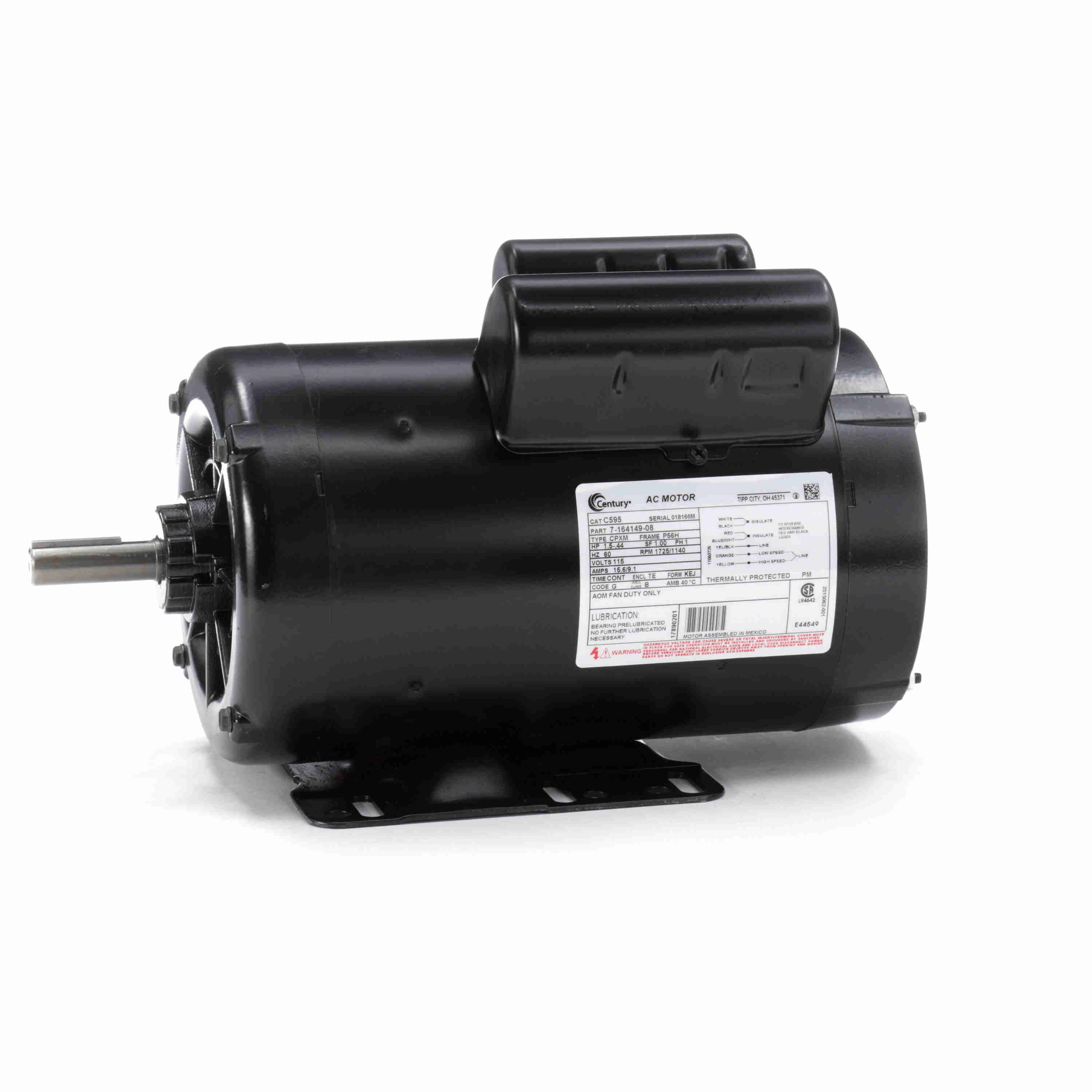

C595 Century 1.5/0.44HP 2 Speed Cow Cooler Electric Motor, 1725/1140RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C595

Selected accessories will also be added to cart
$170.97 / Each
Quantity:
TEAO, P56H Frame, 115V Single Phase 60Hz, Rigid Base, 2 Speed

Features

Features
  • Low starting torque
  • Energy efficient

General Specifications

General Specifications
Model : Catalog No :C595
Part Description :1.5-.44,1725,TEAO,56H,1/60/115 Category :Cow Cooler
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.5-.44 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :115 V
Current :15.6/9.1 A Speed :1725/1140 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :P56H Enclosure :Totally Enclosed Air Over
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor, High Speed; Split Phase, Low Speed Starting Method :Across The Line
Poles :4/6 Rotation :Reversible Counterclockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :13.94 in
Frame Length :8.00 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674016331
Weight :43.00 LB

Speed & Load Characteristics
