Product ID: C581V1

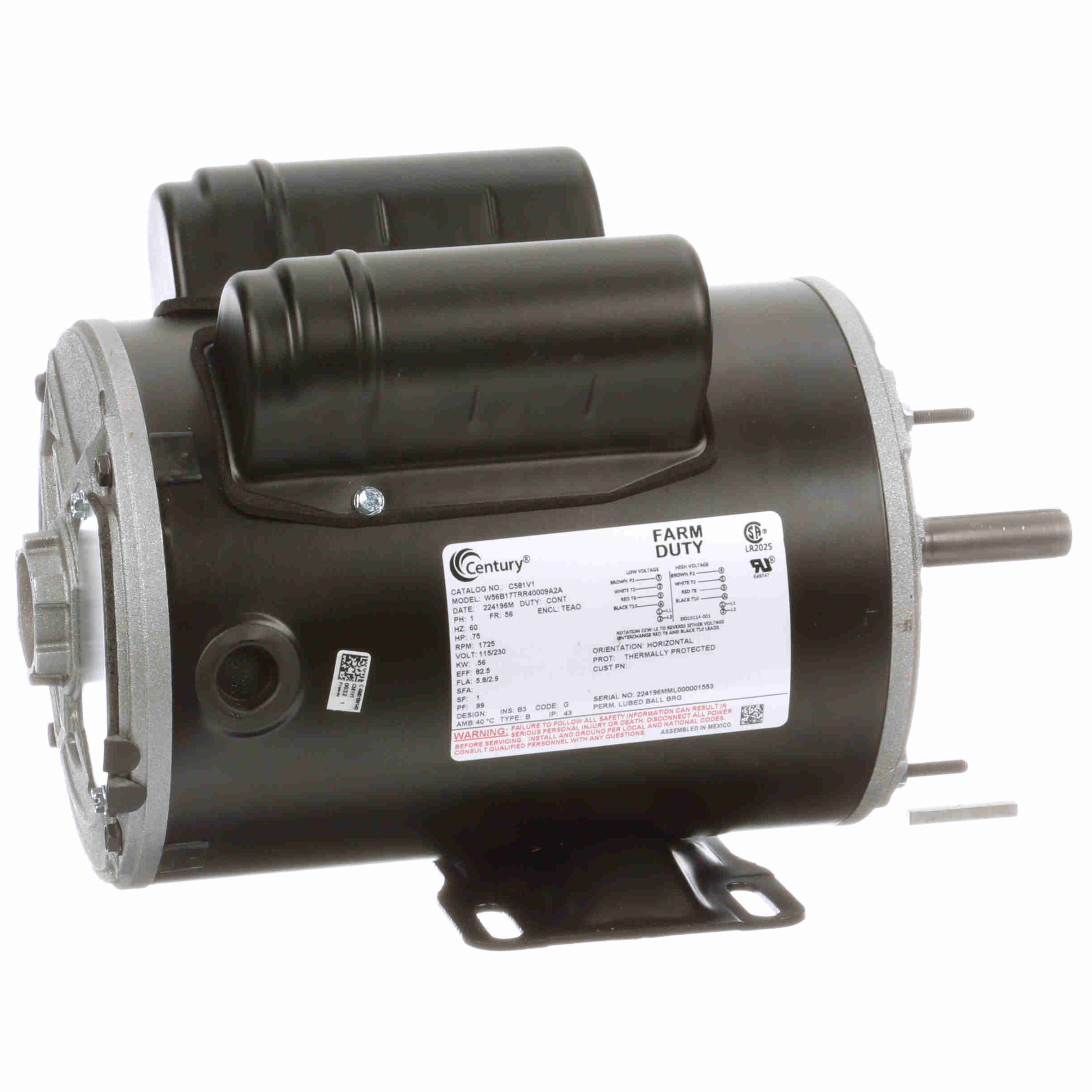

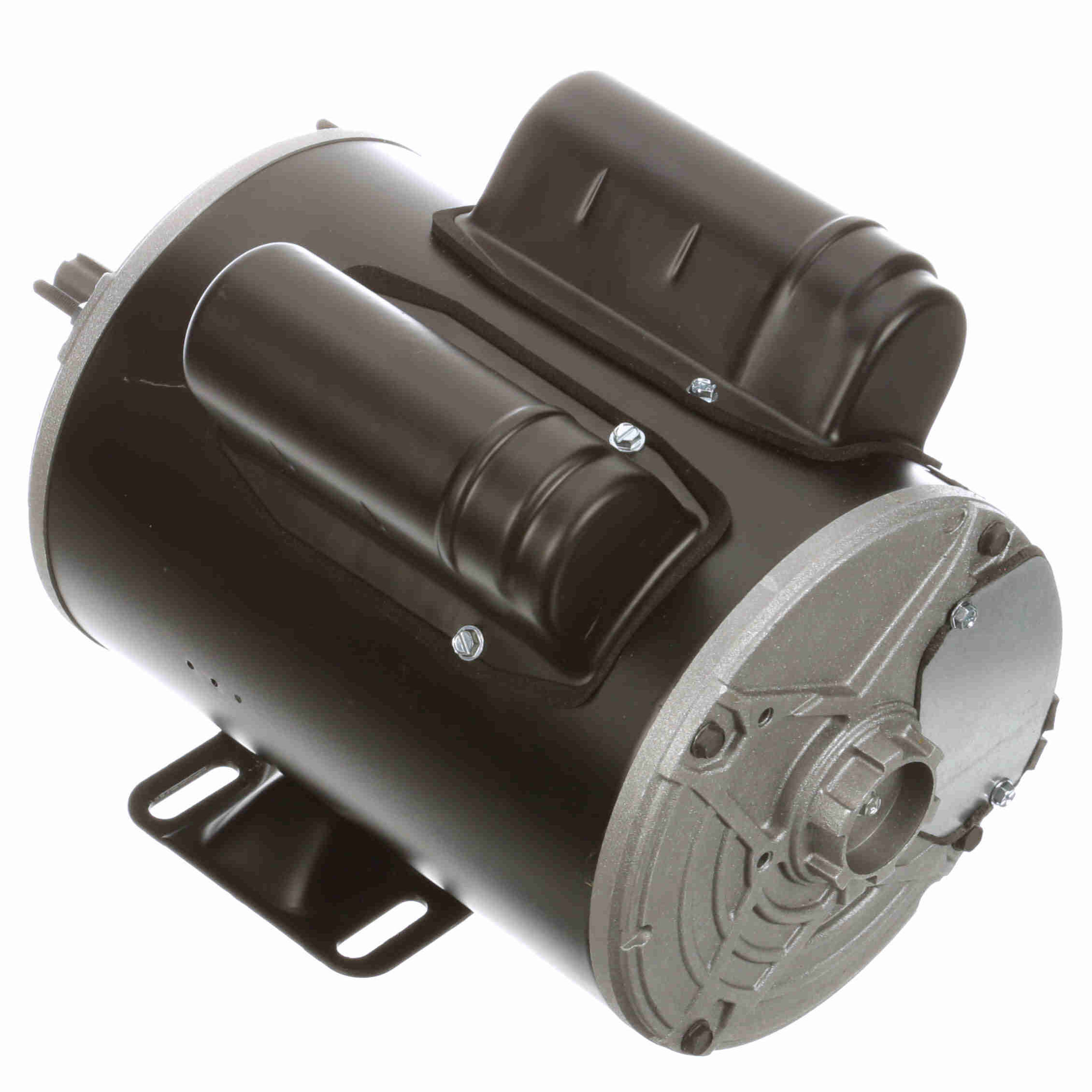

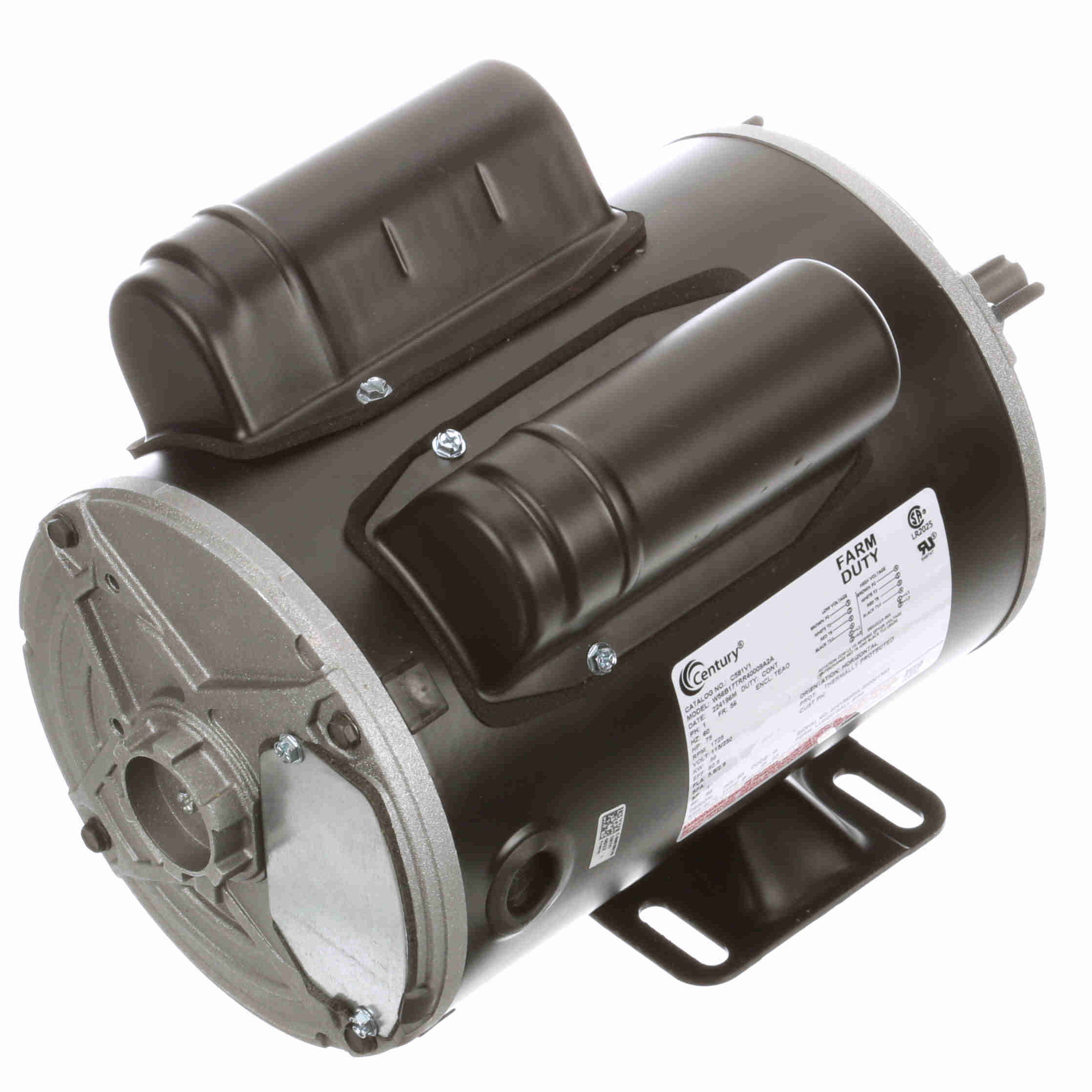

C581V1 Century 0.75HP Belt Drive Fan Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C581V1

Selected accessories will also be added to cart

$160.97 / Each

Quantity:

TEAO, 56 Frame, 115/230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Details

Features

Suitable for belted loads
Automatic reset thermal protector
Fully gasketed

General Specifications

UPC:	786674074614	Weight:	35 LB
Packaged Length:	15.5 IN	Packaged Width:	10.5 IN
Packaged Height:	10 IN

Nameplate Specifications

Output HP:	.75 Hp	Output KW:	0.56 kW
Frequency:	60 Hz	Voltage:	115/230 V
Current:	5.8/2.9 A	Speed:	1725 rpm
Service Factor:	1	Phase:	1
Duty:	Continuous	Insulation Class:	B
Frame:	56	Enclosure:	Totally Enclosed Air Over
Thermal Protection:	Thermally Protected	Ambient Temperature:	40 °C
UL:	Recognized	CSA:	Y
CE:	N

Technical Specifications

Electrical Type:	Shaded Pole	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Mounting:	Rigid base	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	12.49 in
Frame Length:	8.15 in	Shaft Diameter:	0.625 in
Shaft Extension:	2.03 in
