Product ID: 5KC39RN45X

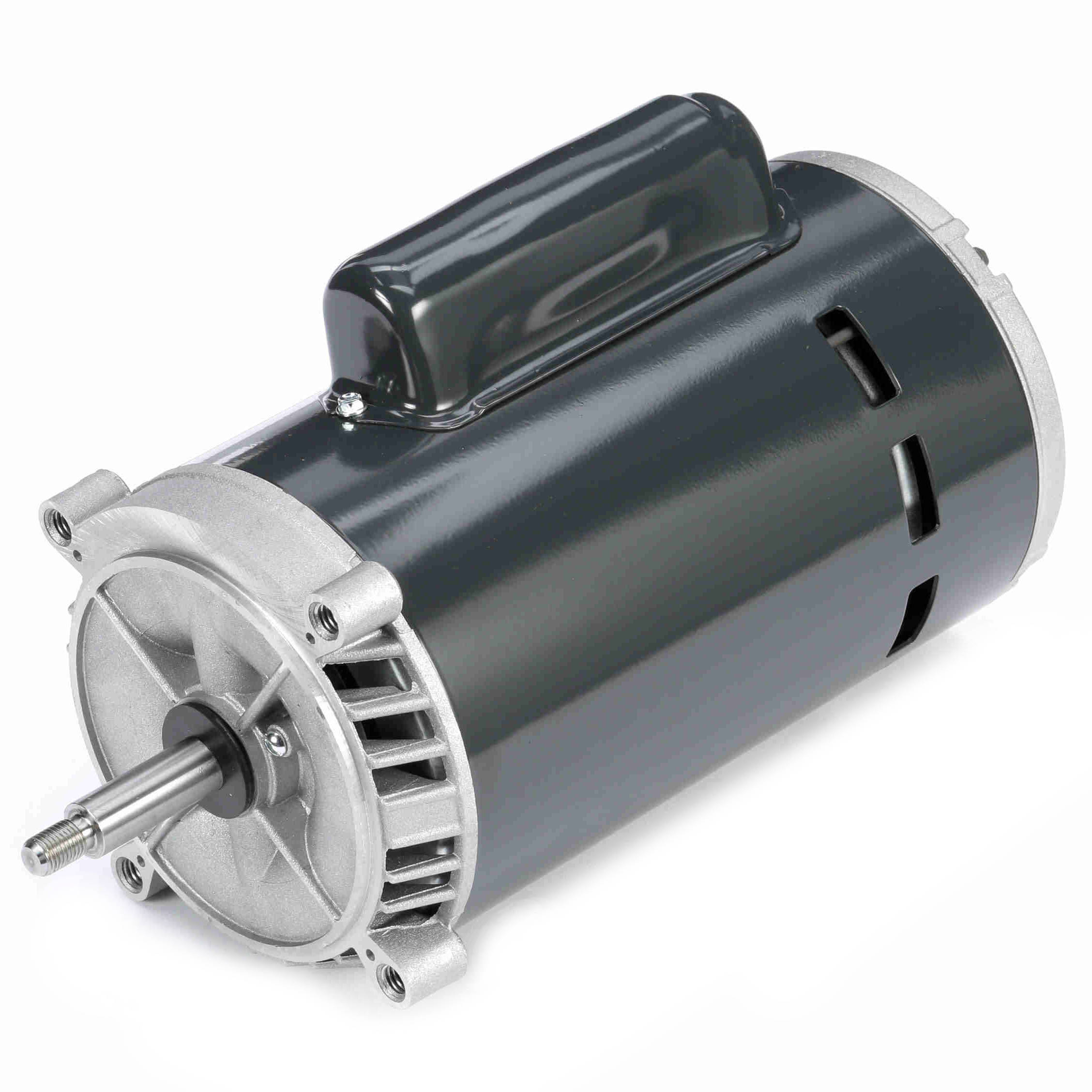

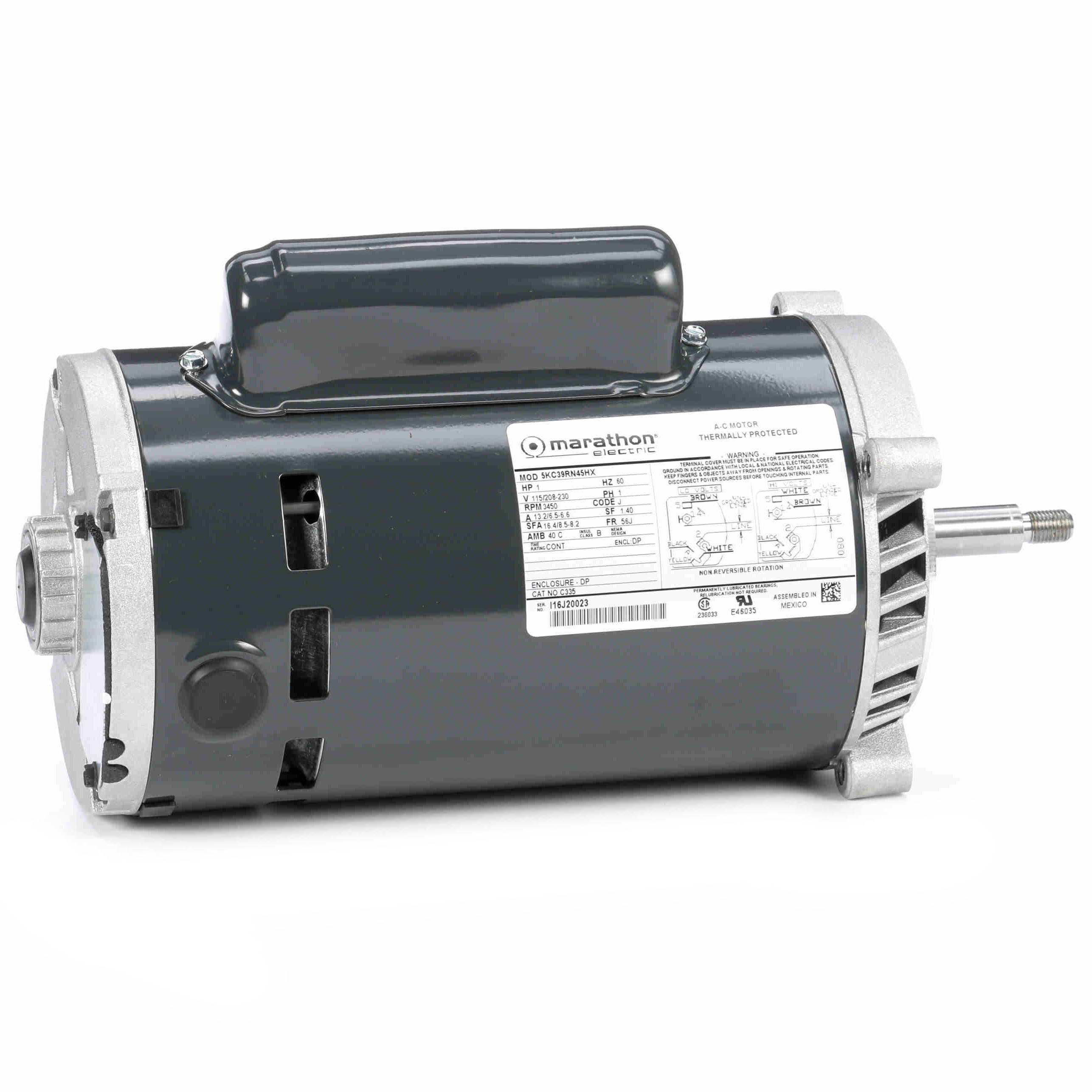

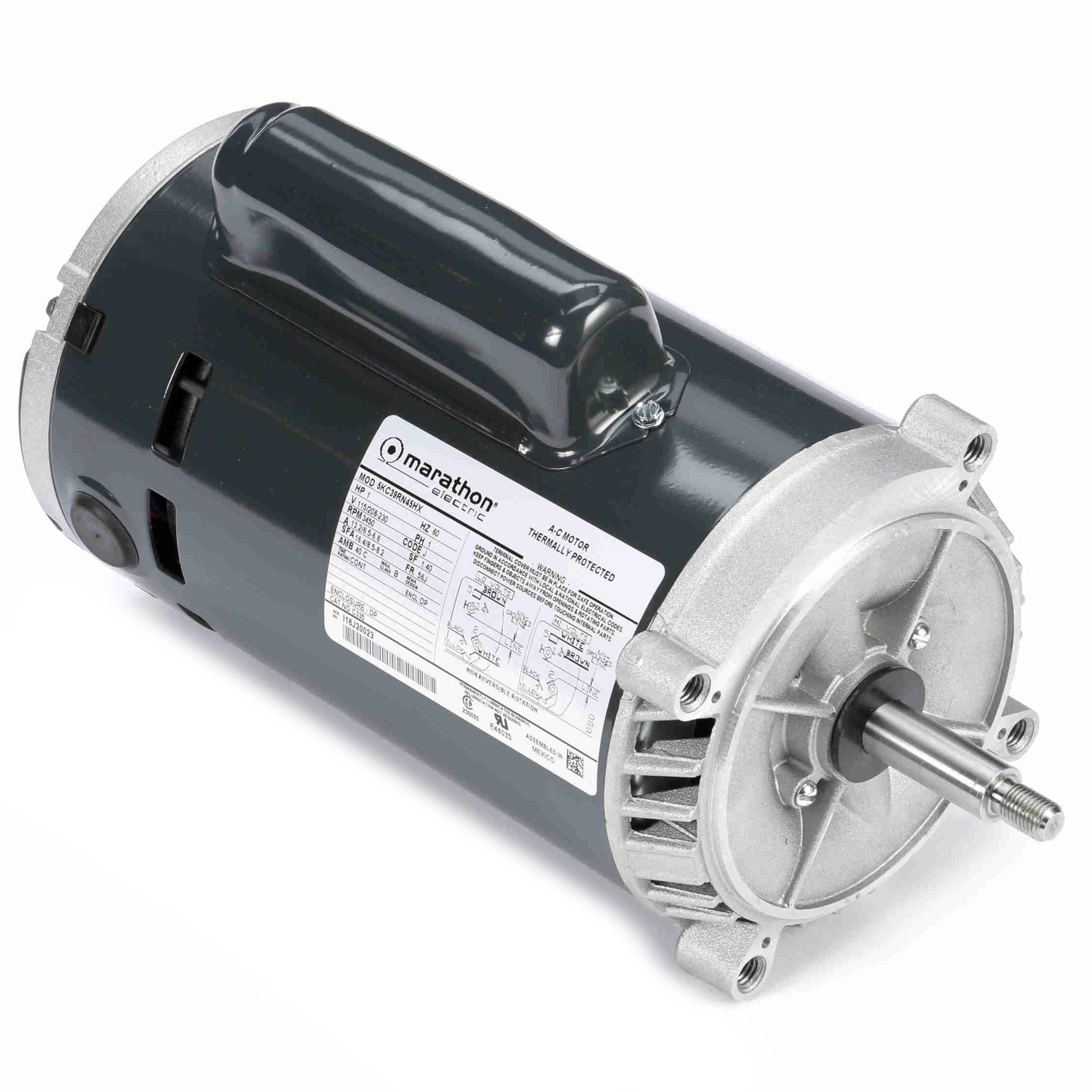

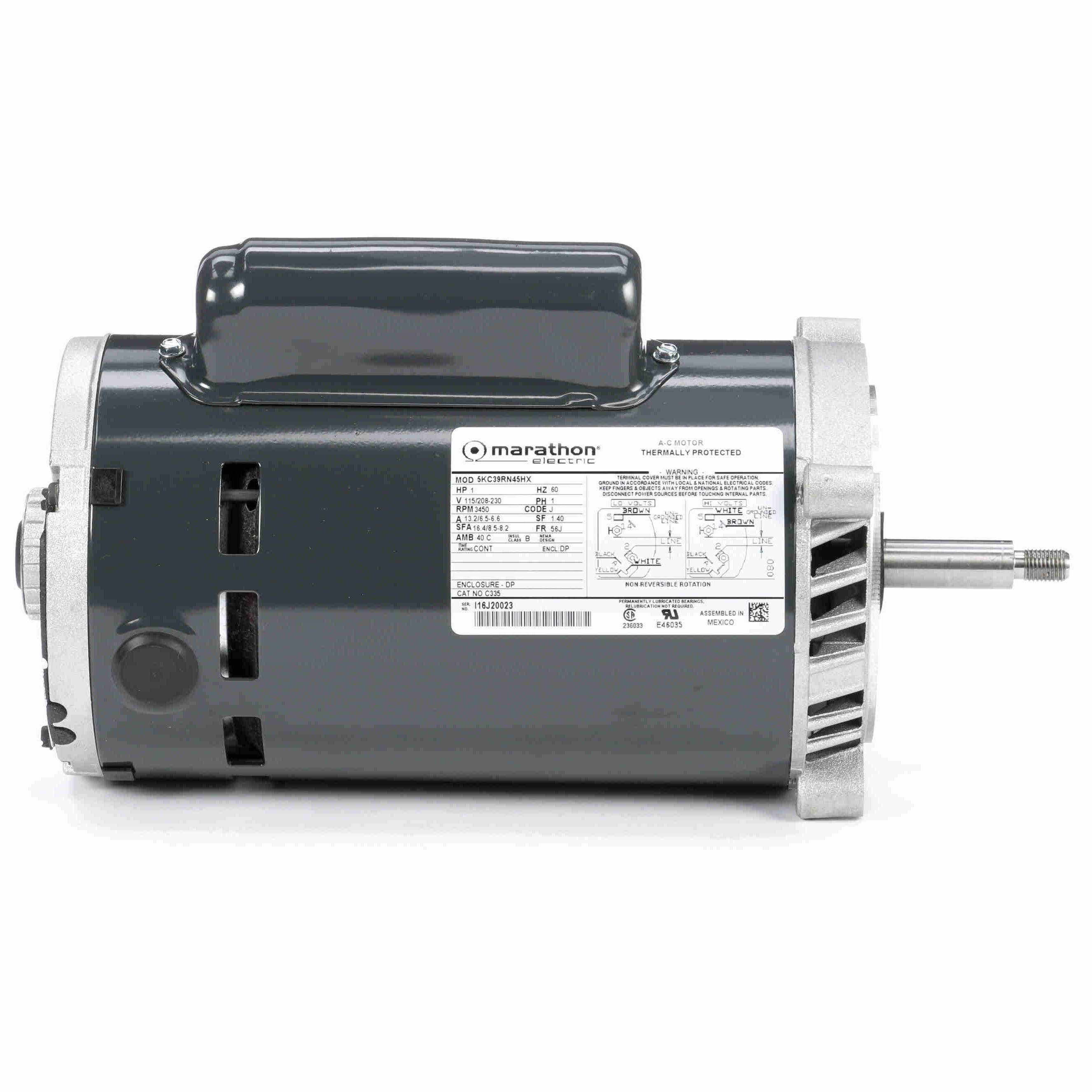

C335 Marathon 1HP General Purpose Pump Electric Motor, 3450RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 5KC39RN45X

Selected accessories will also be added to cart

$369.97 / Each

Quantity:

DP, 56J, 1-Phase, 60Hz 115/208-230V, 5KC39RN45X

Details
Purchase Components

Features

Double sealed ball bearings, mechanically locked on shaft end
Capacitor start/capacitor run design for higher efficiency, as noted
Fixed CW rotation, viewed opposite shaft end
Automatic reset thermal protector
56J = 416 stainless steel threaded shaft with slinger
Drip cover not included, see Accessories Section

General Specifications

Model :	5KC39RN45X	Catalog No :	C335
Part Description :	1,3450,DP,56J,1/60/115/230	Category :	Single Phase
Stock :	Yes

Nameplate Specifications

Output HP :	1 Hp	Output KW :	0.75 kW
Frequency :	60 Hz	Voltage :	115/208-230 V
Current :	13.2,6.5-6.6 A	Speed :	3450 rpm
Service Factor :	1.4	Phase :	1
Efficiency :	68.1 %	Duty :	Continous
Insulation Class :	B	KVA Code :	J
Frame :	56J	Enclosure :	Drip Proof
Overload Protector :	AUTO	Ambient Temperature :	40 °C
Drive End Bearing Size :	6203	Opp Drive End Bearing Size :	6203
UL :	Recognized	CSA :	Yes
CE :	N

Technical Specifications

Electrical Type :	Capacitor start(CSIR)	Starting Method :	SM
Poles :	2	Rotation :	Clockwise
Mounting :	Round	Motor Orientation :	Any
Drive End Bearing :	LOCKED	Opp Drive End Bearing :	BALL
Frame Material :	Rolled Steel	Overall Length :	13.14 in
Frame Length :	8.50 in	Shaft Diameter :	0.630 in
Shaft Extension :	2.39 in	UPC :	722856032119
Weight :	22.00 LB
