/Products/Electric Motors/Single Phase/Century/Farm Duty/C312 Century 3/4HP Farm Duty Electric Motor, 1725RPM
Click Image to Expand

Product ID: C312

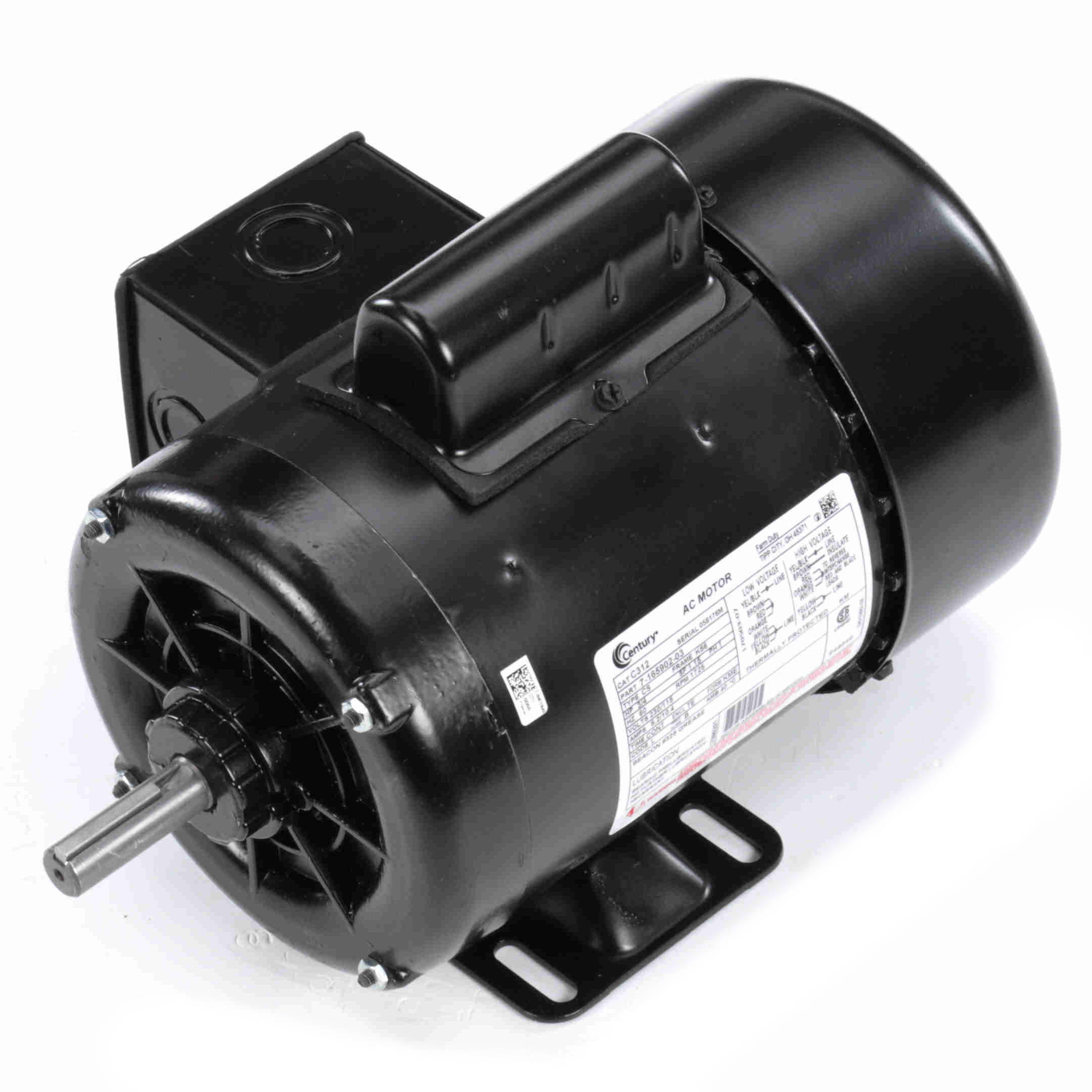

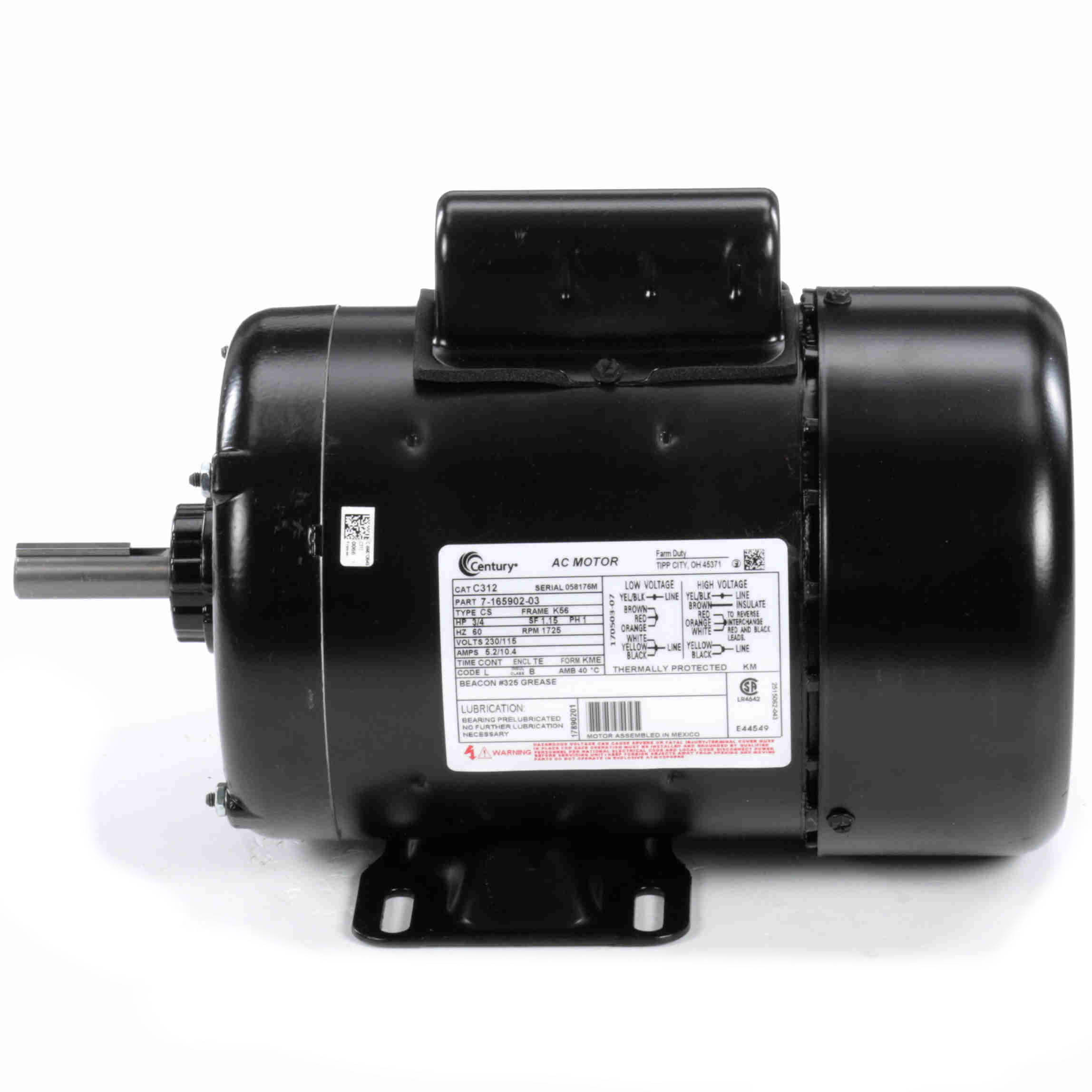

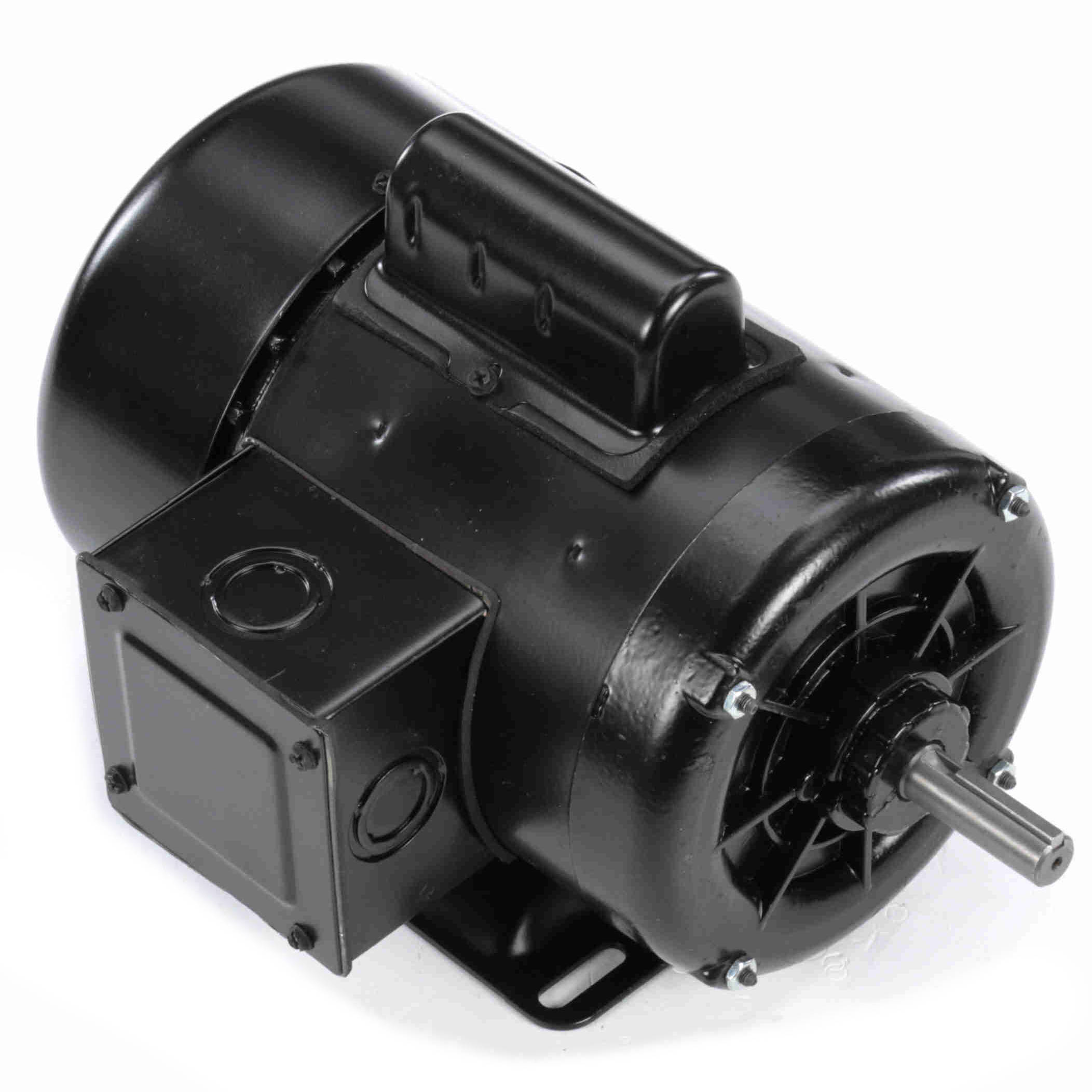

C312 Century 3/4HP Farm Duty Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C312

Selected accessories will also be added to cart
$358.97 / Each
Quantity:
TEFC, 56 Frame, 115/230V Single Phase 60Hz, Rigid Base

Features

Features
  • Shaft end mechanically locked on C-face models
  • Shaft slinger
  • Low temperature manual reset thermal protector
  • Condensate drains

General Specifications

General Specifications
Model : Catalog No :C312
Part Description :3/4,1725,TEFC,56,1/60/230/115 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :3/4 HP Output KW :0.56 kW
Frequency :60 Hz Voltage :230/115 V
Current :5.2/10.4 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Duty :Continuous Insulation Class :B
Frame :K56 Enclosure :Totally Enclosed Fan Cooled
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible Counterclockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :12.61 in
Frame Length :5.50 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674015679
Weight :32.00 LB

Speed & Load Characteristics
