/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/C244 Century 3/4HP Hot Water Circulator Pump Electric Motor, 1725RPM
Click Image to Expand

Product ID: C244

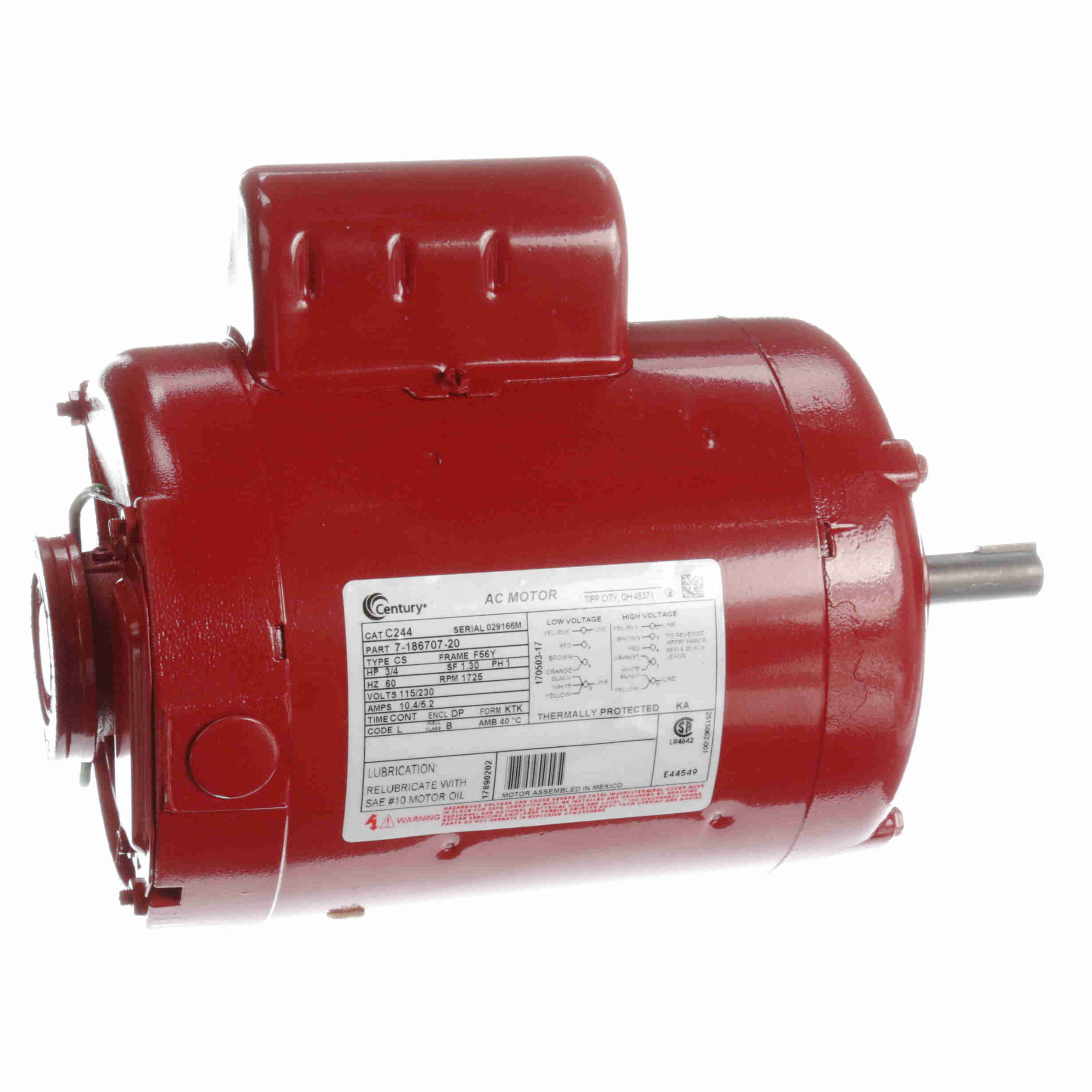

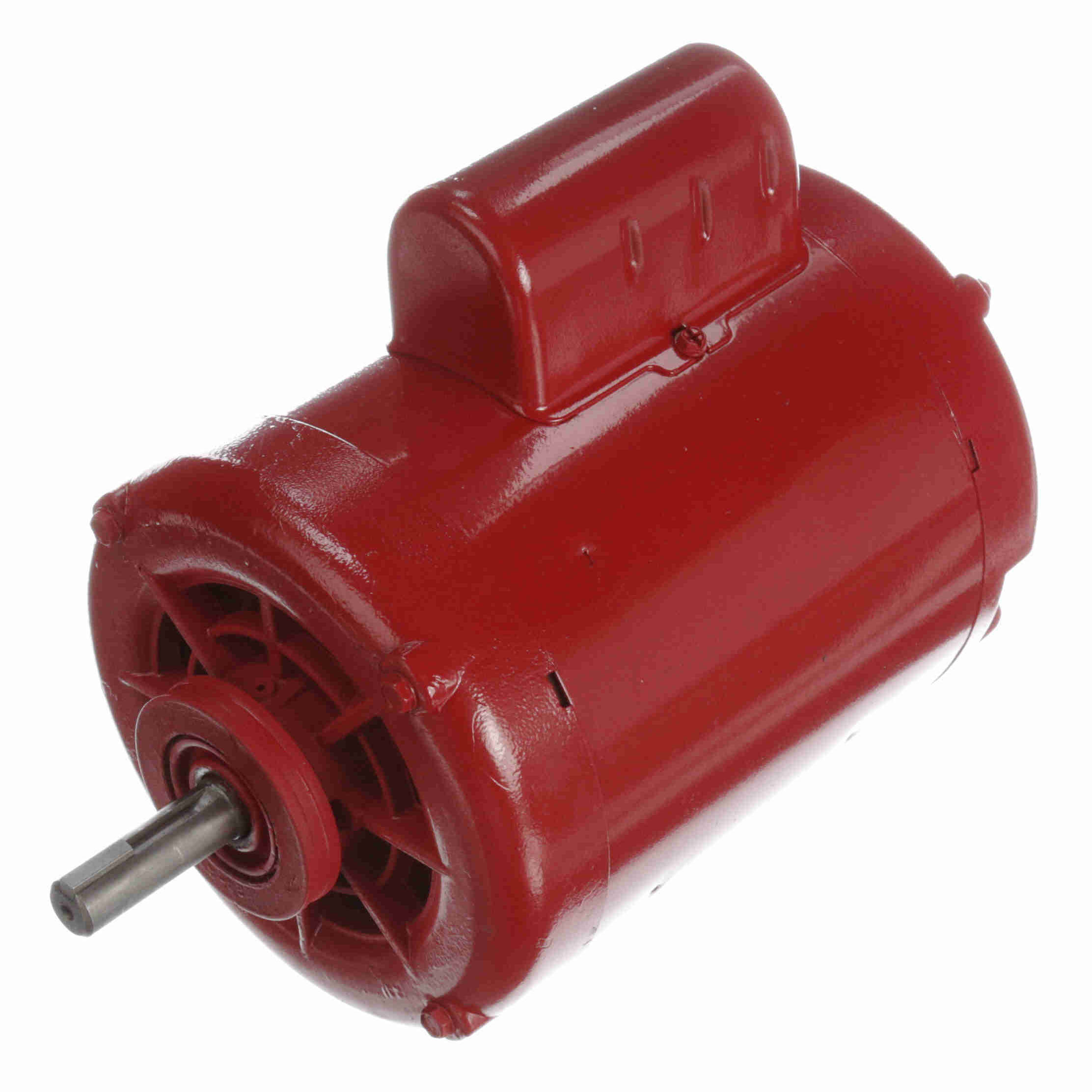

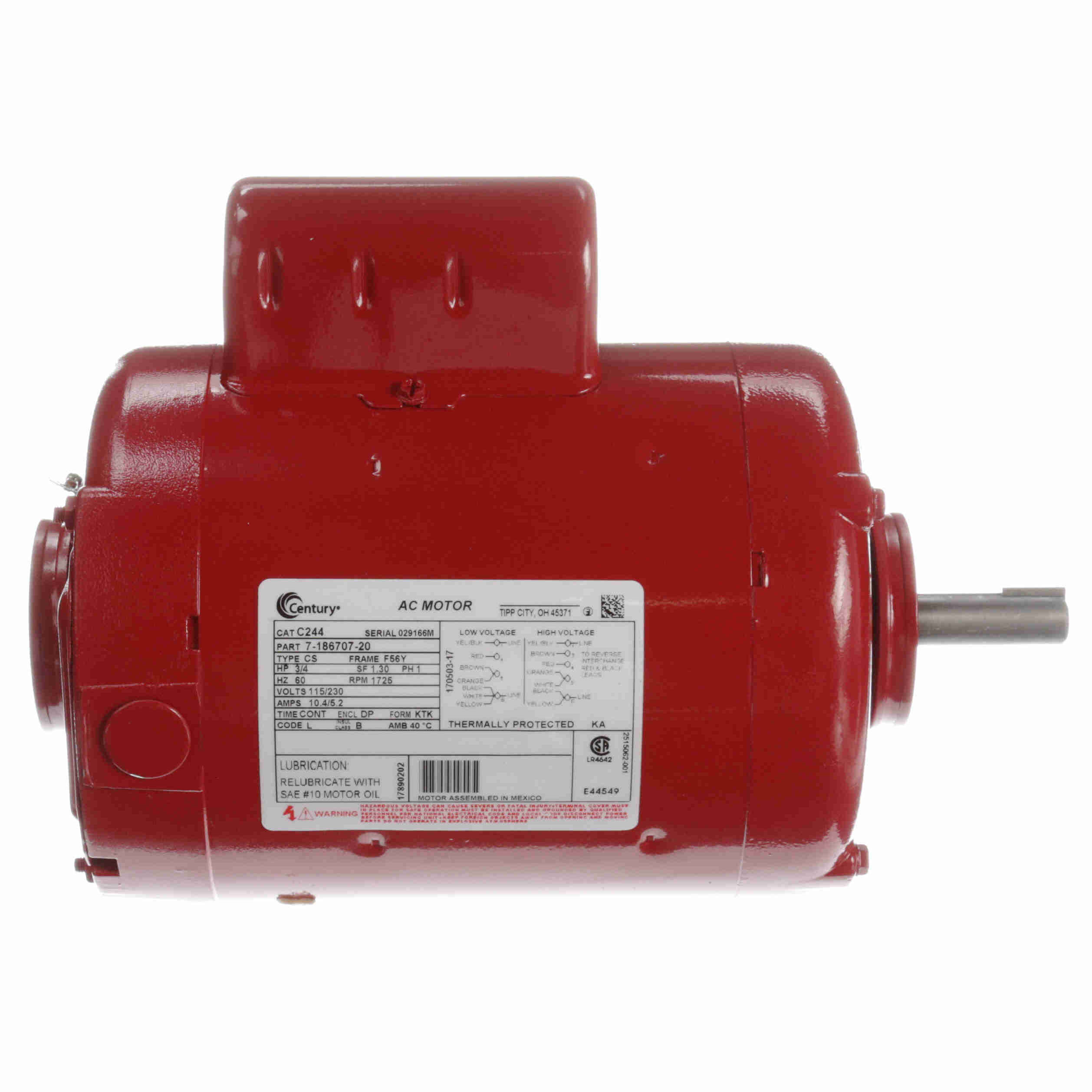

C244 Century 3/4HP Hot Water Circulator Pump Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C244

Selected accessories will also be added to cart
$540.97 / Each
Quantity:
Drip Proof, 56Y Frame, 115/230VAC Single Phase 60Hz, Cushion Ring

Features

Features
  • Automatic reset thermal protector

General Specifications

General Specifications
C244
3/4,1725,DP,56Y,1/60/115/230 Circulator pump
Yes

Nameplate Specifications

Nameplate Specifications
3/4 HP 0.56 kW
60 Hz 115/230 V
10.4/5.2 A 1725 RPM
1.3 1
Continuous B
F56Y Drip Proof
Thermally Protected 40 °C
Recognized Y
N

Technical Specifications

Technical Specifications
Capacitor Start, Induction Run, Single Or Dual Voltage Across The Line
4 Reversible Clockwise
Cushion Ring Sleeve
Sleeve Rolled Steel
Keyed 11.69 in
5.75 in 0.625 in
1.94 in 786674015549
26.00 LB

Speed & Load Characteristics
