/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/C243 Century 3/4HP Hot Water Circulator Pump Electric Motor, 1725RPM
Click Image to Expand

Product ID: C243

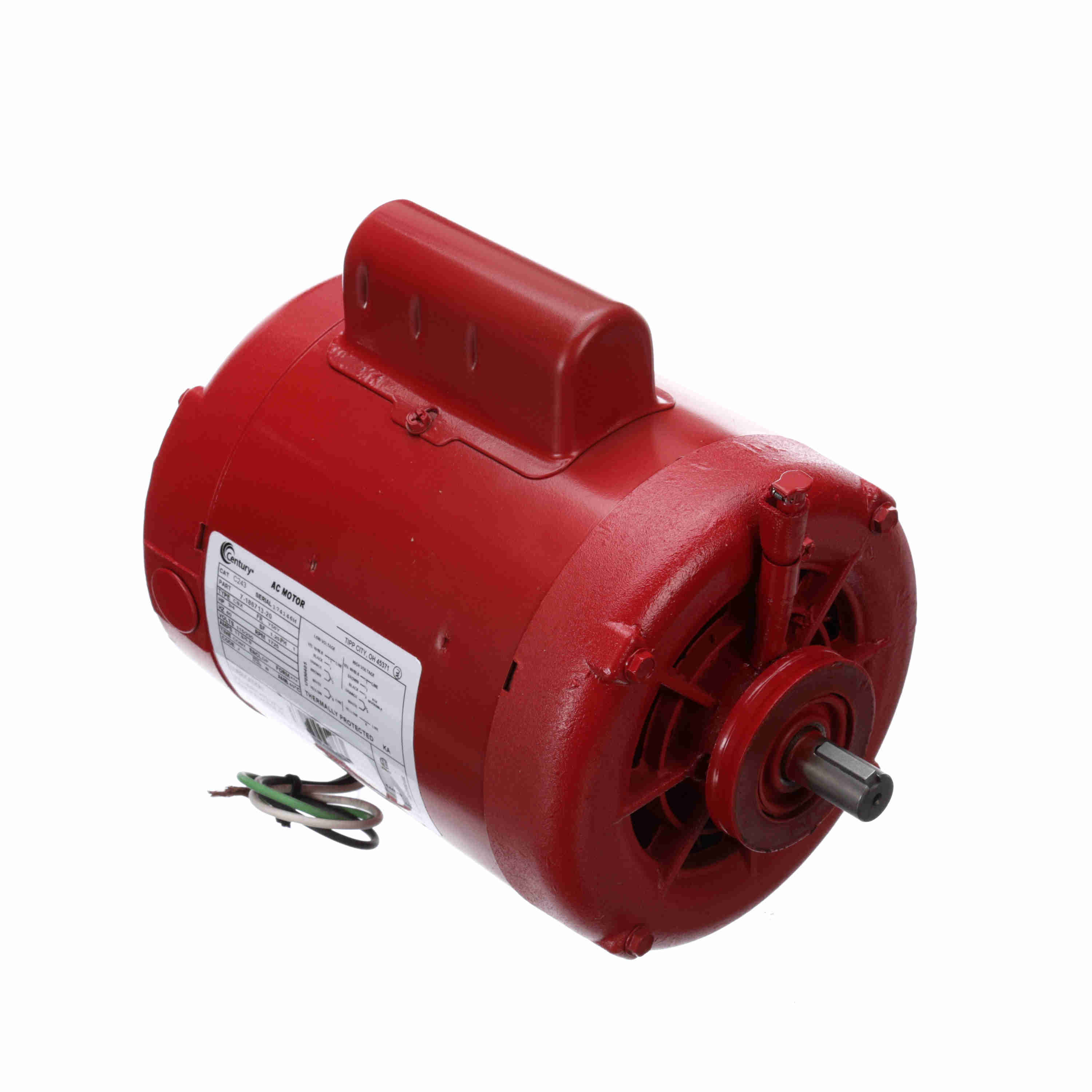

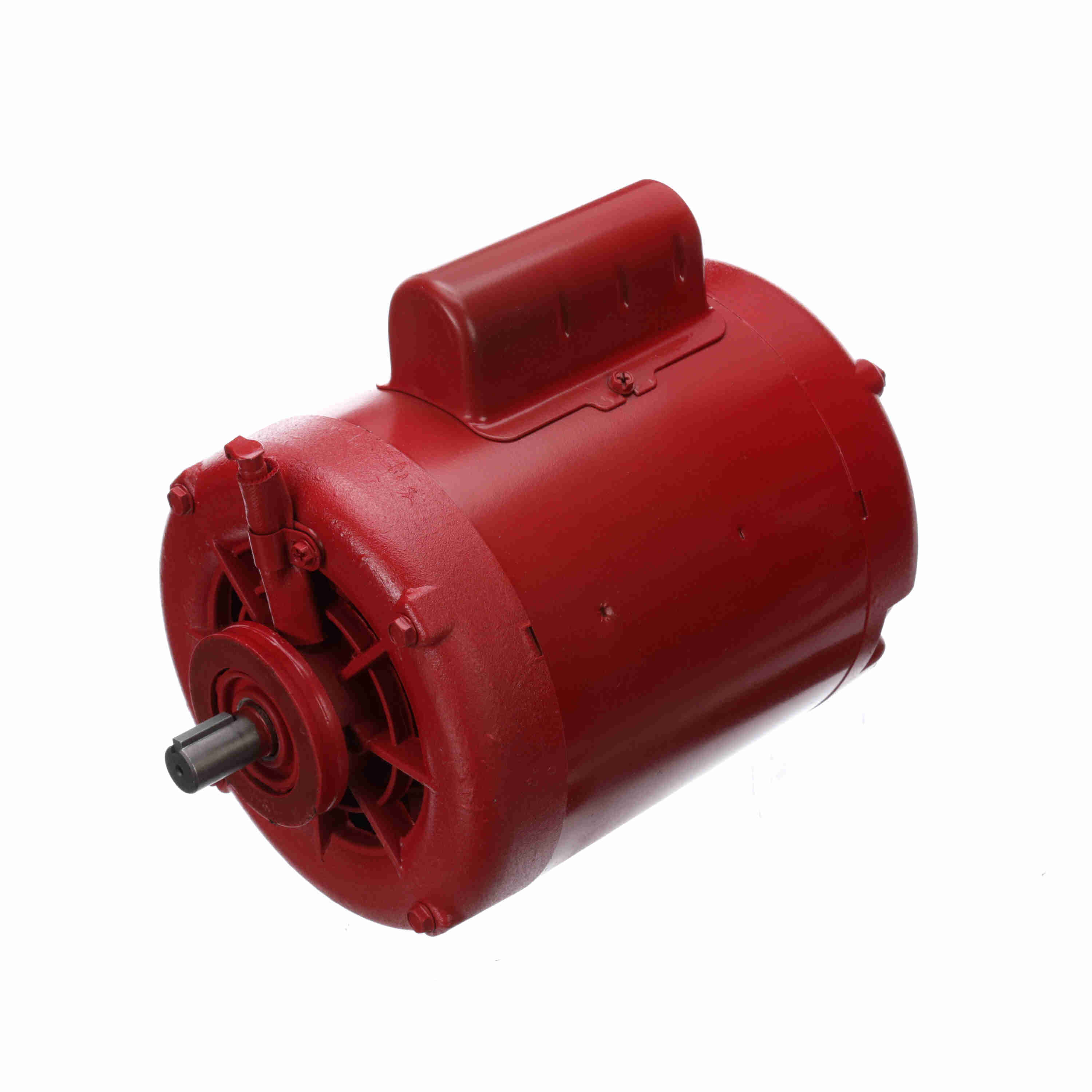

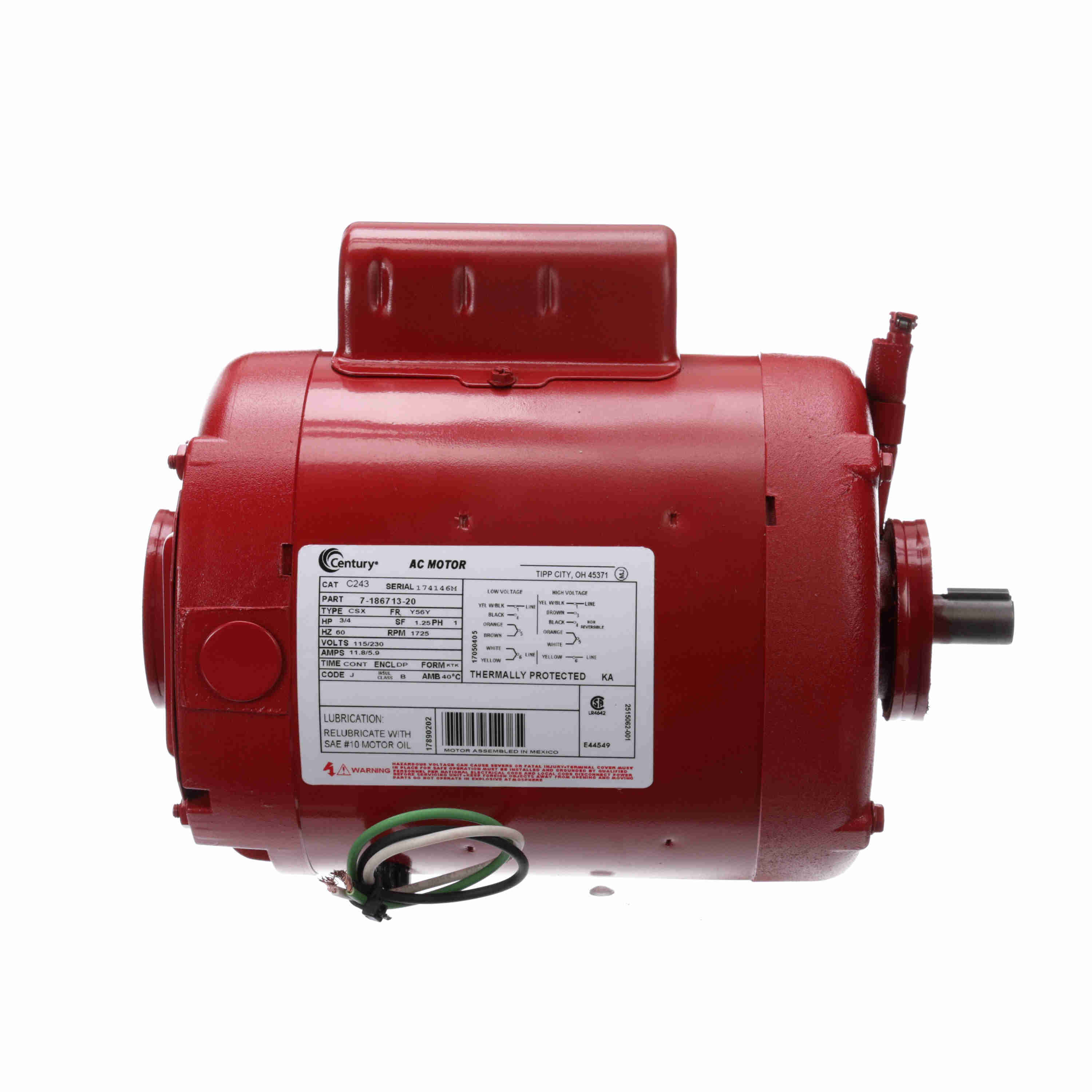

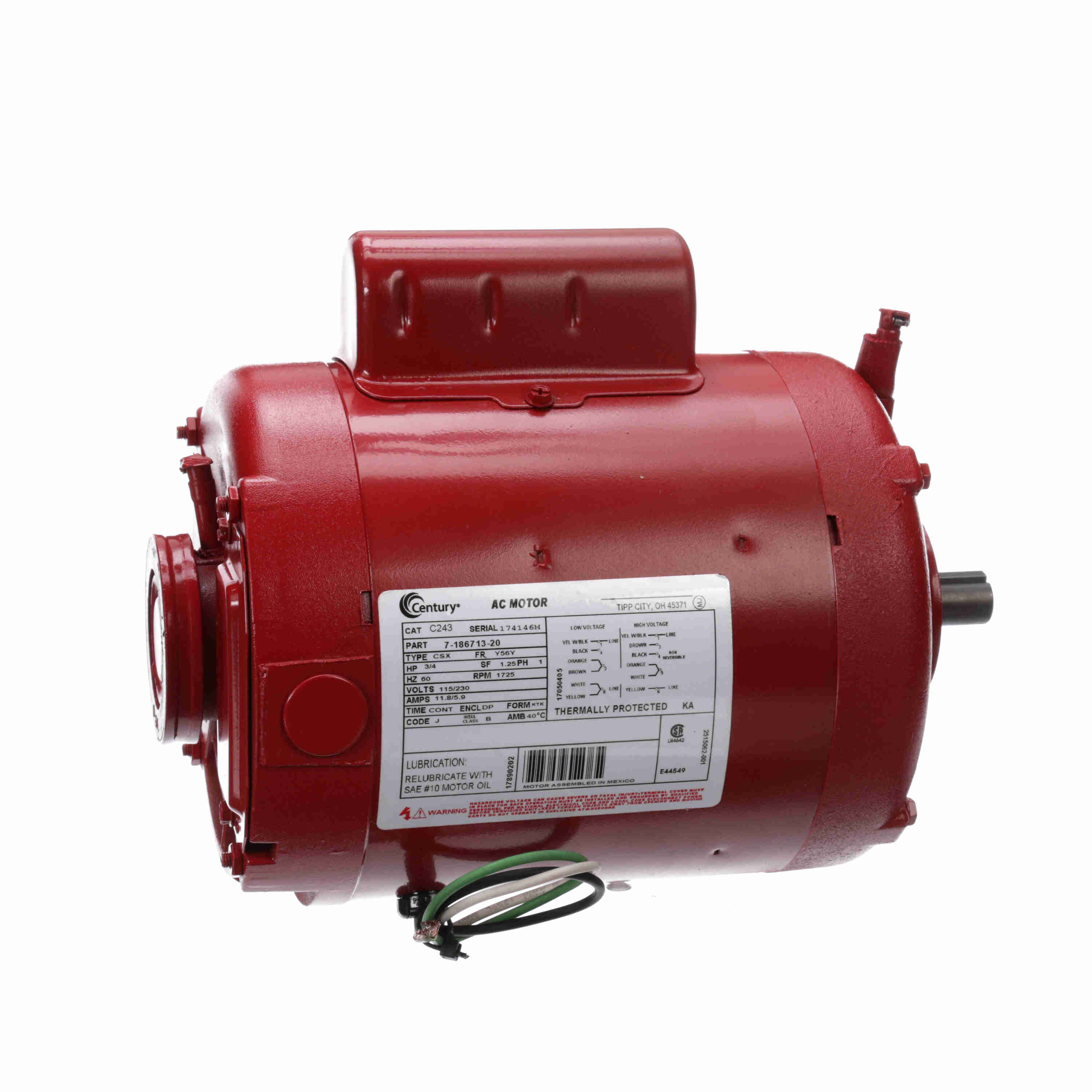

C243 Century 3/4HP Hot Water Circulator Pump Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C243

Selected accessories will also be added to cart
$111.97 / Each
Quantity:
Drip Proof, 56Y Frame, 115/230VAC Single Phase 60Hz, Cushion Ring

Features

Features
  • Automatic reset thermal protector

General Specifications

General Specifications
C243
3/4,1725,DP,56Y,1/60/115/230 Circulator pump
Yes

Nameplate Specifications

Nameplate Specifications
3/4 HP 0.56 kW
60 Hz 115/230 V
11.8/5.9 A 1725 RPM
1.25 1
Continuous B
Y56Y Drip Proof
Thermally Protected 40 °C
Recognized Y
N

Technical Specifications

Technical Specifications
Capacitor Start, Induction Run, Low Starting Torque, Single Or Dual Voltage Across The Line
4 Clockwise
Cushion Ring Sleeve
Sleeve Rolled Steel
Keyed 10.53 in
5.29 in 0.625 in
1.18 in 786674015532
21.00 LB

Speed & Load Characteristics
