/Products/Electric Motors/Single Phase/Marathon/Farm Duty/TEAO, Rigid/Resilient Base/C1909 Marathon 1.5HP General Purpose Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: 5KCR49ZN0785S

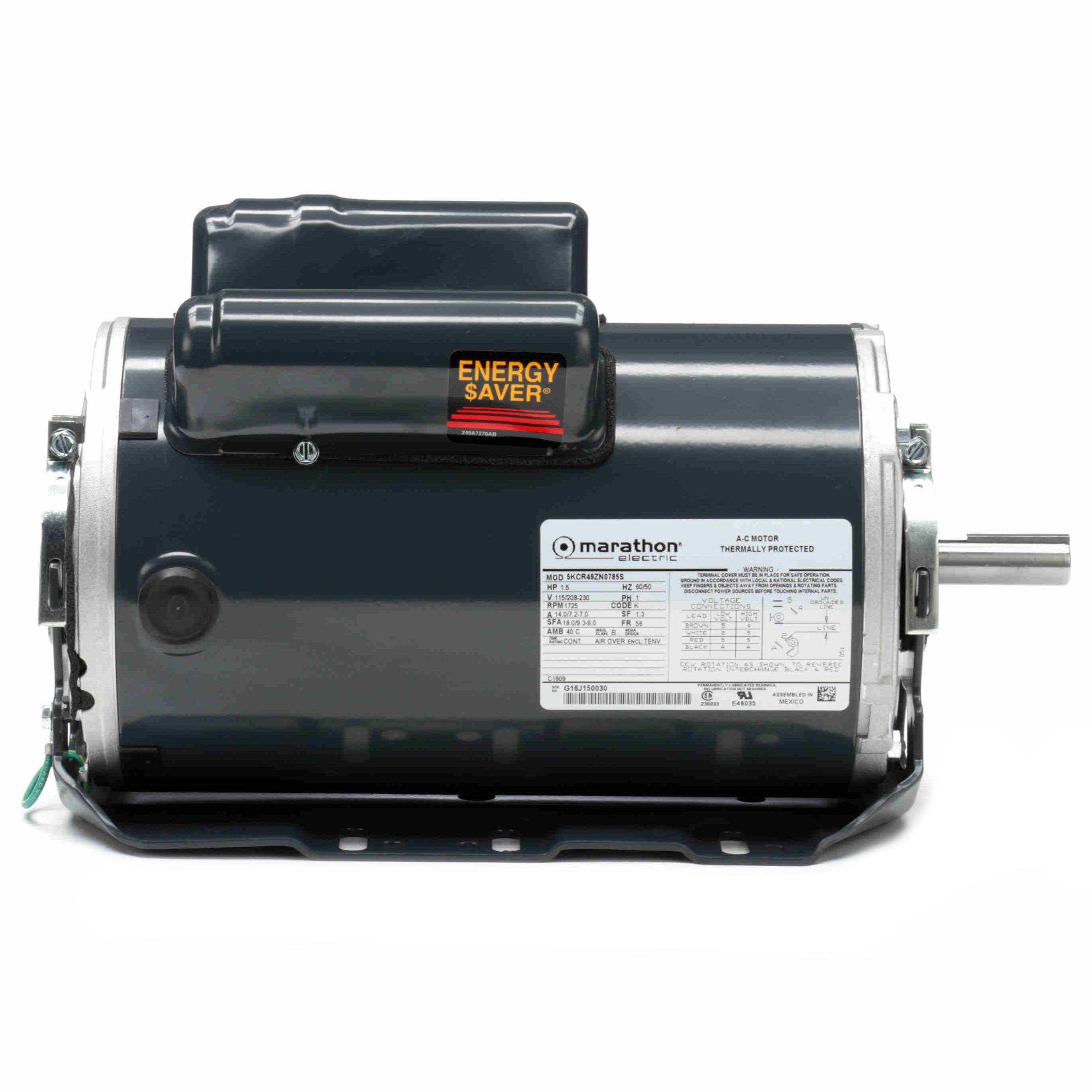

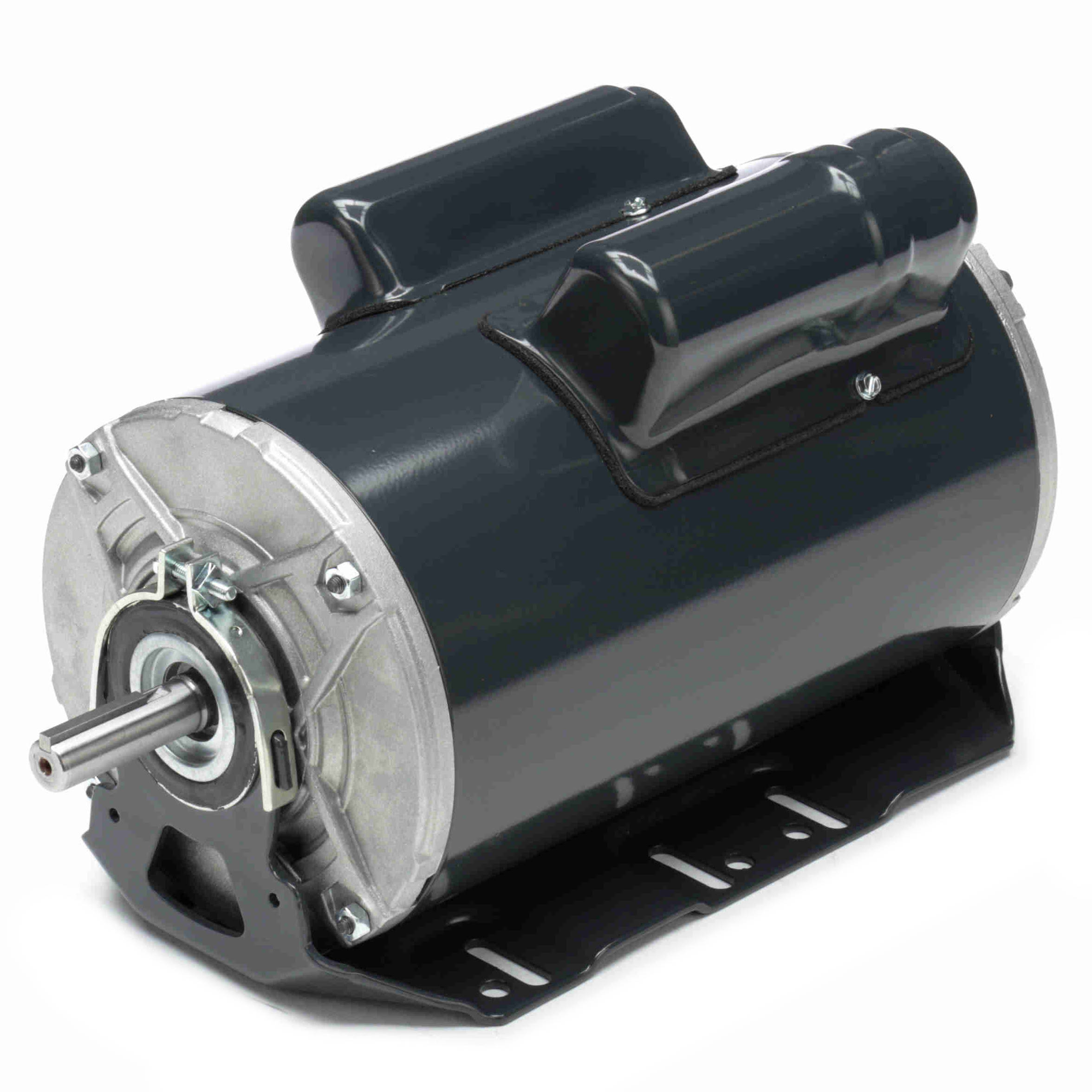

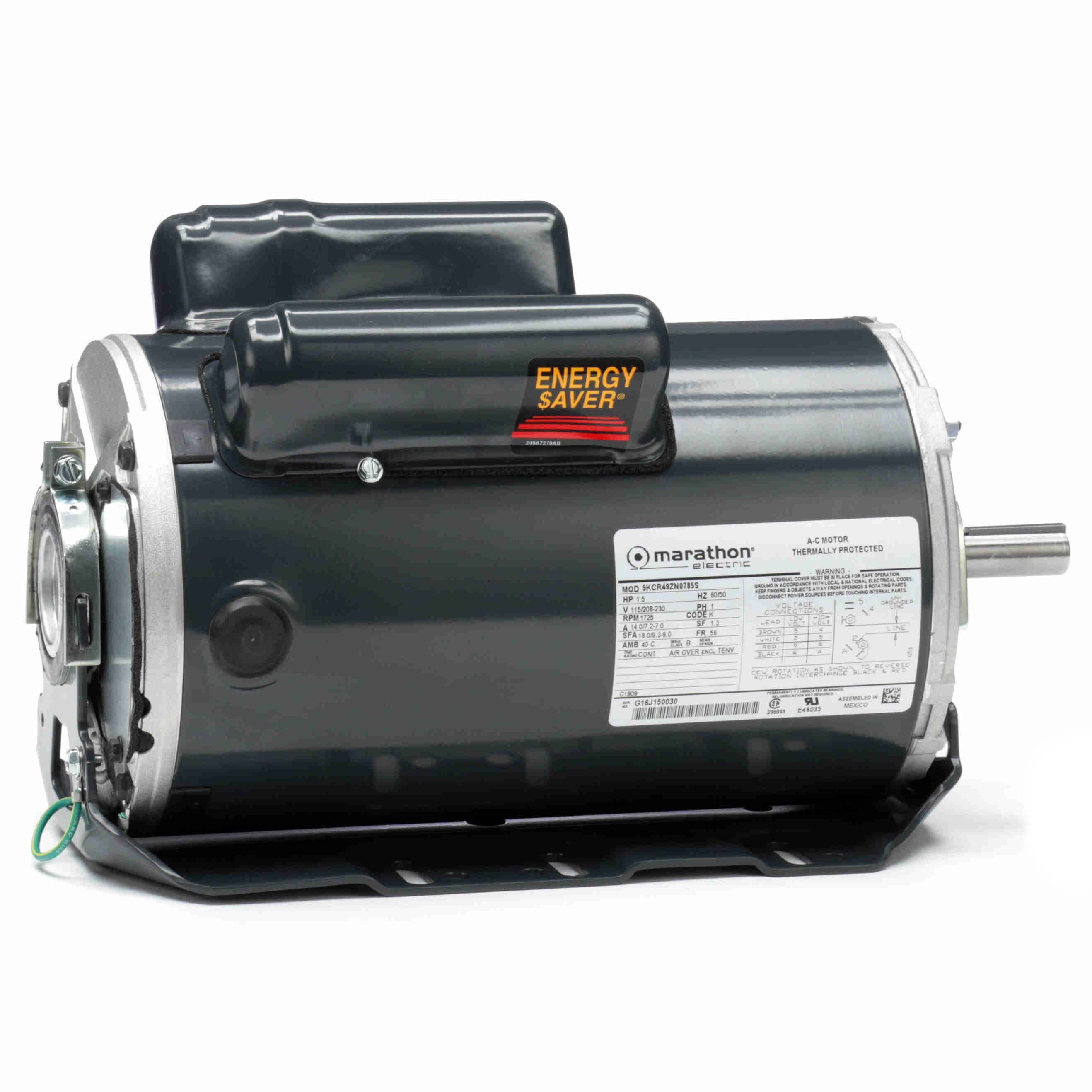

C1909 Marathon 1.5HP General Purpose Farm Duty Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 5KCR49ZN0785S

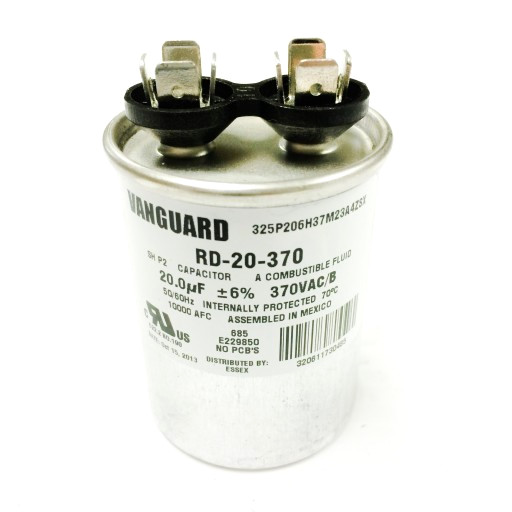

Selected accessories will also be added to cart
$699.97 / Each
Quantity:
TENV, 56 Frame, 115/208-230VAC 60Hz Single Phase, Resilient Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Capacitor start/capacitor run design for reduced amperage
  • Designed for 50 Hz operation
  • Fully Gasketed
  • Shaft ext 3-13/16" L by 5/8" dia., 3.5" keyway

General Specifications

UPC: 722856028143 Weight: 49.00 LB
Packaged Length: 15.14 IN Packaged Width: 10.19 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 1.5 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 14.0,7.2-7.0 A Speed: 1725 rpm
Service Factor: 1.3 Phase: 1
Efficiency: 78.5 % Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: K Frame: 56
Enclosure: Totally Enclosed Non Ventilated Thermal Protection: AUTO
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: SM
Poles: 4 Rotation: Counterclockwise/Clockwise
Mounting: Resilient Base Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Frame Material: Rolled Steel Overall Length: 13.96 in
Frame Length: 9.63 in Shaft Diameter: 0.63 in
Shaft Extension: 1.88 in
