Product ID: C1480

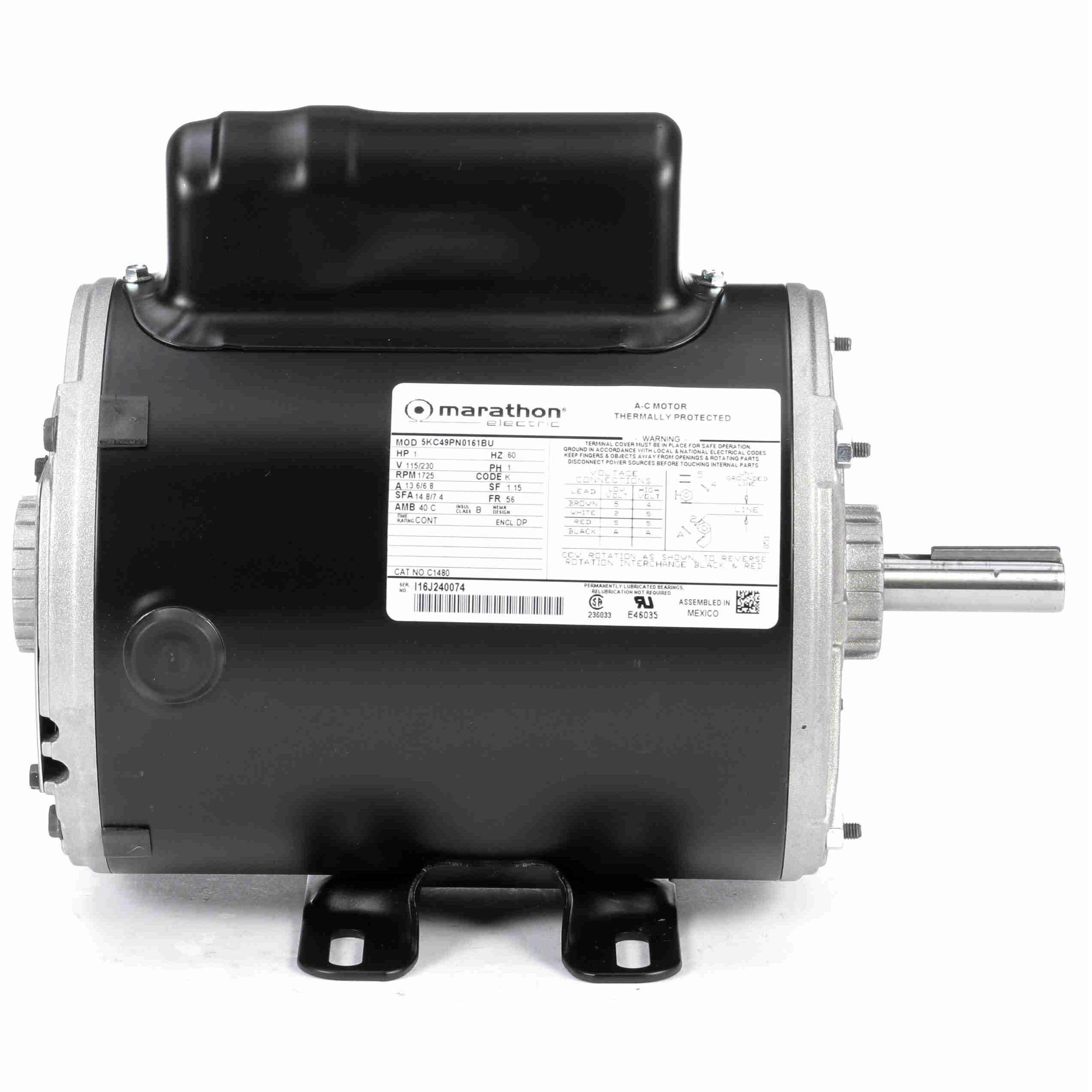

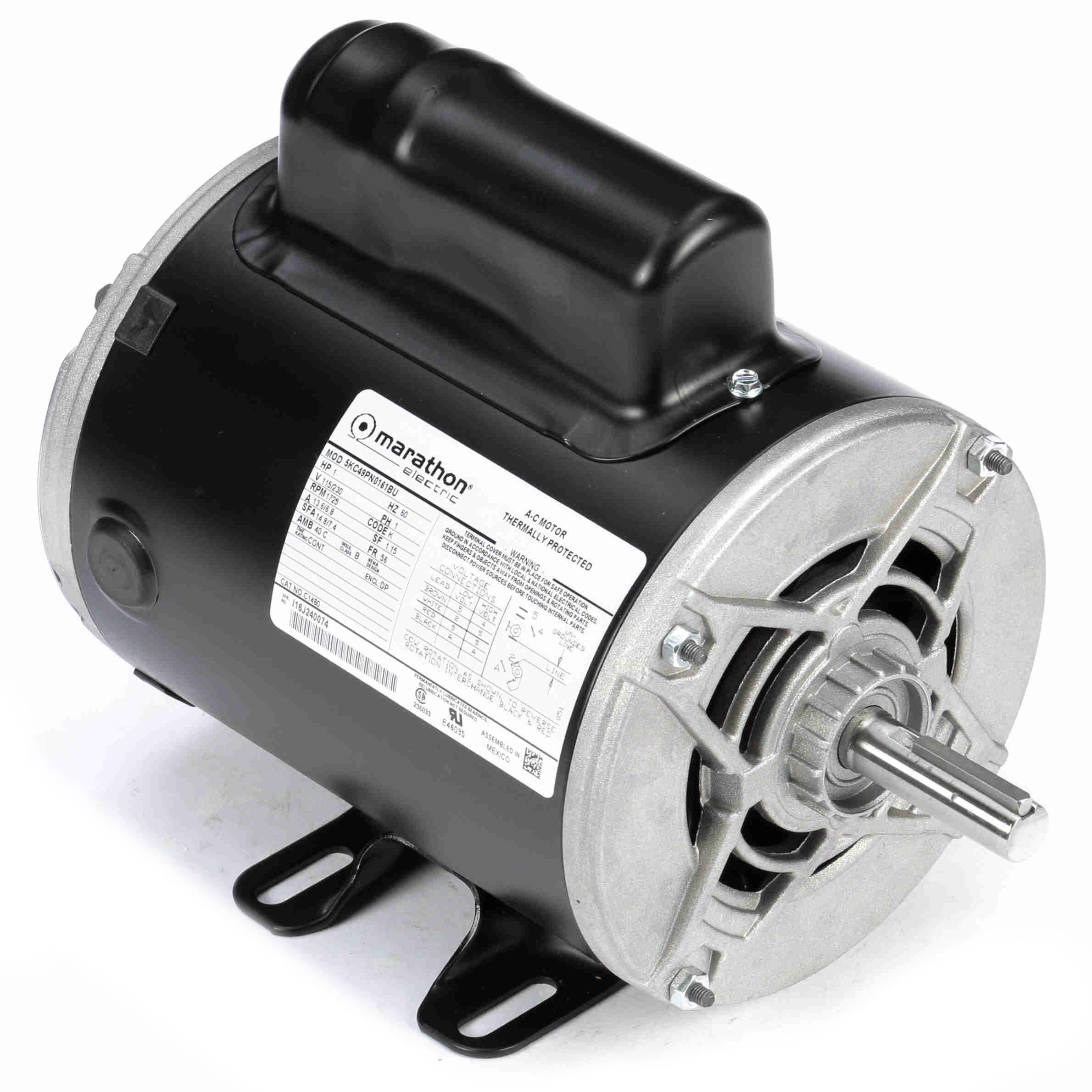

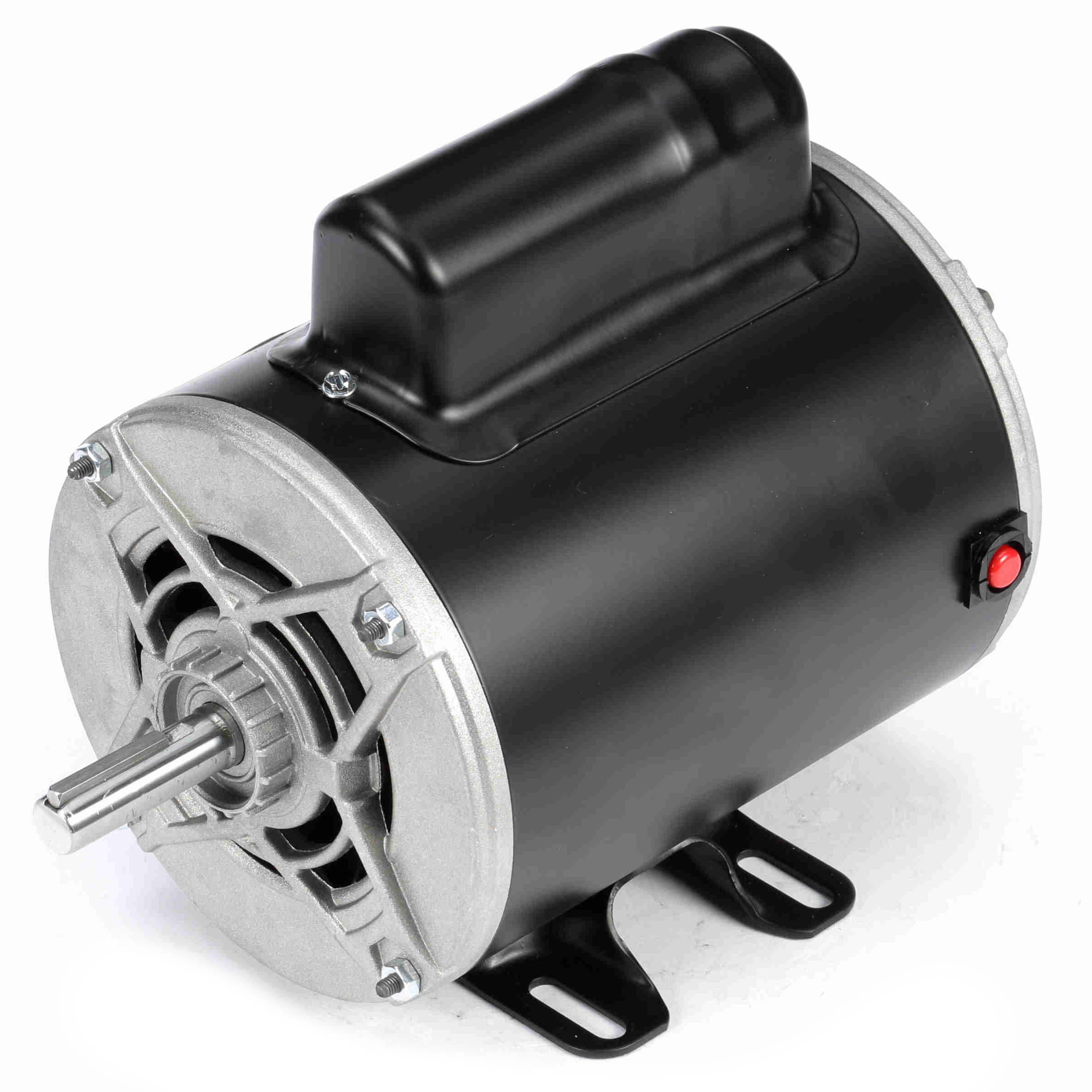

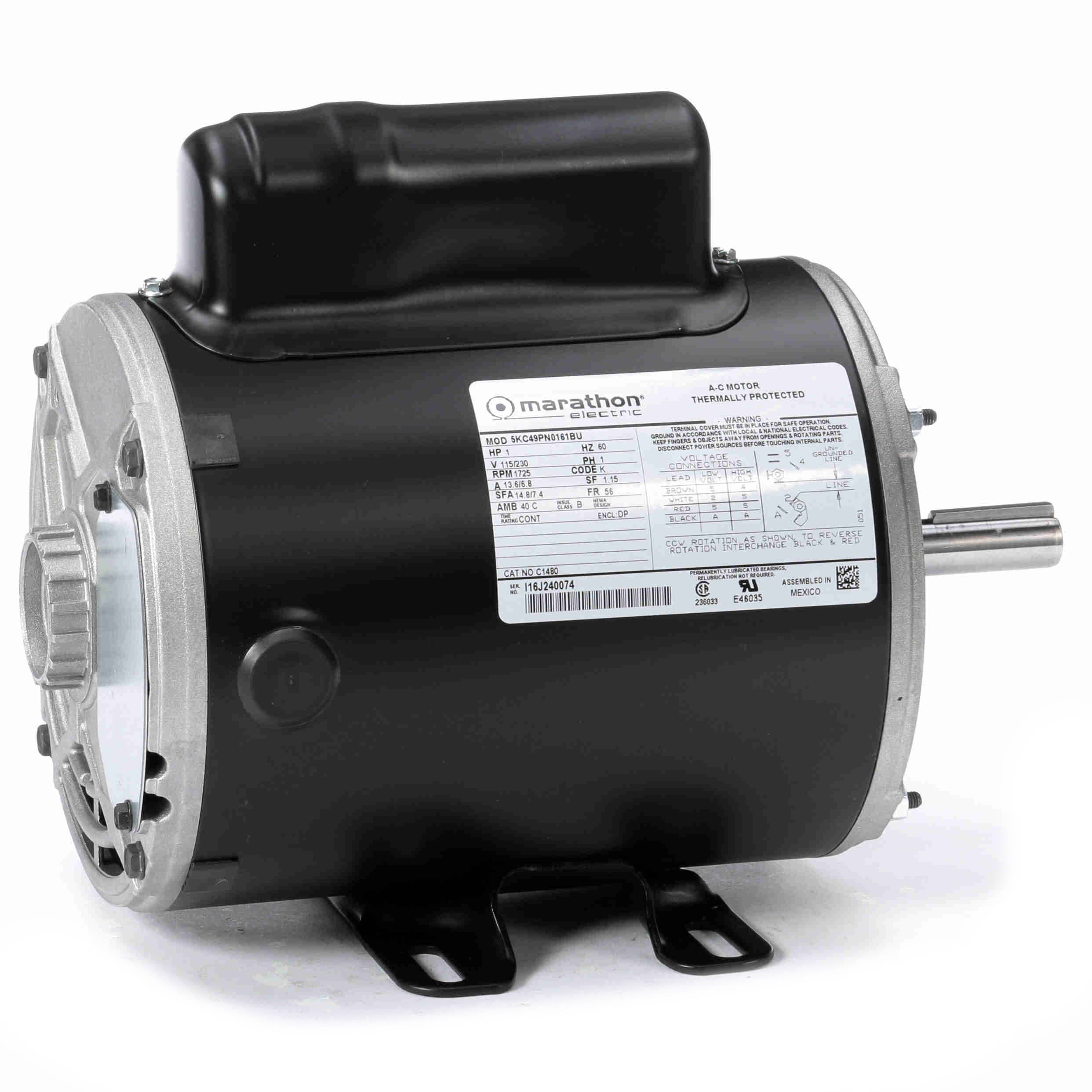

C1480 Marathon 1HP Pressure Washer Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 5KC49PN0161U

Selected accessories will also be added to cart

$619.97 / Each

Quantity:

ODP, 56 Frame, 115/230VAC 60Hz Single Phase, 5KC49PN0161U, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Features

Heavy gauge steel frame and base
Capacitor start induction run design

General Specifications

UPC:	722856049193	Weight:	31.00 LB
Packaged Length:	13.69 IN	Packaged Width:	7.13 IN
Packaged Height:	7.5 IN

Nameplate Specifications

Output HP:	1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	115/230 V
Current:	13.6,6.8 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	68 %	Power Factor:	0
Duty:	Continuous	Insulation Class:	B
KVA Code:	K	Frame:	56
Enclosure:	Drip Proof	Thermal Protection:	MAN
Ambient Temperature:	40 °C	Drive End Bearing Size:	6203
Opp Drive End Bearing Size:	6203	UL:	Recognized
CSA:	Yes	CE:	N

Technical Specifications

Electrical Type:	Capacitor Start Induction Run	Starting Method:	SM
Poles:	4	Rotation:	Counterclockwise/Clockwise
Mounting:	Rigid Base	Motor Orientation:	ANY
Drive End Bearing:	BALL	Opp Drive End Bearing:	BALL
Frame Material:	Rolled Steel	Overall Length:	11.38 in
Frame Length:	7.15 in	Shaft Diameter:	0.63 in
Shaft Extension:	1.88 in
