Product ID: C1158

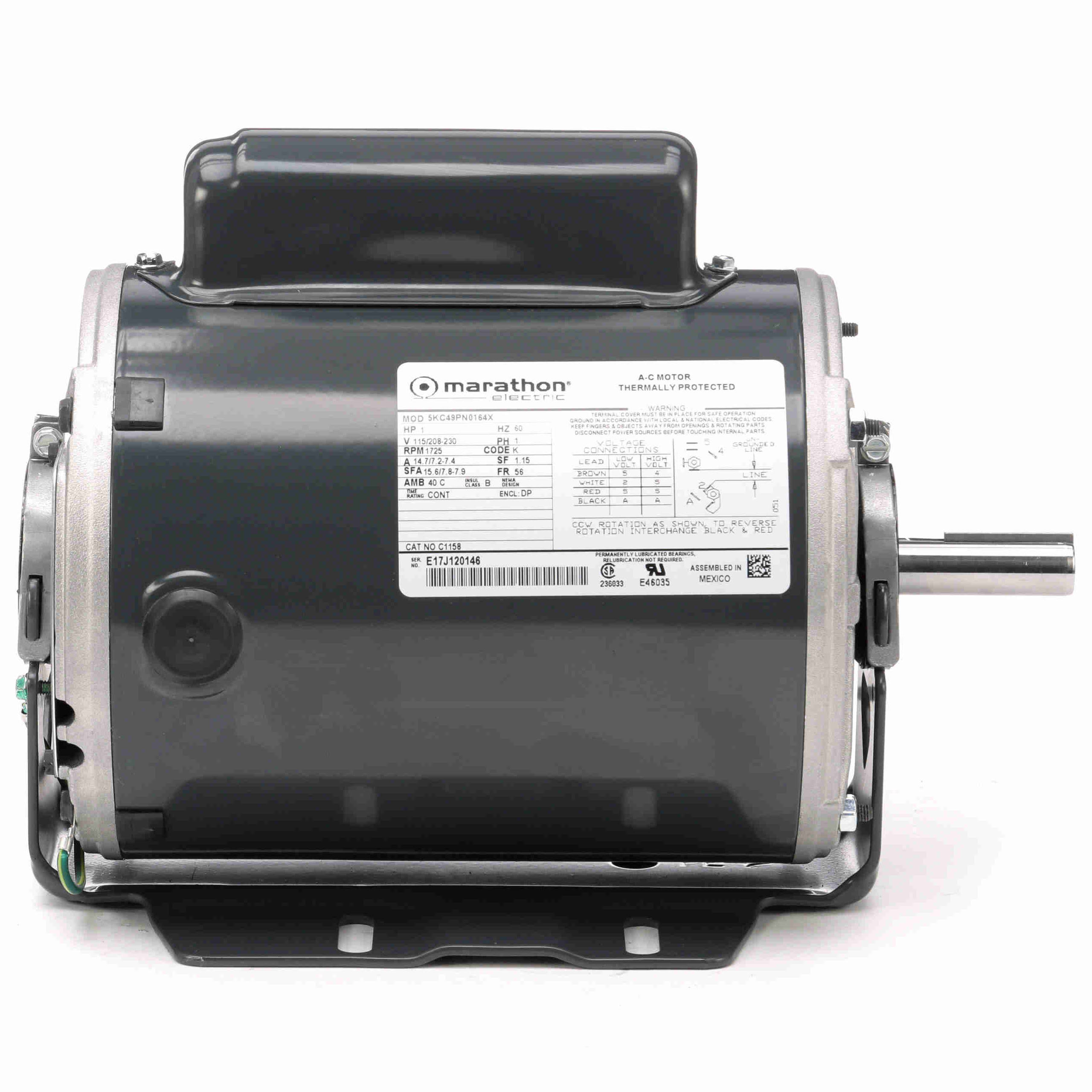

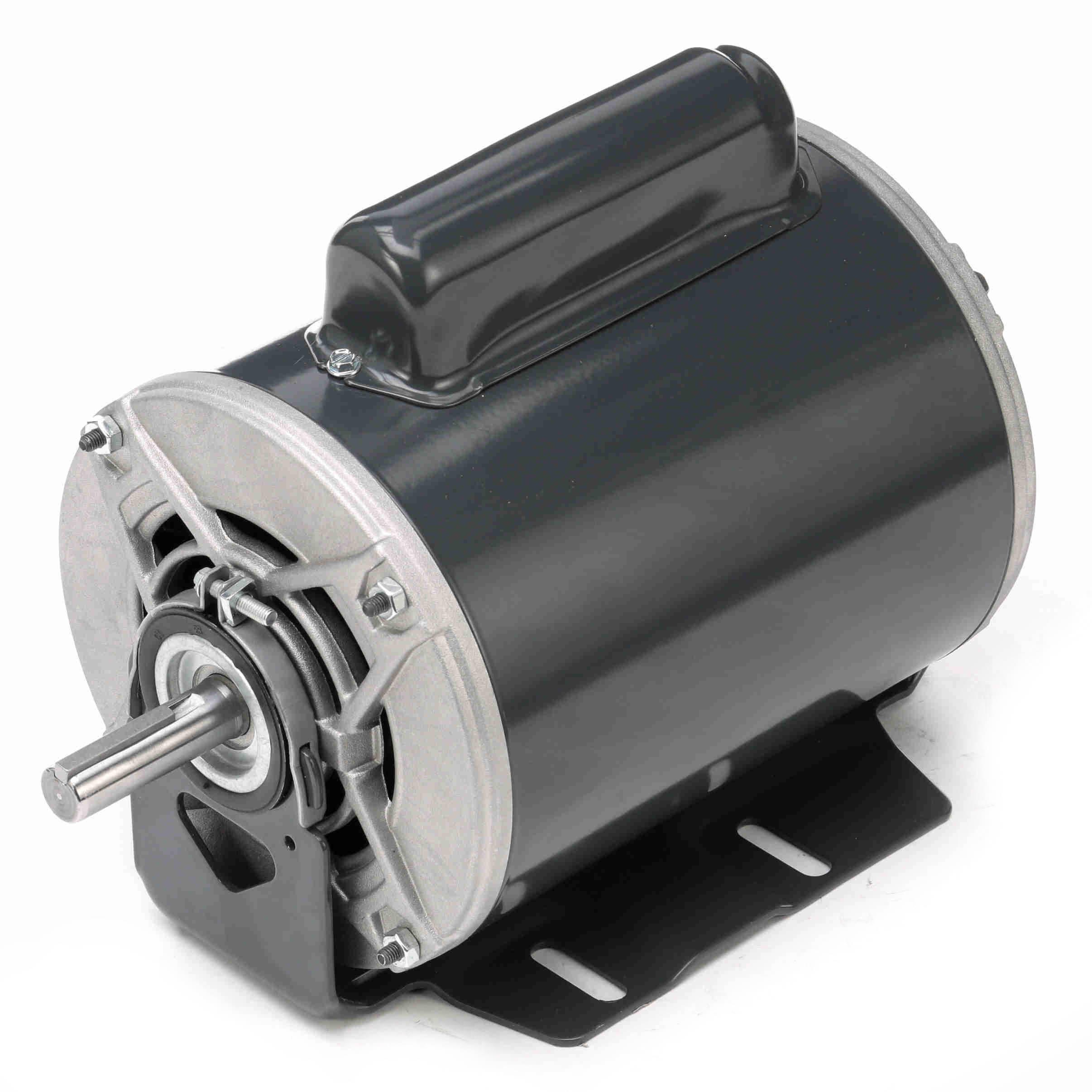

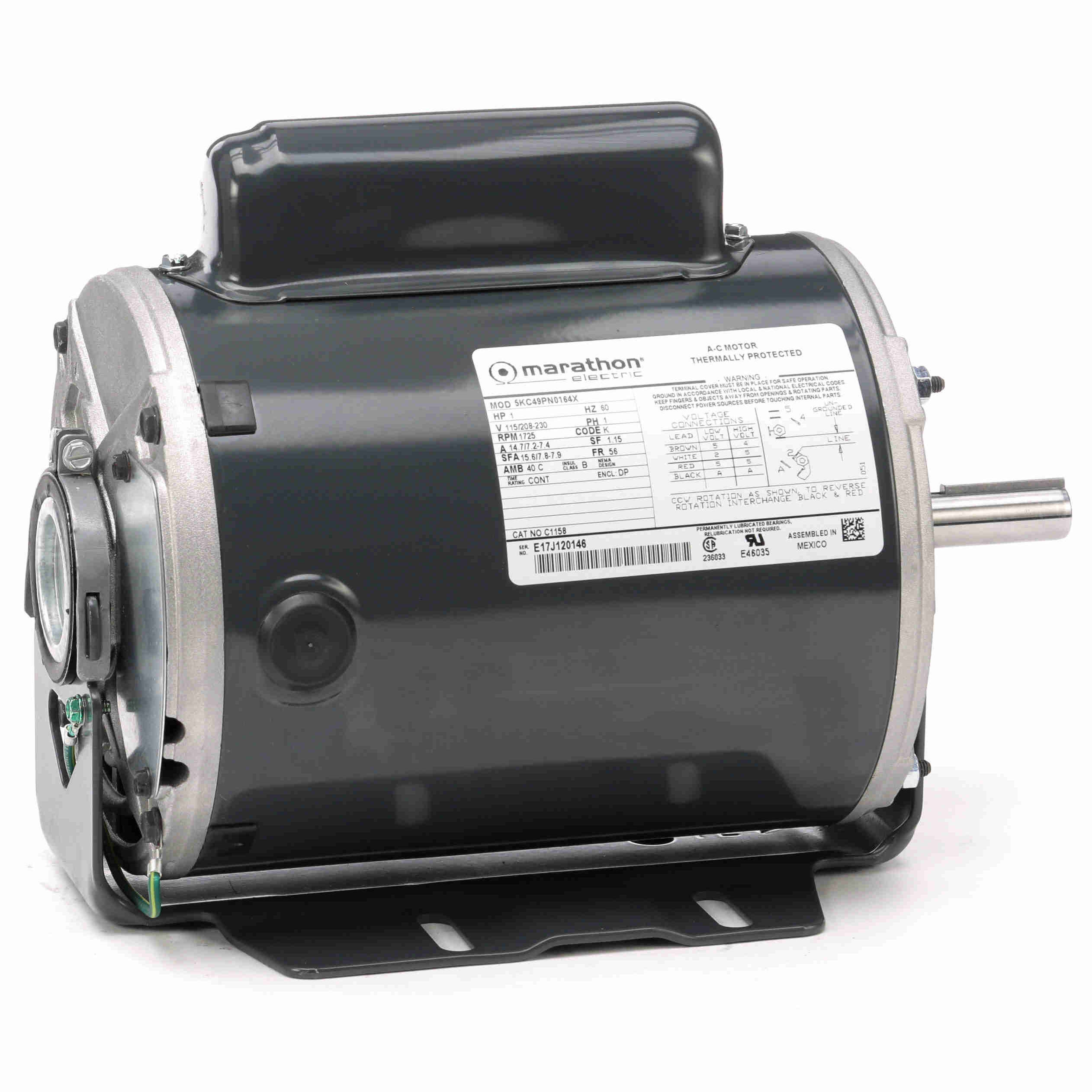

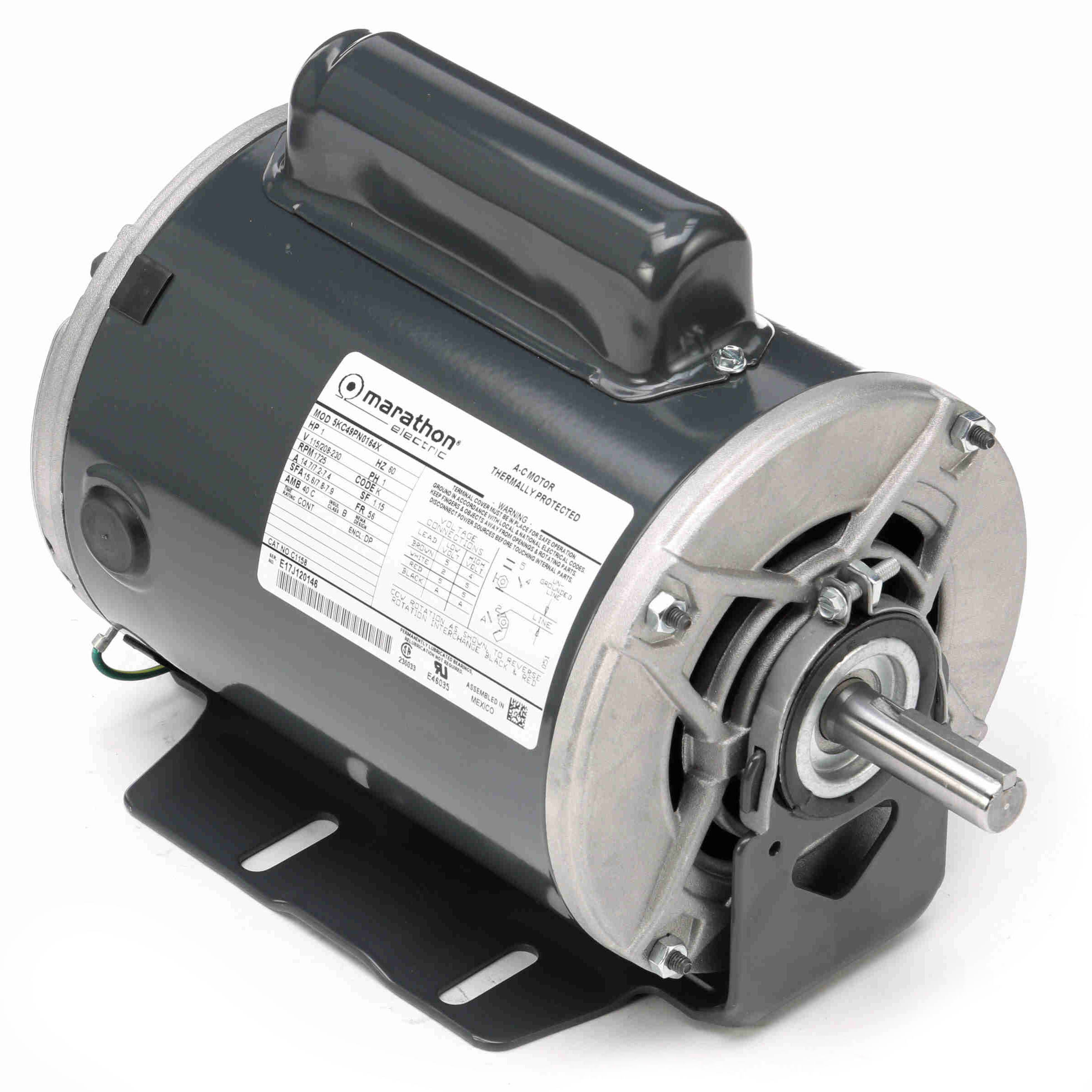

C1158 Marathon 1HP Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: C1158

Selected accessories will also be added to cart

$599.97 / Each

Quantity:

ODP, 56 Frame, 1-Phase, 115/208-230V, 60Hz

Details
Purchase Components

Features

Heavy gauge steel frame and base
Thermal protection, as noted
Capacitor start design for high starting torque
Capacitor start/capacitor run design for higher efficiency, as noted
48Y and 48YZ frame have 48/56 frame mounting holes

General Specifications

Model :	5KC49PN0164X	Catalog No :	C1158
Part Description :	1,1725,DP,56,1/60/115/208-230	Category :	Open Drip Proof (ODP)
Stock :	Yes

Nameplate Specifications

Output HP :	1 Hp	Output KW :	0.75 kW
Frequency :	60 Hz	Voltage :	115/208-230 V
Current :	14.7,7.2-7.4 A	Speed :	1725 rpm
Service Factor :	1.15	Phase :	1
Efficiency :	70 %	Duty :	Continous
Insulation Class :	B	KVA Code :	K
Frame :	56	Enclosure :	Drip Proof
Overload Protector :	AUTO	Ambient Temperature :	40 °C
Drive End Bearing Size :	6203	Opp Drive End Bearing Size :	6203
UL :	Recognized	CSA :	Yes
CE :	N

Technical Specifications

Electrical Type :	Capacitor start(CSIR)	Starting Method :	SM
Poles :	4	Rotation :	Selective Counterclockwise
Mounting :	Resilient Base	Motor Orientation :	Any
Drive End Bearing :	BALL	Opp Drive End Bearing :	BALL
Frame Material :	Rolled Steel	Overall Length :	11.38 in
Frame Length :	7.15 in	Shaft Diameter :	0.630 in
Shaft Extension :	1.88 in	UPC :	722856048325
Weight :	29.00 LB
