/Products/Electric Motors/Single Phase/Century/Ventilation Fan/C059A Century 1/4HP Electric Motor, 1100RPM
Click Image to Expand

Product ID: C059A

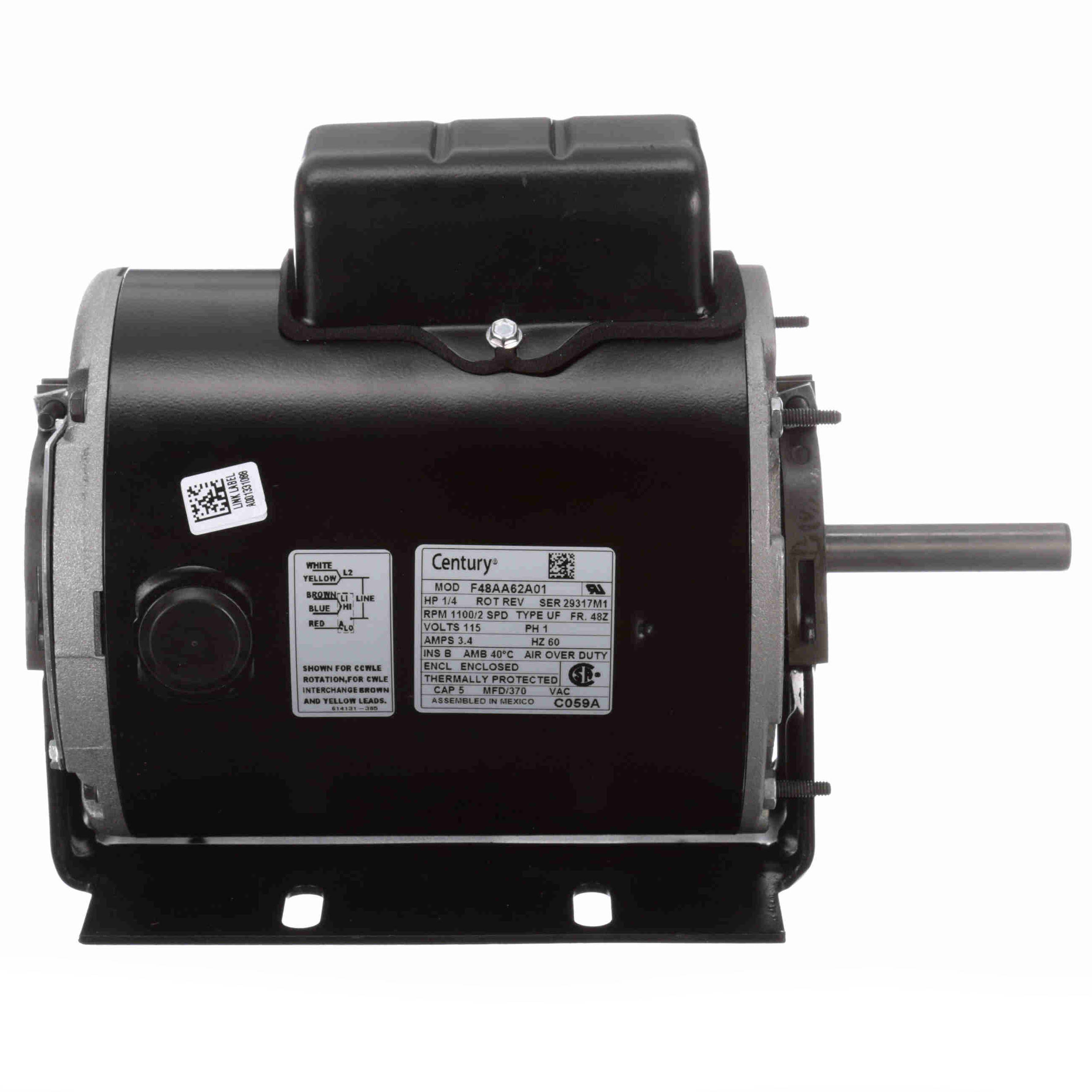

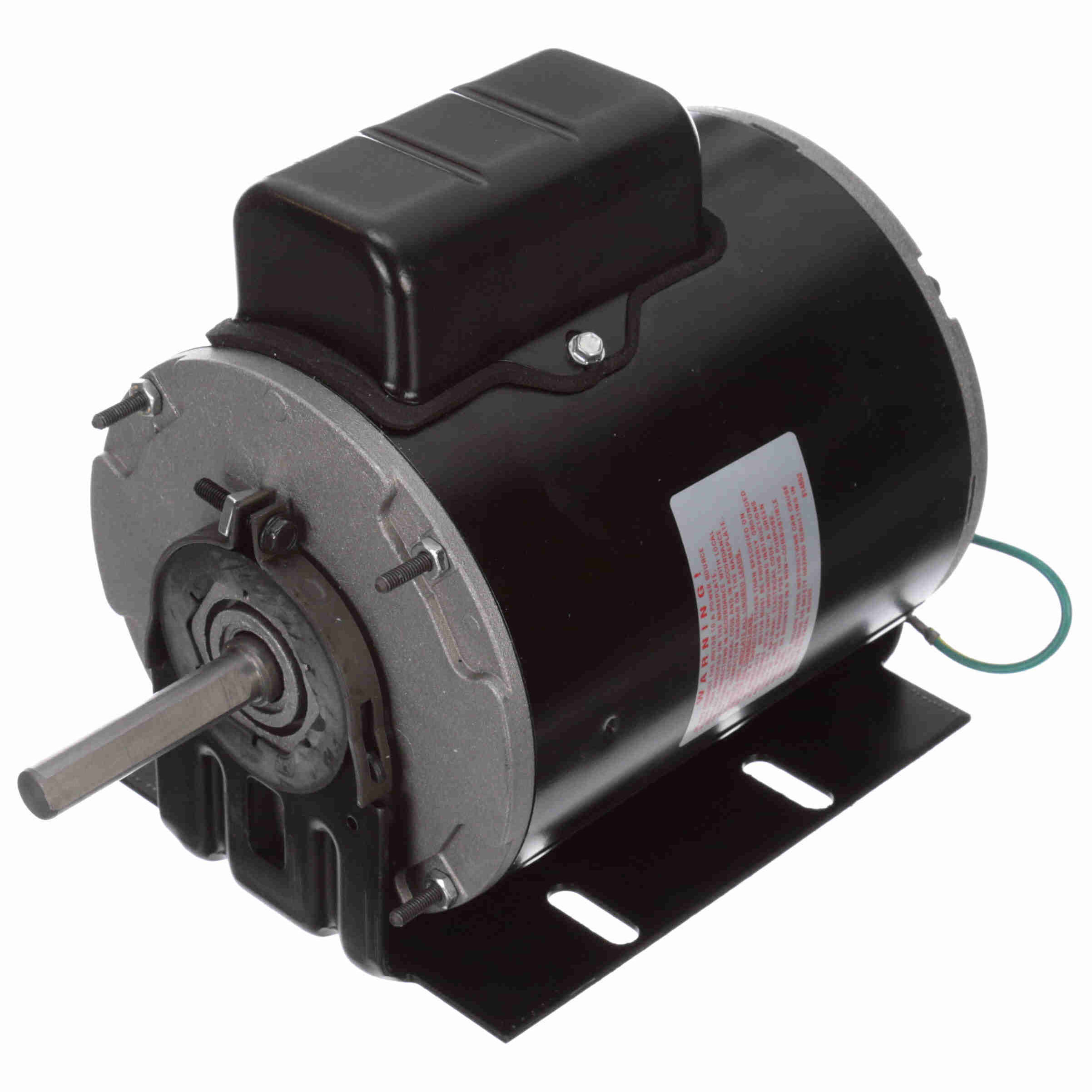

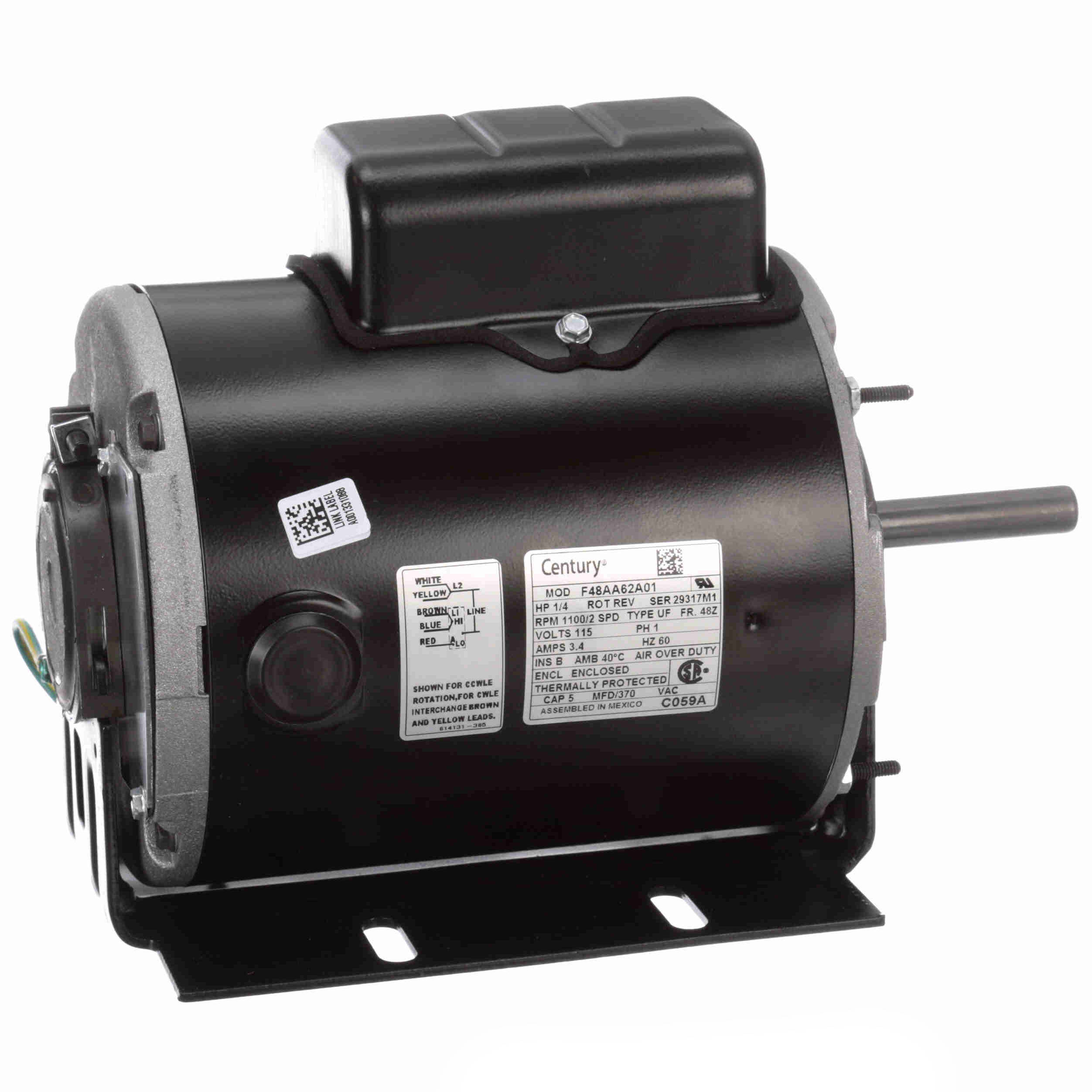

C059A Century 1/4HP Electric Motor, 1100RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C059A

Selected accessories will also be added to cart
$305.97 / Each
Quantity:
TE, 48Z Frame, 115VAC Single Phase 60Hz, Resilient Base, Rolled Steel

Features

Features
  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

General Specifications
C059A
1/4,1100,TE,48Z,1/60/115 Direct Drive Fan
Yes

Nameplate Specifications

Nameplate Specifications
1/4 HP 0.19 kW
60 Hz 115 V
3.4 A 1100 RPM
1 1
Air Over B
48Z Totally Enclosed
Automatic 40 °C
Recognized Y
N

Technical Specifications

Technical Specifications
Permanent Split Capacitor Across The Line
6 Reversible
Resilient Base Ball
Ball Rolled Steel
Flat 10.09 in
6.00 in 0.500 in
2.97 in 786674015198
16.00 LB

Speed & Load Characteristics
