/Products/Electric Motors/Single Phase/Century/Ventilation Fan/C047A Century 1/2HP Electric Motor, 1100RPM
Click Image to Expand

Product ID: C047A

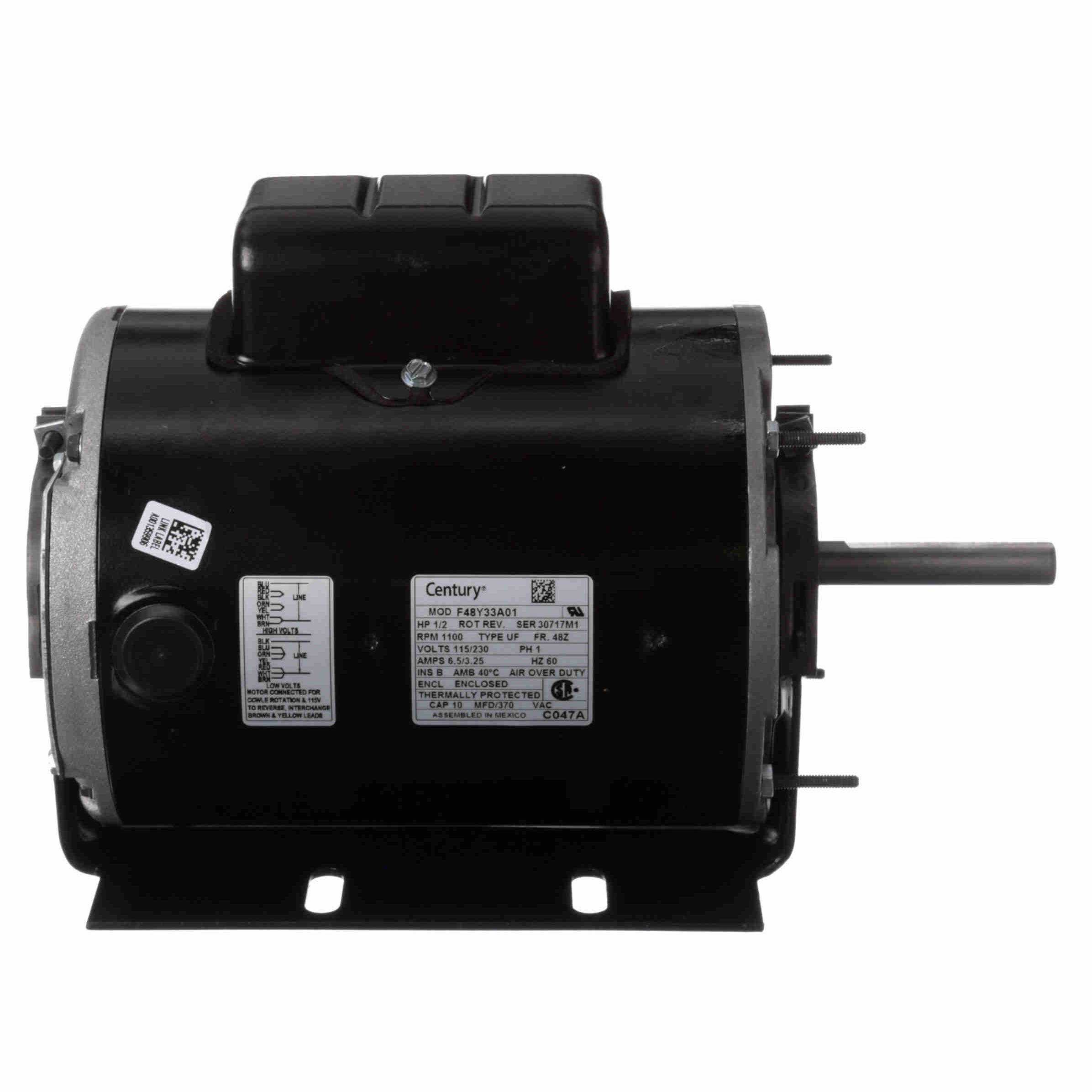

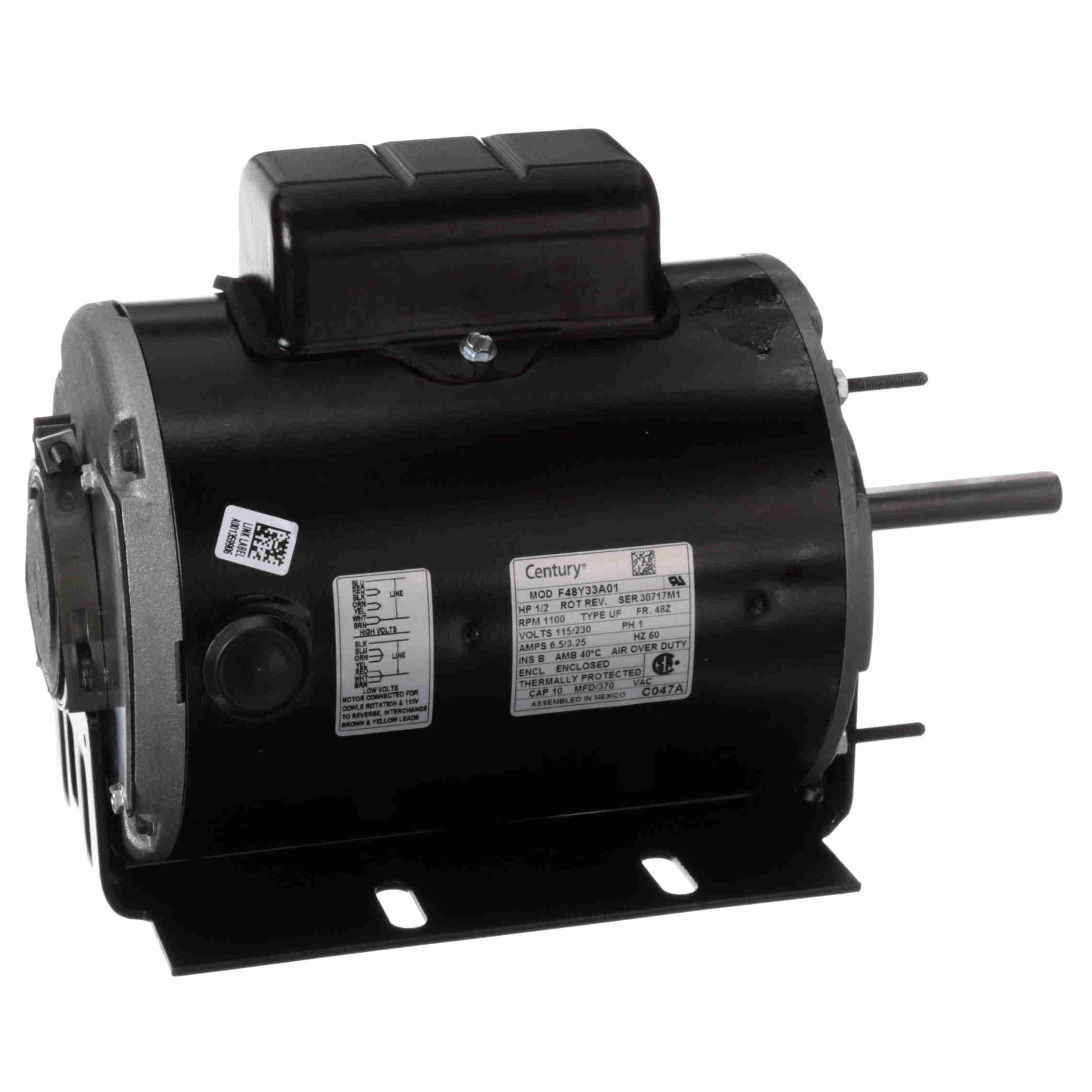

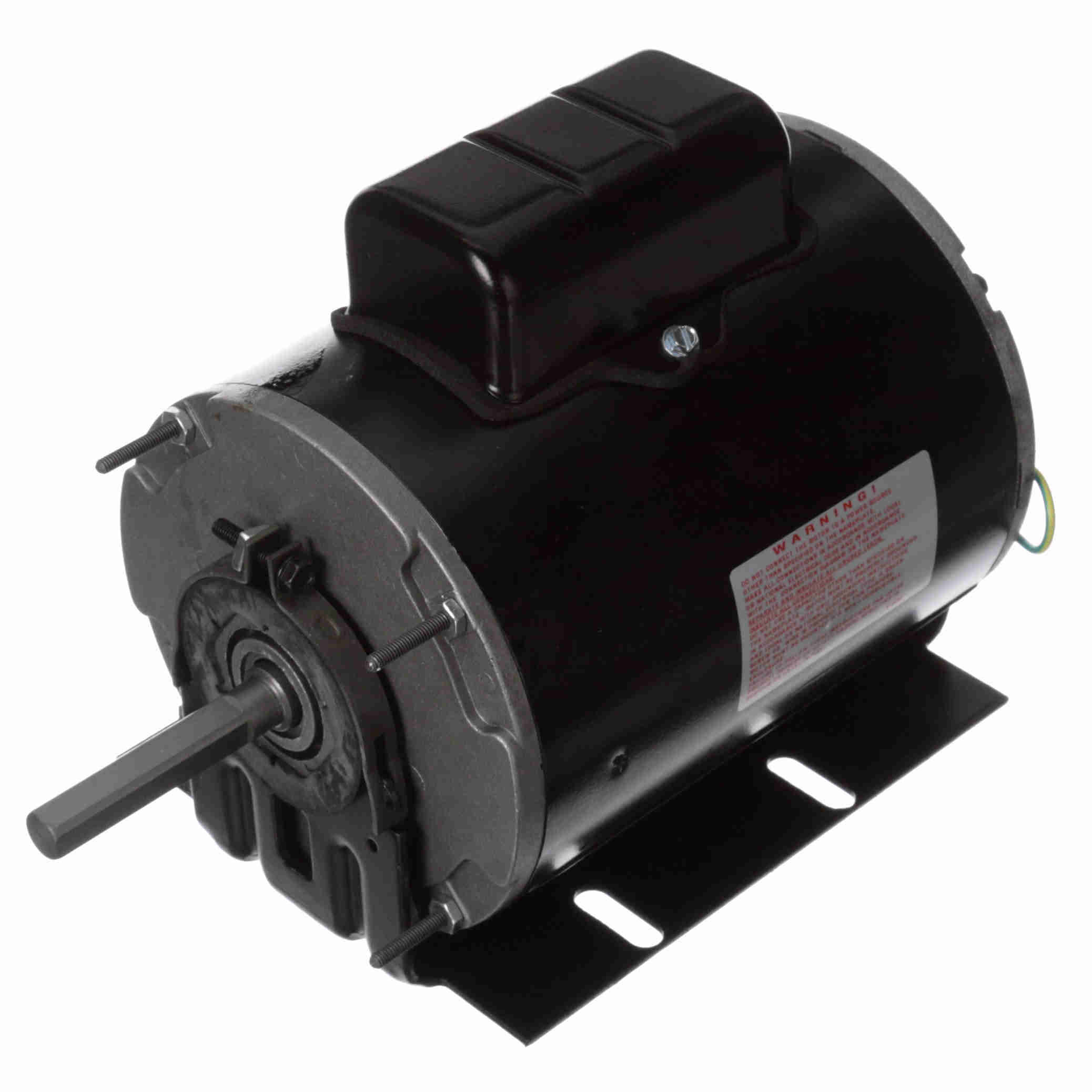

C047A Century 1/2HP Electric Motor, 1100RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C047A

Selected accessories will also be added to cart
$292.97 / Each
Quantity:
TE, 48Z Frame, 115/230VAC Single Phase 60Hz, Resilient Base, Rolled Steel

Features

Features
  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

General Specifications
C047A
1/2,1100,TE,48Z,1/60/115/230 Direct Drive Fan
Yes

Nameplate Specifications

Nameplate Specifications
1/2 HP 0.37 kW
60 Hz 115/230 V
6.5/3.25 A 1100 RPM
1 1
Air Over B
48Z Totally Enclosed
Automatic 40 °C
Recognized Y
N

Technical Specifications

Technical Specifications
Permanent Split Capacitor Across The Line
6 Reversible
Resilient Base Ball
Ball Rolled Steel
Flat 11.05 in
5.75 in 0.500 in
3.14 in 786674015112
23.00 LB

Speed & Load Characteristics
