/Products/Electric Motors/Single Phase/Century/Ventilation Fan/C043A Century 1/3HP Electric Motor, 1725RPM
Click Image to Expand

Product ID: C043A

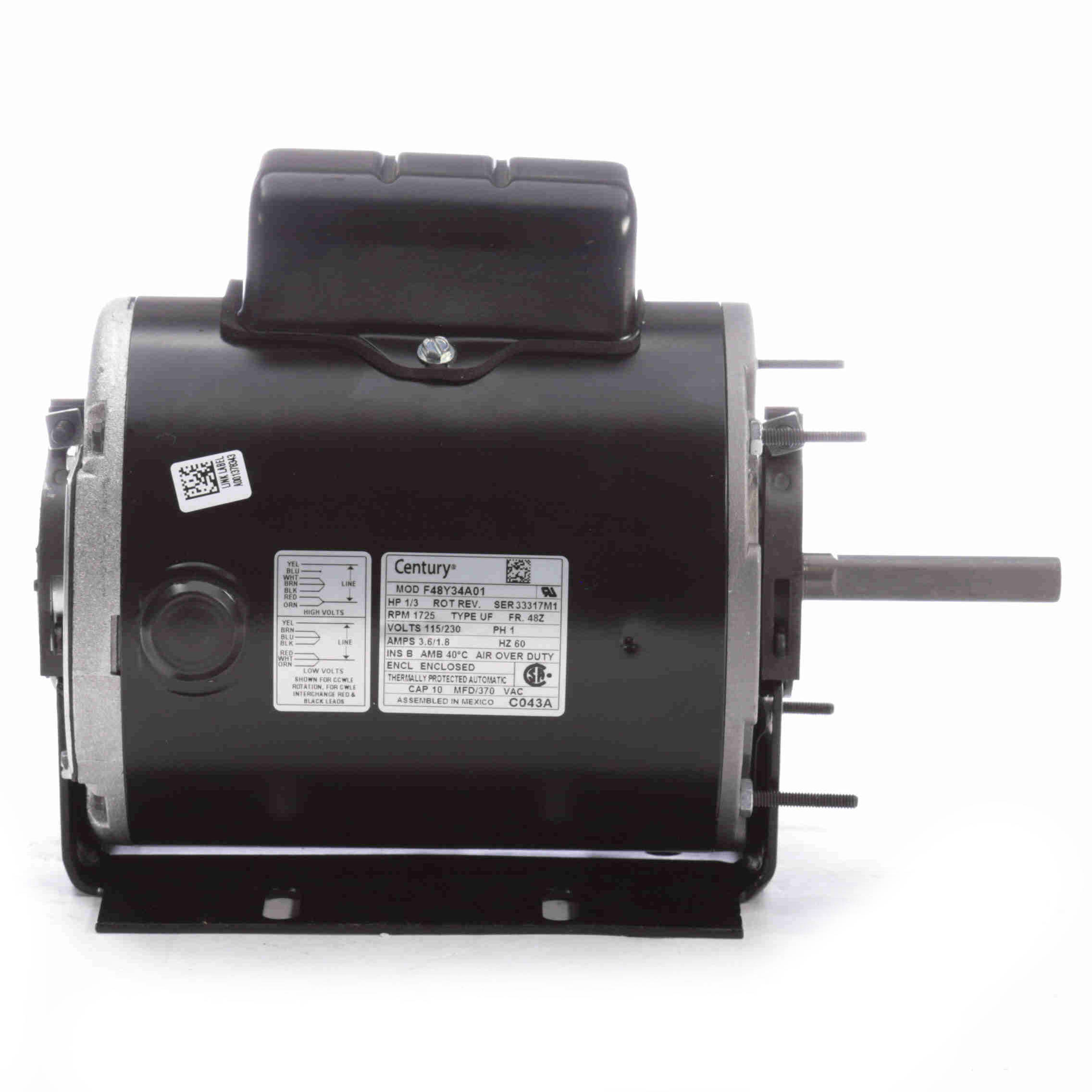

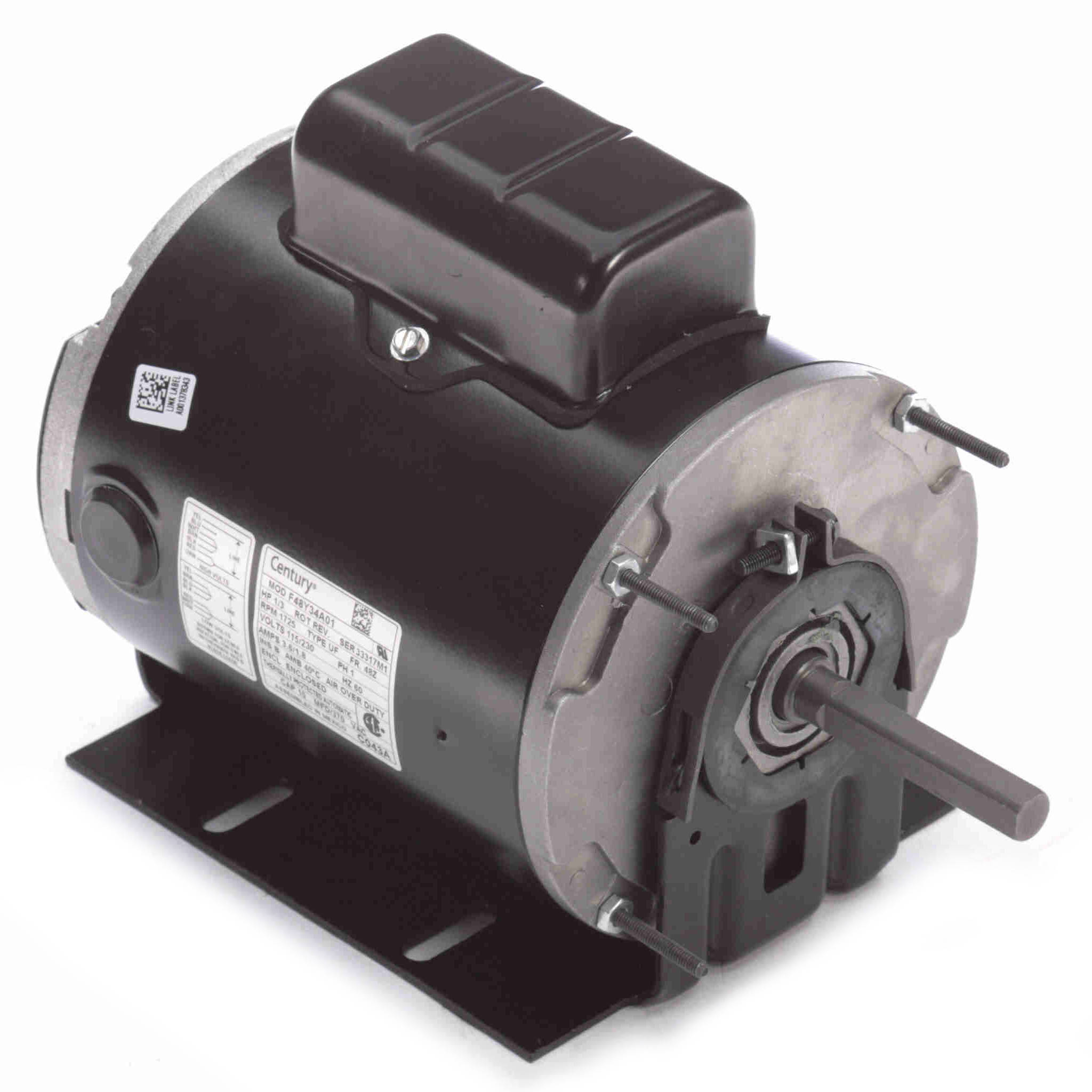

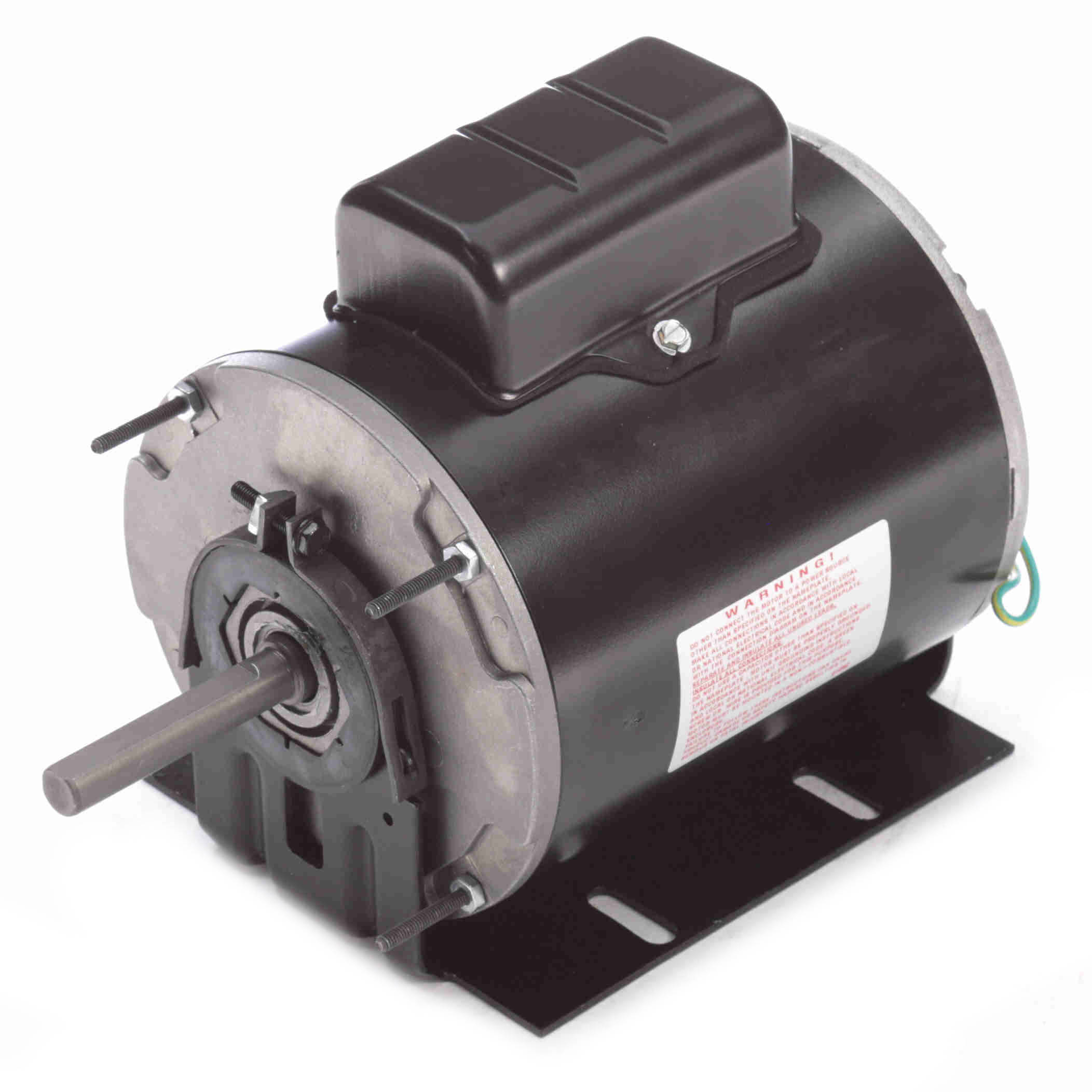

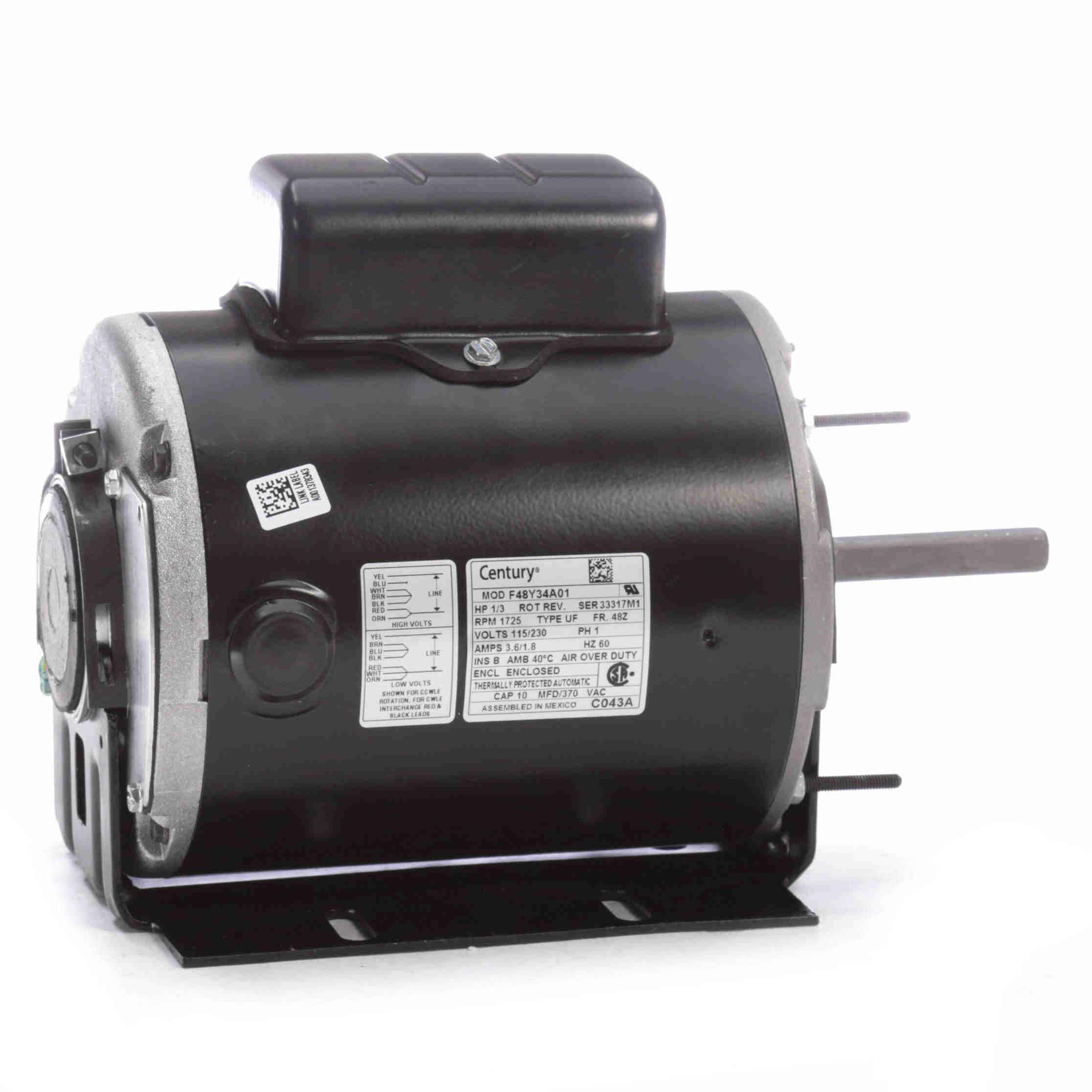

C043A Century 1/3HP Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C043A

Selected accessories will also be added to cart
$260.97 / Each
Quantity:
TE, 48Z Frame, 115/230VAC Single Phase 60Hz, Resilient Base, Rolled Steel

Features

Features
  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

General Specifications
C043A
1/3,1725,TE,48Z,1/60/115/230 Direct Drive Fan
Yes

Nameplate Specifications

Nameplate Specifications
1/3 HP 0.25 kW
60 Hz 115/230 V
3.6/1.8 A 1725 RPM
1 1
Air Over B
48Z Totally Enclosed
Automatic 40 °C
Recognized Y
N

Technical Specifications

Technical Specifications
Permanent Split Capacitor Across The Line
4 Reversible
Resilient Base Ball
Ball Rolled Steel
Flat 10.09 in
6.00 in 0.500 in
3.14 in 786674015075
20.00 LB

Speed & Load Characteristics
