/Products/Electric Motors/Single Phase/Century/Ventilation Fan/C042A Century Electric Motor, 1/4HP 1700RPM

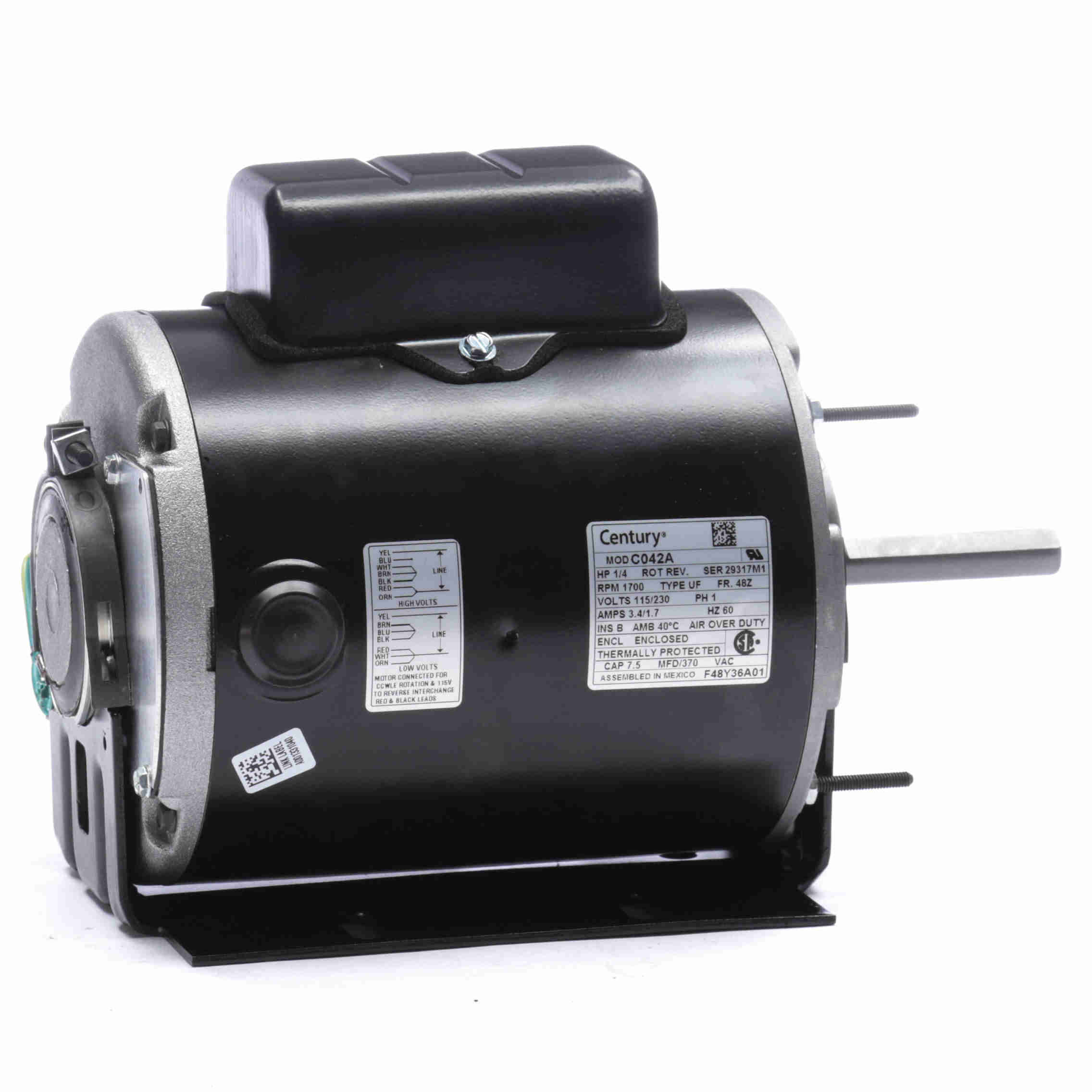

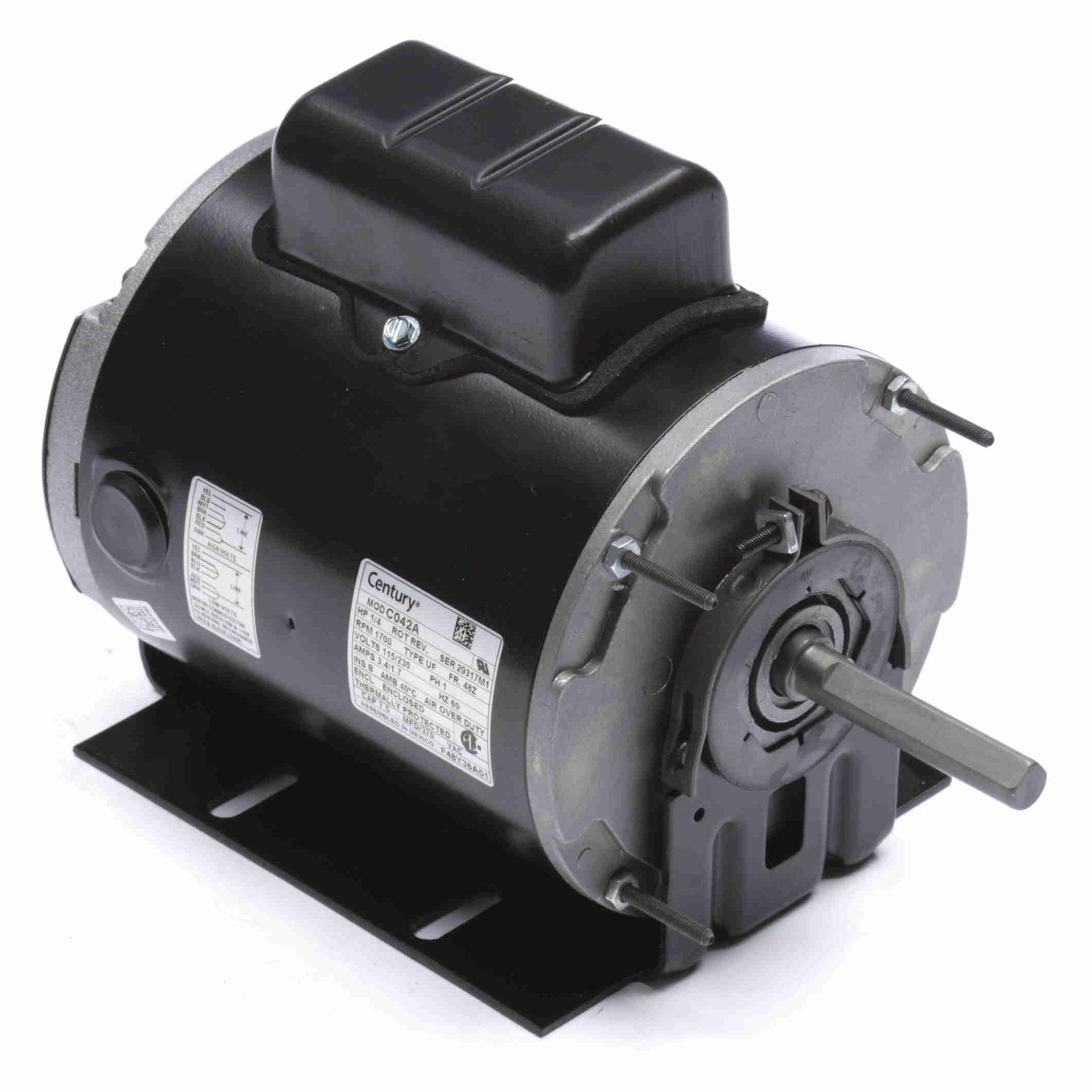

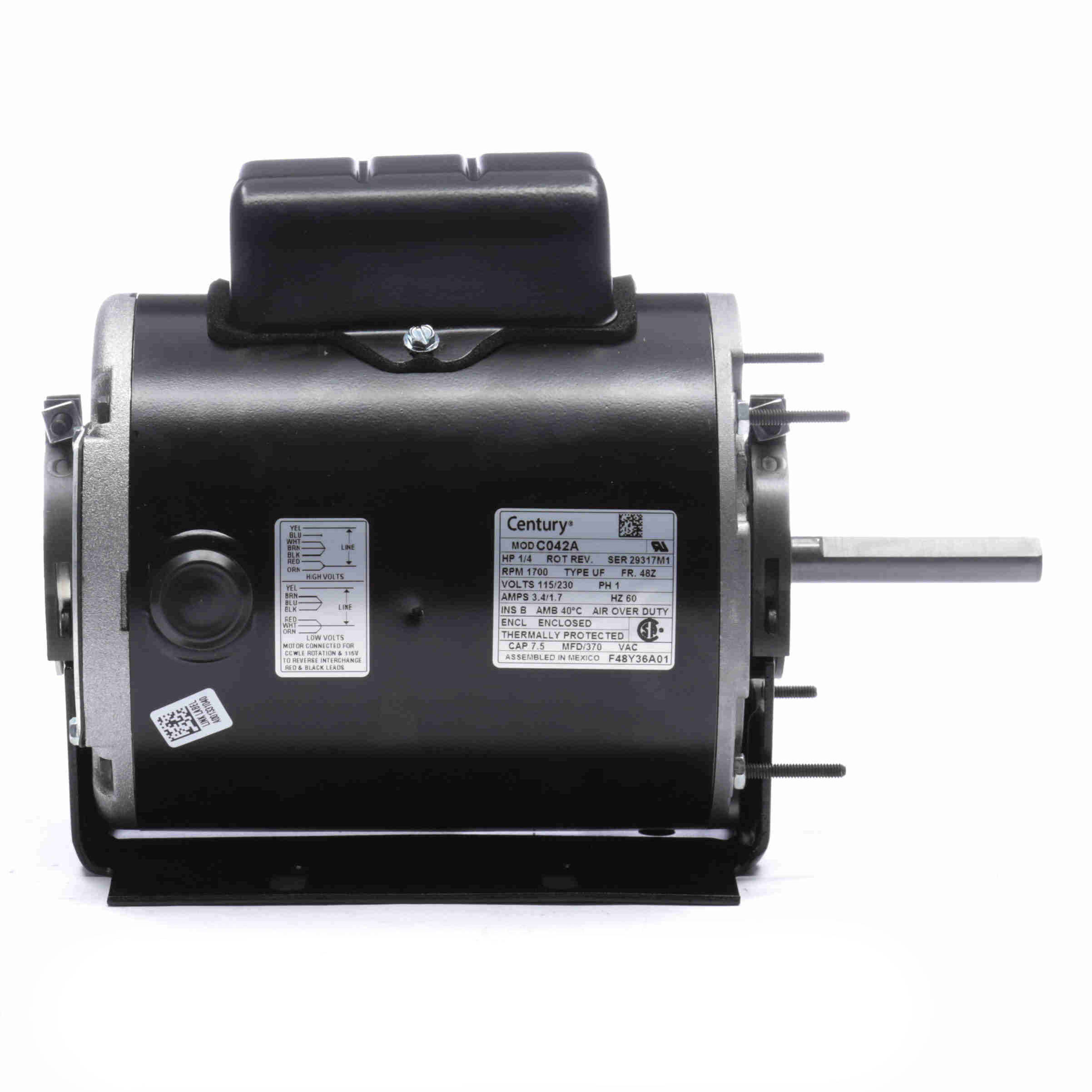

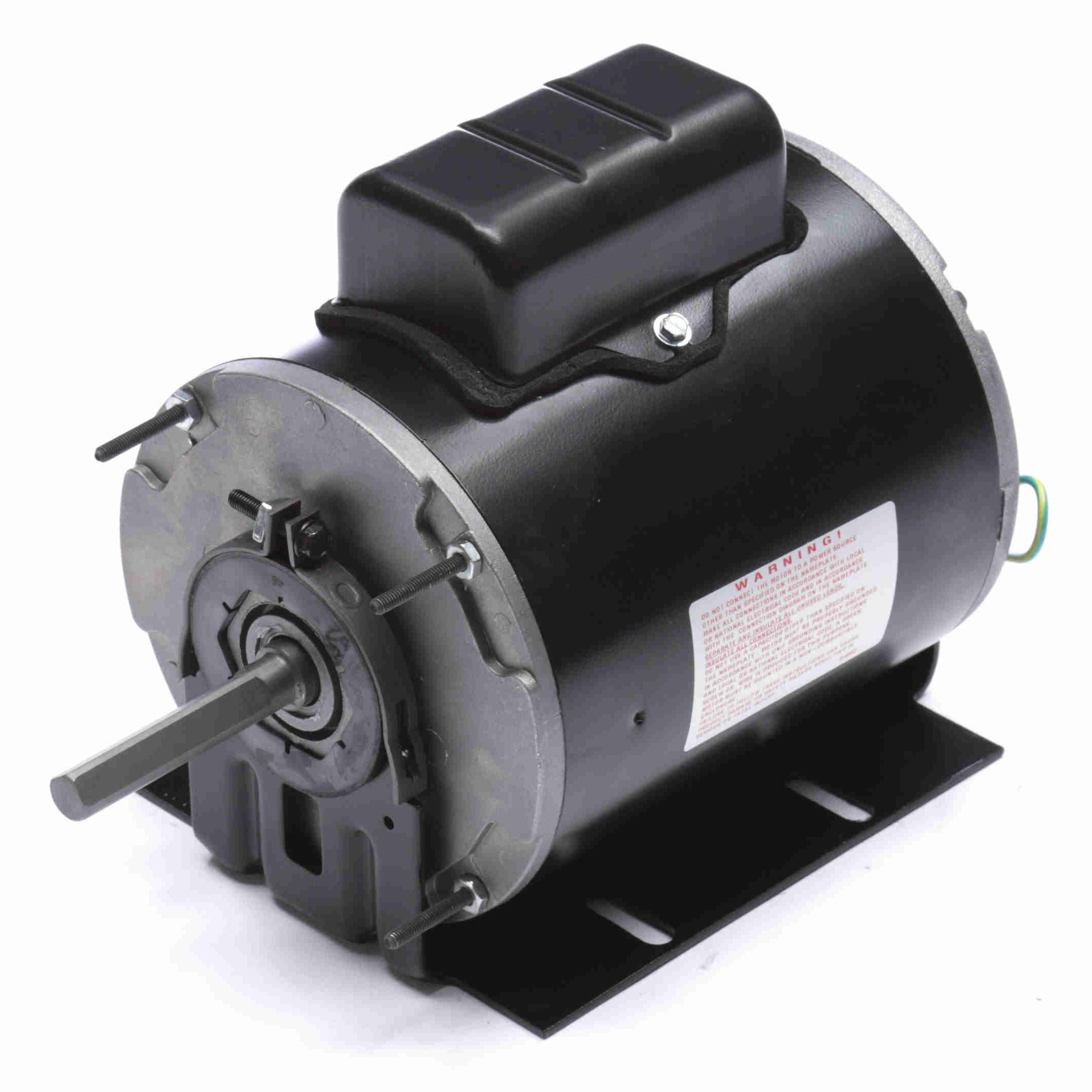

Click Image to Expand

Product ID: C042A

C042A Century Electric Motor, 1/4HP 1700RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C042A

Selected accessories will also be added to cart
$237.97 / Each
Quantity:
115/230V 48Z TEAO 60Hz 1-Phase, Resilient Base

Features

Features
  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

General Specifications
Model : Catalog No :C042A
Part Description :1/4,1700,TE,48Z,1/60/115/230 Category :Direct Drive Fan
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/4 Hp Output KW :0.19 kW
Frequency :60 Hz Voltage :115/230 V
Current :3.4/1.7 A Speed :1700 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :B
Frame :48Z Enclosure :Totally Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Resilient Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Flat Overall Length :10.12 in
Frame Length :6.00 in Shaft Diameter :0.500 in
Shaft Extension :3.14 in UPC :786674015068
Weight :19.00 LB
