/Products/Electric Motors/Single Phase/Century/HVACR/C034 Century 1/6HP Special Purpose Electric Motor, 800RPM
Click Image to Expand

Product ID: C034

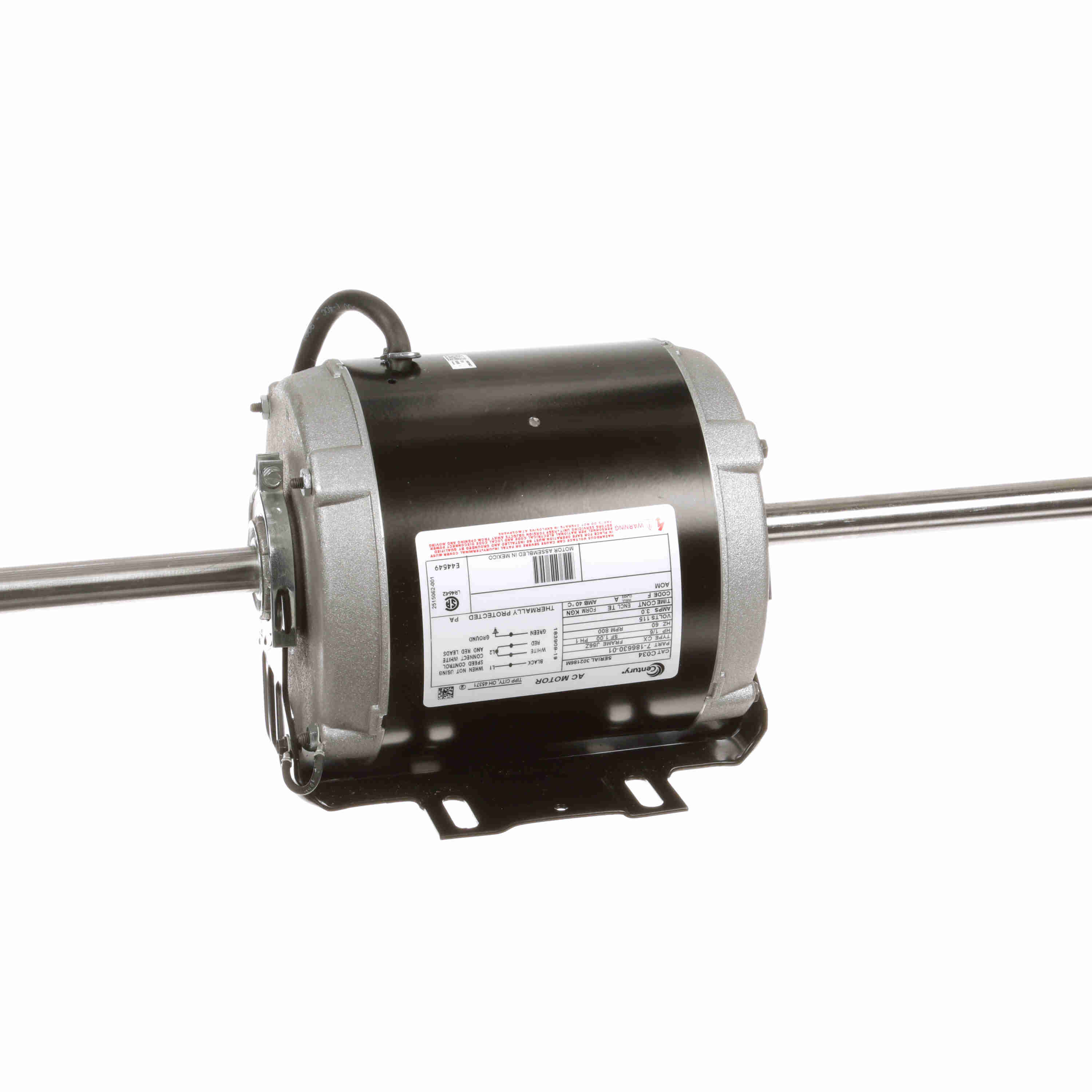

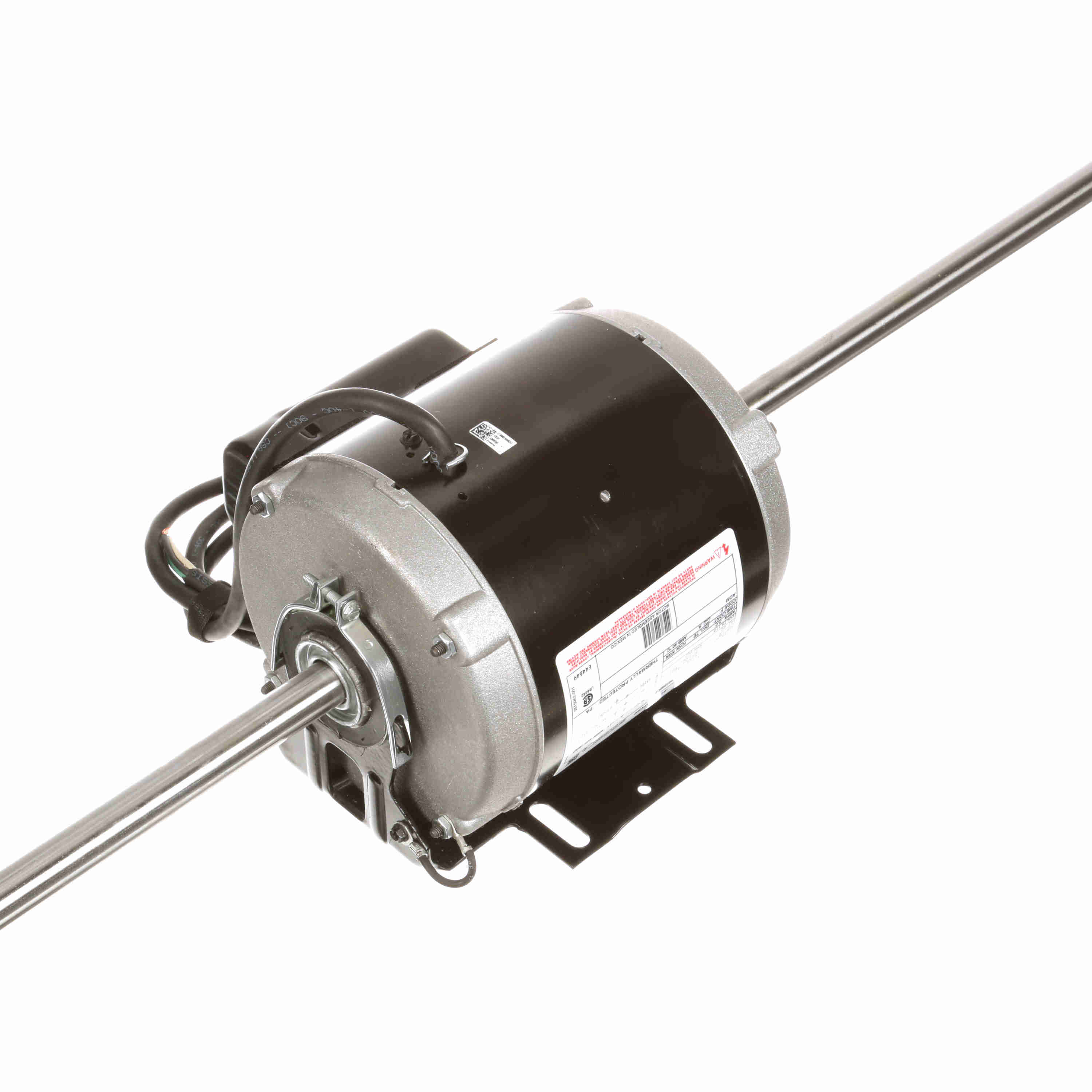

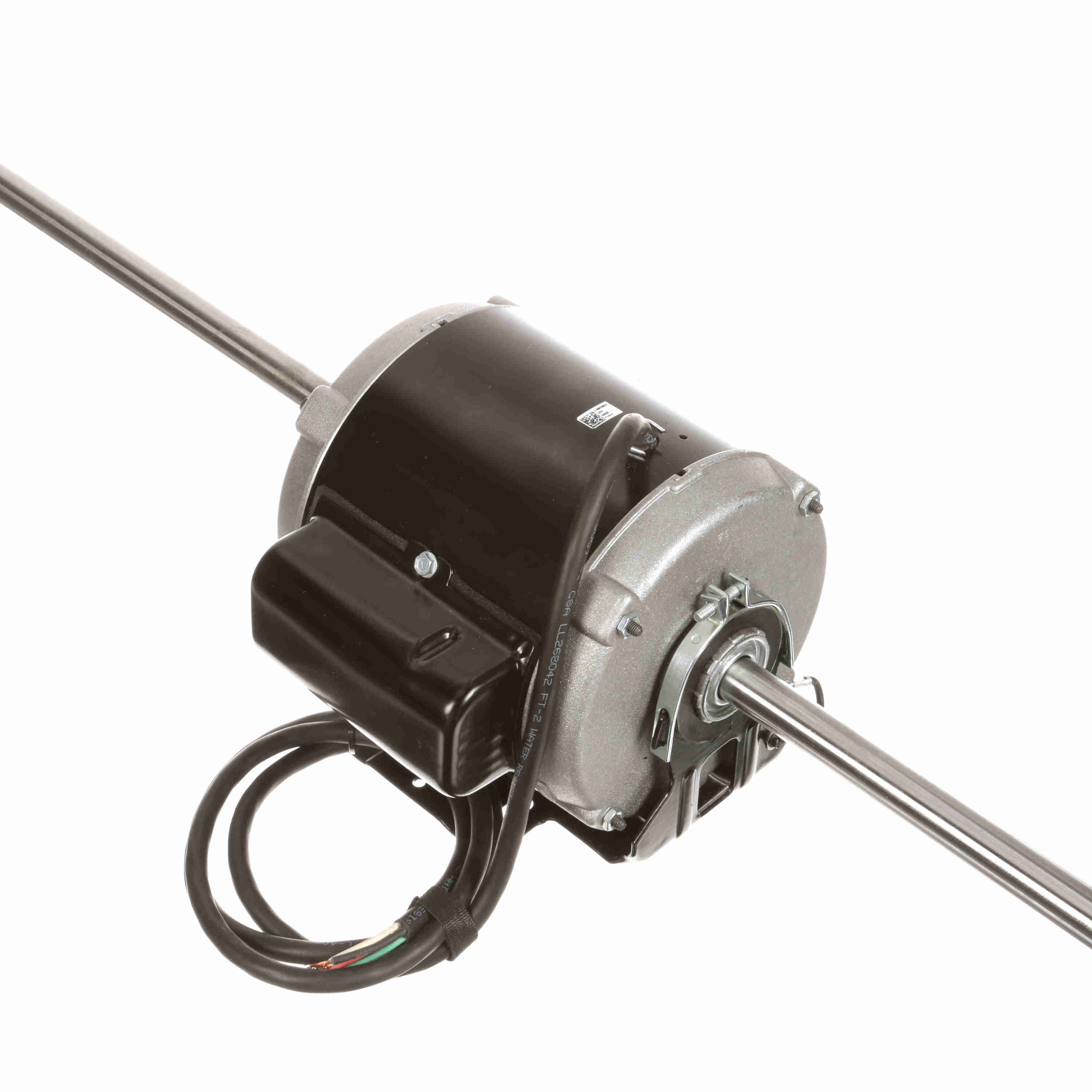

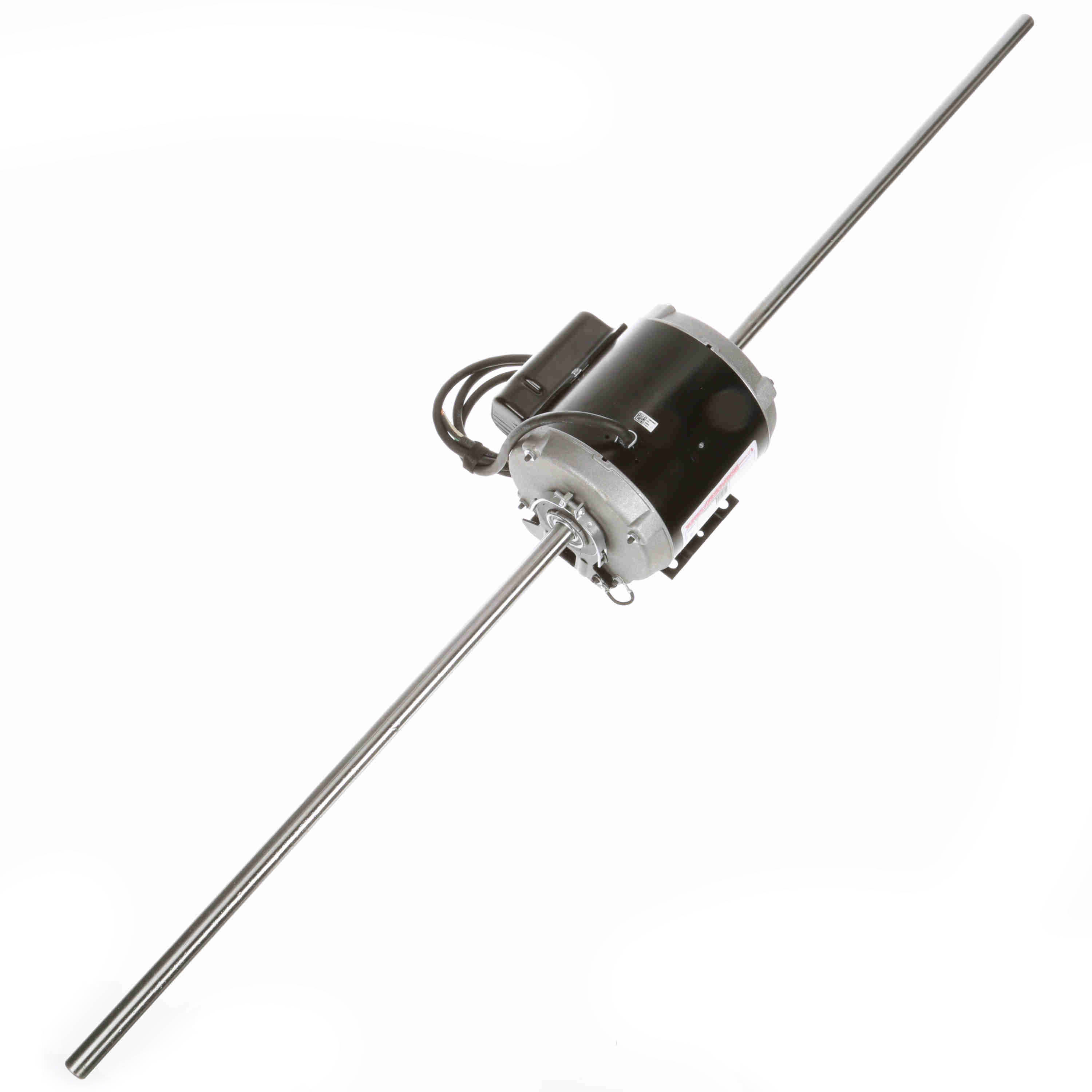

C034 Century 1/6HP Special Purpose Electric Motor, 800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C034

Selected accessories will also be added to cart
$1,295.97 / Each
Quantity:
TEAO, 56Z Frame, 115V Single Phase 60Hz, ITT Nesbitt HVAC Replacement

Features

Features
  • Single speed
  • Capacitor included

General Specifications

General Specifications
Model : Catalog No :C034
Part Description :1/6,800,TEAO,56Z,1/60/115 Category :OEM Replacement
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/6 HP Output KW :0.13 kW
Frequency :60 Hz Voltage :115 V
Current :3.0 A Speed :800 RPM
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :A
Frame :J56Z Enclosure :Totally Enclosed Air Over
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor, Single Or Dual Voltage Starting Method :Across The Line
Poles :8 Rotation :Clockwise
Mounting :Cushion Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Special Extension Overall Length :51.28 in
Frame Length :5.13 in Shaft Diameter :0.749 in
Shaft Extension :21.6 in UPC :786674015020
Weight :45.00 LB

Speed & Load Characteristics
