/Products/Electric Motors/Single Phase/Century/BN63 Century 4/0.42HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: BN63

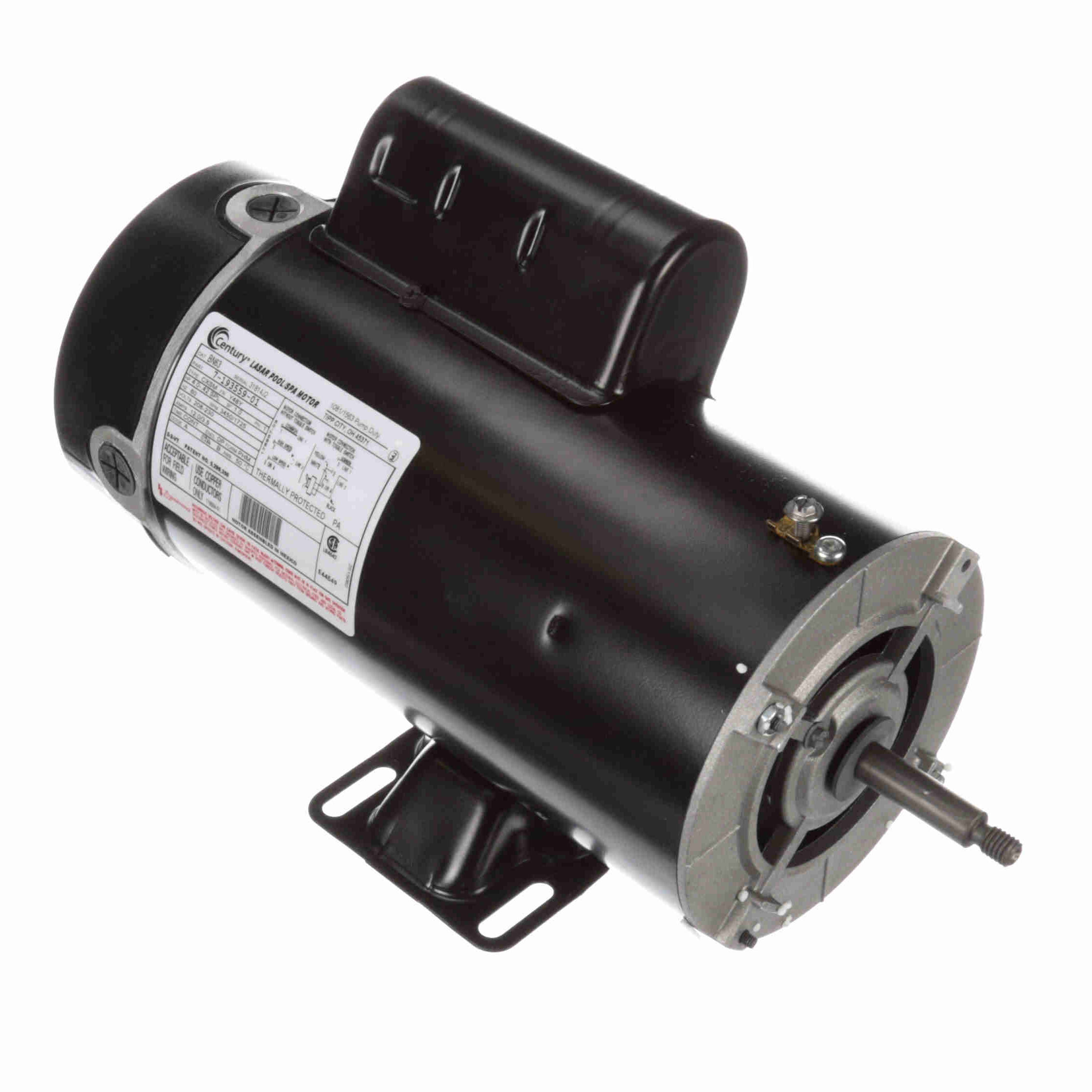

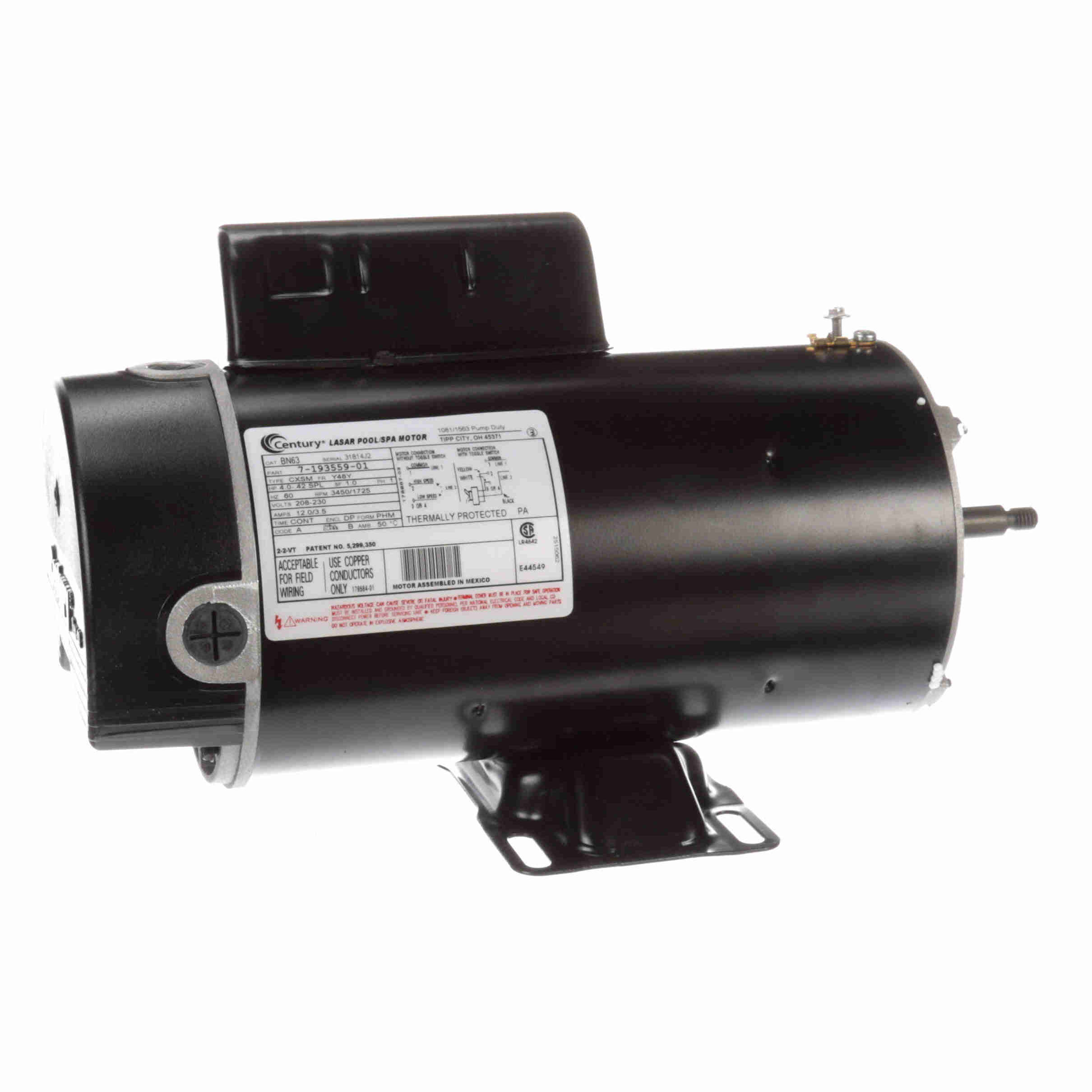

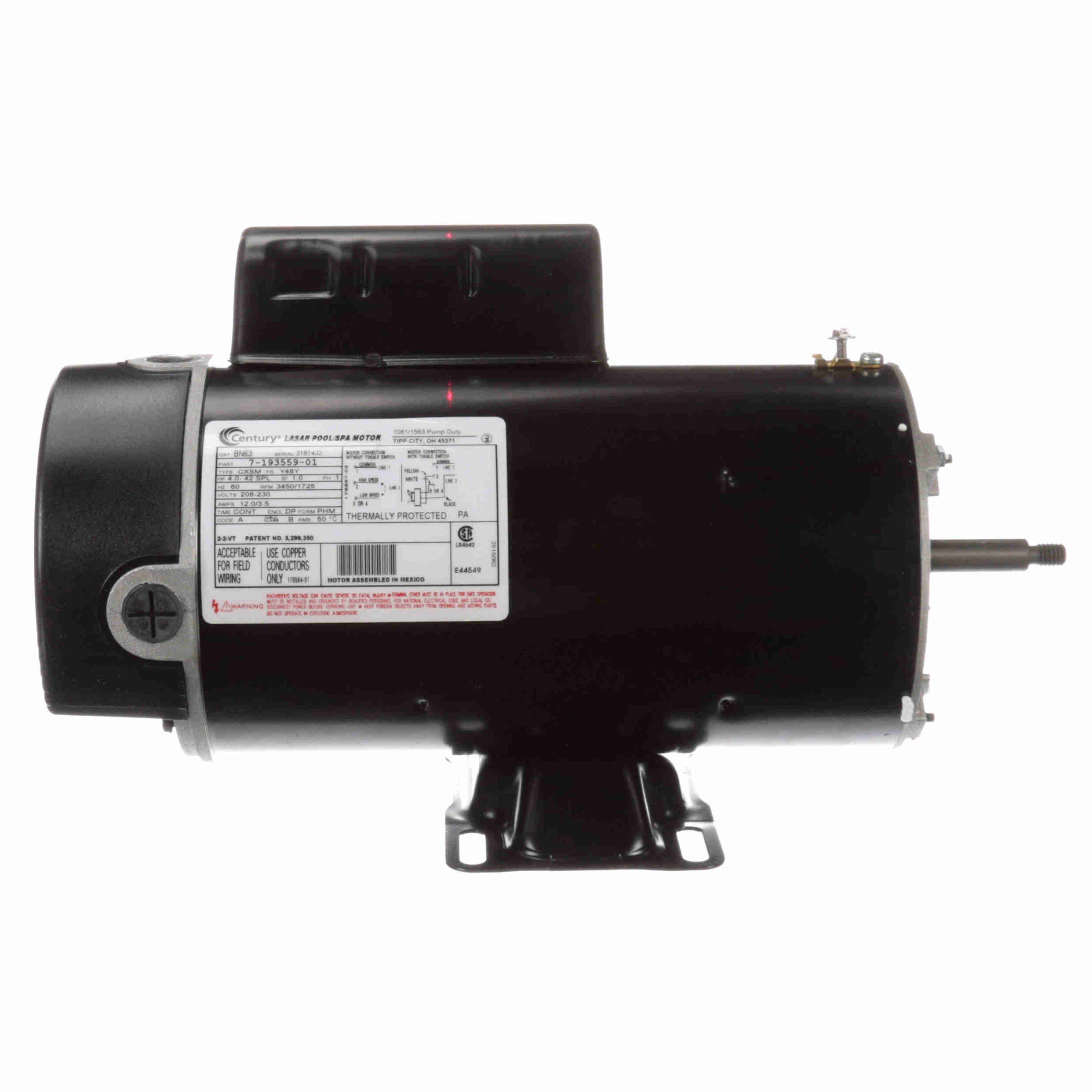

BN63 Century 4/0.42HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: BN63

Selected accessories will also be added to cart
$333.97 / Each
Quantity:
ODP, 48Y Frame, 208-230VAC Single Phase 60Hz

Features

  • Two Speed
  • 12 & 3 O'clock Conduit Entries
  • 3-1/2" Shaft Height
  • 50°C Ambient
  • Four Thru Bolts on a 5.146 Bolt Circle
  • Flex 48 LASAR XL for Extra Low Running Amps with 48/56 Base Mounting
  • Threaded Shaft
  • Rigid Base
  • Energy Efficient
  • Meets California Energy Commission Appliance Regulations 2008

General Specifications

UPC: 786674014481 Weight: 33.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 4.0-.42 Hp Output KW: 3.0 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 12.0/3.5 A Speed: 3450/1725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: Y48Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Permanent Split Capacitor, High Speed; Capacitor Start, Low Speed Poles: 2/4
Rotation: Counterclockwise Pump End Mounting: Thru Bolt
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 14.33 in
Frame Length: 9.50 in Shaft Diameter: 0.500 in
Shaft Extension: 2.36 in

Speed & Load Characteristics
