/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/BN37V1 Century 1.0/0.12HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: BN37V1

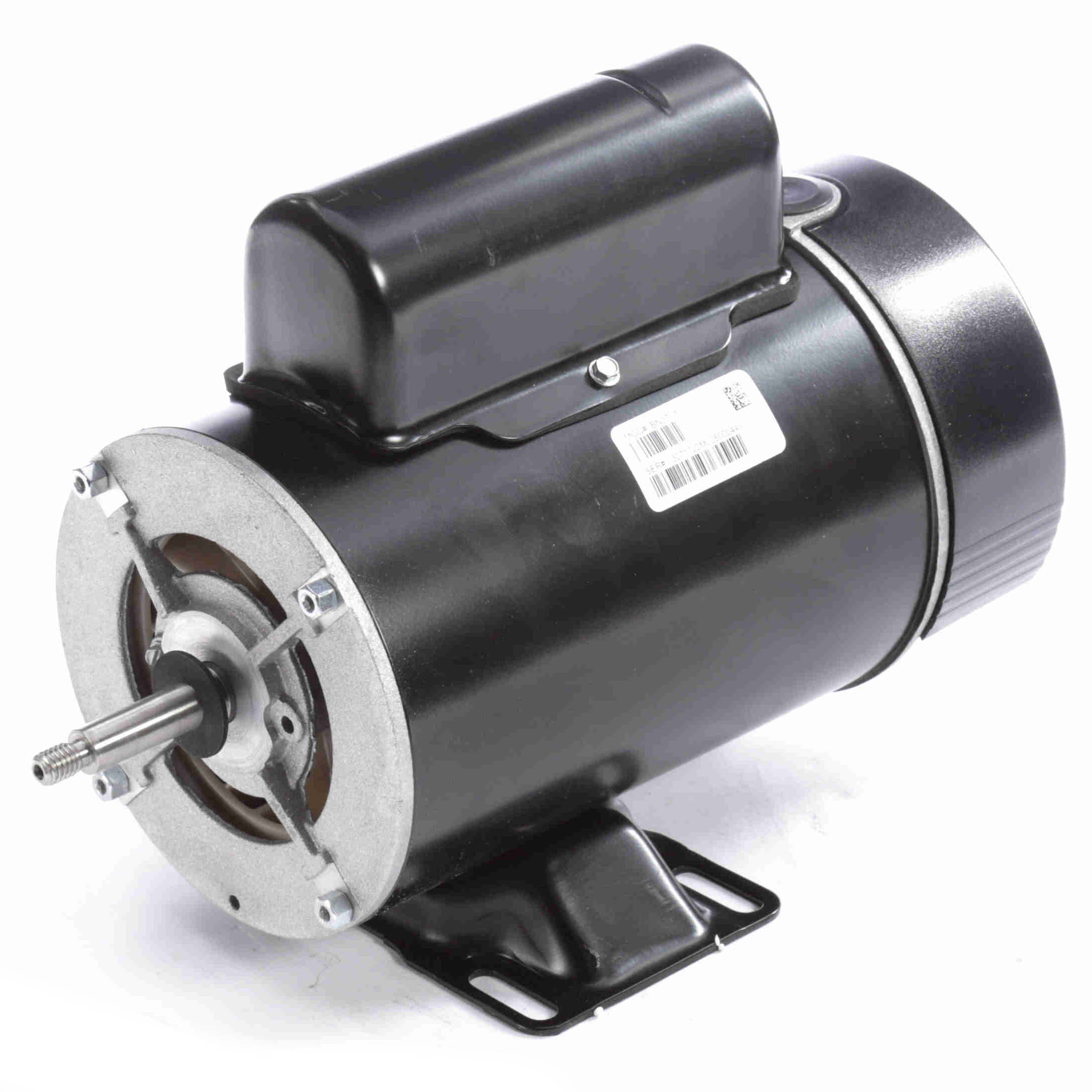

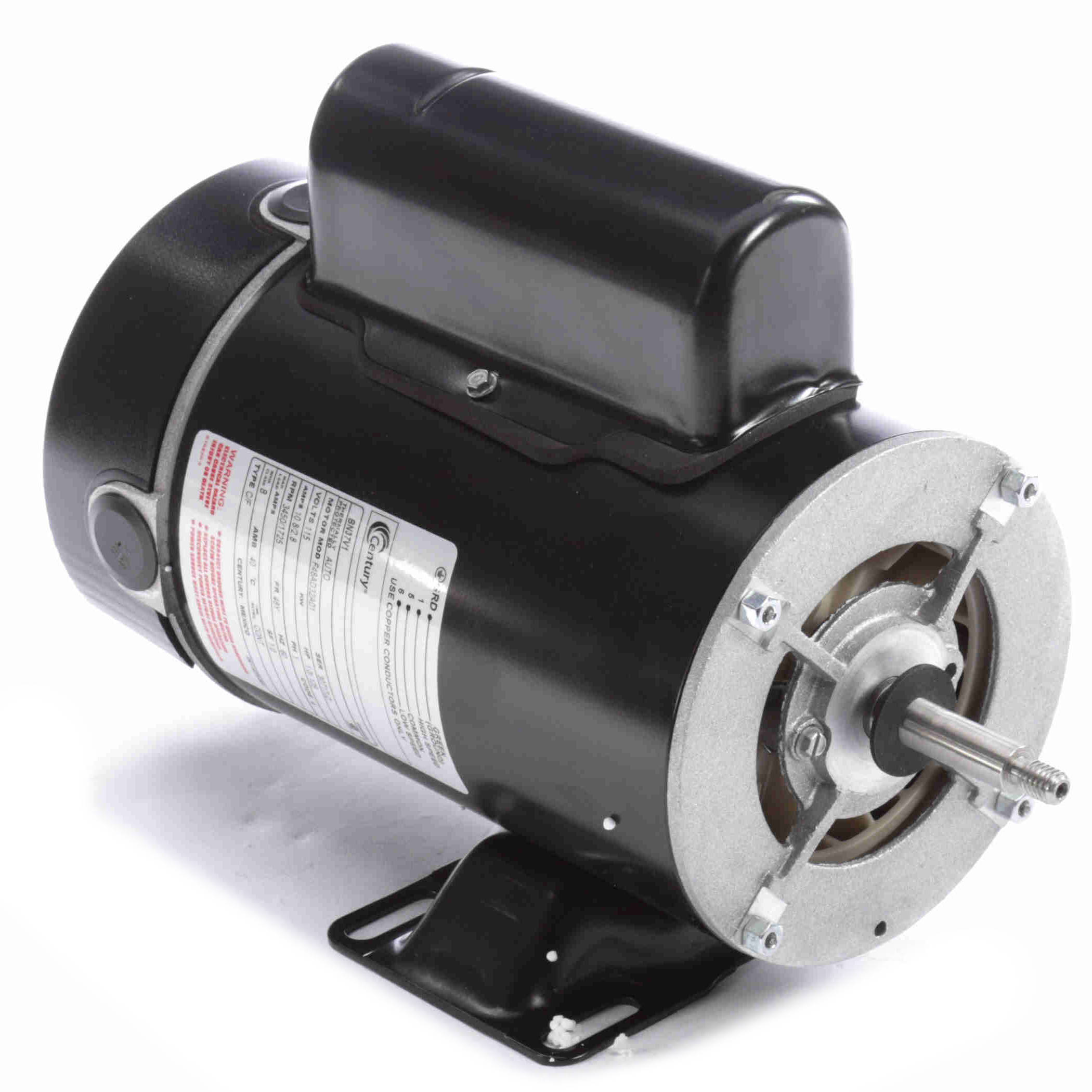

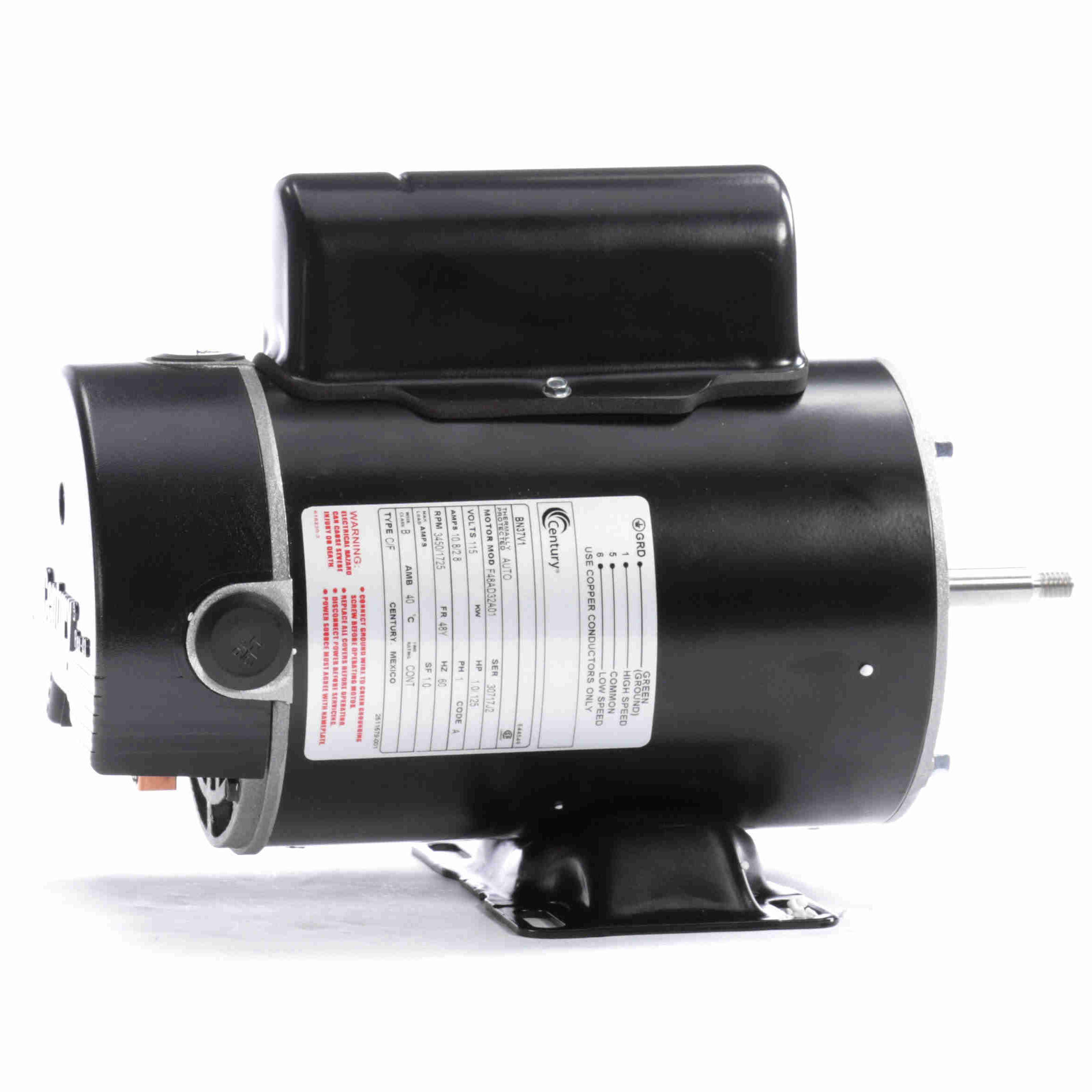

BN37V1 Century 1.0/0.12HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: BN37V1

Selected accessories will also be added to cart
$306.97 / Each
Quantity:
ODP, 48Y Frame, 115VAC 60Hz Single Phase, 2 Speed, Rolled Steel Housing, Threaded Shaft, CCW Pump End

Features

  • Two Speed
  • 12 & 3 O'clock Conduit Entries
  • 3-1/2" Shaft Height
  • 40°C Ambient
  • Four Thru Bolts on a 5.146 Bolt Circle
  • Flex 48 LASAR Line Low Amp Start and Run with 48/56 Base Mounting
  • 48/56 Base Mounting
  • Threaded Shaft
  • Rigid Base
  • Energy Efficient

General Specifications

UPC: 786674057310 Weight: 25 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1.0/.125 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115 V
Current: 10.8/2.8 A Speed: 3450/1725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Cap Start Low Speed, Psc High Speed Poles: 2/4
Rotation: Counterclockwise Pump End Mounting: Thru Bolt
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 12.71 in
Frame Length: 7.50 in Shaft Diameter: 0.500 in
Shaft Extension: 2.375 in
