/Products/Electric Motors/Single Phase/Century/BN24V1 Century 3/4HP Pool & Spa Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: BN24V1

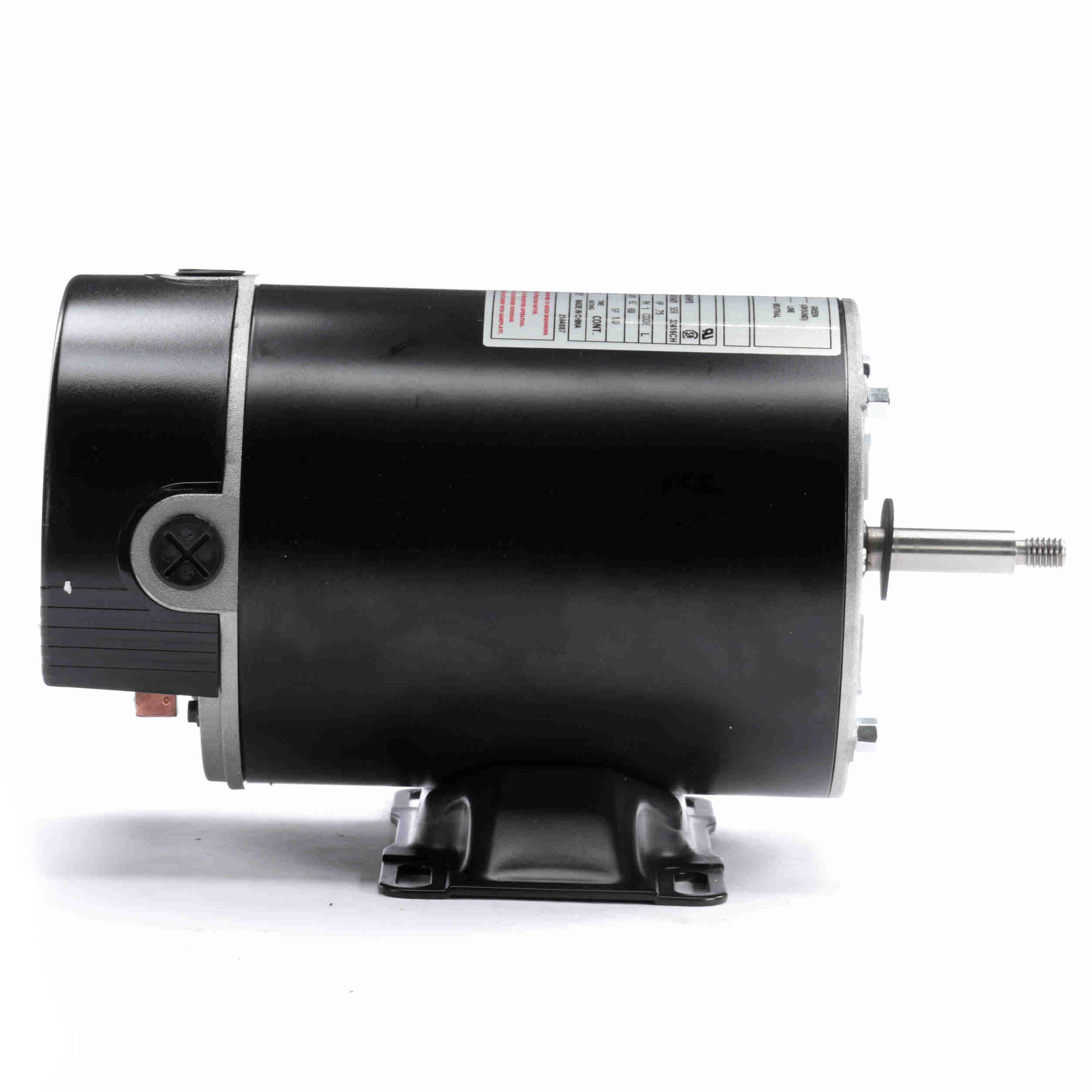

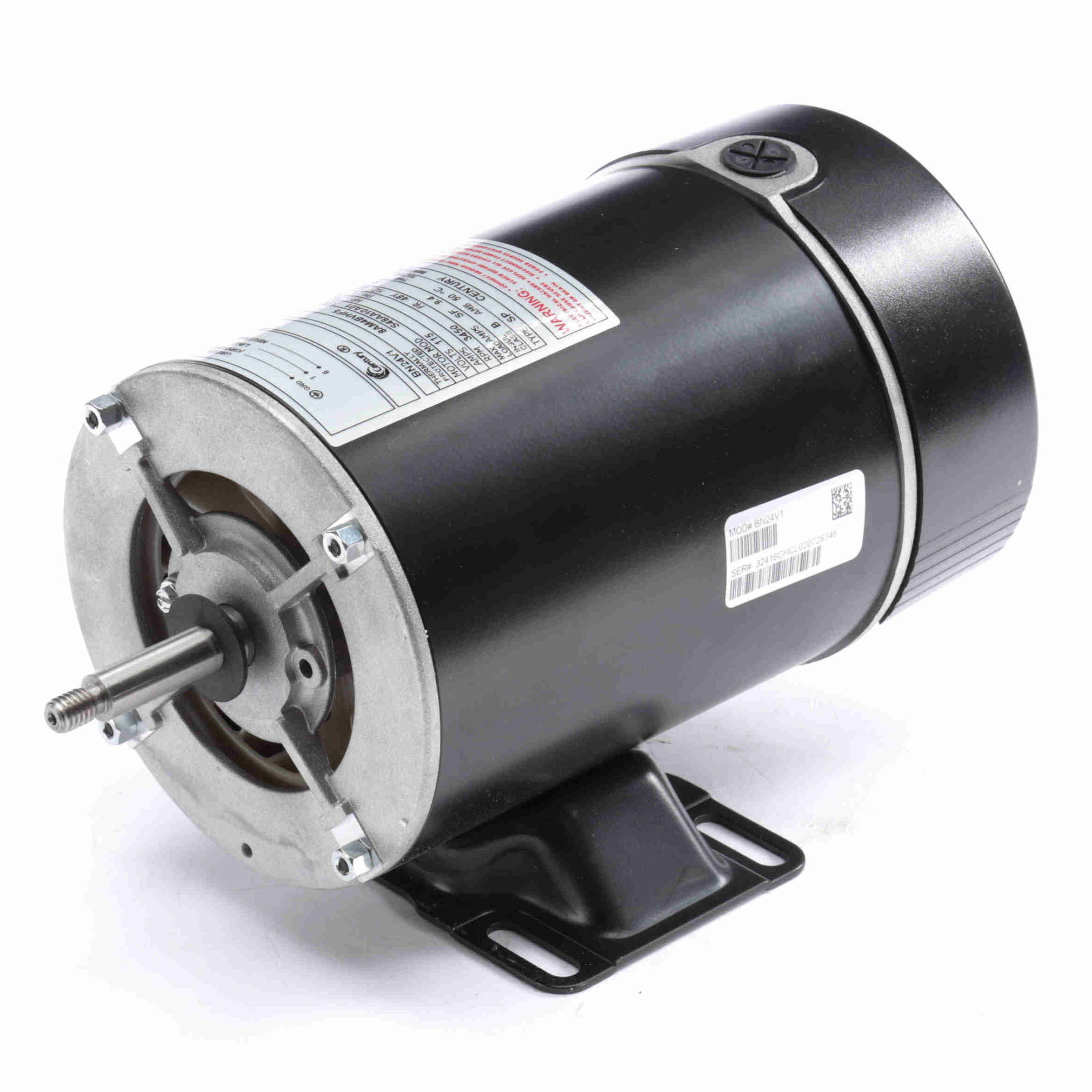

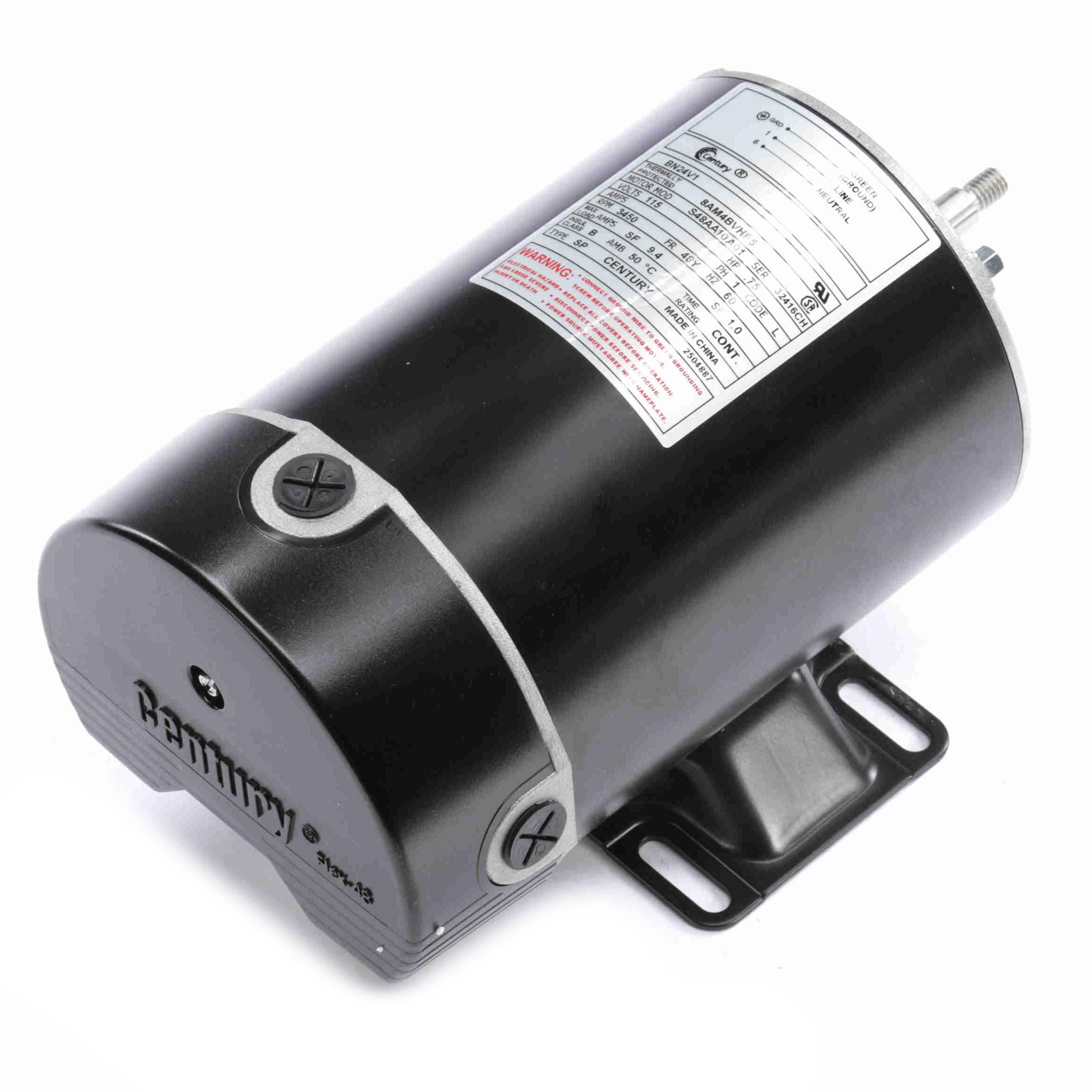

BN24V1 Century 3/4HP Pool & Spa Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: BN24V1

Selected accessories will also be added to cart
$148.97 / Each
Quantity:
ODP, 48Y Frame, 115V Single Phase 60Hz

Features

Features
  • 12 & 3 O'clock Conduit Entries
  • 3-1/2" Shaft Height
  • 50°C Ambient
  • Stainless Steel Shaft
  • Four Thru Bolts on a 5.146 Bolt Circle
  • 48/56 Base Mounting
  • Sealed Ball Bearings
  • UL 1081 Design
  • Rigid Base
  • Threaded Shaft

General Specifications

General Specifications
Model :BN24V1 Catalog No :BN24V1
Part Description :3/4 HP 3450 115 ODP 48Y THD SHAFT Category :Induction Motors
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :.75 HP Output KW :0.56 kW
Frequency :60 Hz Voltage :115 V
Current :9.4 A Speed :3450 RPM
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :48Y Enclosure :Open Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :50 °C
UL :Recognized CSA :Y

Technical Specifications

Technical Specifications
Electrical Type :Split Phase, Induction Run, Single Or Dual Voltage Poles :2
Rotation :Counterclockwise Pump End Mounting :Rigid Base
Motor Orientation :Horizontal Drive End Bearing :BALL
Opp Drive End Bearing :BALL Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :11.21 in
Frame Length :6.50 in Shaft Diameter :0.500 in
Shaft Extension :2.372 in UPC :786674014351
Weight :18.00 LB
