/Products/Electric Motors/Single Phase/Century/BLR6401 Century 1/4HP Electric Motor, 1050 RPM
Click Image to Expand

Product ID: BLR6401

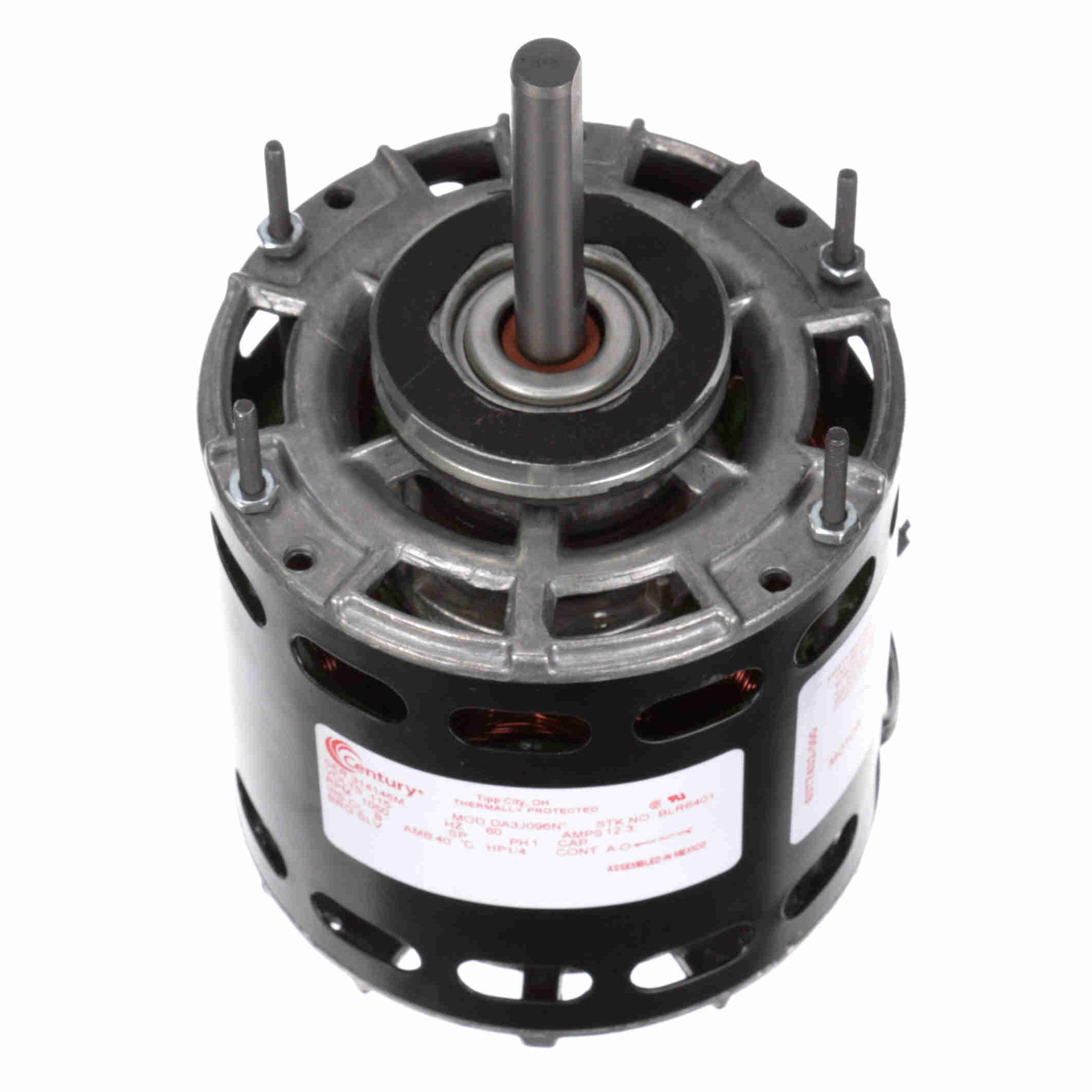

BLR6401 Century 1/4HP Electric Motor, 1050 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: BLR6401

Selected accessories will also be added to cart
$152.97 / Each
Quantity:
Open Enclosed, 42Y Frame, 115VAC 60Hz Single Phase

Features

Features
  • Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 21" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

General Specifications

General Specifications
Model : Catalog No :BLR6401
Part Description :MODEL-RFHP-42FR Category :Direct Drive
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/4 Hp Output KW :0.19 kW
Frequency :60 Hz Voltage :115 V
Current :12.3 A Speed :1050 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :B
Frame :42Y Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Shaded Pole Starting Method :Induction Run
Poles :6 Rotation :Counterclockwise Lead End
Mounting :Resilient Rings Motor Orientation :Horizontal
Drive End Bearing :Sleeve Opp Drive End Bearing :Sleeve
Frame Material :Rolled Steel Shaft Type :Flat
Overall Length :8.13 in Frame Length :3.13 in
Shaft Diameter :0.500 in Shaft Extension :3.1 in
UPC :786674014269 Weight :12.00 LB
