/Products/Pulleys & Sheaves/BK-H Single Groove/BK75H 7.25" "H" Style BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK75H

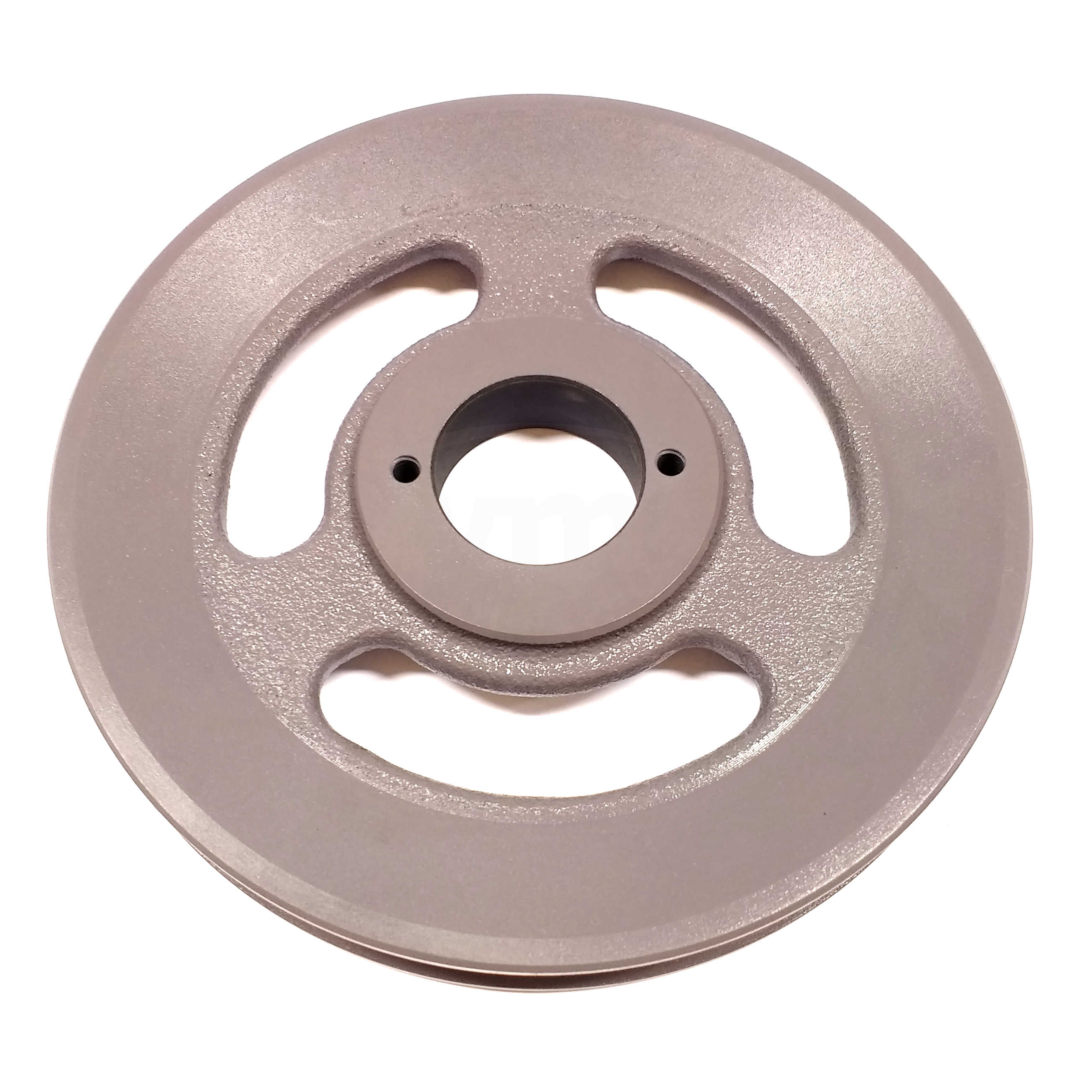

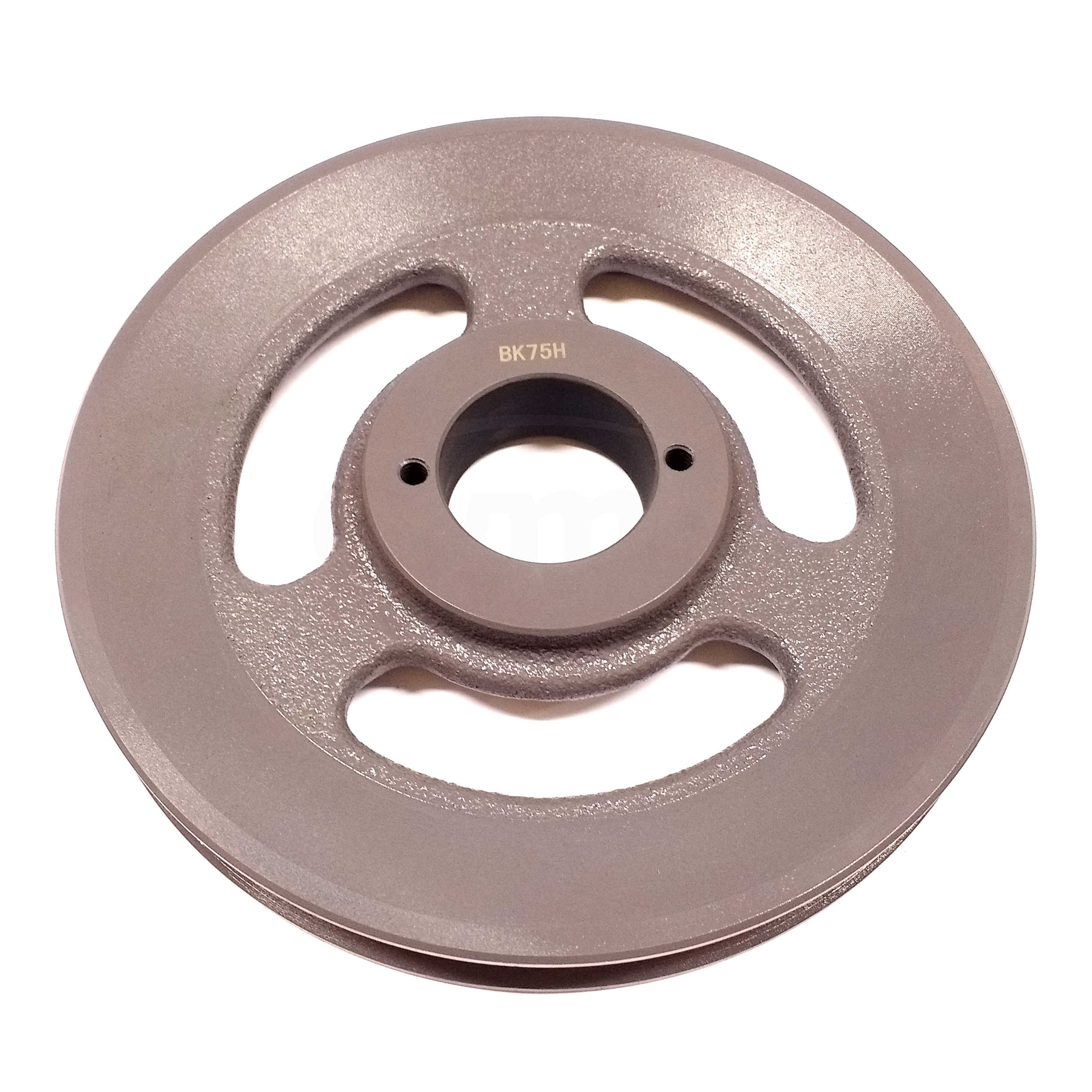

BK75H 7.25" "H" Style BK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: BK75H

Available Stock: 1
Selected accessories will also be added to cart
$21.82 / Each
Quantity:

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand Leeson
Part Number BK75H

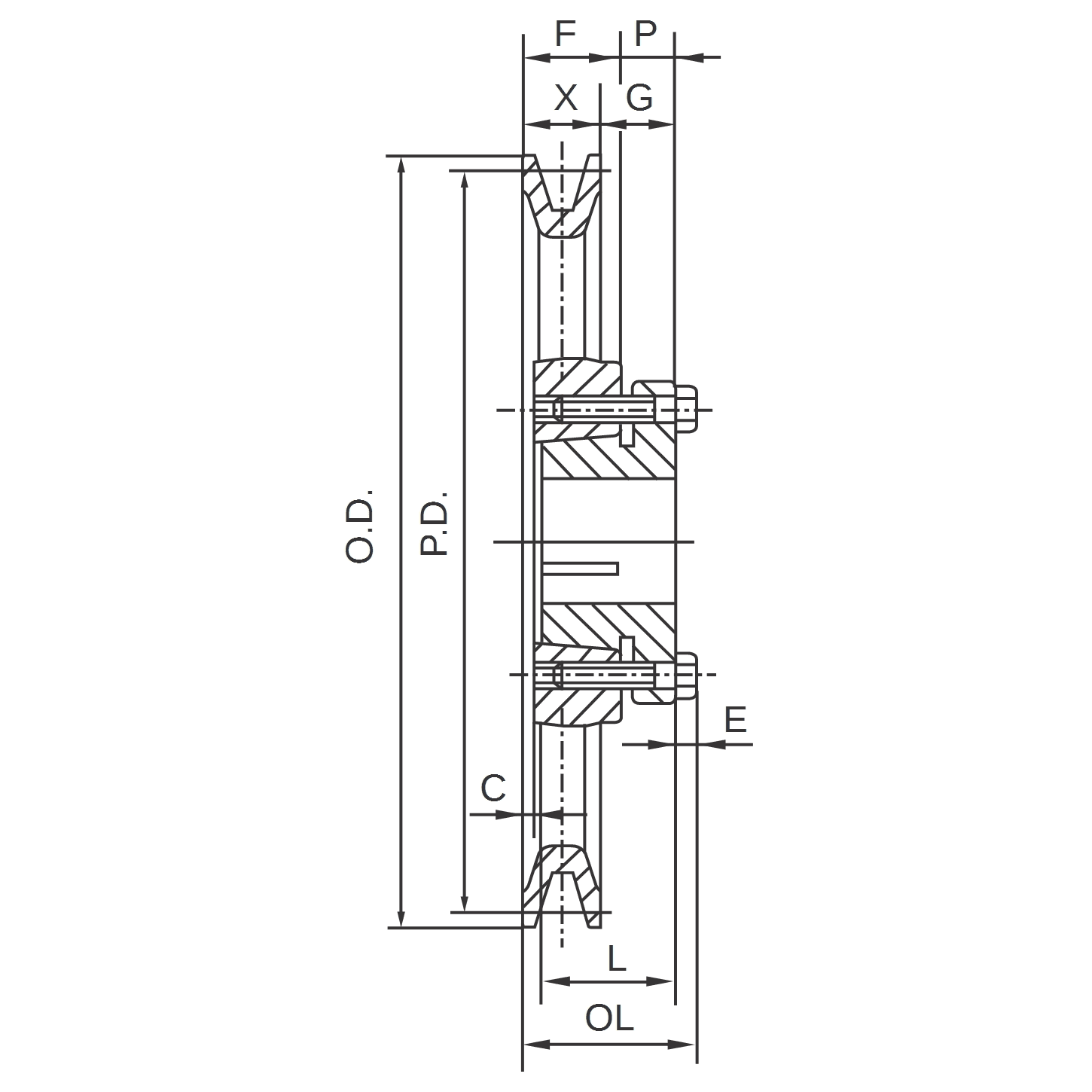

Outside Diameter 7.25"
Pulley Diameter "A" 6.50"
Pulley Diameter "3L" 6.90"
Type 3
Dimension "OL" 1-9/16"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "C" 1/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 3.3 lbs
UPC 624832037470
