/Products/Pulleys & Sheaves/BK Single Groove/ BK5010 4.75" X 5/8" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK5010

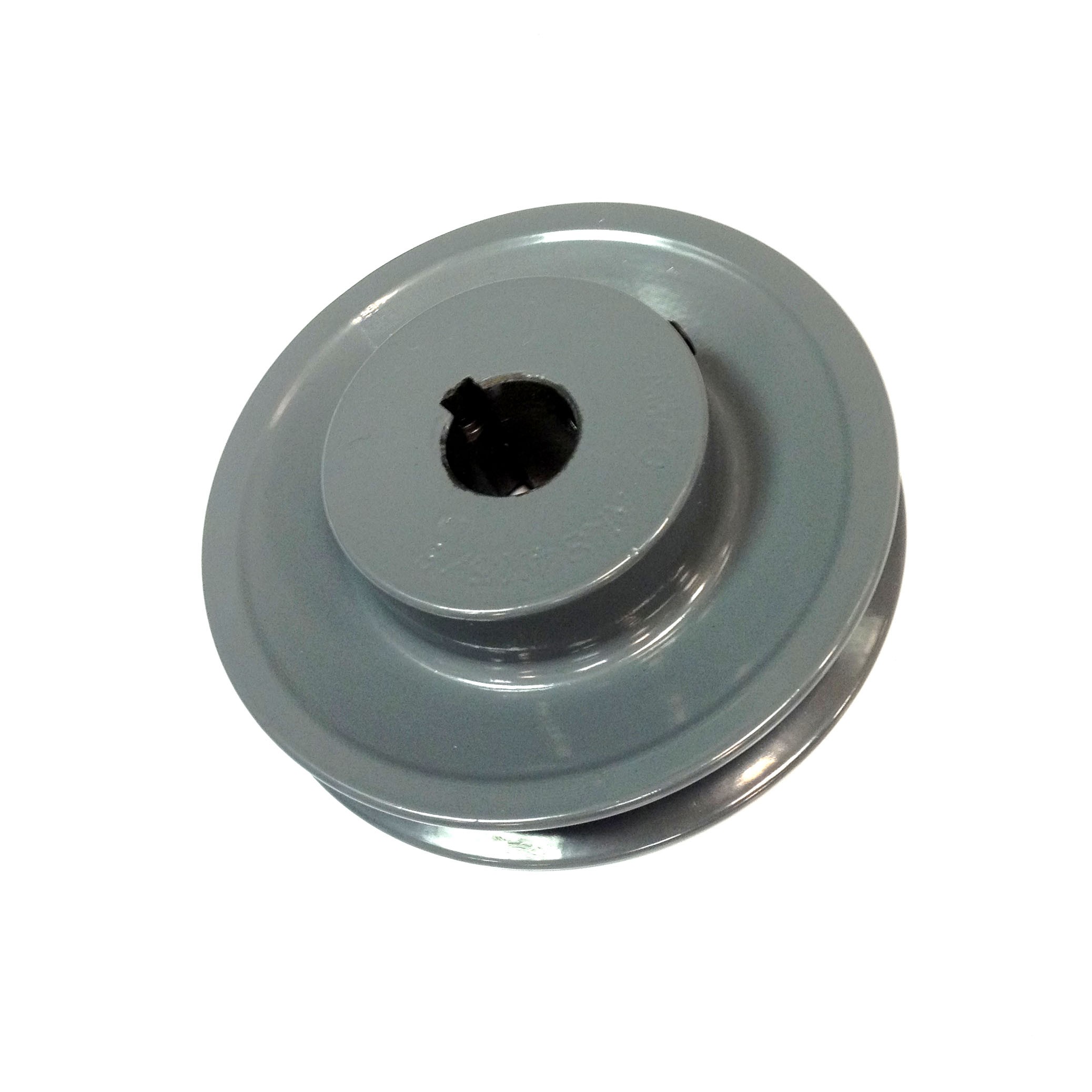

BK5010 4.75" X 5/8" BK Single Groove V-Pulley

MFG: New Standard Power Transmission
MFG Part Number: BK50X5/8

Available Stock: 4
Selected accessories will also be added to cart
$25.74 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK5010
BK50X5/8
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 4.75"
Pulley Diameter “A” 4.00"
Pulley Diameter “B” 4.40"

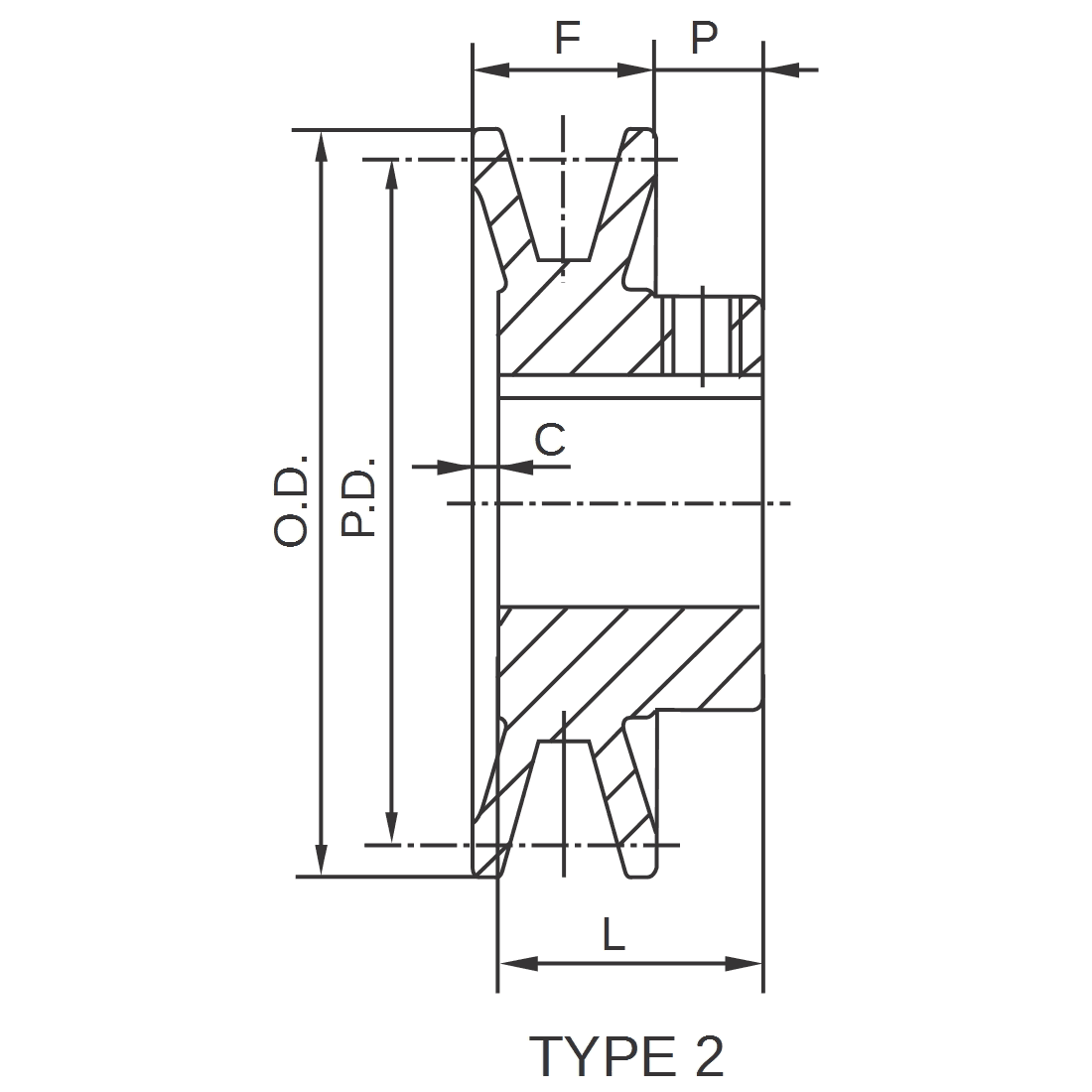

Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 2.0 lbs

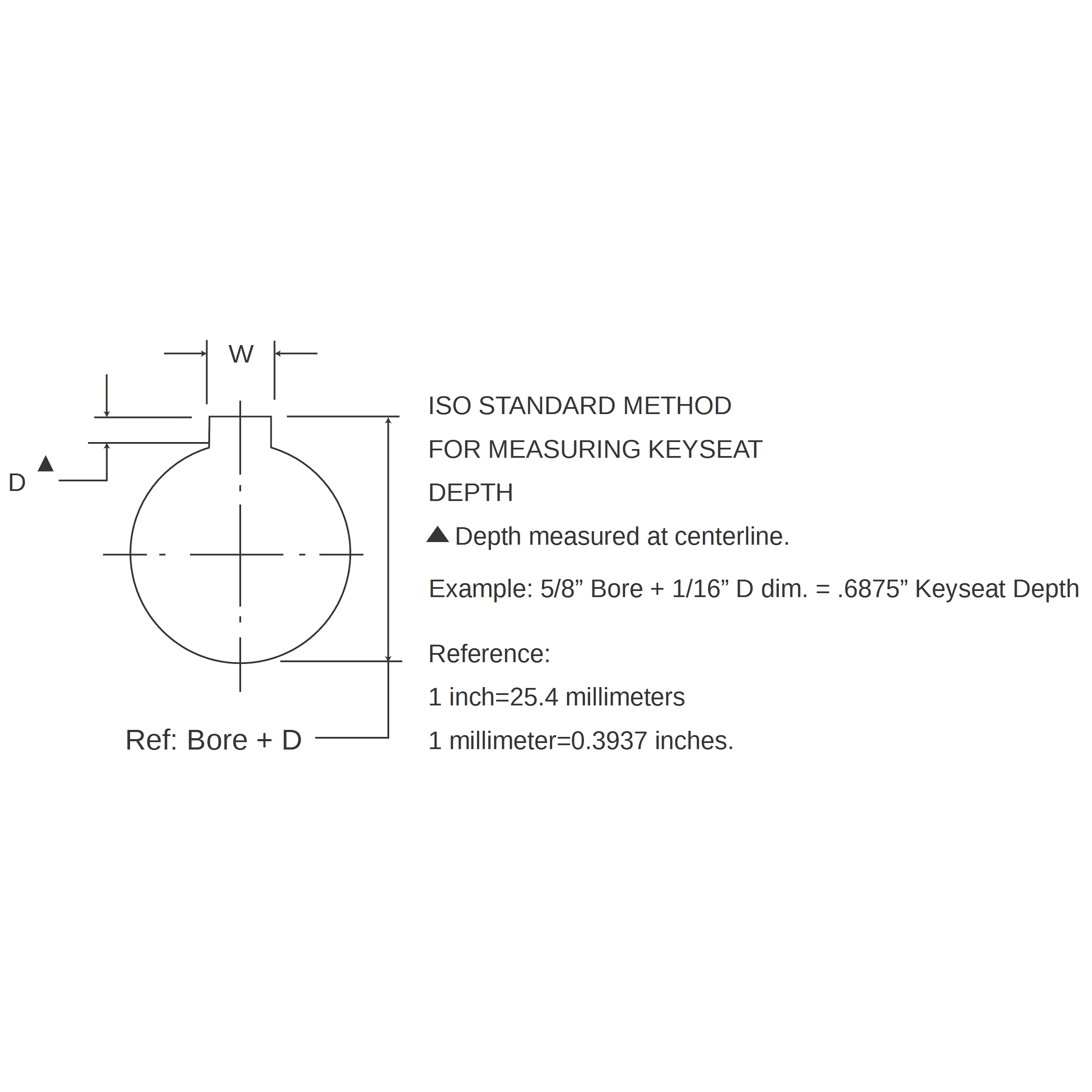

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
