/Products/Pulleys & Sheaves/BK Single Groove/BK4012 3.95" X 3/4" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK4012

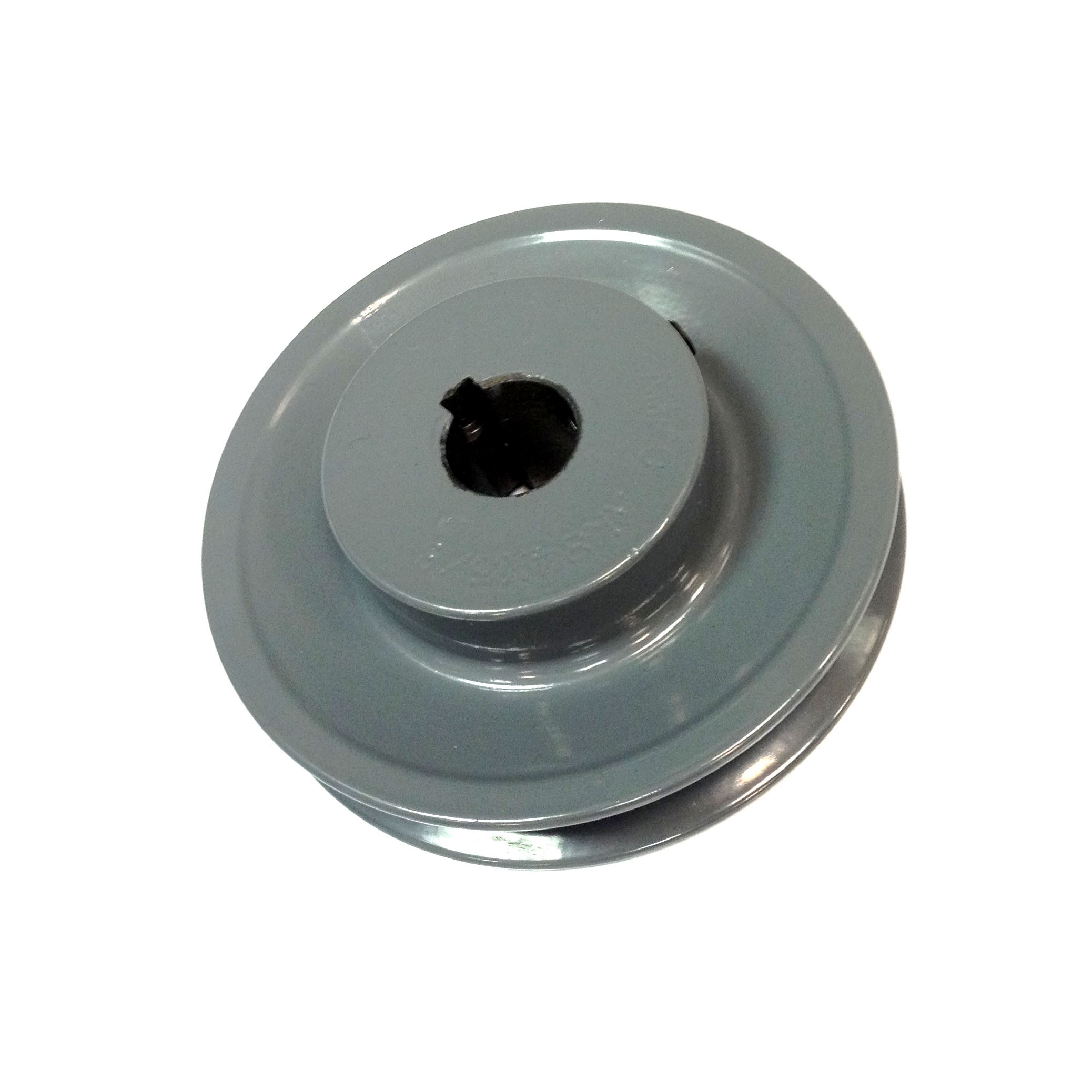

BK4012 3.95" X 3/4" BK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: BK40X3/4

Available Stock: 3
Selected accessories will also be added to cart
$18.77 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK4012
BK40X3/4
Bore 3/4"
Sheave Cross Section BK
Outside Diameter 3.95"

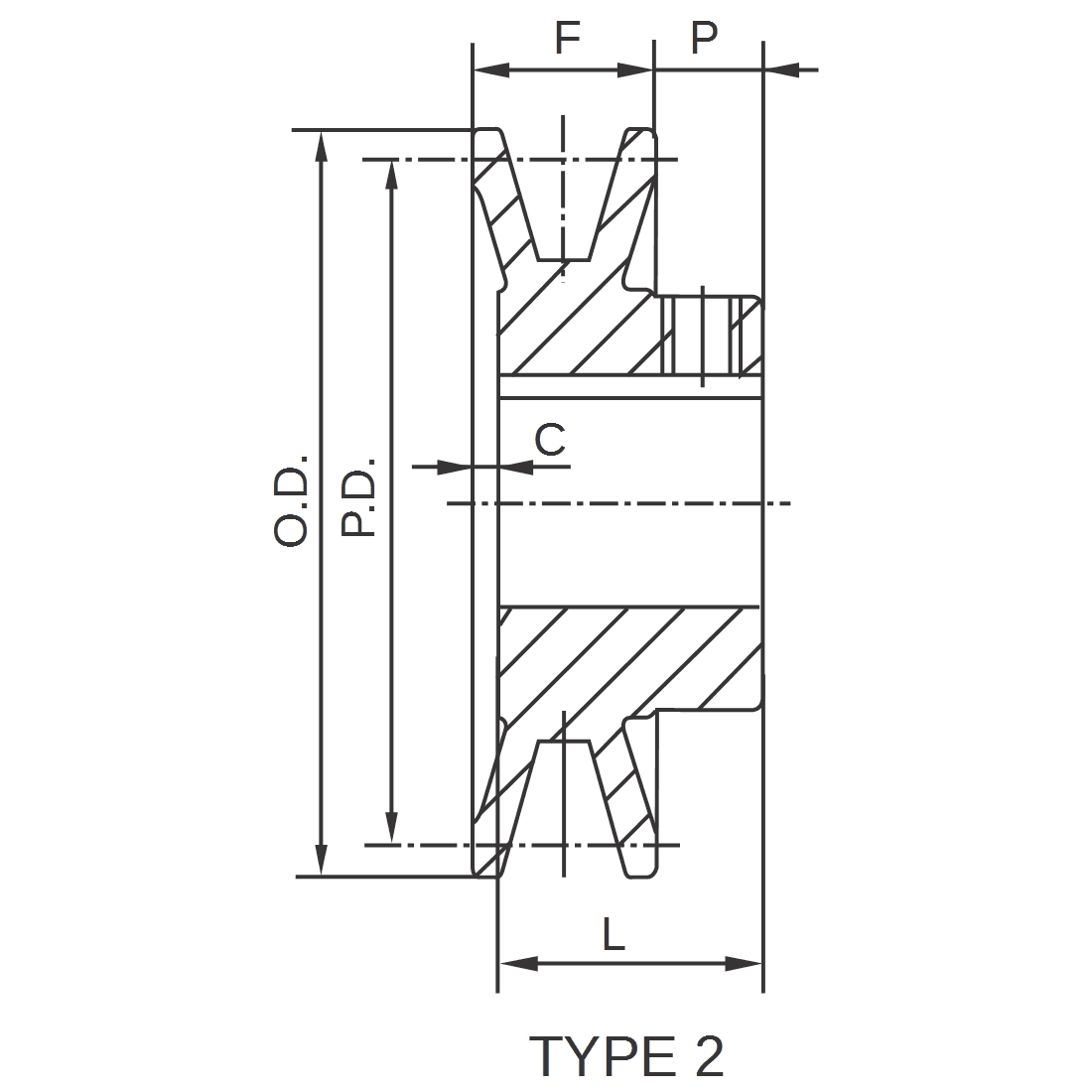

Pulley Diameter “A” 3.20"
Pulley Diameter “B” 3.60"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 1.6 lbs

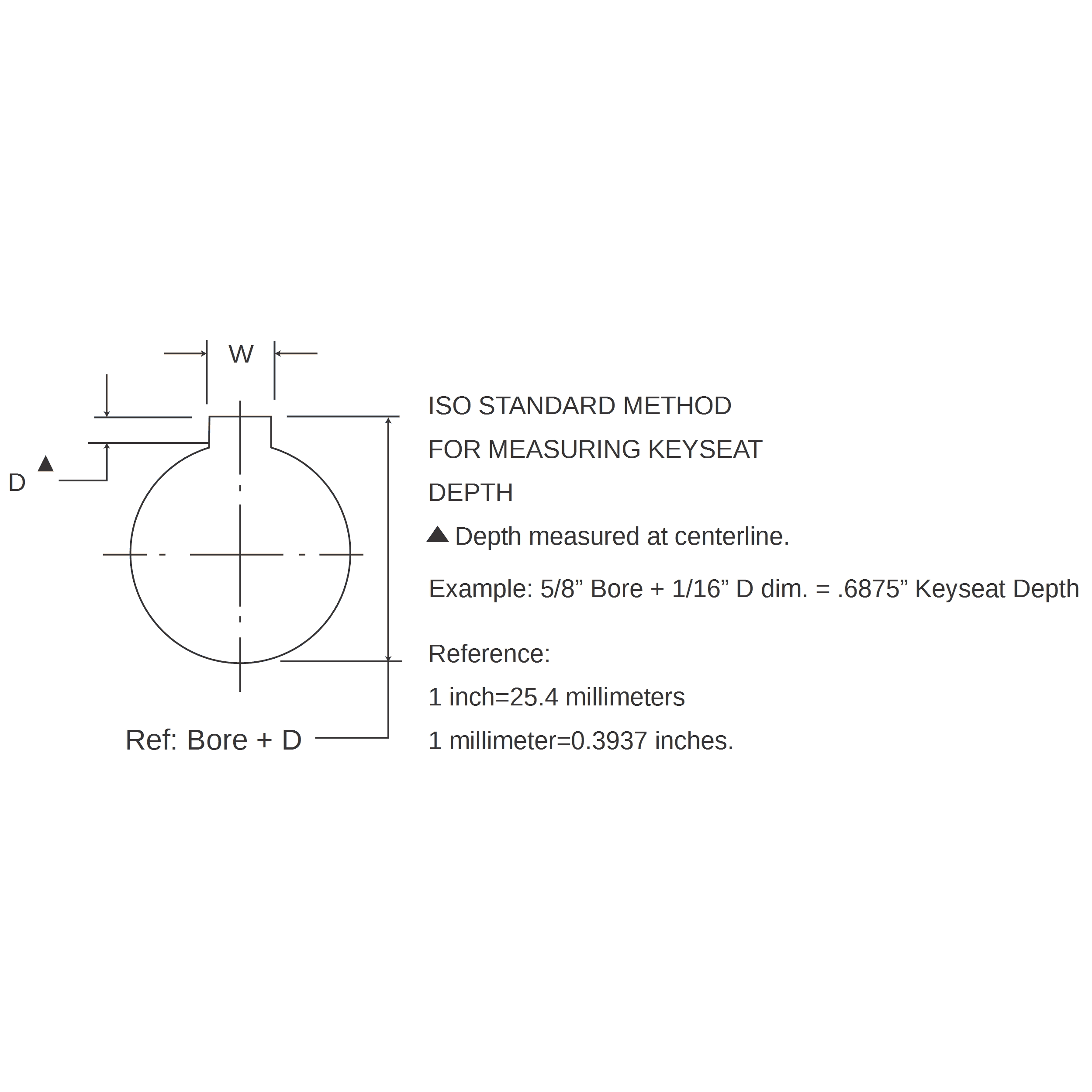

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
