/Products/Pulleys & Sheaves/BK-H Single Groove/BK34H 3.55" "H" Style BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK34H

BK34H 3.55" "H" Style BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK34H

Available Stock: 2
Selected accessories will also be added to cart
$15.98 / Each
Quantity:

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand Various
Part Number BK34H

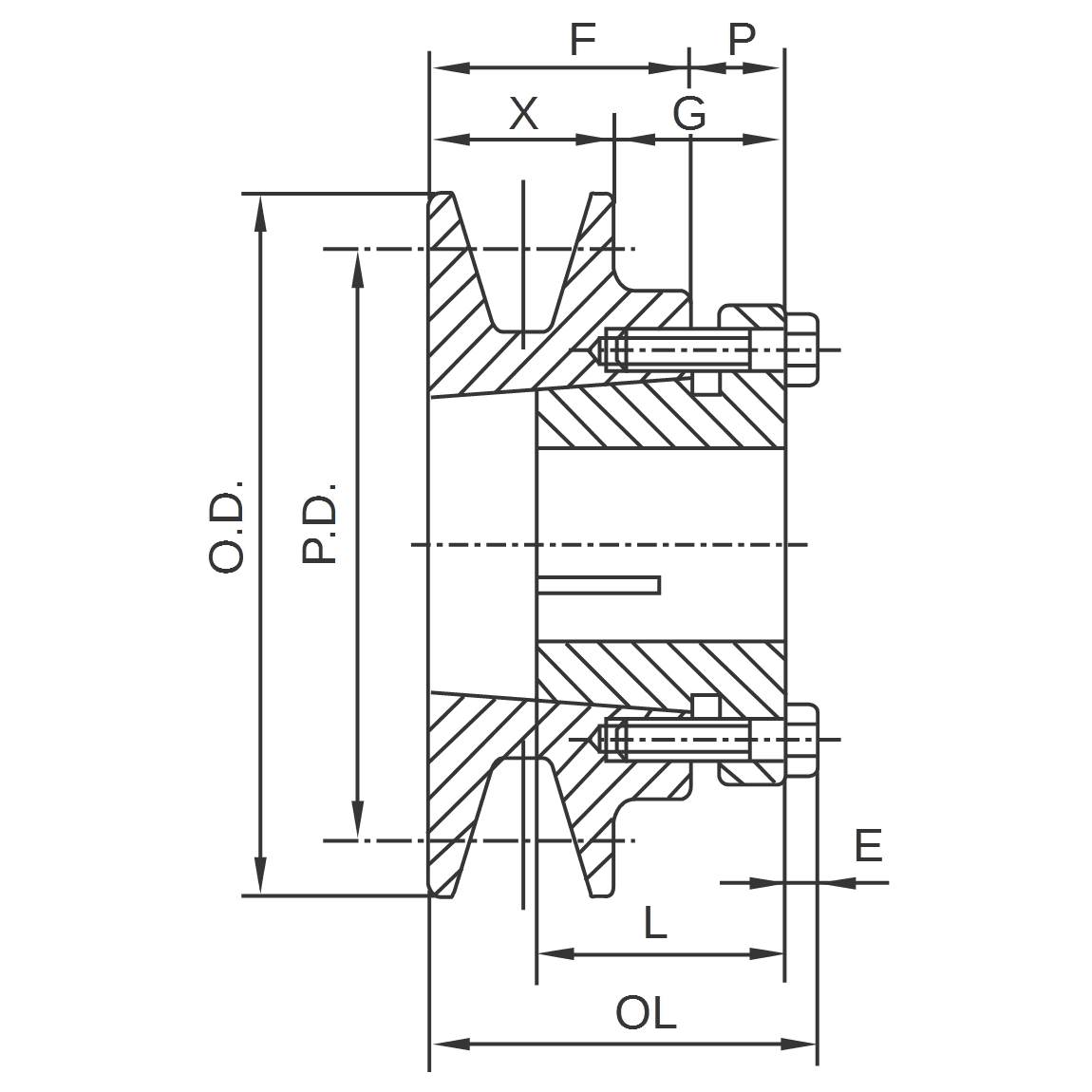

Outside Diameter 3.55"
Pulley Diameter "A" 2.80"
Pulley Diameter "3L" 3.20"
Type 1
Dimension "OL" 1-15/16"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/8"
Dimension "X" 1-5/16"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 1.6 lbs
