/Products/Pulleys & Sheaves/BK Single Groove/BK3216 3.35" X 1" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK3216

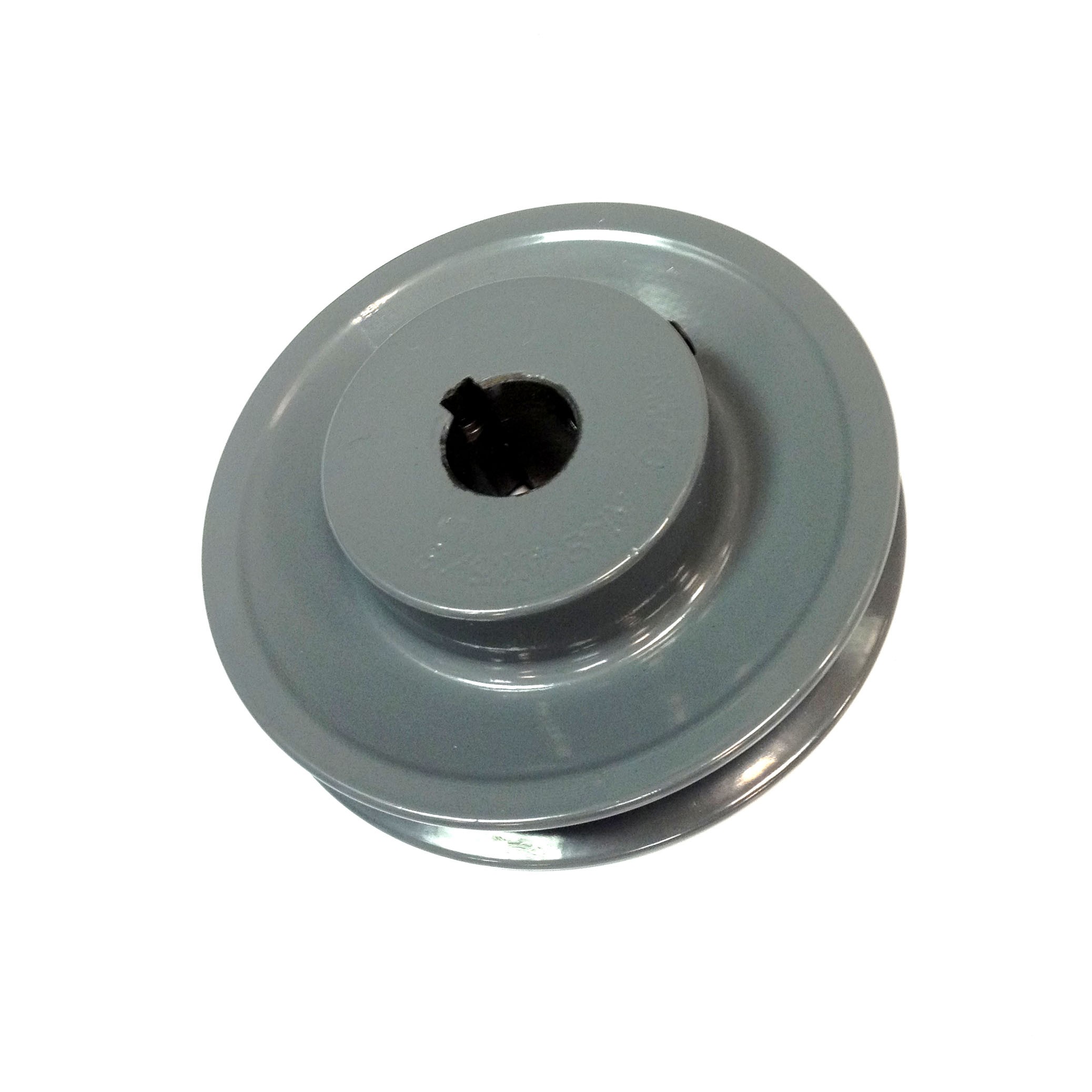

BK3216 3.35" X 1" BK Single Groove V-Pulley

MFG: Browning (Emerson Power Transmission Products)
MFG Part Number: BK32X1

Temporarily out of stock
Selected accessories will also be added to cart
$9.25 / Each

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Browning
Various
Part Number BK3216
BK32X1
Bore 1"
Sheave Cross Section BK
Outside Diameter 3.35"
Pulley Diameter “A” 2.60"
Pulley Diameter “B” 3.00"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 1.0 lbs
Keyseat (WxD) 1/4" x 1/8"
Set Screw(s) Yes, 2
Country of Origin Various
