/Products/Pulleys & Sheaves/BK Single Groove/BK3210 3.35" X 5/8" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK3210

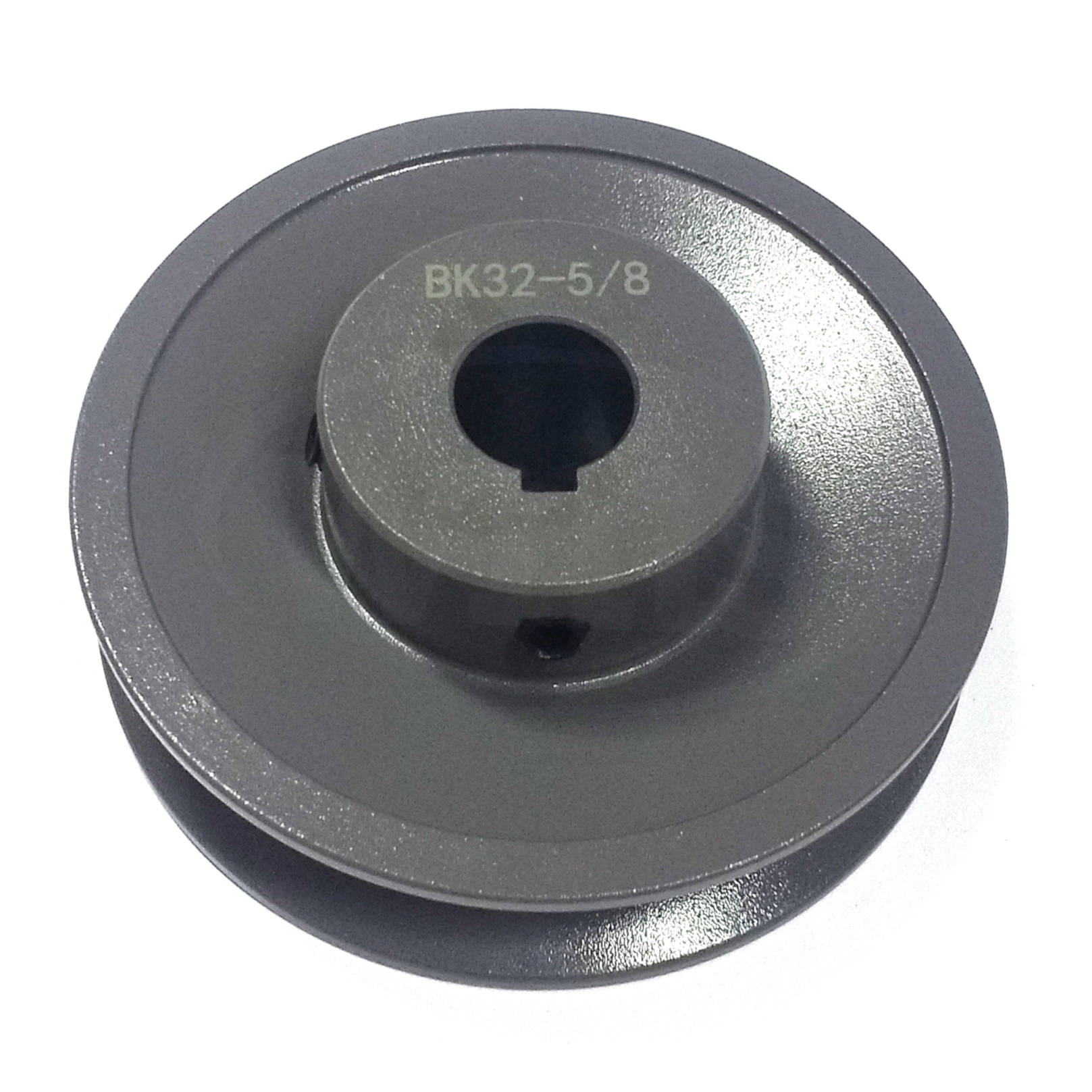

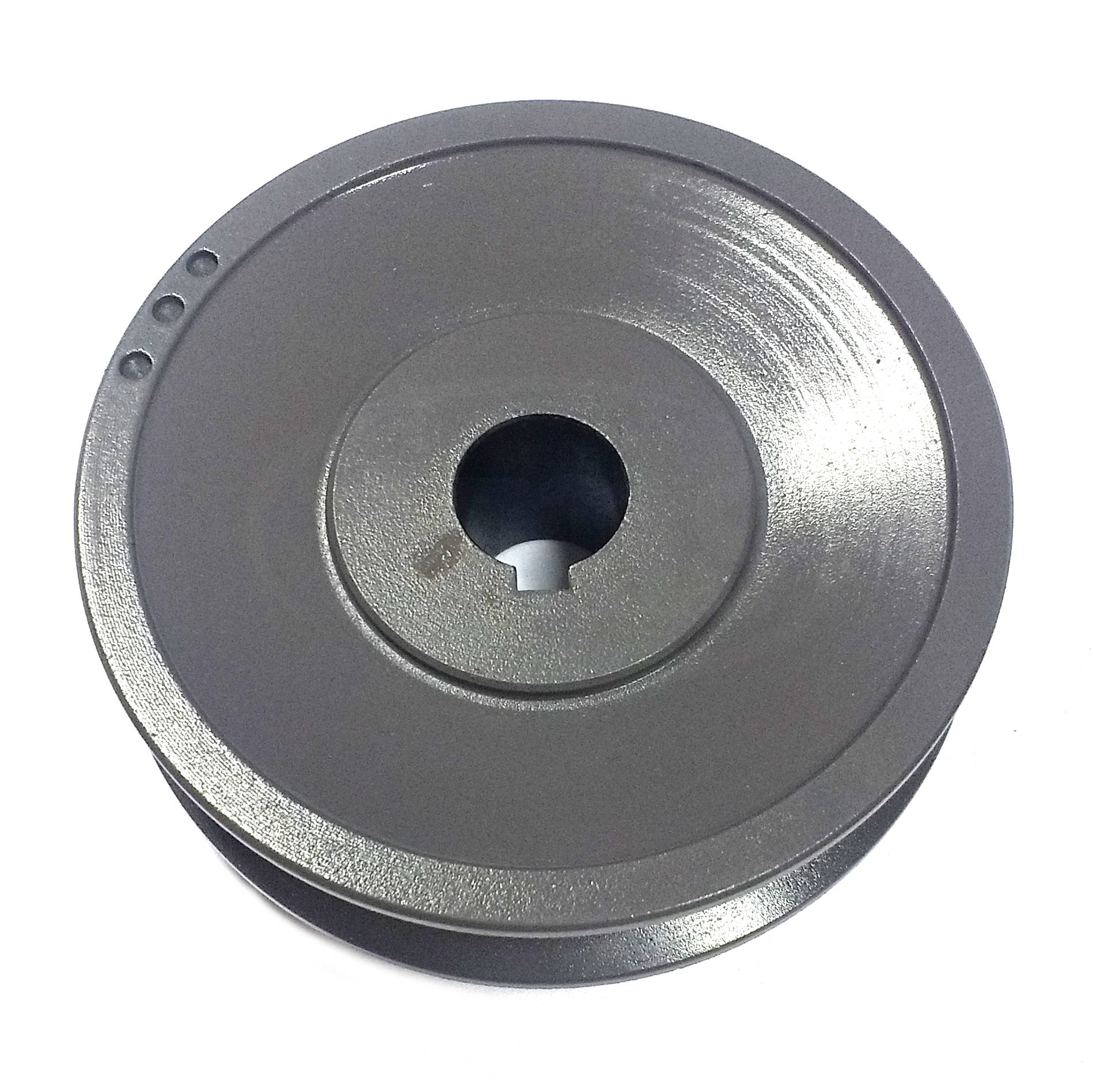

BK3210 3.35" X 5/8" BK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: BK32X5/8

Available Stock: 4
Selected accessories will also be added to cart
$15.10 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number BK3210
BK32X5/8
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 3.35"
Pulley Diameter “A” 2.60"
Pulley Diameter “B” 3.00"

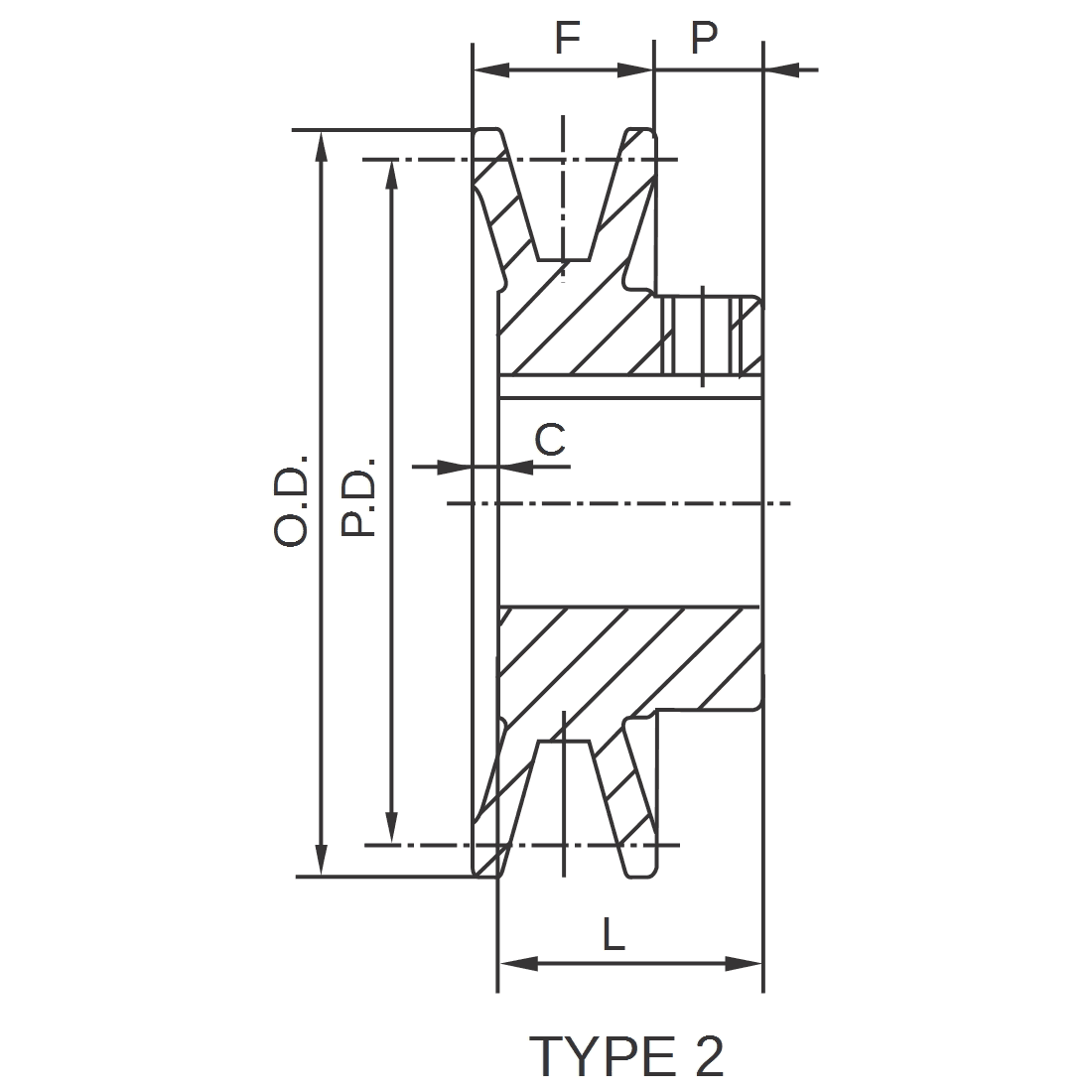

Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 1.0 lbs

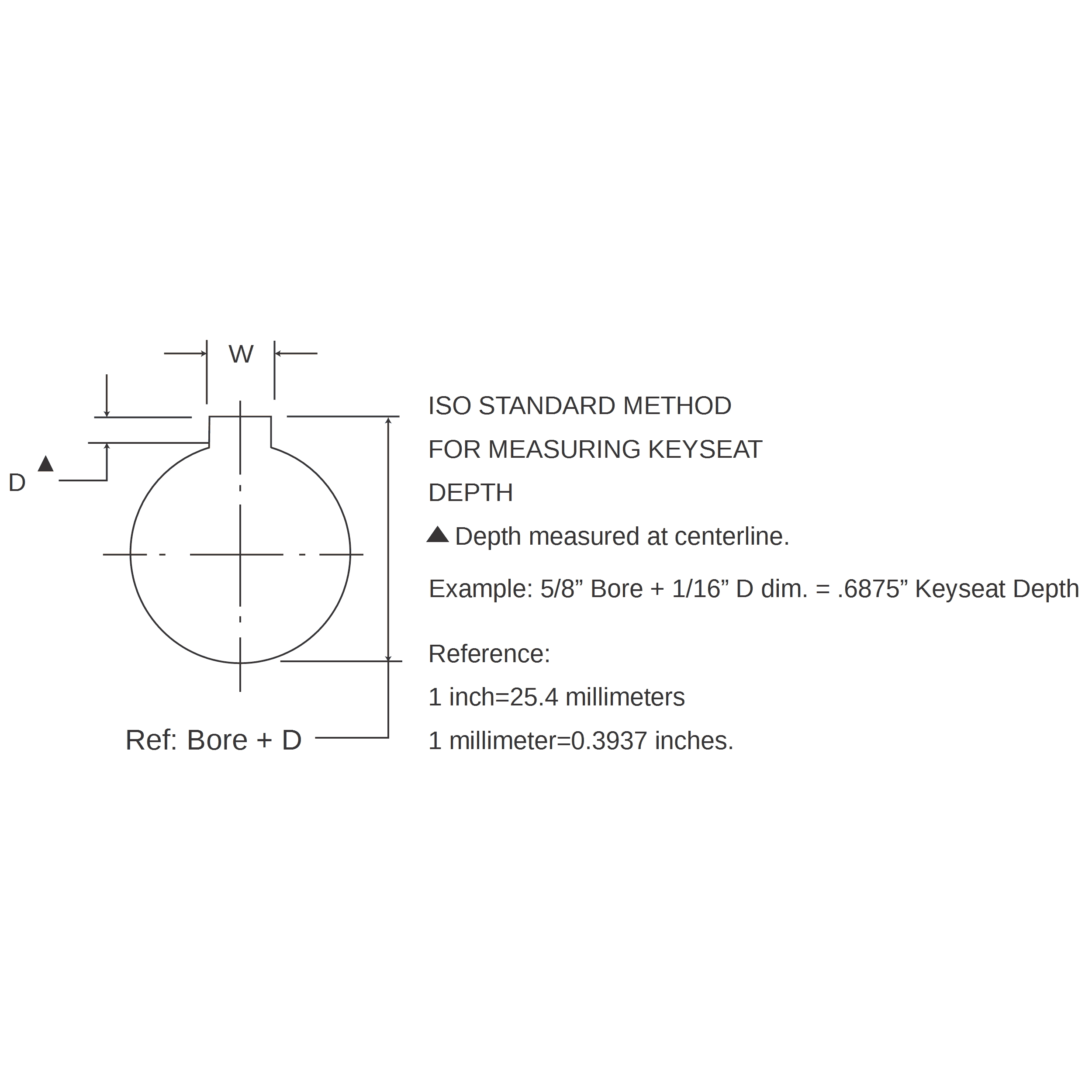

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin China
UPC 624832033670
