/Products/Electric Motors/3 Phase/TechTop/Oil Pumper/BK3-CI-TF-404T-6-RR-G-60 Techtop 60HP Oil Pump Electric Motor, 1200RPM
Click Image to Expand

Product ID: BK3-CI-TF-404T-6-RR-G-60

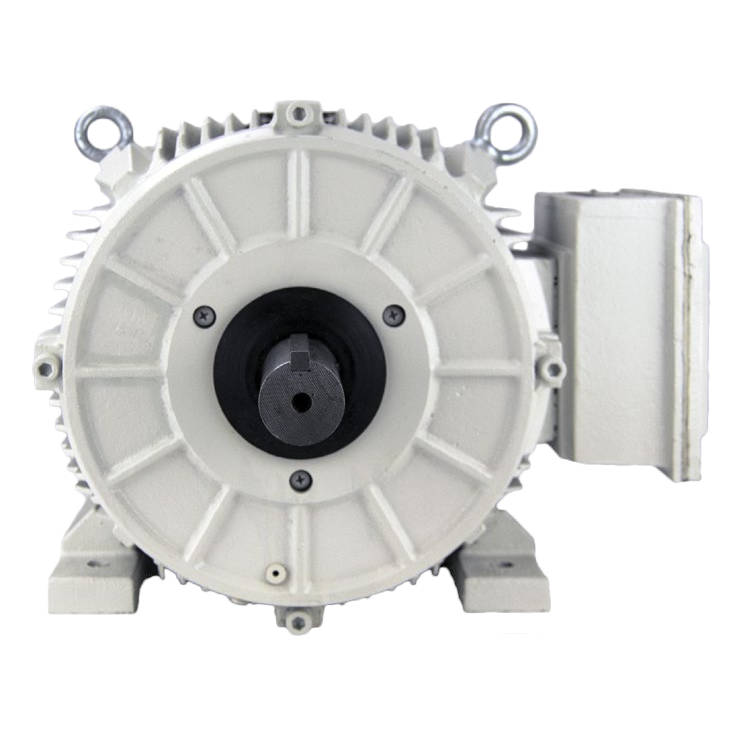

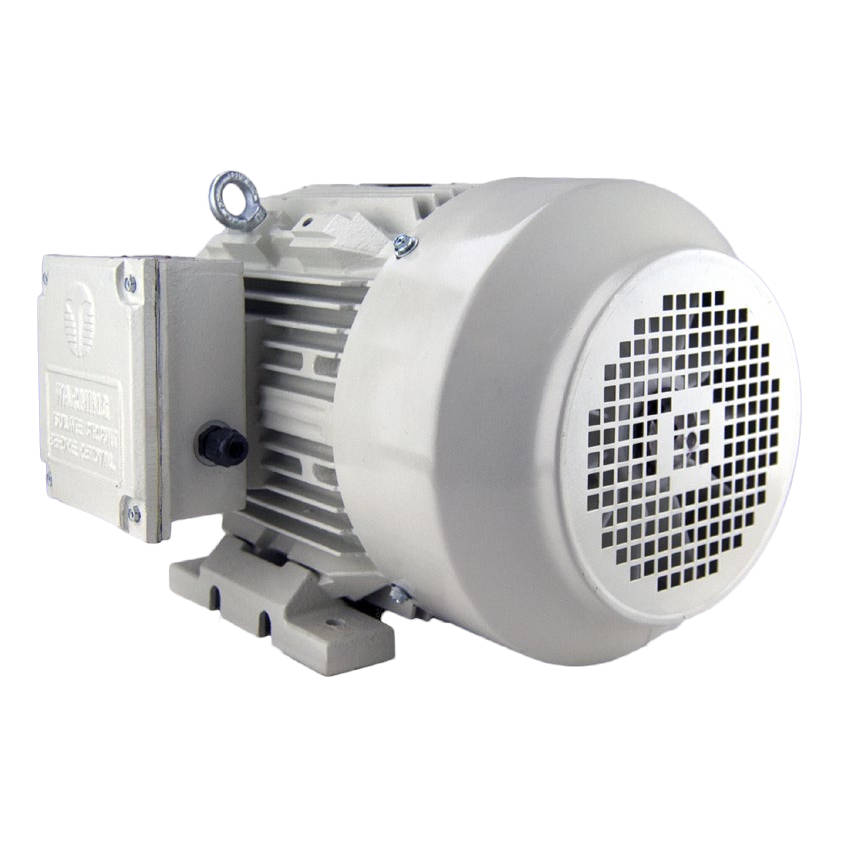

BK3-CI-TF-404T-6-RR-G-60 Techtop 60HP Oil Pump Electric Motor, 1200RPM

MFG: TechTop Industries, Inc.
MFG Part Number: BK3-CI-TF-404T-6-RR-G-60

Selected accessories will also be added to cart
$4,542.72 / Each
Quantity:
TEFC, 404T Frame, 230/460/796V 3-Phase 60Hz

Specifications

Manufacturer Techtop
Model Number BK3-CI-TF-404T-6-RR-G-60
Frame Size 404T
Power 60 HP
Speed 1200 RPM
Voltage 230/460/796V
3-Phase
60Hz
Full Load Amps 135.2/67.6/39.07 Amps
Enclosure TEFC
IP55
Mounting Rigid Base
Frame Material Cast Iron
Service Factor 1.15
Number of Leads 12
Insulation Class F
NEMA Design D
Weight 802 lbs

Standard Features

  • 5% to 8% Slip NEMA Design “D” Operation
  • Double Lip Oil Seals on Both Ends
  • Cast Iron Terminal Box with Gasket
  • Roller Bearing on 404T and Above
  • TEFC Cast Iron Frame
  • Corrosion Resistant Hardware
  • Vacuum Impregnated Stator
  • Mounting Position Convertible F1, F2, F3
  • Class F Insulation System , Class H Stator
  • Tropicalization on Stator Winding
  • One-Way Brass Condensation Drains
  • 24 Month Warranty from Date of Purchase
