/Products/Surplus Industrial/Circuit Breakers/Square D (Schneider Electric)/BJL36025 Square D PowerPact B Circuit Breaker, 25 Amps, 3 Pole
Click Image to Expand

Product ID: BJL36025

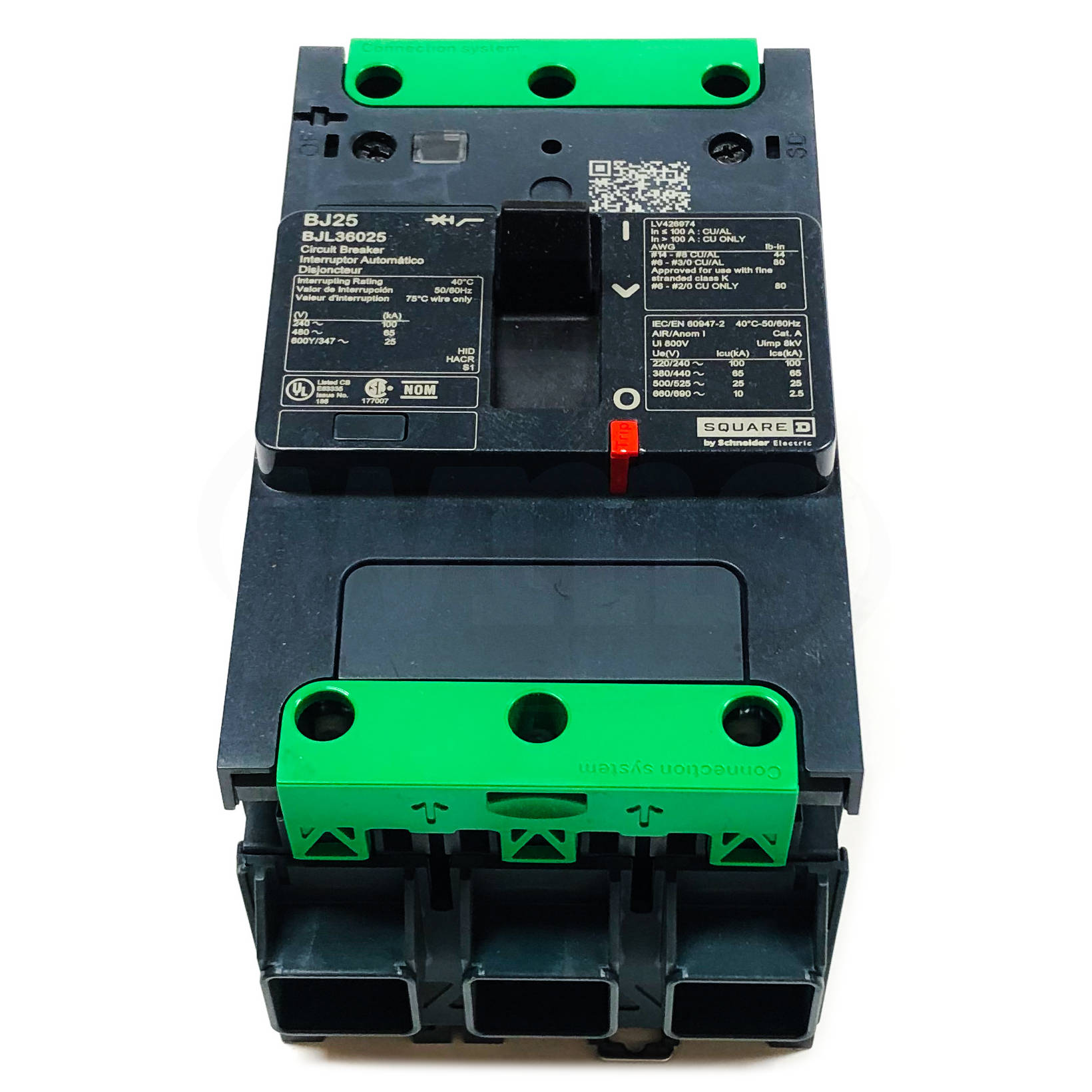

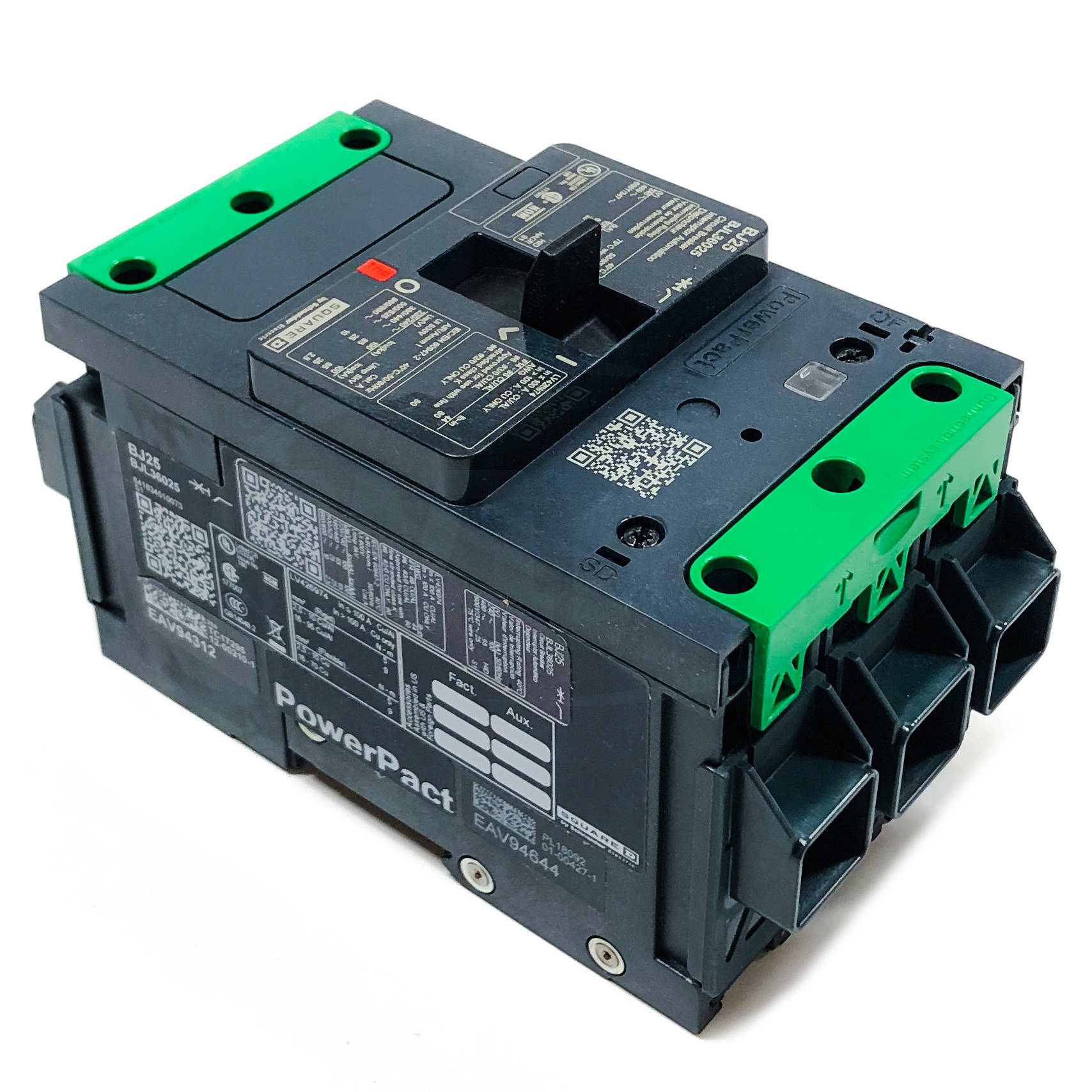

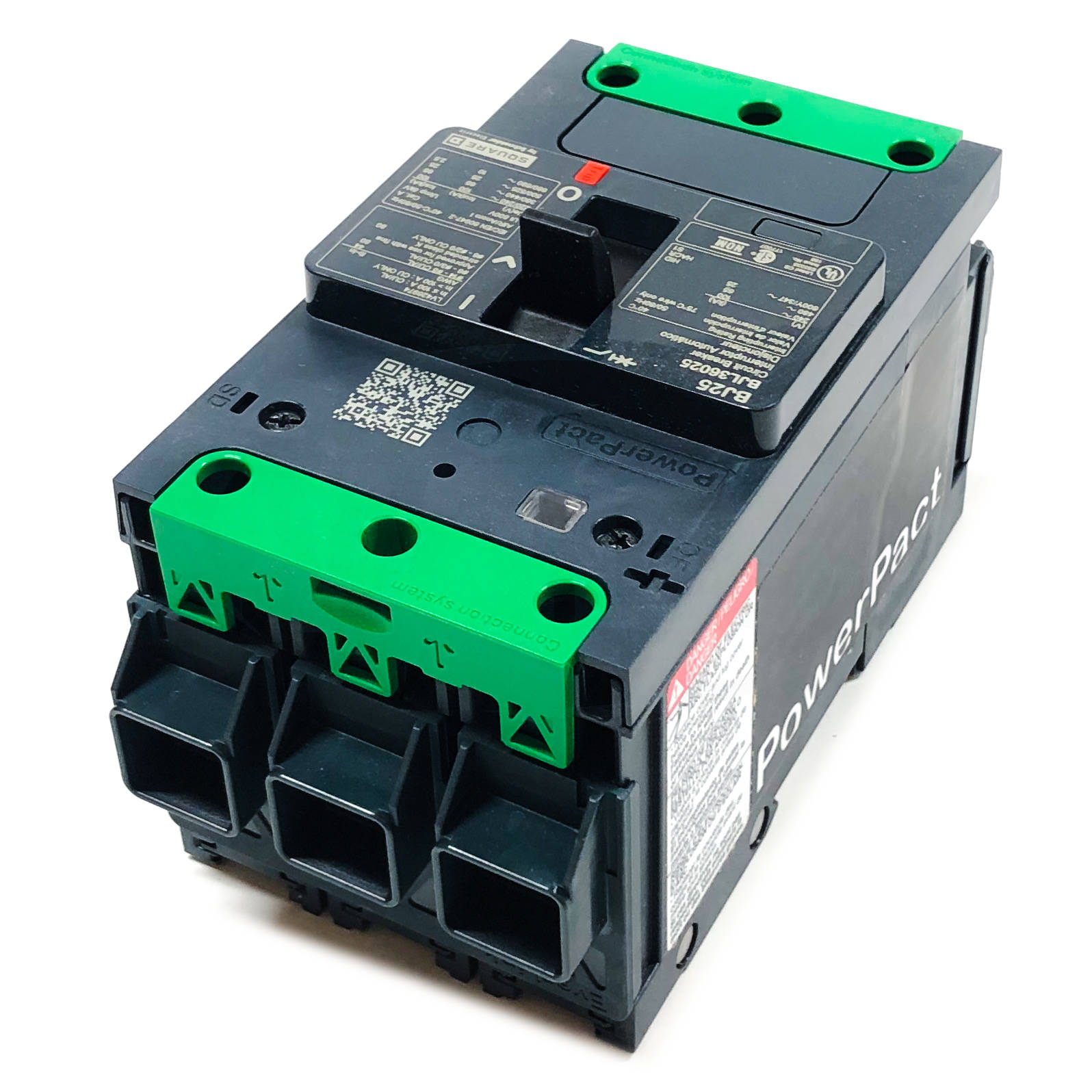

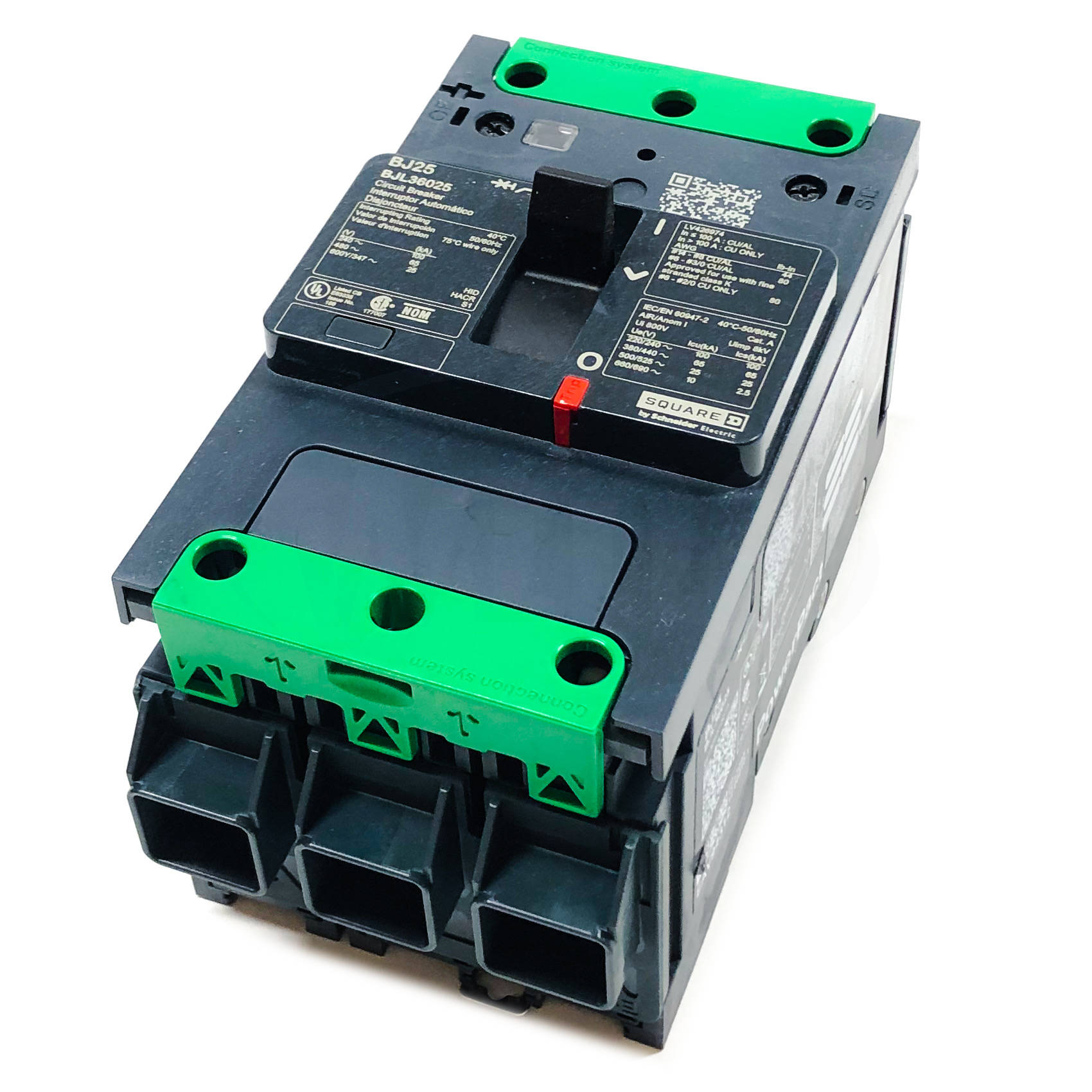

BJL36025 Square D PowerPact B Circuit Breaker, 25 Amps, 3 Pole

MFG: Schneider Electric (Square D)
MFG Part Number: BJL36025

Available Stock: 1
Selected accessories will also be added to cart
$999.97 / Each
Quantity:
New, Surplus Stock.
Main
range
PowerPact
product name
PowerPact B
device short name
BJ 025
product or component type
Circuit breaker
device application
Distribution
Complementary
Line Rated Current
25 A
Number of Poles
3P
control type
Toggle
breaking capacity code
J
breaking capacity
100 kA 208Y/120 V AC 50/60 Hz UL 489
100 kA 240 V AC 50/60 Hz UL 489
65 kA 480/277 V AC 50/60 Hz UL 489
65 kA 480 V AC 50/60 Hz UL 489
25 kA 600Y/347 V AC 50/60 Hz UL 489
50 kA 250 V DC UL 489
[Ue] rated operational voltage
690 V AC 50/60 Hz UL 489
[Ics] rated service breaking capacity
100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA 500...525 V AC 50/60 Hz IEC 60947-2
2.5 kA 690 V AC 50/60 Hz IEC 60947-2
65 kA 380...415 V AC 50/60 Hz IEC 60947-2
65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV IEC 60947-2
[Ui] rated insulation voltage
800 V conforming to IEC 60947-2
trip unit technology
Thermal-magnetic
suitability for isolation
Yes conforming to IEC 60947-2
utilisation category
Category A
Mechanical durability
20000 cycles IEC 947-1 Annex K ed 5.2
Electrical durability
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
connection pitch
1.06 in (27 mm)
local signalling
Flag (green) for presence of auxiliary contacts
mounting mode
Clip-on 35 x 15 mm symmetrical DIN rail)
By screws (plate)
electrical connection
Everlink lug line
Everlink lug load
number of slots
1 slot(s) for auxiliary switch OF (plug-in)
1 slot(s) for voltage release MN or MX (plug-in)
1 slot(s) for alarm switch SD (plug-in)
AWG gauge
AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
tightening torque
44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) AWG 14...AWG 4)
79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) AWG 3...AWG 3/0)
Power wire stripping length
0.79 in (20 mm)
Color
Grey (RAL 7016)
9 mm pitches
9
height
5.39 in (137 mm)
Maximum Width
3.19 in (81 mm)
Maximum Depth
3.15 in (80 mm)
Net Weight
2.37 lb(US) (1.074 kg)
Quantity per set
Set of 1
continuous current rating
80 %
Environment
quality labels
CE
standards
EN/IEC 60947-2
EN/IEC 60947-5-1
CSA C22.2 No 5
GB 14048.2
UL 489
NMX J-266
NEMA AB1
product certifications
UL
IEC
CCC
EAC
CSA
NOM
IP degree of protection
Front cover IP40 IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
pollution degree
3 conforming to IEC 60947-1
ambient air temperature for operation
-13…158 °F (-25…70 °C)
ambient air temperature for storage
-58…185 °F (-50…85 °C)
operating altitude
< 6561.68 ft (2000 m) without derating
5000 m with derating
Ordering and shipping details
Category
01132 - BJ/BK UNIT MOUNT BREAKER/SWITCH
Discount Schedule
DE2
GTIN
00785901078517
Nbr. of units in pkg.
1
Package weight(Lbs)
2.6 lb(US) (1.18 kg)
Returnability
No
Country of origin
US
