/Products/Electric Motors/Single Phase/Century/BF2034 Century 1/3HP Electric Motor, 1725RPM
Click Image to Expand

Product ID: BF2034

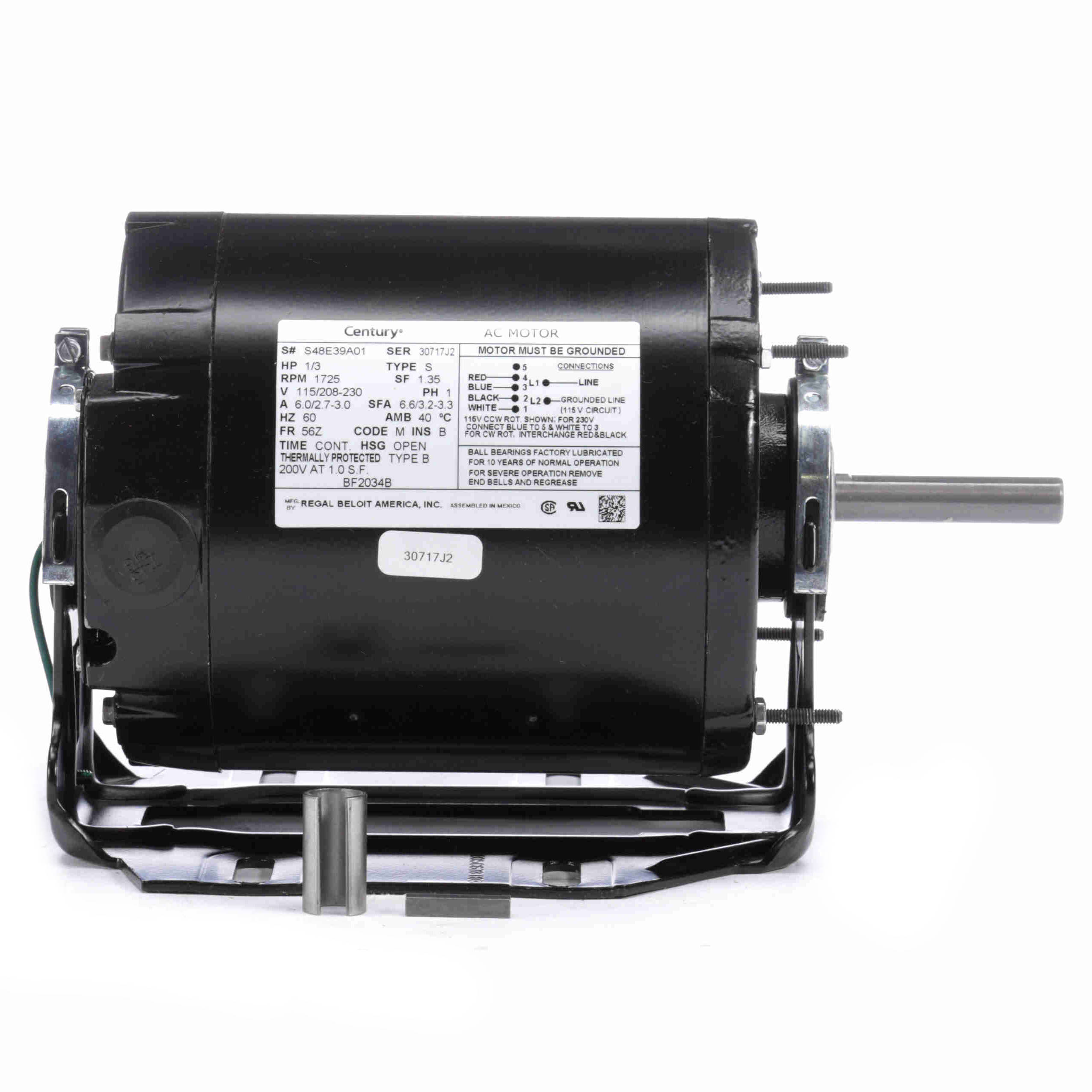

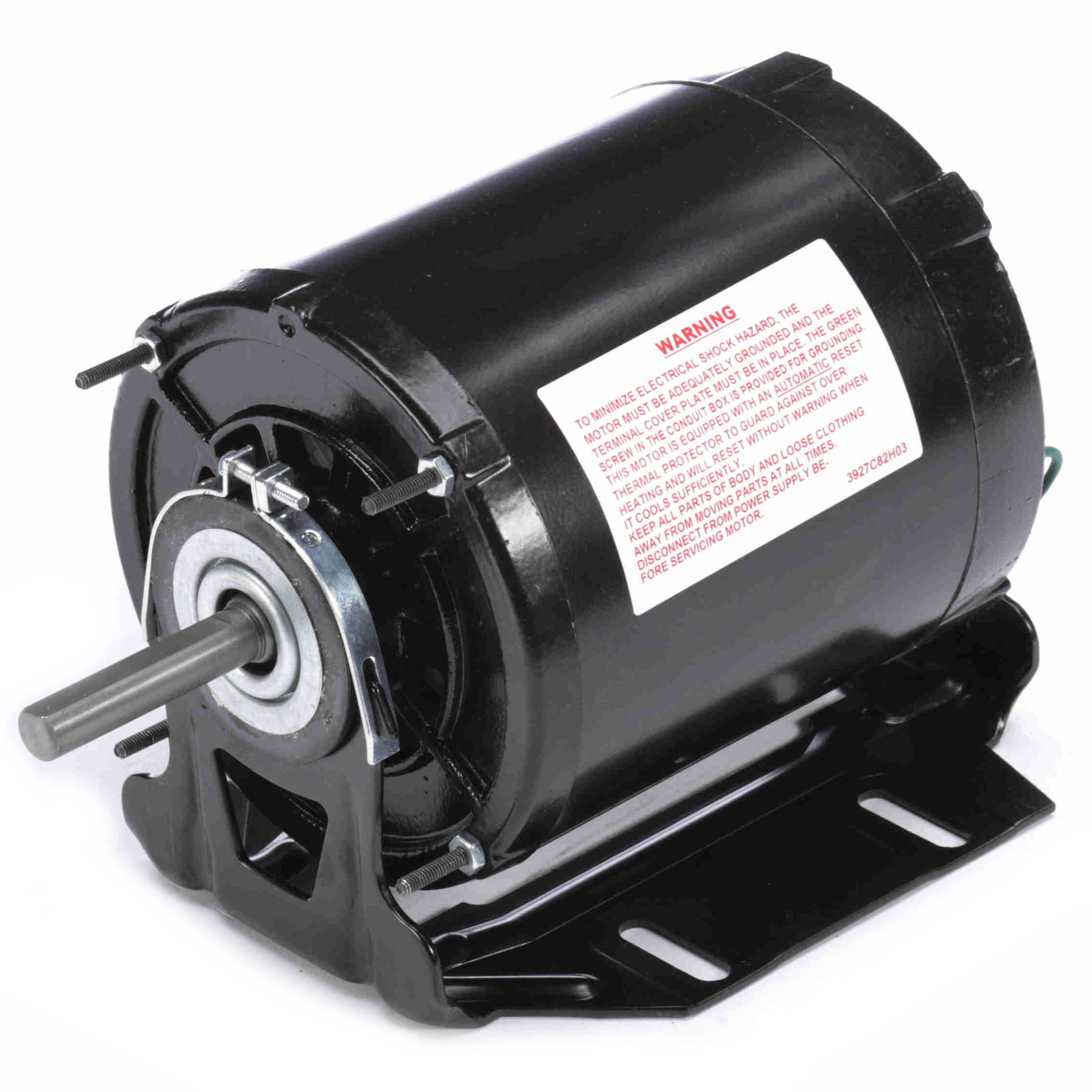

BF2034 Century 1/3HP Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: BF2034

Selected accessories will also be added to cart
$331.97 / Each
Quantity:
Open, 48 Frame, 115/230V Single Phase 60Hz
Features
  • Resilient Base
  • Continuous duty
  • Single and two speed
General Specifications
Model : Catalog No :BF2034
Part Description :1/3,1725,OPEN,48,1/60/115/230 Category :Self Cooled
Stock :Yes
Nameplate Specifications
Output HP :1/3 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :115/230 V
Current :6.0/3.0 A Speed :1725 rpm
Service Factor :1.35 Phase :1
Duty :Continuous Insulation Class :B
Frame :48 Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Split Phase Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Resilient Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :9.40 in
Frame Length :5.94 in Shaft Diameter :0.625 in
Shaft Extension :1.62 in UPC :786674013743
Weight :15.00 LB
