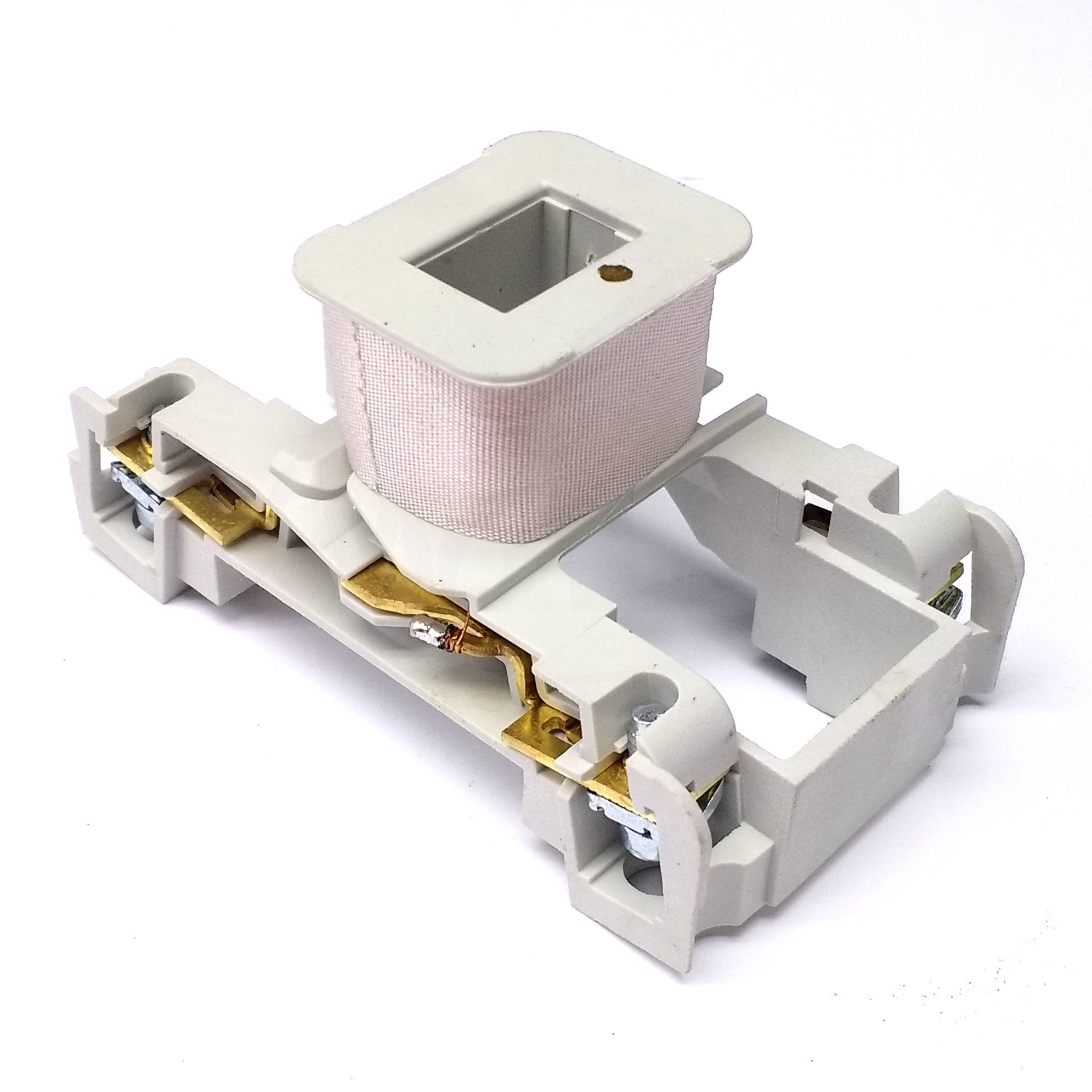

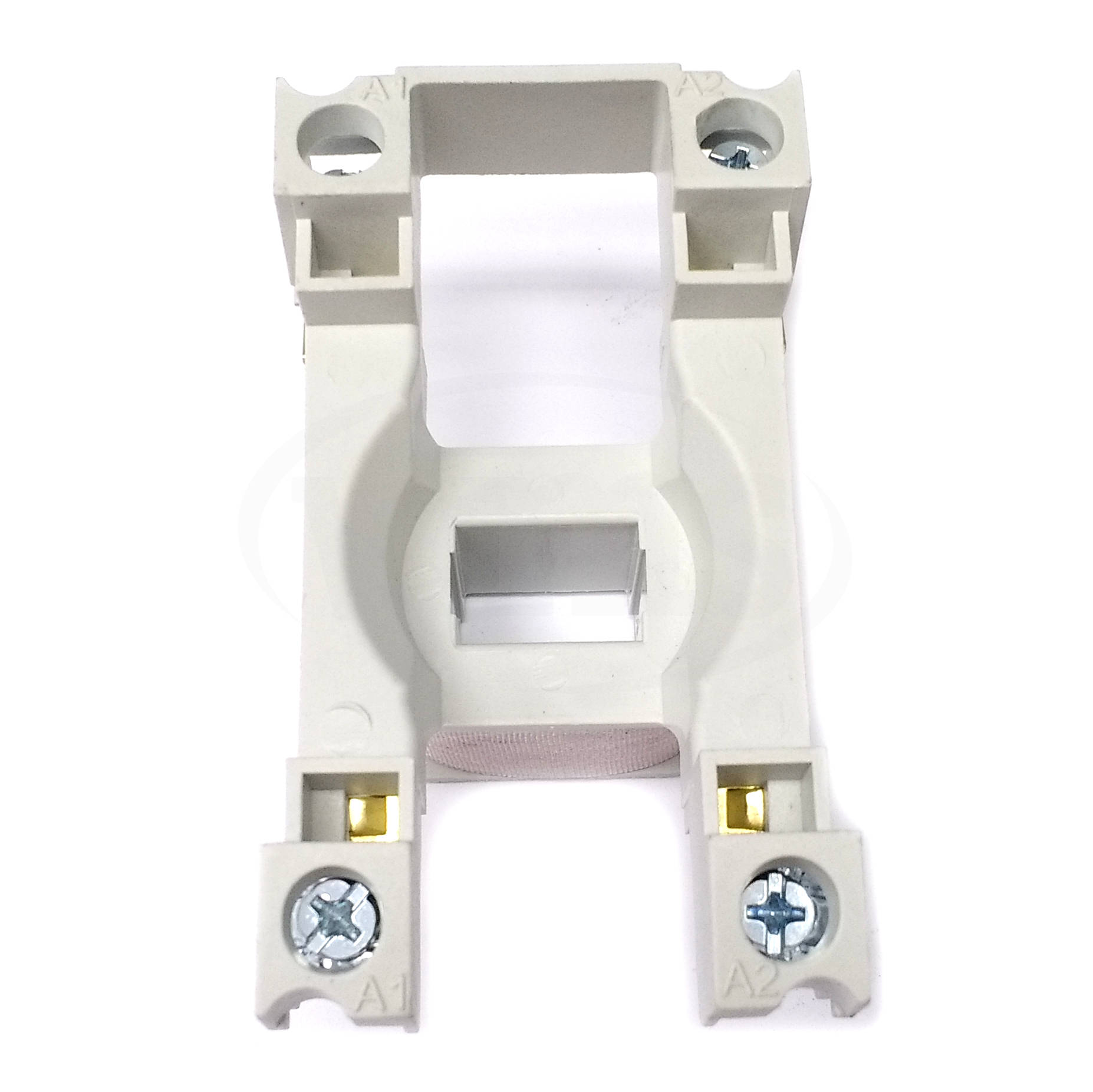

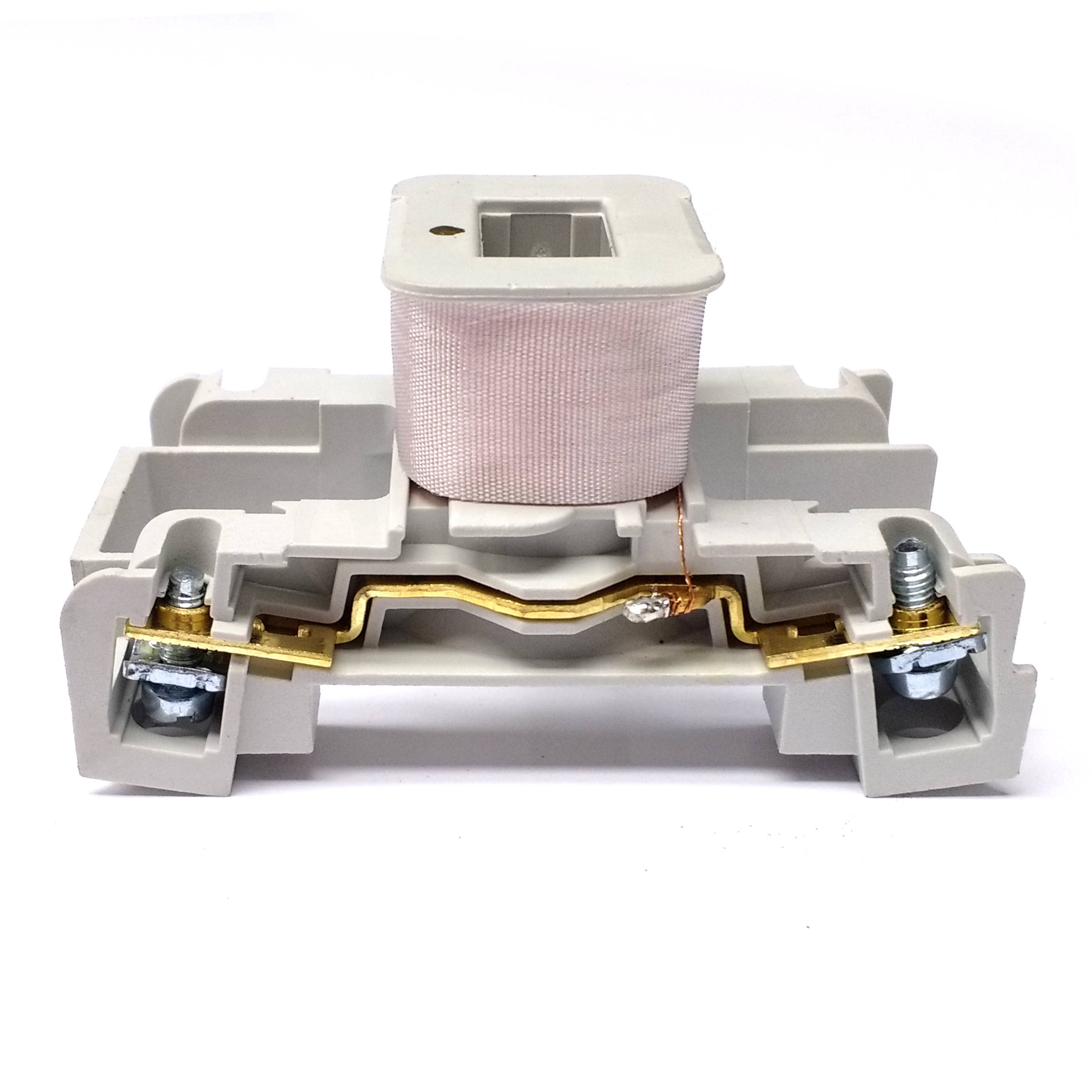

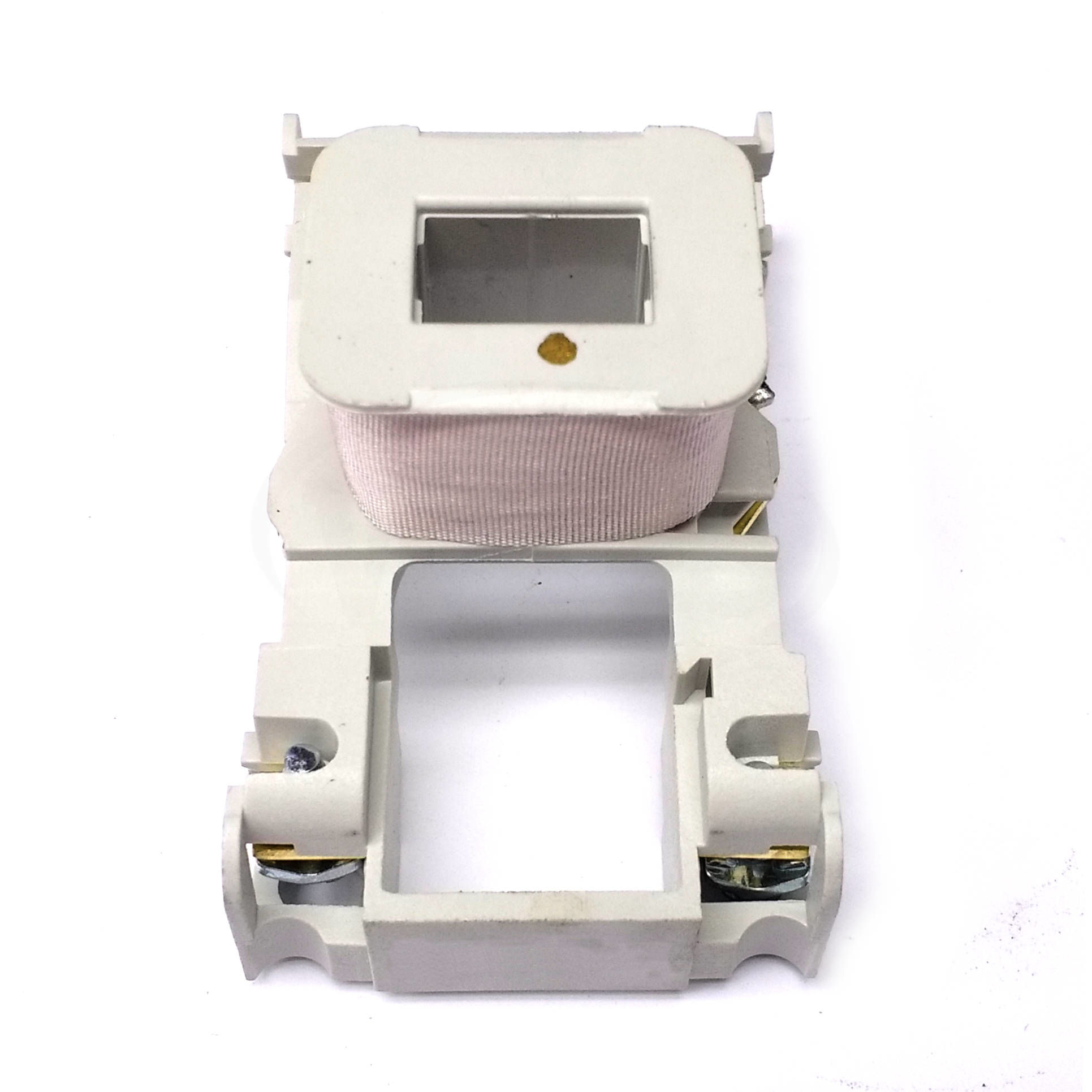

BCA4-25V56 COIL VOLT 600VAC CWM9-CWM25
Click Image to Expand
Previous
Next
Product ID: BCA4-25V56
BCA4-25V56 COIL VOLT 600VAC CWM9-CWM25
MFG: WEG Electric Corporation
MFG Part Number: BCA4-25V56
Selected accessories will also be added to cart
$12.04 / Each
Quantity:
For Use With CWM9-25 and CWMC25
Details
Overview :
Brand
WEG
Catalog Number
BCA4-25V56
For use on
CWM9
CWM9N
CWM12
CWM18
CWM18N
CWM25
Number of Terminals
4
Type
AC Coil
Voltage
600VAC 60Hz
500VAC 50Hz
UPC
7890355055007
Weight
0.14 lbs
Control Circuit Ratings – AC Coil :
Rated Insulation Voltage (Ui)
IEC; VDE 0660: 1000 Volts
UL; CSA: 600 Volts
Rated Operating Voltage (Ue)
IEC; VDE 0660: 690 Volts
UL; CSA: 600 Volts
Coil Operating Limits
Pick-up xUc: 0.4-0.76
Drop-out xUc: 0.25-0.65
Operating Time
Coil Energization – N.O.: 8-20 ms
Coil de-energization – N.O.: 6-13 ms
Coil Consumption
Sealed: 4-7.2 VA
Inrush: 70 VA
Thermal Power Dissipation
60Hz: 2.6 W
Power Factor
Closed: 0.28 Cos phi
Opened: 0.85 Cos phi
Stranded / Solid (UL / CSA)
2x12-10 AWG
