/BCA4-25V47 Weg Contactor Coil, 480VAC 60Hz

Click Image to Expand

Previous Next

Product ID: BCA4-25V47

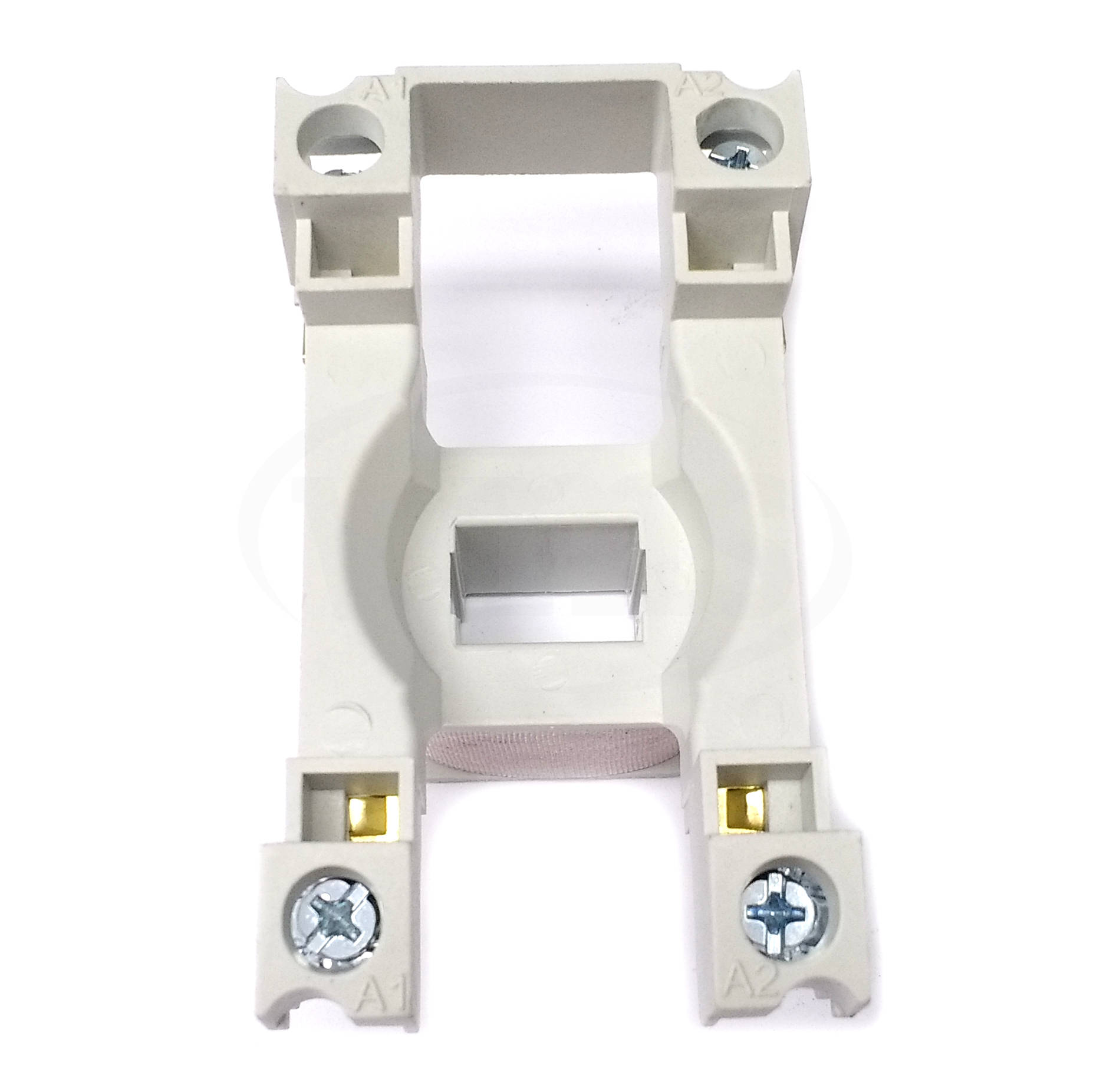

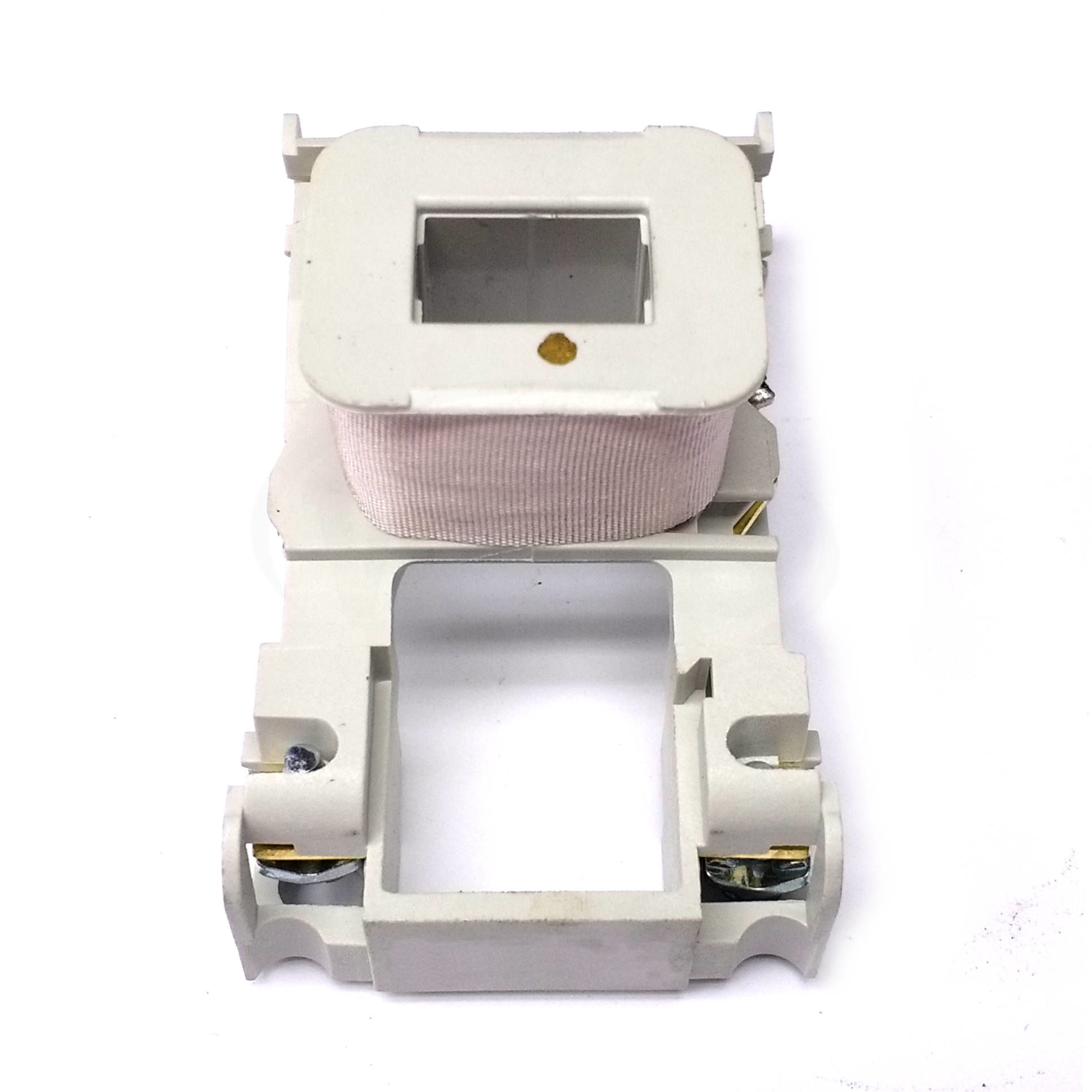

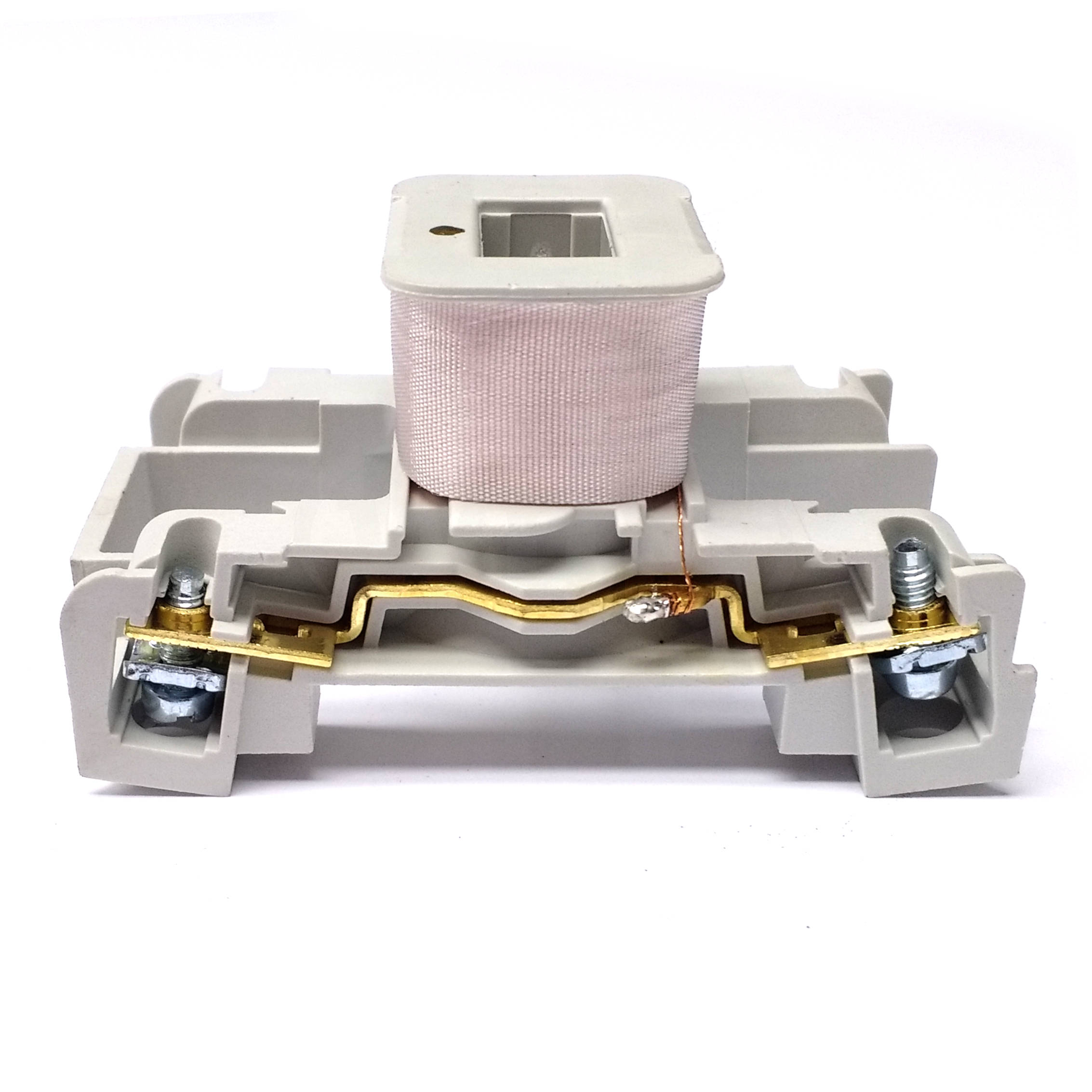

BCA4-25V47 Weg Contactor Coil, 480VAC 60Hz

MFG: WEG Electric Corporation
MFG Part Number: BCA4-25V47

Available Stock: 3

Selected accessories will also be added to cart

$12.04 / Each

Quantity:

For Use With CWM9-25 and CWMC25

Details

Overview :

Brand	WEG
Catalog Number	BCA4-25V47
For use on	CWM9 CWM9N CWM12 CWM18 CWM18N CWM25
Number of Terminals	4
Type	AC Coil
Voltage	480VAC 60Hz 400-415VAC 50Hz
UPC	7890355031001
Weight	0.14 lbs

Control Circuit Ratings – AC Coil :

Rated Insulation Voltage (Ui)	IEC; VDE 0660: 1000 Volts UL; CSA: 600 Volts
Rated Operating Voltage (Ue)	IEC; VDE 0660: 690 Volts UL; CSA: 600 Volts
Coil Operating Limits	Pick-up xUc: 0.4-0.76 Drop-out xUc: 0.25-0.65
Operating Time	Coil Energization – N.O.: 8-20 ms Coil de-energization – N.O.: 6-13 ms
Coil Consumption	Sealed: 4-7.2 VA Inrush: 70 VA
Thermal Power Dissipation	60Hz: 2.6 W
Power Factor	Closed: 0.28 Cos phi Opened: 0.85 Cos phi
Stranded / Solid (UL / CSA)	2x12-10 AWG
