/BCA4-25V18 Weg Contactor Coil, 120VAC 50/60Hz
Click Image to Expand

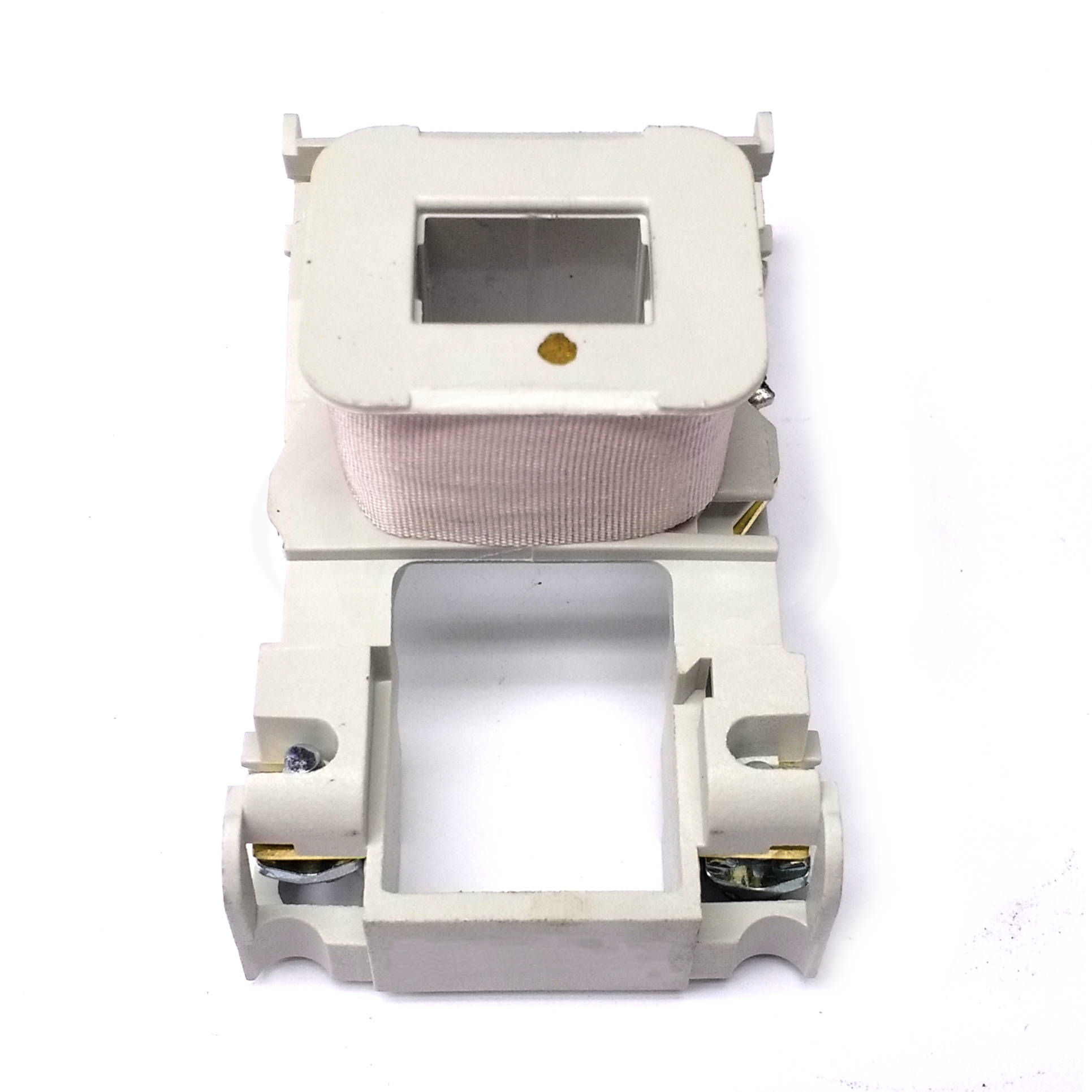

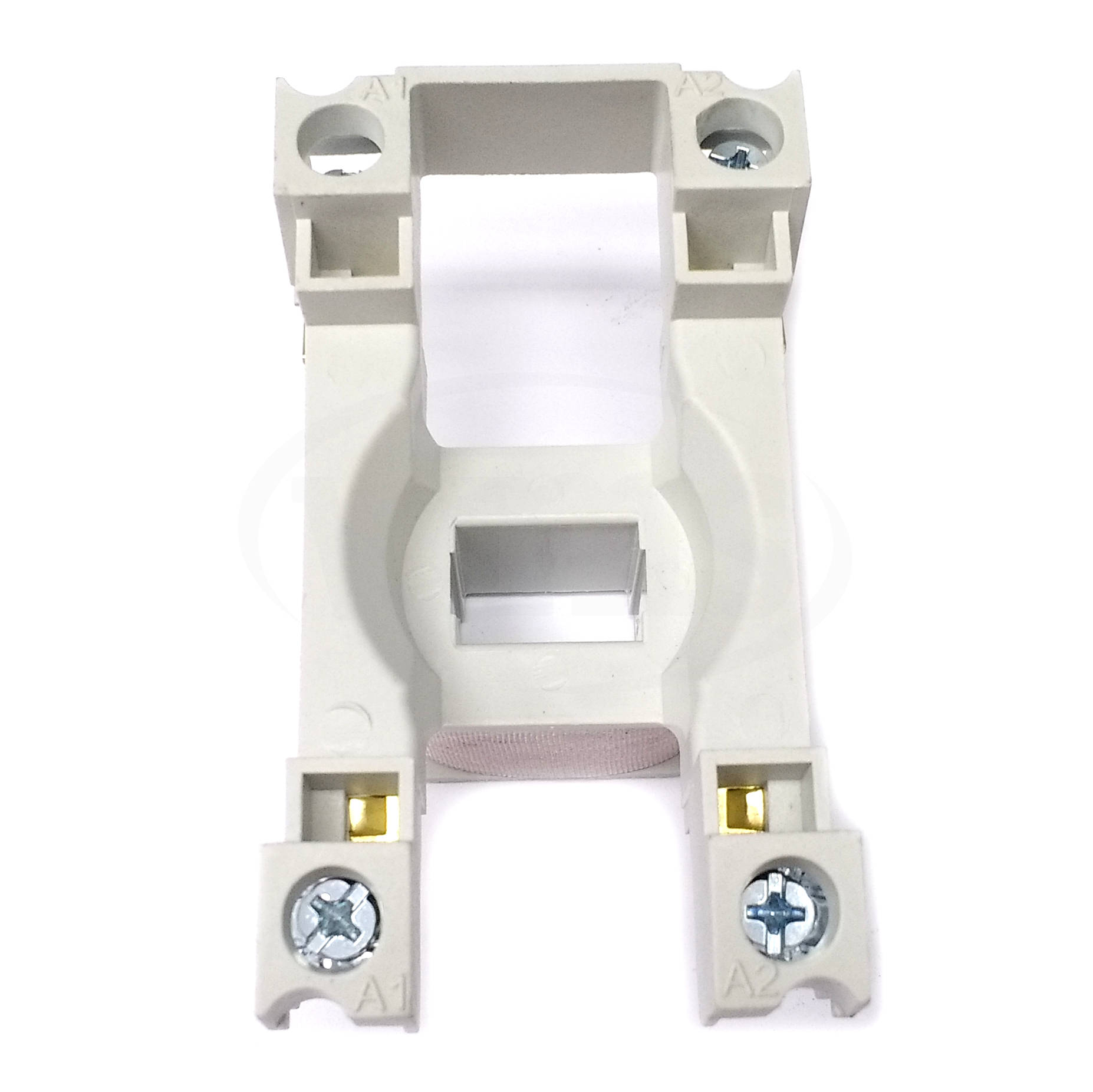

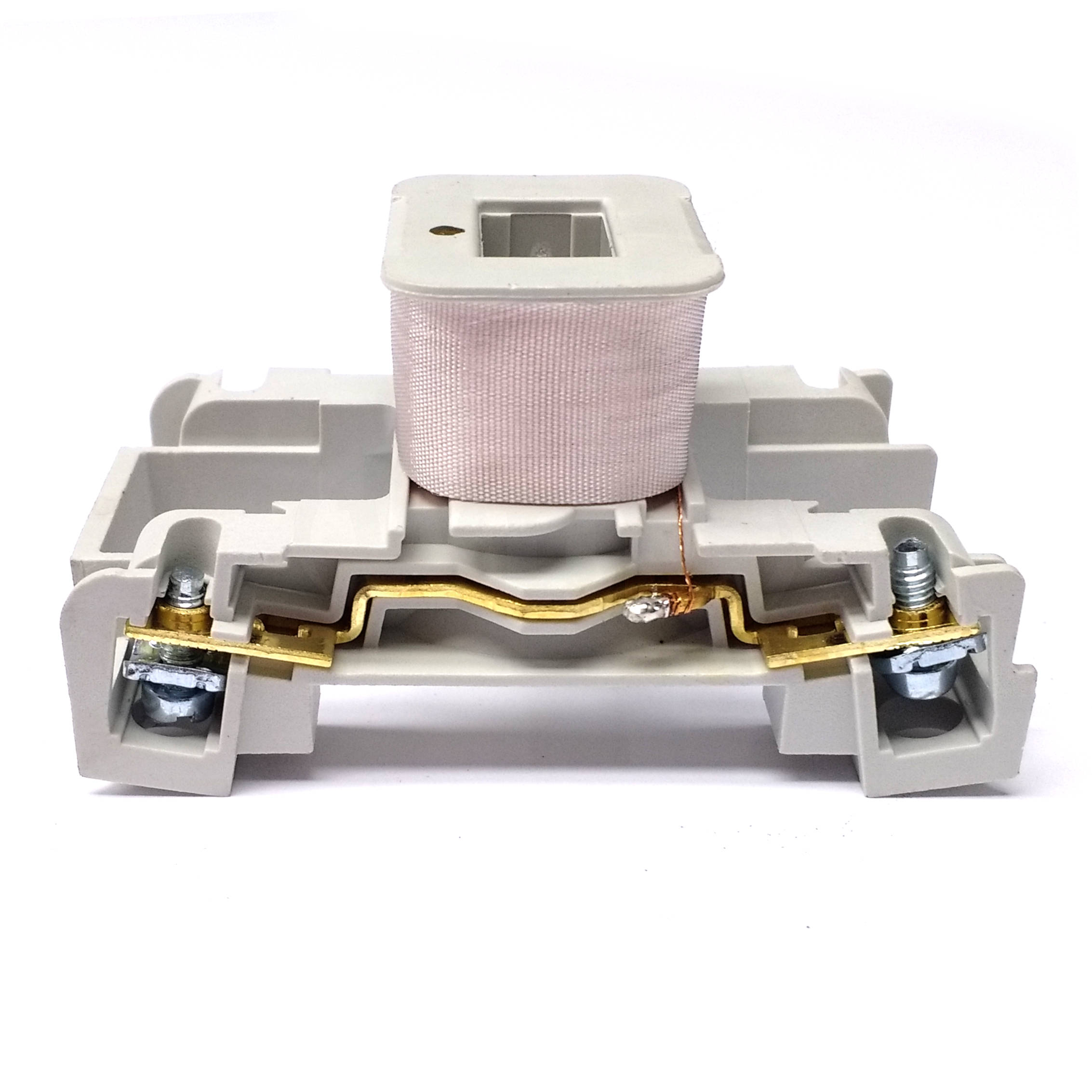

BCA4-25V18 Weg Contactor Coil, 120VAC 50/60Hz

Product ID: BCA4-25V18

MFG: WEG Electric Corporation
MFG Part Number: BCA4-25V18

Available Stock: 6
Selected accessories will also be added to cart
$12.04 / Each
Quantity:
For Use With CWM9-25 and CWMC25

Overview :

Brand WEG
Catalog Number BCA4-25V18
For use on CWM9
CWM9N
CWM12
CWM18
CWM18N
CWM25
Number of Terminals 4
Type AC Coil
Voltage 120VAC 60Hz
110VAC 50Hz
UPC 7890355030868
Weight 0.14 lbs

Control Circuit Ratings – AC Coil :

Rated Insulation Voltage (Ui) IEC; VDE 0660: 1000 Volts
UL; CSA: 600 Volts
Rated Operating Voltage (Ue) IEC; VDE 0660: 690 Volts
UL; CSA: 600 Volts
Coil Operating Limits Pick-up xUc: 0.4-0.76
Drop-out xUc: 0.25-0.65
Operating Time Coil Energization – N.O.: 8-20 ms
Coil de-energization – N.O.: 6-13 ms
Coil Consumption Sealed: 4-7.2 VA
Inrush: 70 VA
Thermal Power Dissipation 60Hz: 2.6 W
Power Factor Closed: 0.28 Cos phi
Opened: 0.85 Cos phi
Stranded / Solid (UL / CSA) 2x12-10 AWG
