/Products/Start Capacitors/110-125 VAC Capacitors/BC-590-S Vanguard Start Capacitor, Mfd 590-708 uF
Click Image to Expand

Product ID: BC-590-S

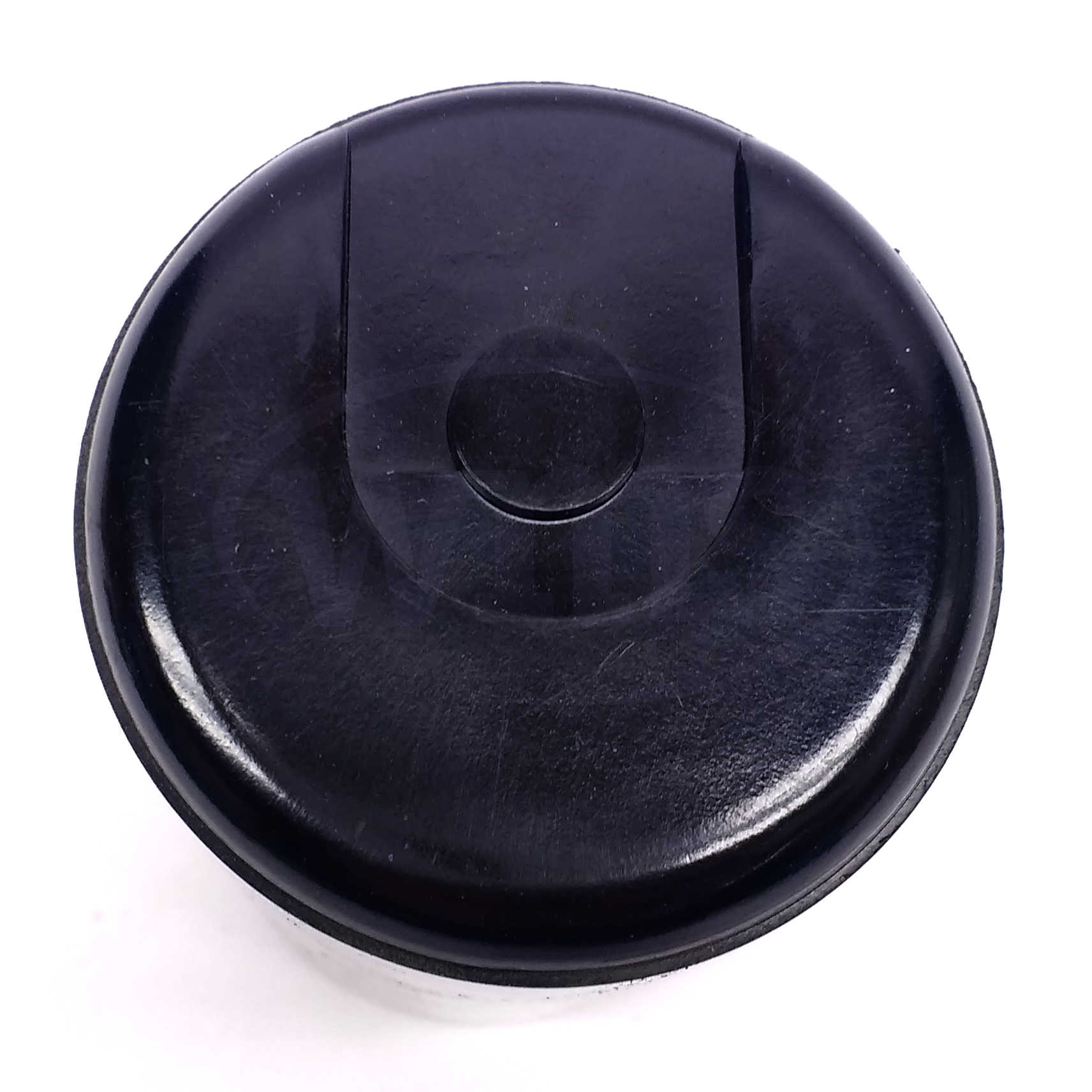

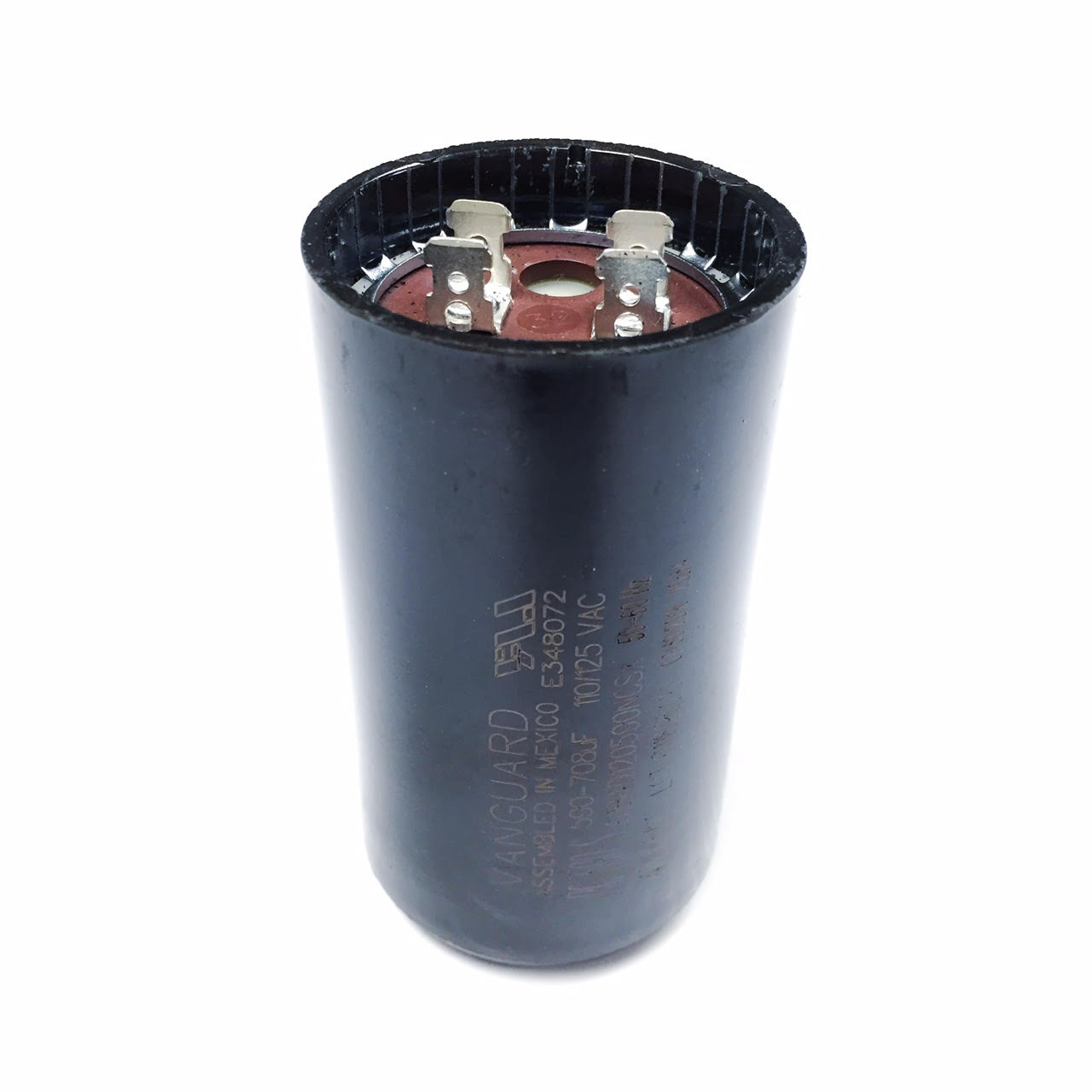

BC-590-S Vanguard Start Capacitor, Mfd 590-708 uF

MFG: Vanguard Capacitors
MFG Part Number: BC-590-S

Available Stock: 12
Selected accessories will also be added to cart
$15.48 / Each
Quantity:
110-125 Vac, 50/60 Hz., 61B4D120590NCSX
Accessories
Select any of the accessories below to purchase them with this inventory item:

Product Specifications

Brand Vanguard
Part Number BC-590-S
61B4D120590NCSX
Type Start Capacitor
MFD/uF 590-708 uF
Voltage 110-125 Vac
Frequency 50/60 Hz
Temperature Range -40°C to +65°C
-40°F to 149°F
Country of Origin Mexico
Weight 0.35 lbs
Diameter 1-13/16” ±.02”
Length 3-3/8” +.02”/-.03”
Case Round Phenolic

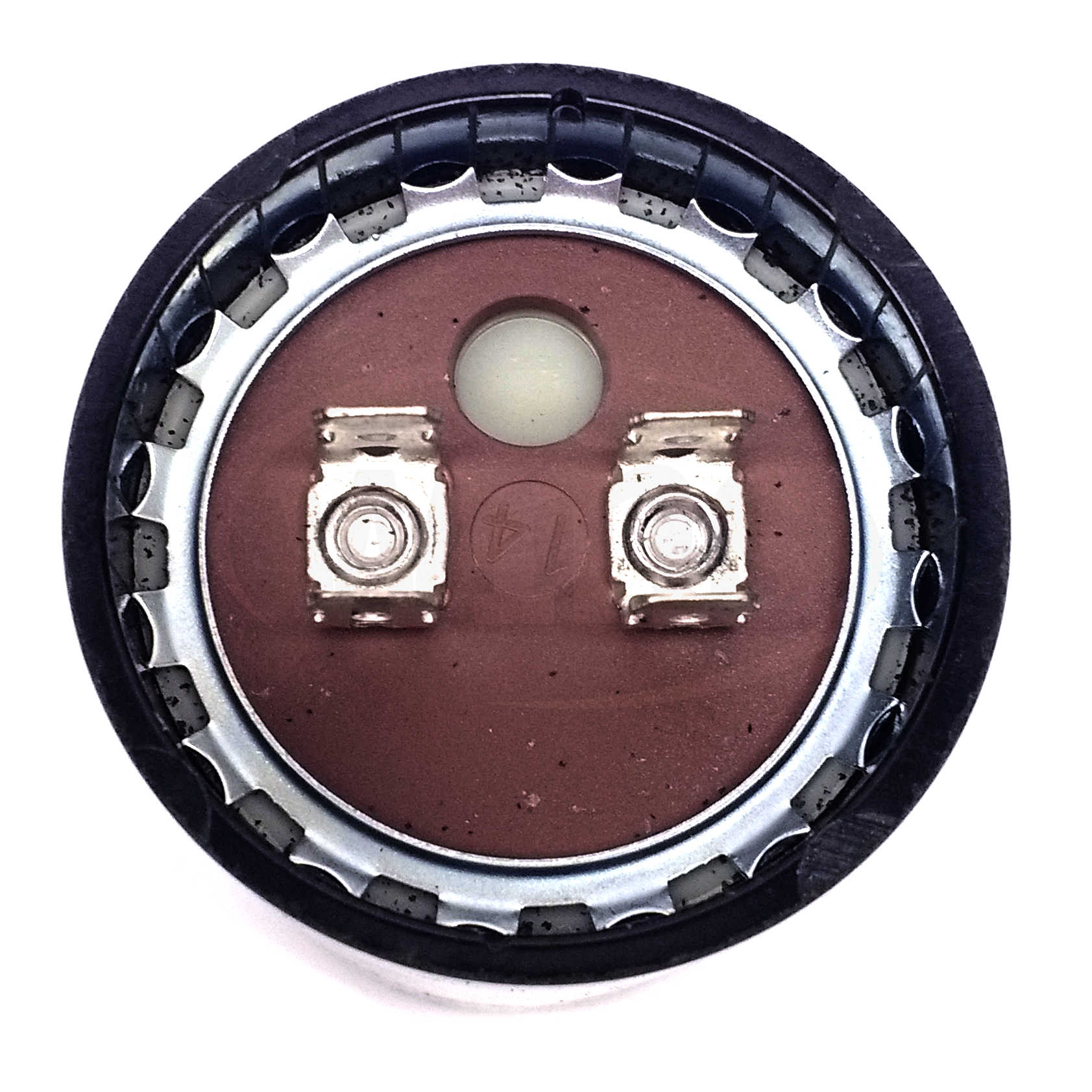

Connection Type Four 1/4” spade terminals
Two terminals on each post
Resistor None
UPC N/A
Certifications UL Recognized
