/Products/Start Capacitors/165 VAC Capacitors/BC-340M-165 Vanguard Capacitor, Mfd 340-408 uF
Click Image to Expand

Product ID: BC-340M-165

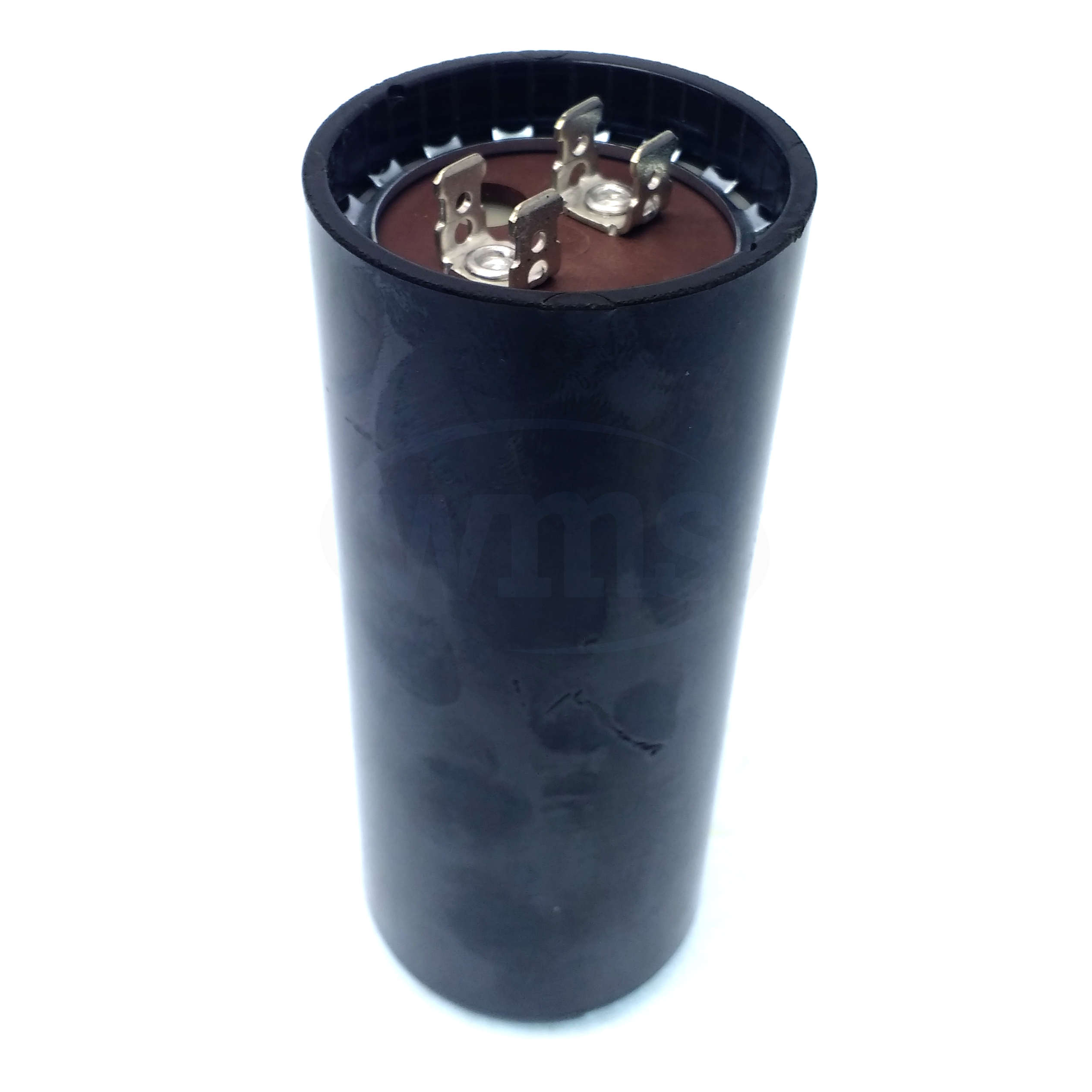

BC-340M-165 Vanguard Capacitor, Mfd 340-408 uF

MFG: Vanguard Capacitors
MFG Part Number: BC-340M-165

Available Stock: 7
Selected accessories will also be added to cart
$12.65 / Each
Quantity:
165 VAC, 50/60 Hz., 61B5D160340NCSX

Product Specifications

Manufacturer Vanguard
Part Number BC-340M-165
61B5D160340NCSX
Type Start Capacitor
MFD/uF 340-408 uF
Voltage 165 VAC
Frequency 50/60 Hz
Temperature Range -40°C to +65°C
-40°F to 149°F
Country of Origin Mexico
Weight 0.50 lbs

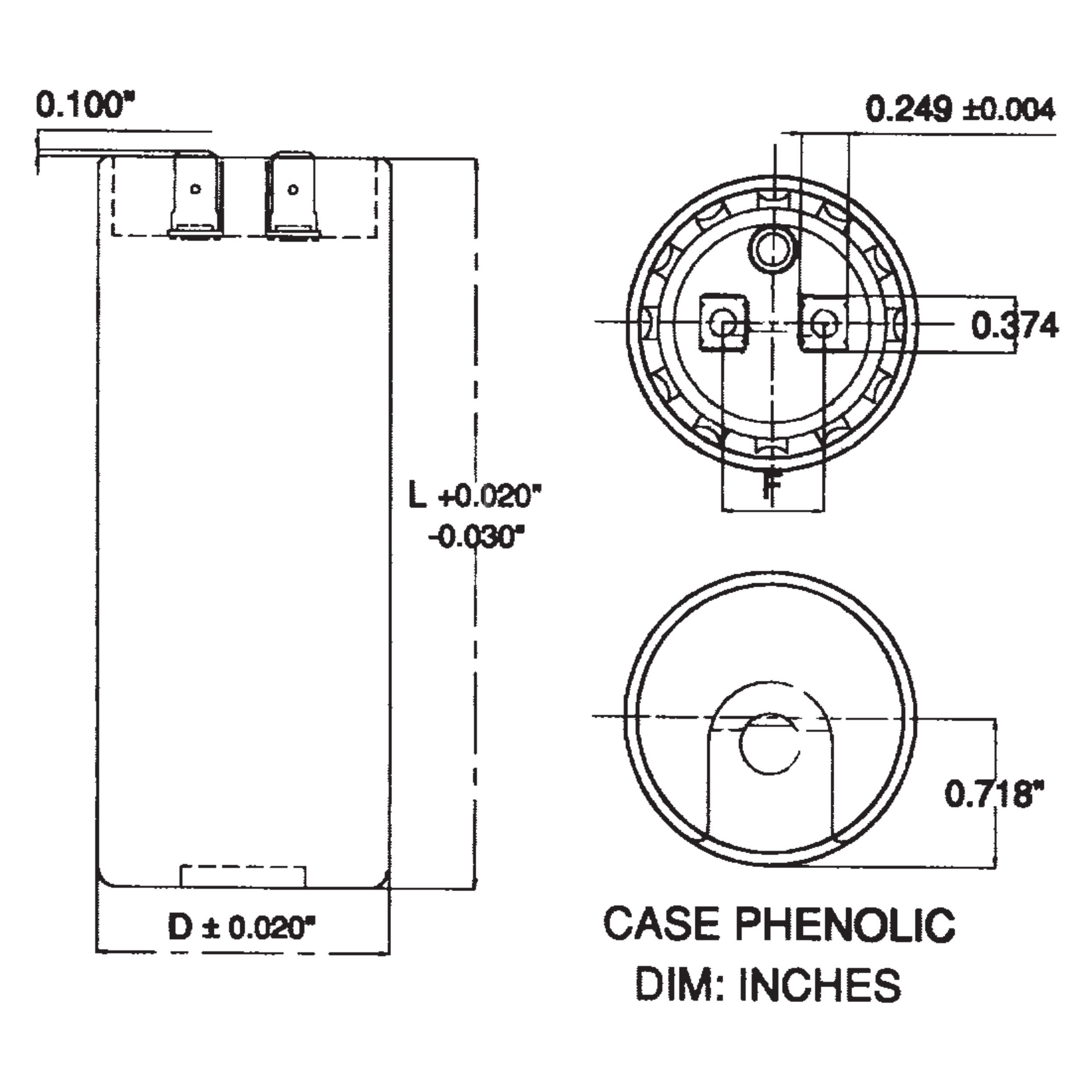

Diameter 1-13/16” ±.02”
Length 4-3/8” +.02”/-.03”

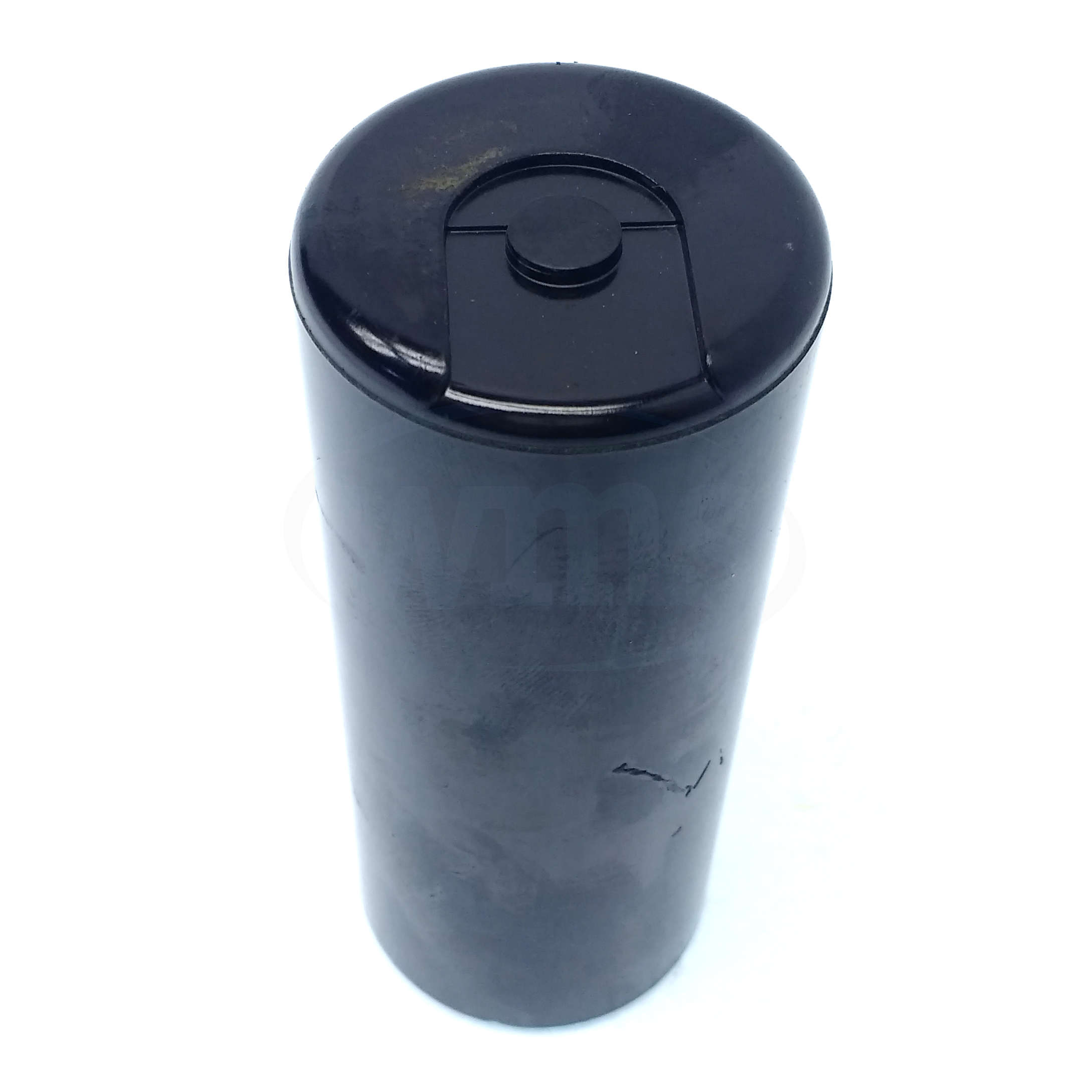

Case Round Phenolic

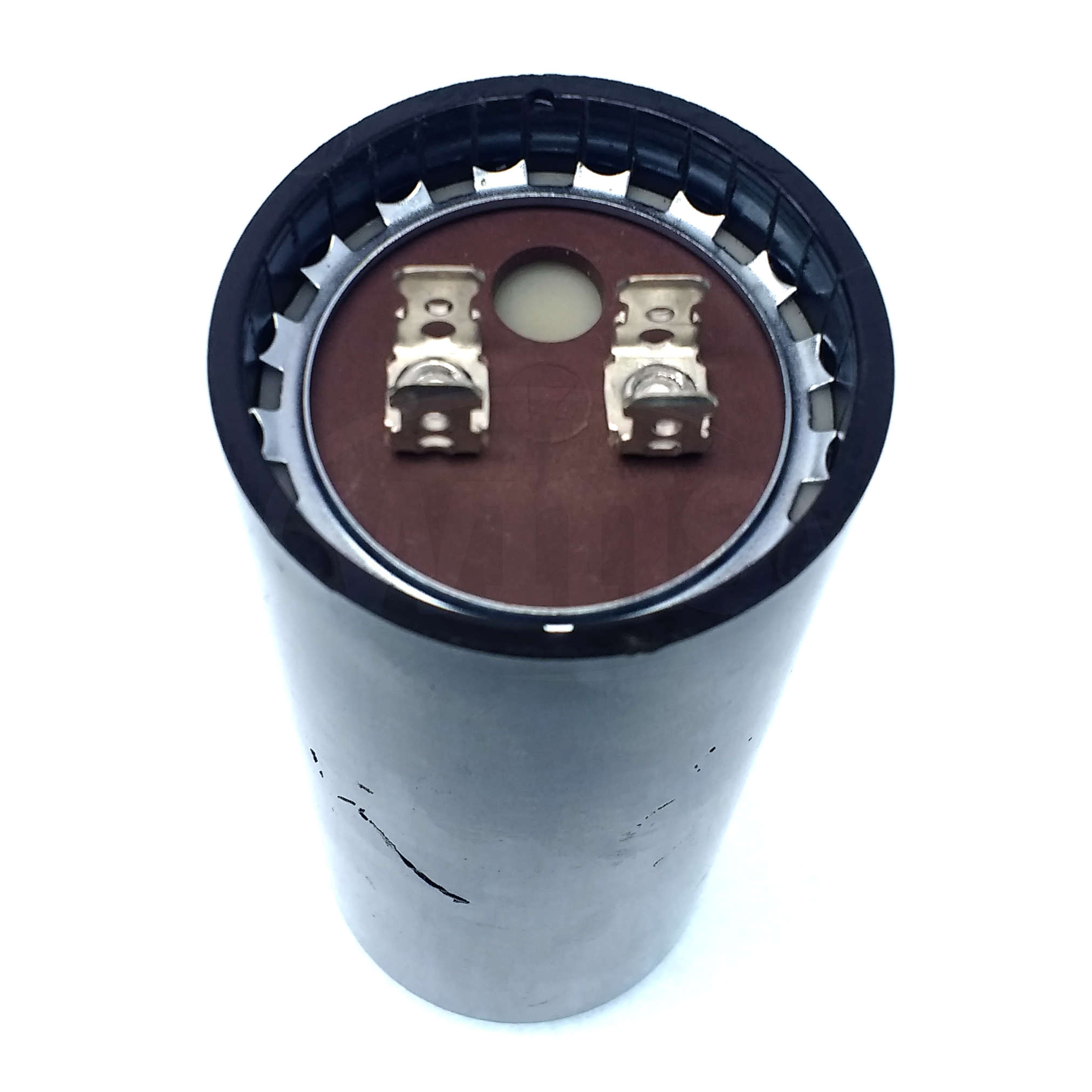

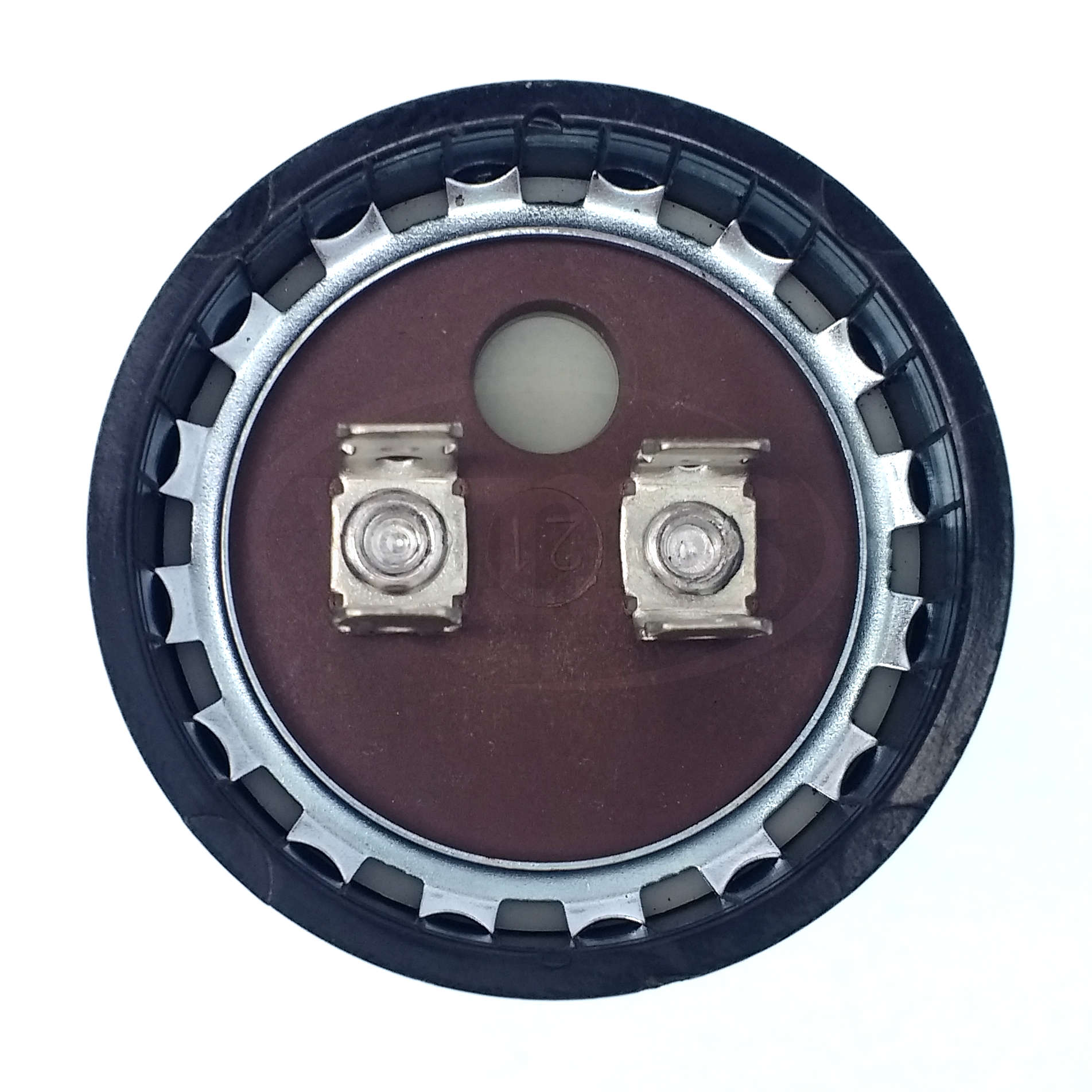

Connection Type Four 1/4” Spade Terminals
Resister N/A
UPC
Certifications UL Recognized
