/Products/Start Capacitors/330-350 VAC Capacitors/BC-189M-330 Vanguard Capacitor, Mfd 189-227 uF
Click Image to Expand

Product ID: BC-189M-330

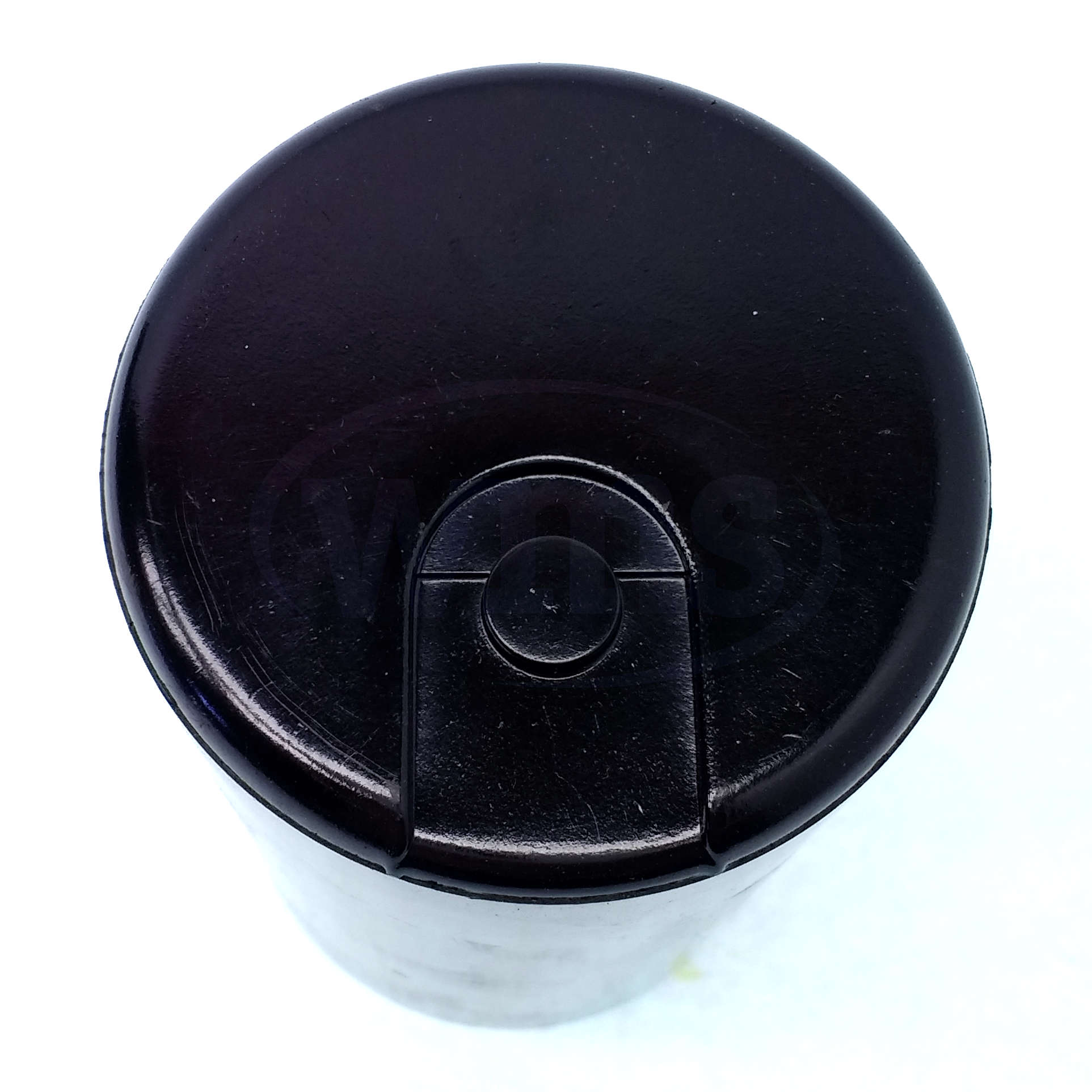

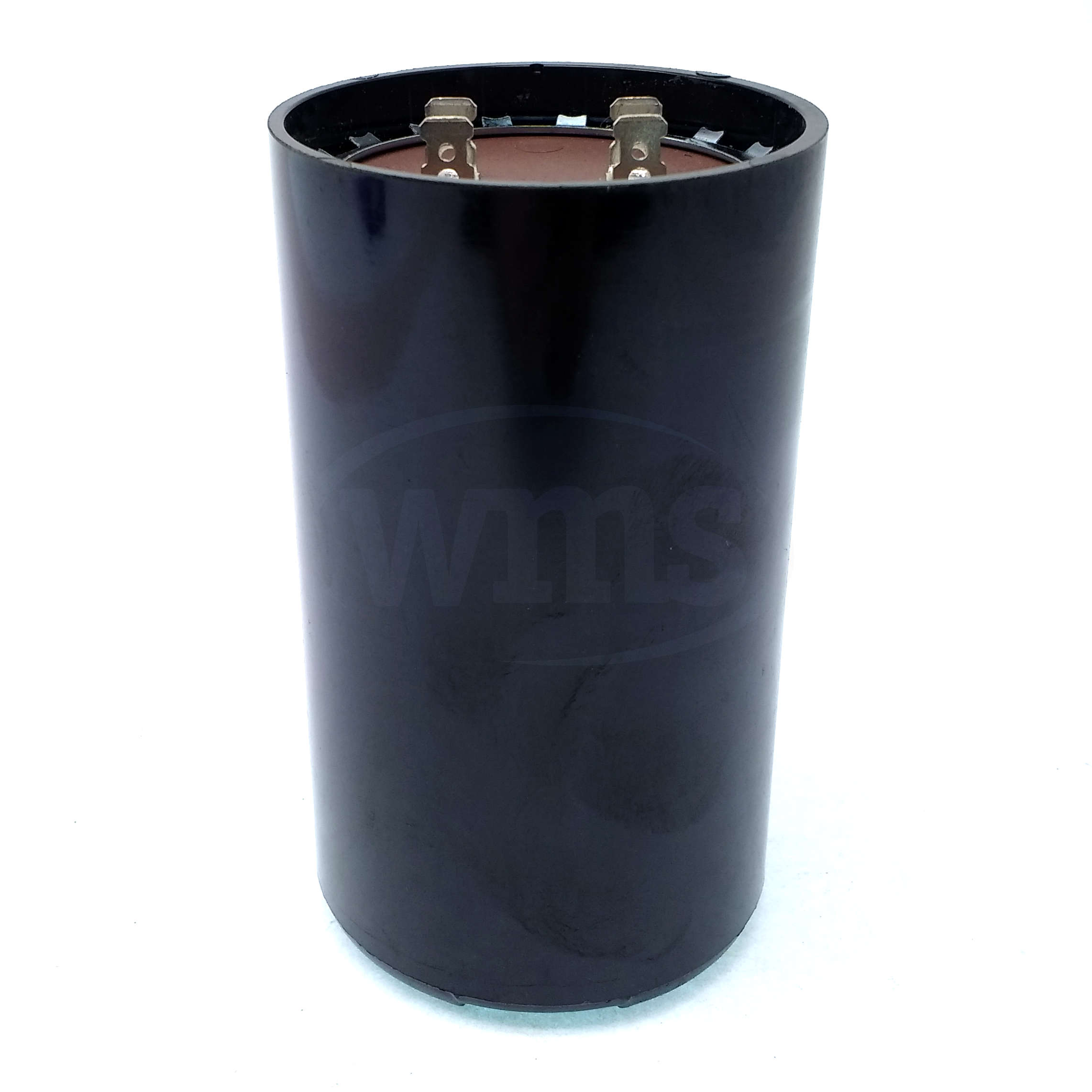

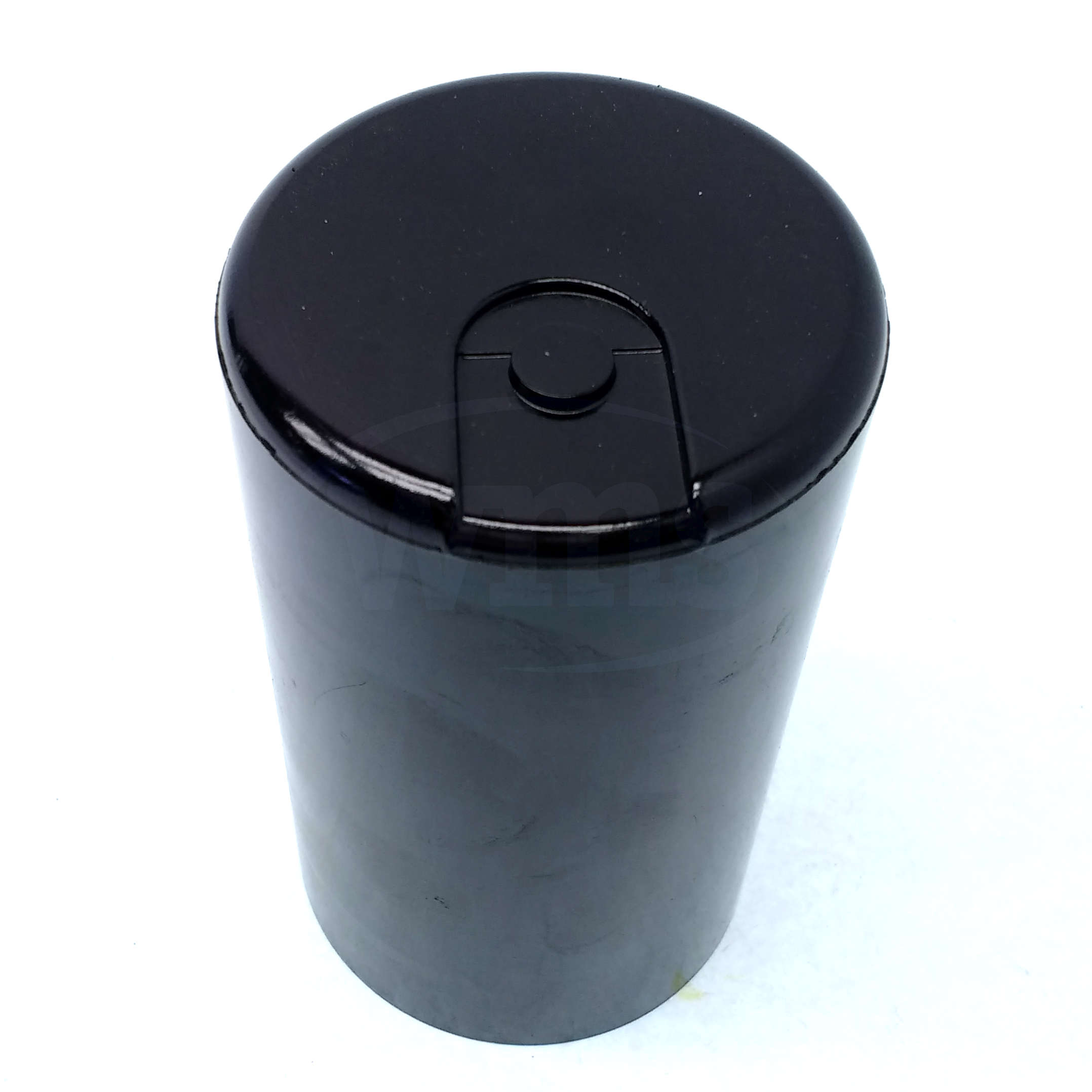

BC-189M-330 Vanguard Capacitor, Mfd 189-227 uF

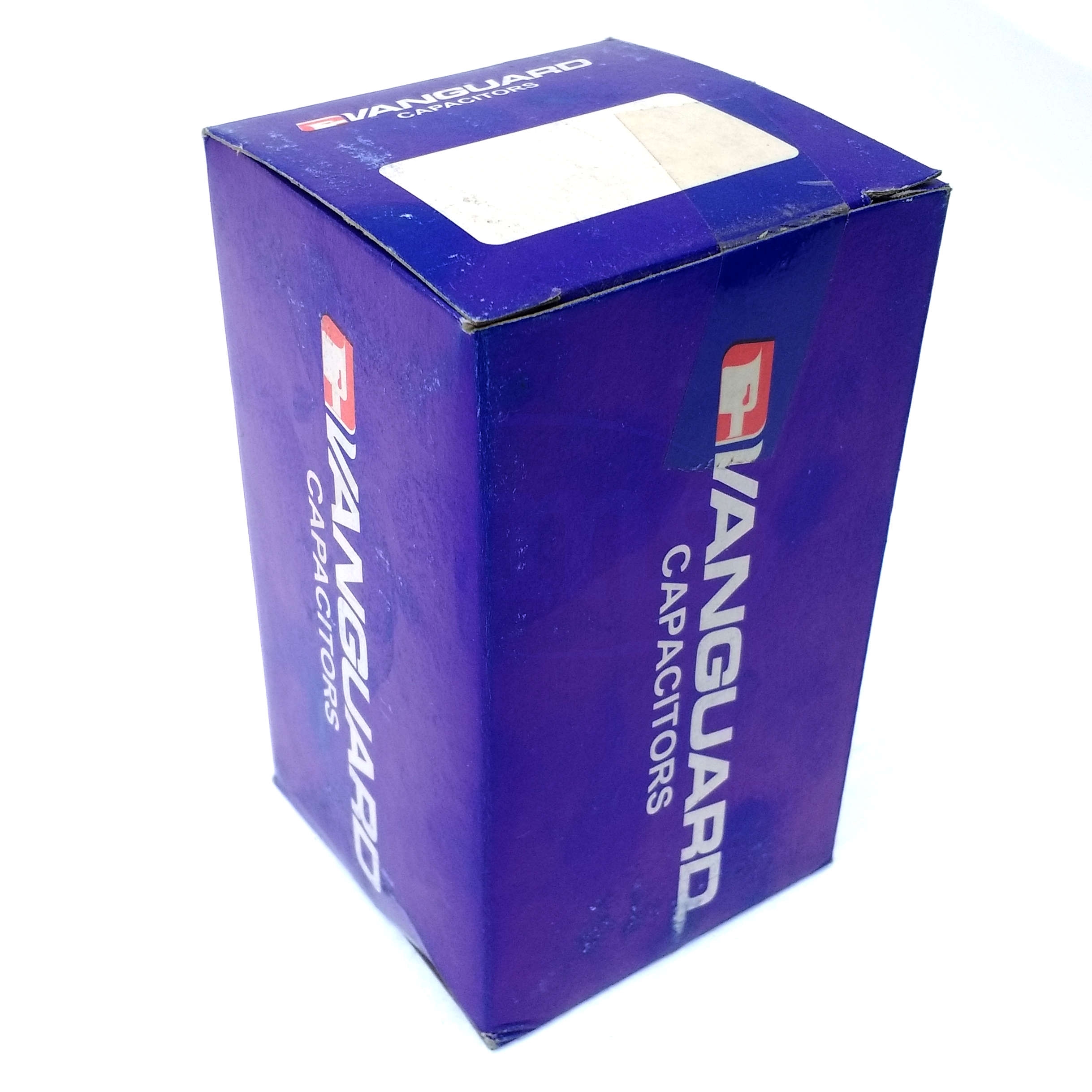

MFG: Vanguard Capacitors
MFG Part Number: BC-189M-330

Available Stock: 9
Selected accessories will also be added to cart
$34.52 / Each
Quantity:
330 Vac, 50-60 Hz., 61B8D330189NCSX
Accessories
Select any of the accessories below to purchase them with this inventory item:

Product Specifications

Brand Vanguard
Part Number BC-189M-330
61B8D330189NCSX
Type Start Capacitor
MFD/uF 189-227 uF
Voltage 330 Vac
Frequency 50/60 Hz
Temperature Range -40°C to +65°C
-40°F to 149°F
Country of Origin Mexico
Weight 0.90 lbs
Diameter 2-9/16” ±.02”
Length 4-3/8” +.02”/-.03”
Case Round Phenolic
Connection Type Four 1/4” Spade Terminals
Resistor None
UPC N/A
Certifications UL Recognized
