/Products/Start Capacitors/165 VAC Capacitors/BC-145M-165 Vanguard Capacitor Mfd 145-175 uF
Click Image to Expand

Product ID: BC-145M-165

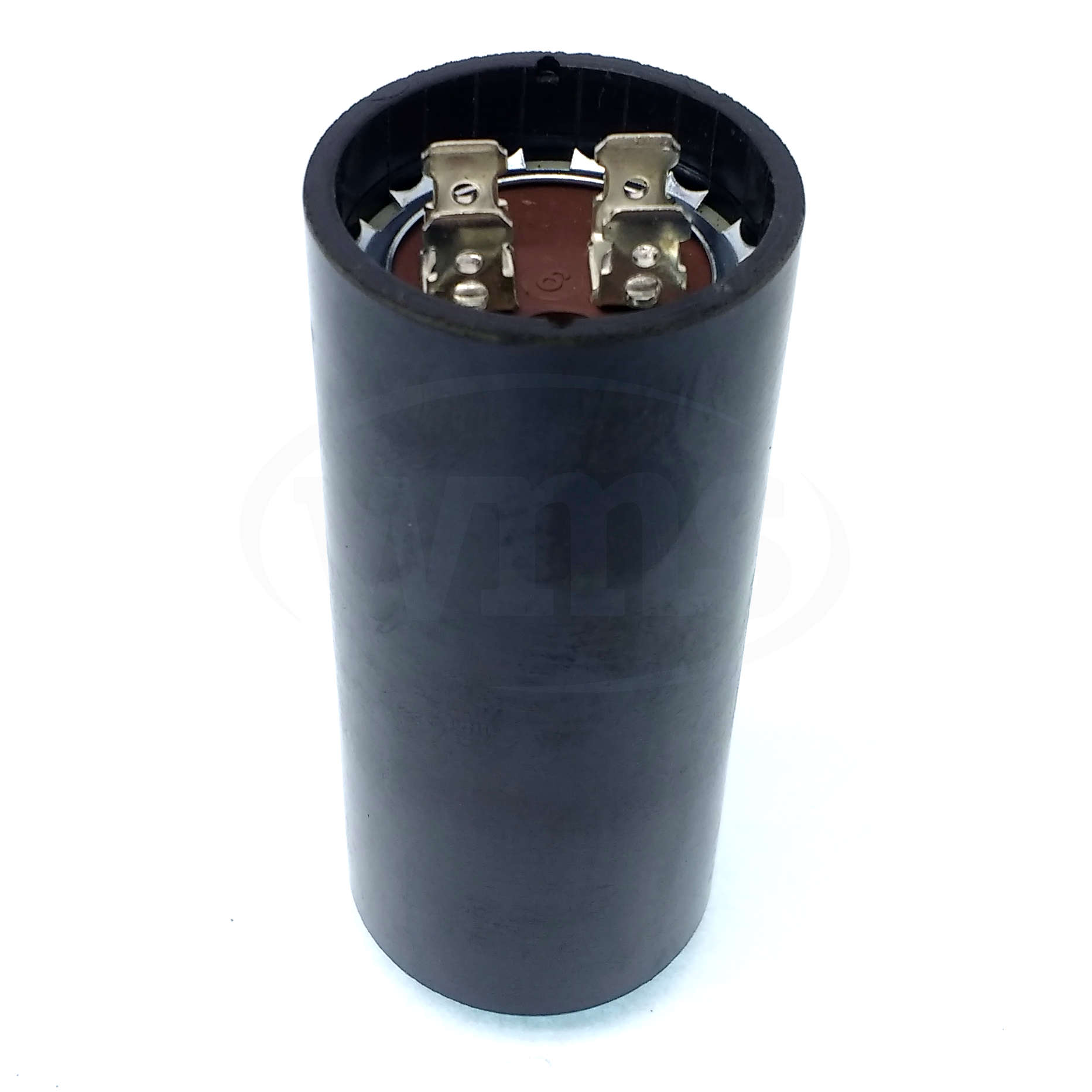

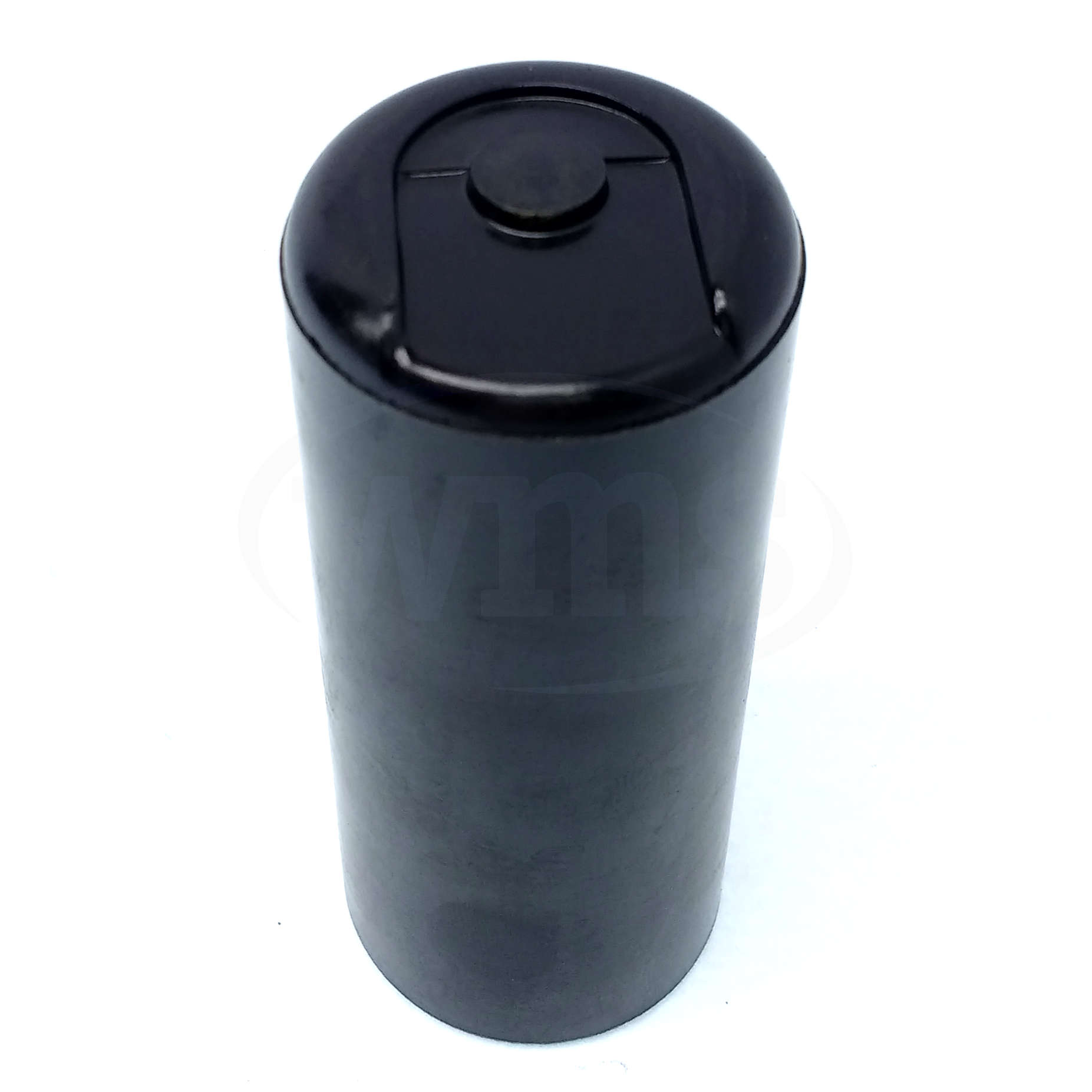

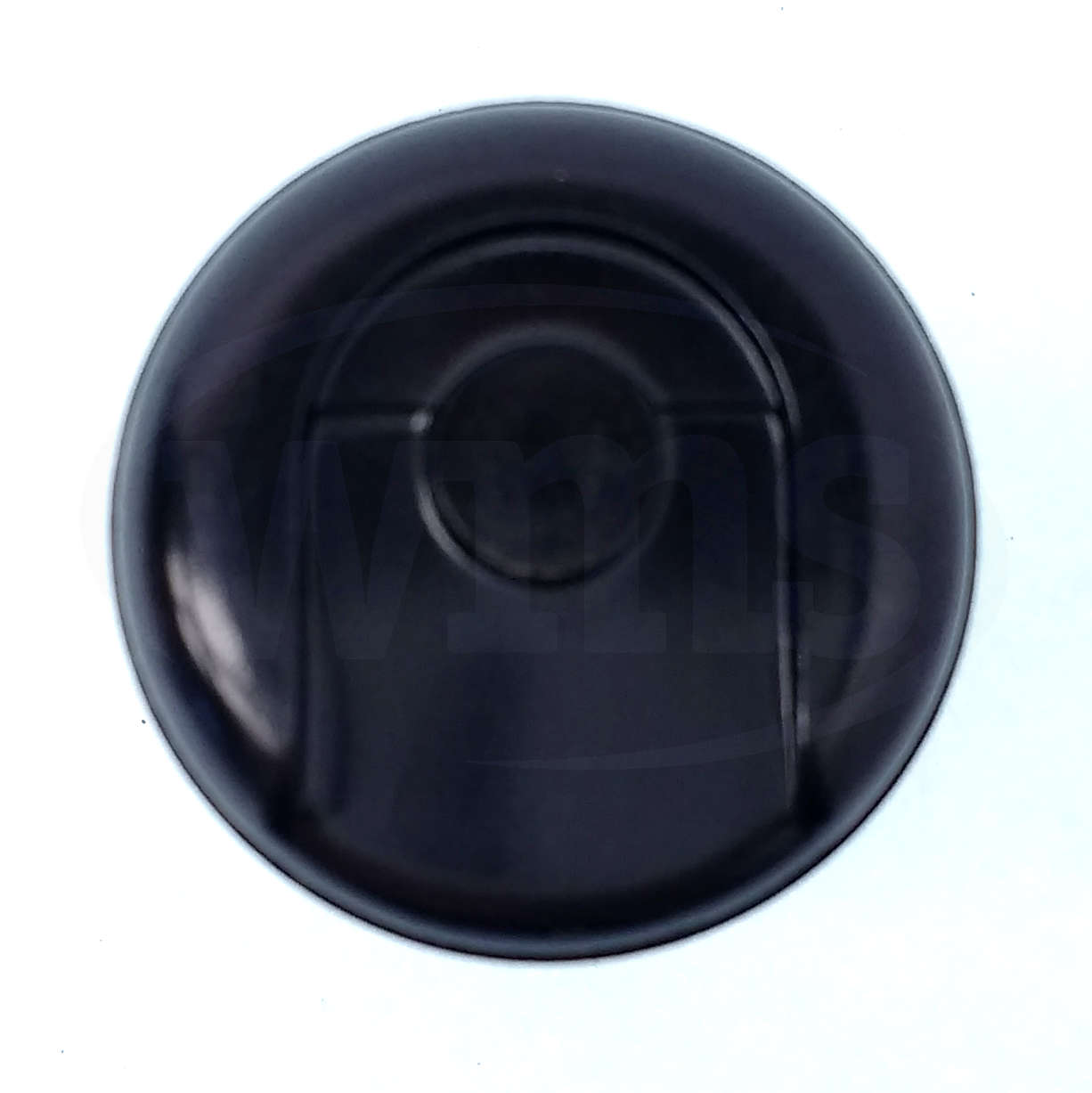

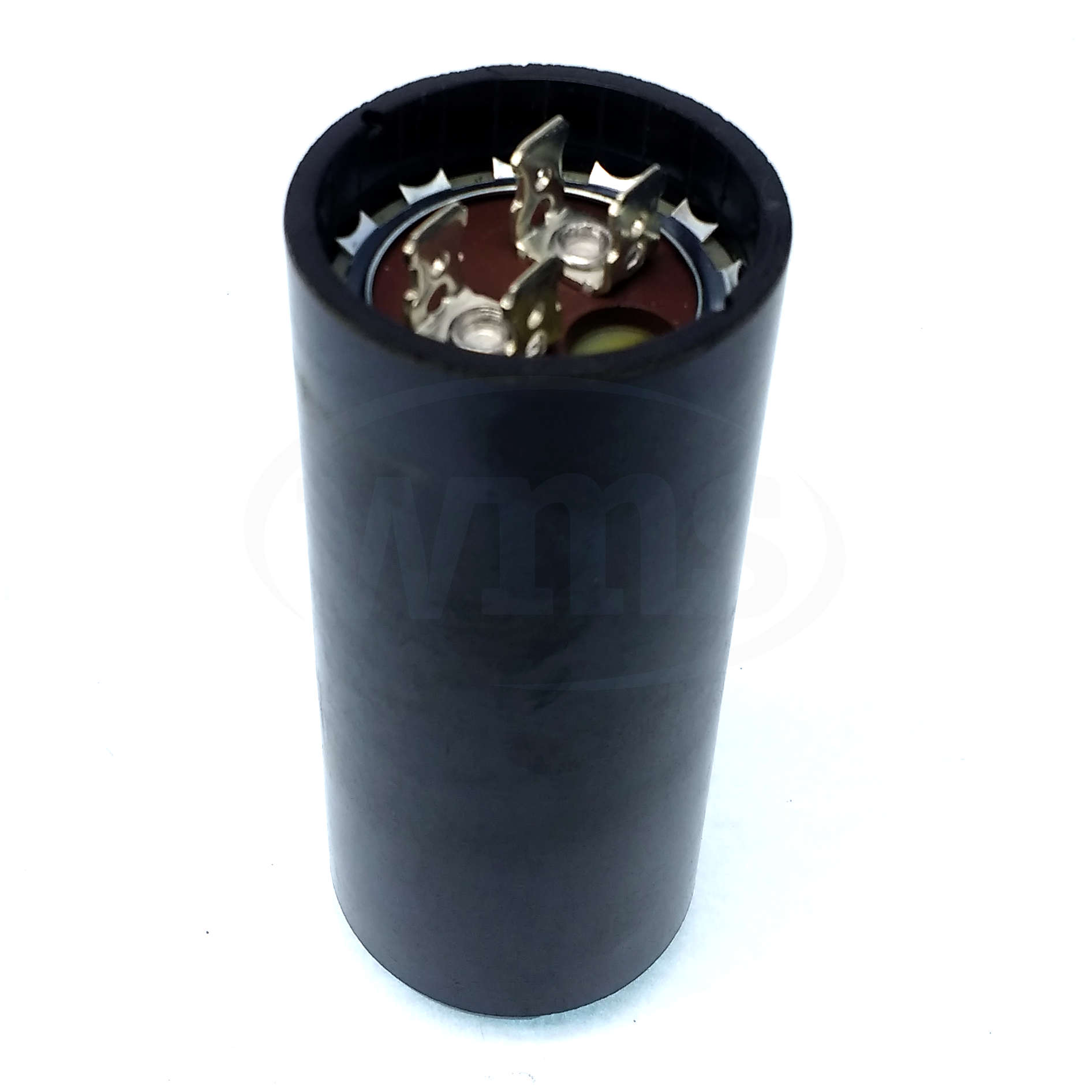

BC-145M-165 Vanguard Capacitor Mfd 145-175 uF

MFG: Vanguard Capacitors
MFG Part Number: BC-145M-165

Available Stock: 4
Selected accessories will also be added to cart
$11.12 / Each
Quantity:
165 Vac, 50/60 Hz., 61B2D160145NCSX

Product Specifications

Manufacturer Vanguard
Part Number BC-145M-165
61B2D160145NCSX
Type Start Capacitor
MFD/uF 145-175 uF
Voltage 165 VAC
Frequency 50/60 Hz
Temperature Range -40°C to +65°C
-40°F to 149°F
Country of Origin Mexico
Weight 0.25 lbs
Diameter 1-7/16” ±.02”
Length 3-3/8” +.02”/-.03”
Case Round Phenolic
Connection Type Four 1/4” Spade Terminals
Resister N/A
UPC
Certifications UL Recognized
