/Products/Start Capacitors/220-250 VAC Capacitors/BC-124M-250 Vanguard Capacitor, Mfd 124-149 uF
Click Image to Expand

Product ID: BC-124M-250

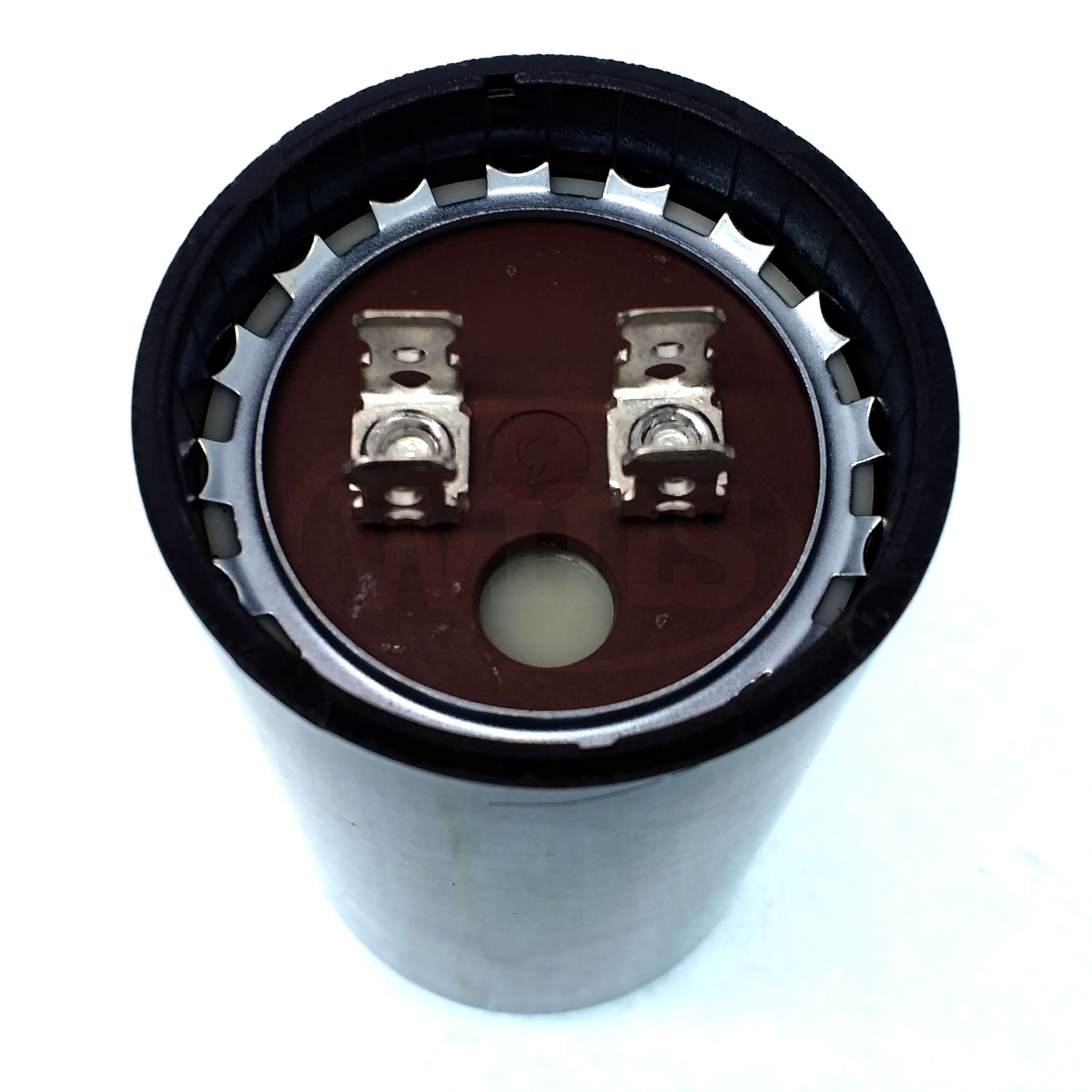

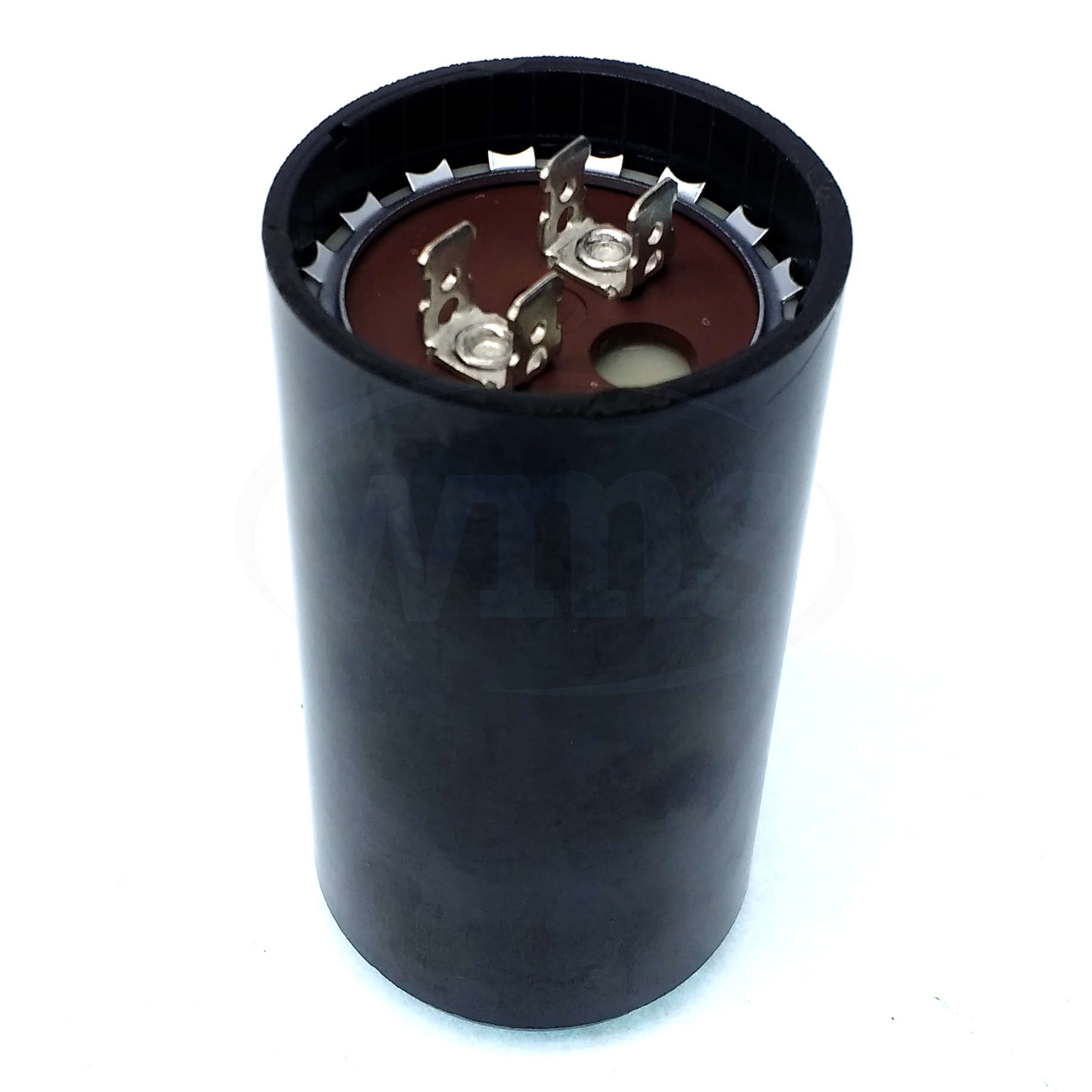

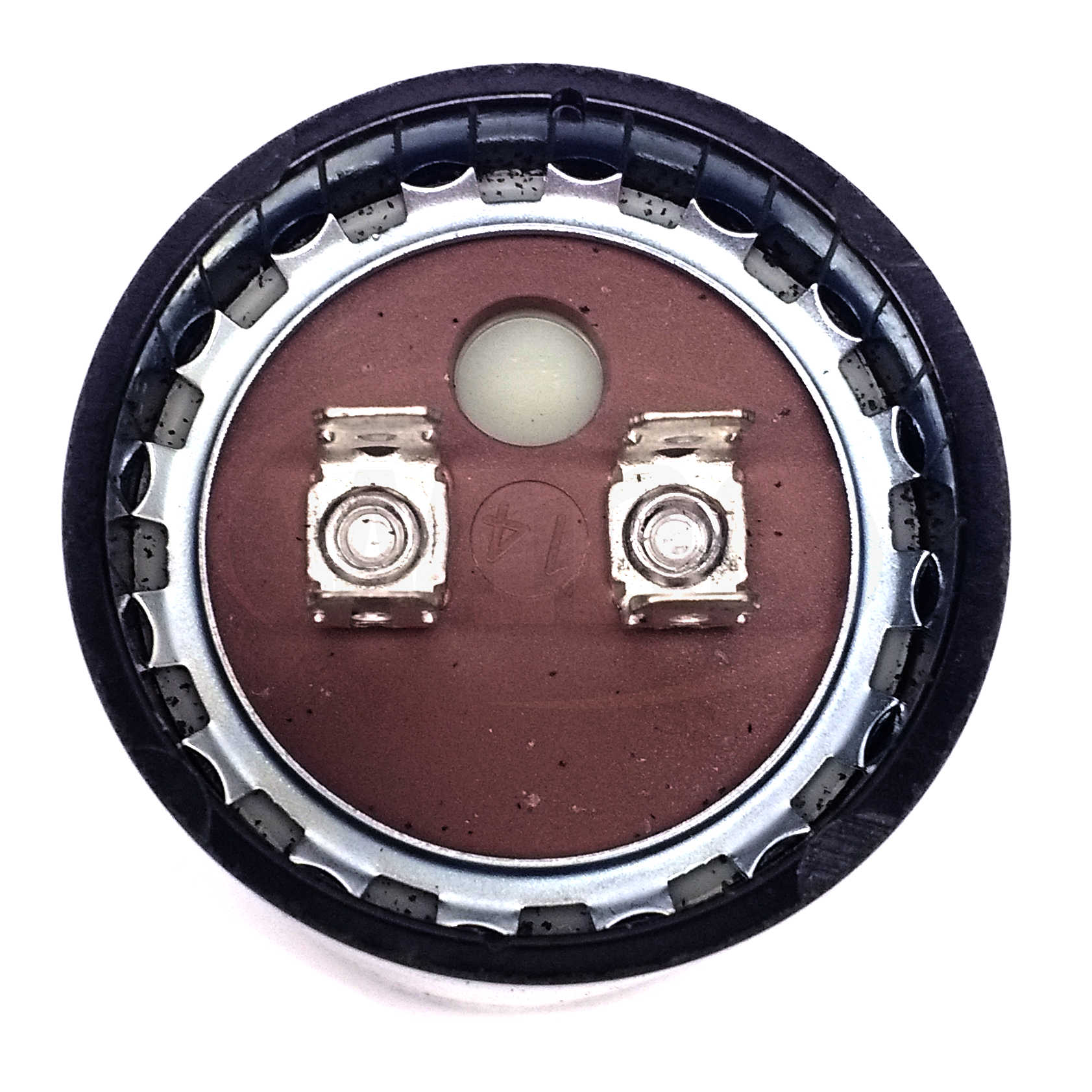

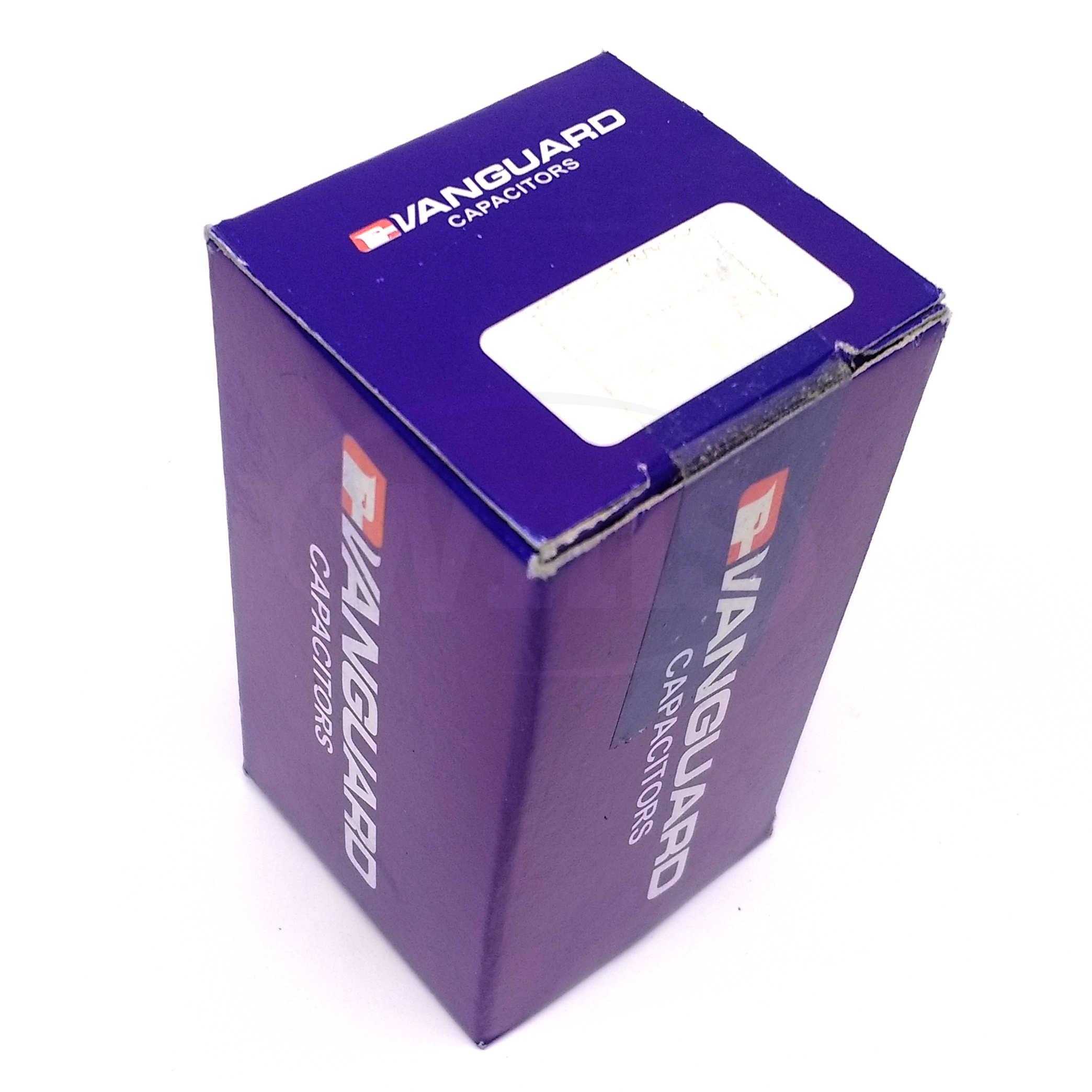

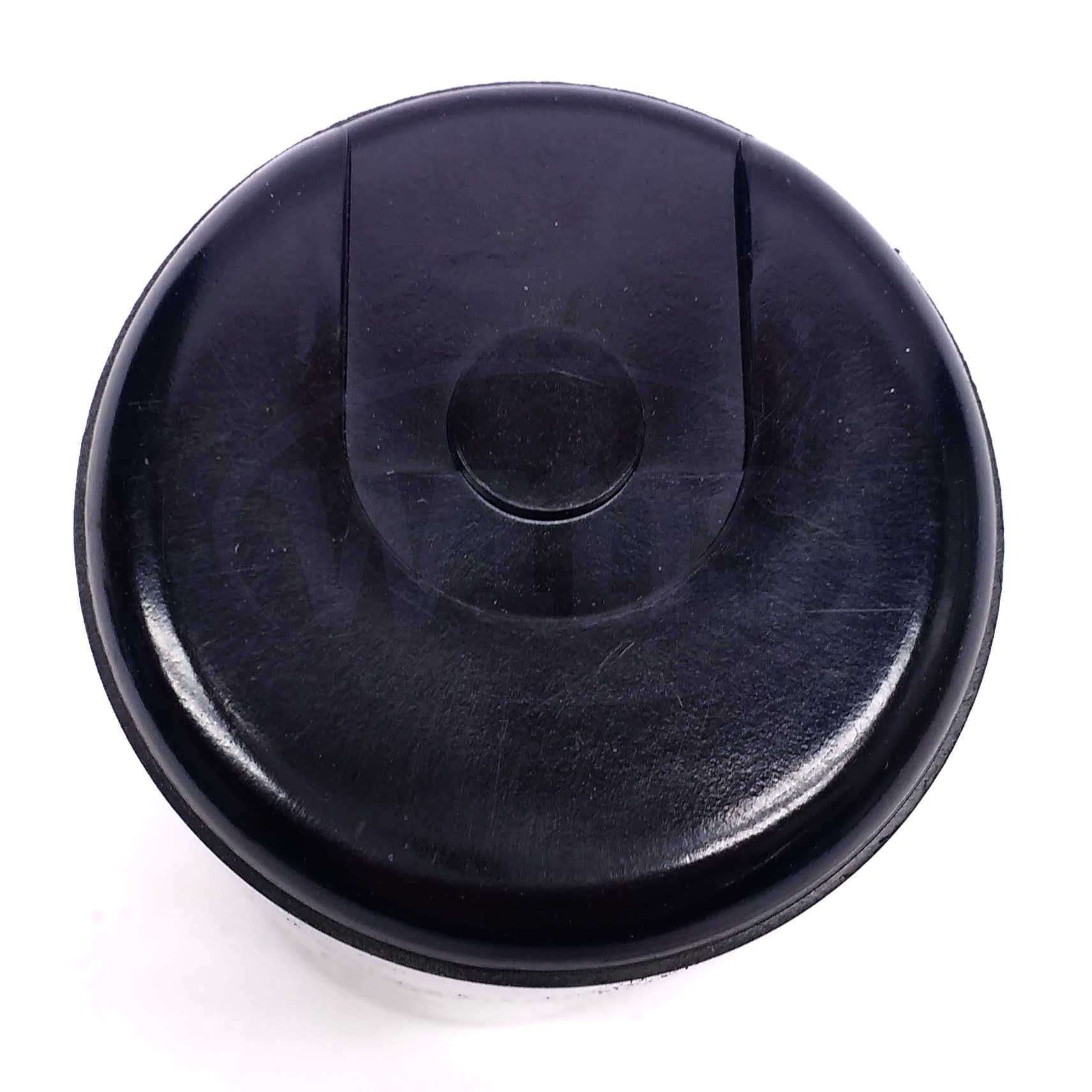

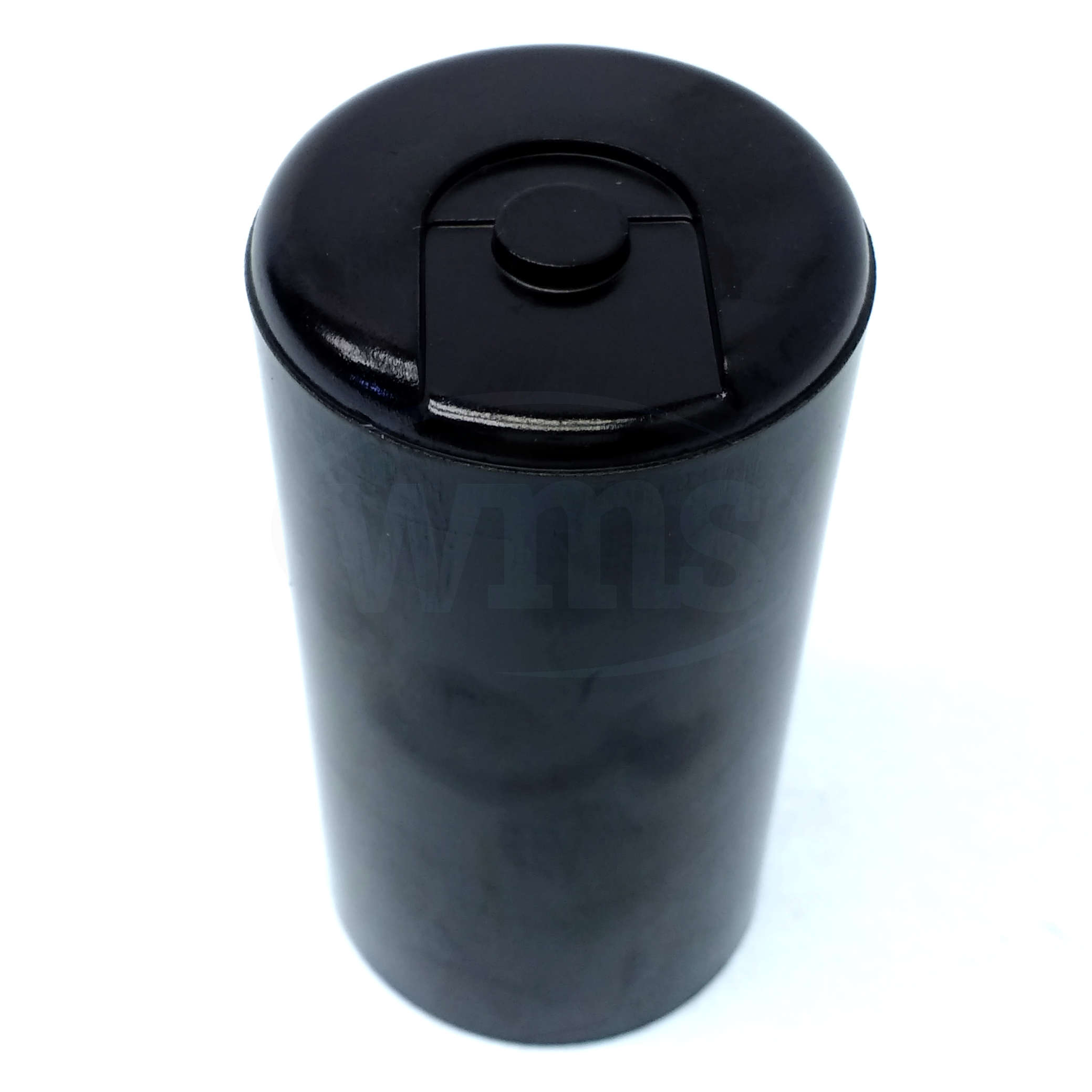

BC-124M-250 Vanguard Capacitor, Mfd 124-149 uF

MFG: Vanguard Capacitors
MFG Part Number: BC 124M-250

Available Stock: 6
Selected accessories will also be added to cart
$15.55 / Each
Quantity:
250 VAC, 50/60 Hz., S42500124DVG
Accessories
Select any of the accessories below to purchase them with this inventory item:

Product Specifications

Brand Vanguard
Part Number BC-124M-250
Type Start Capacitor
MFD/uF 124-149 MFD
Voltage 250 VAC
Frequency 50/60 Hz
Temperature Range -40°C to +65°C
-40°F to 149°F
Country of Origin USA
Weight 0.25 lb

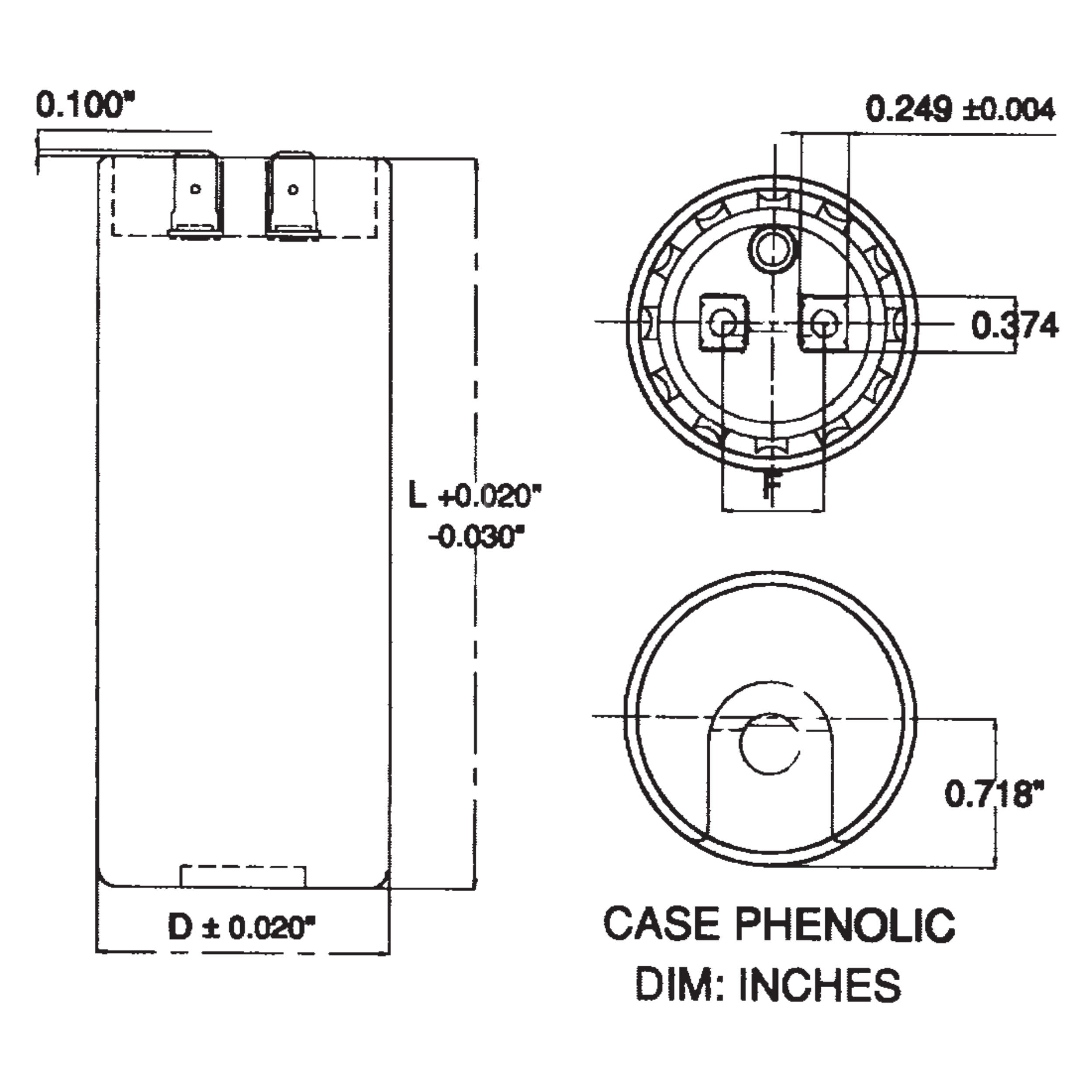

Diameter 1-13/16” ±.02”
Length 3-3/8” +.02”/-.03”
Case Round Phenolic
Connection Type Four 1/4” Spade Terminals
Resistor None
UPC N/A
Certifications UL Recognized
