/Products/Start Capacitors/165 VAC Capacitors/BC-124M-165 Vanguard Capacitor, Mfd 124-149 uF
Click Image to Expand

Product ID: BC-124M-165

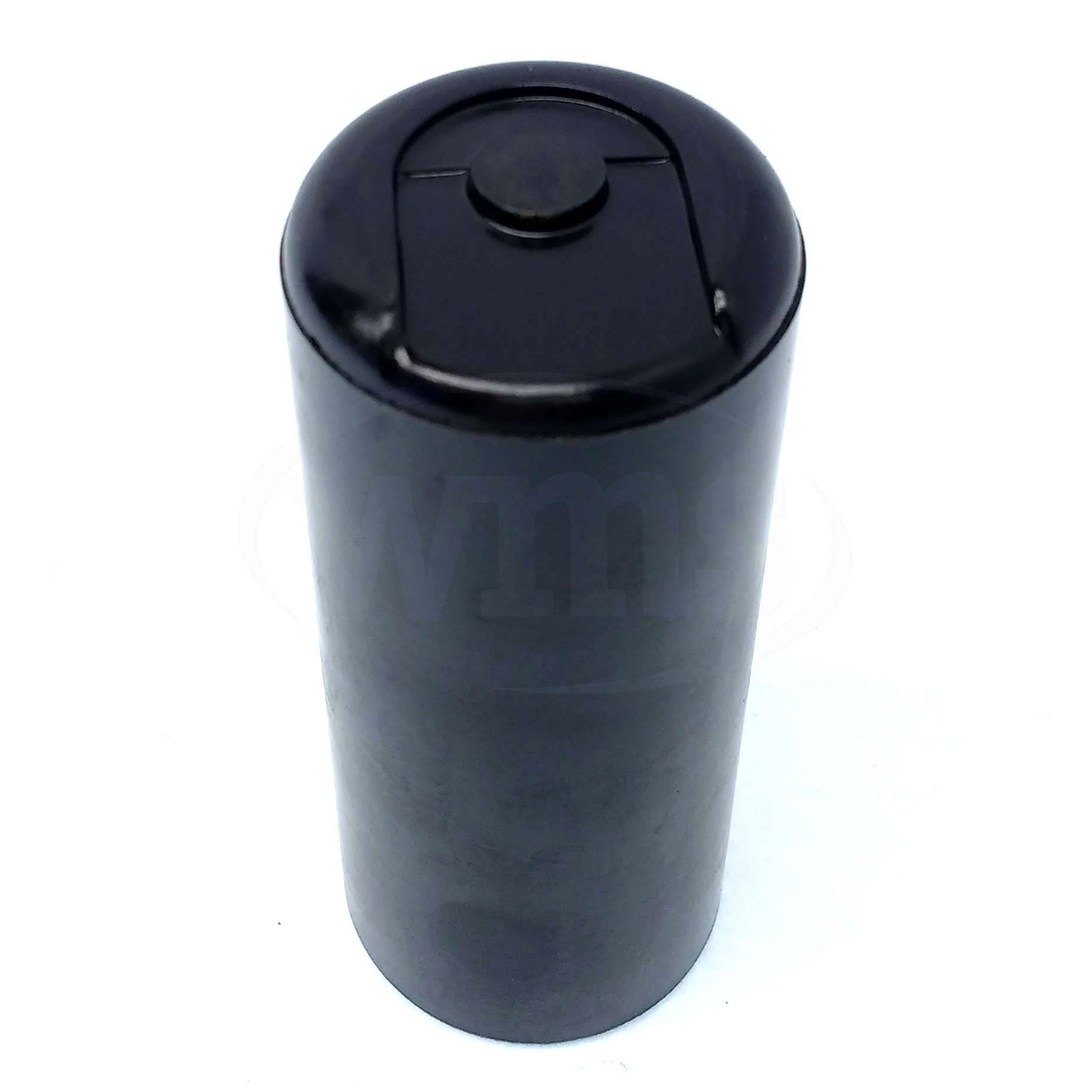

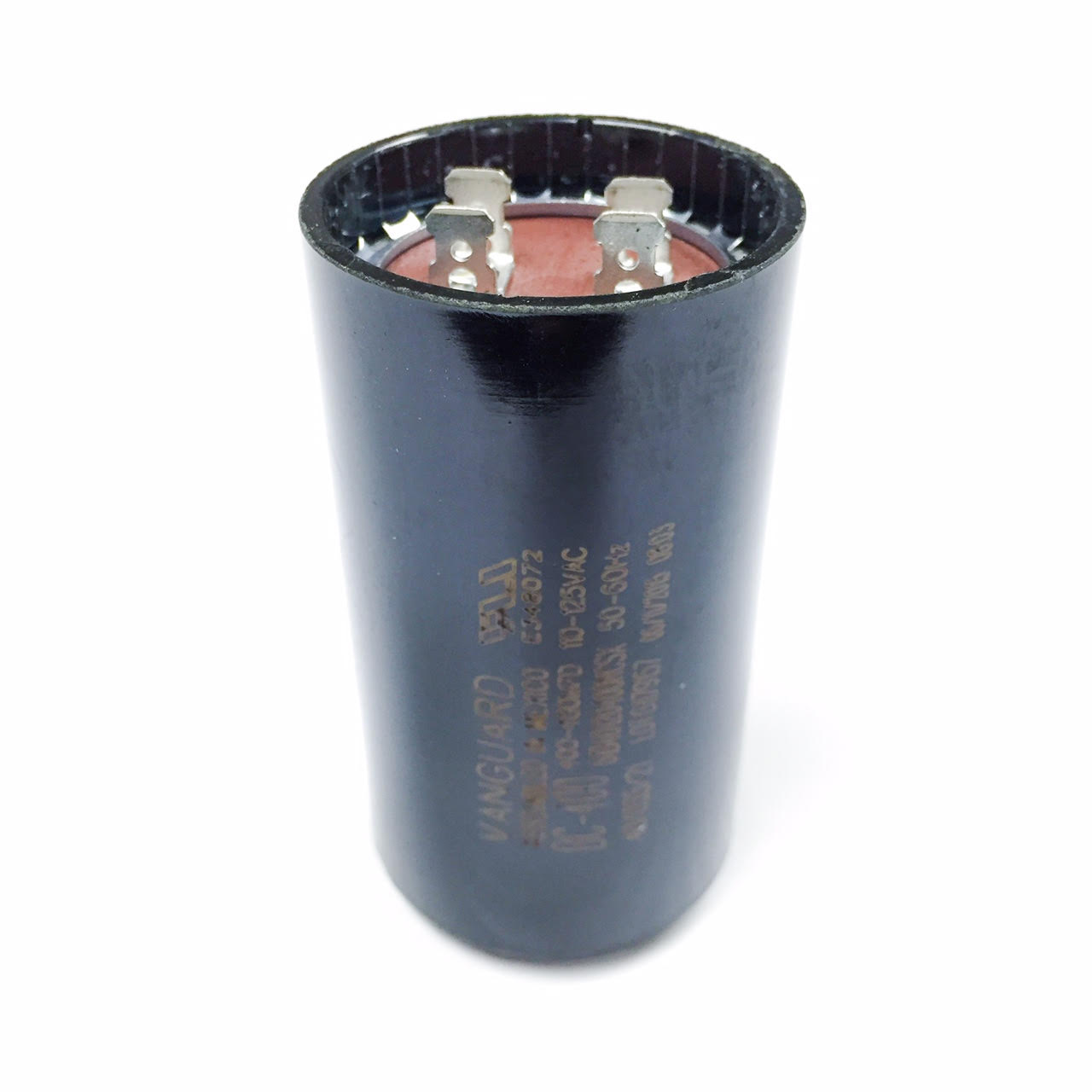

BC-124M-165 Vanguard Capacitor, Mfd 124-149 uF

MFG: Vanguard Capacitors
MFG Part Number: BC-124M-165

Available Stock: 6
Selected accessories will also be added to cart
$10.10 / Each
Quantity:
165 VAC, 50/60 Hz., 61B2D160124NCSX
Accessories
Select any of the accessories below to purchase them with this inventory item:

Product Specifications

Brand Vanguard
Part Number BC-124M-165
61B2D160124NCSX
Type Start Capacitor
MFD/uF 124-149 uF
Voltage 165 Vac
Frequency 50/60 Hz
Temperature Range -40°C to +65°C
-40°F to 149°F
Country of Origin Mexico
Weight 0.20 lbs
Diameter 1-7/16” ±.02”
Length 3-3/8” +.02”/-.03”
Case Round Phenolic
Connection Type Four 1/4” Spade Terminals
Resistor None
UPC N/A
Certifications UL Recognized
