Products
/
Electric Motors
/
Single Phase
/
Century
/
B889 Century 3/4HP Electric Motor, 3450RPM
Click Image to Expand
Previous
Next
Product ID: B889

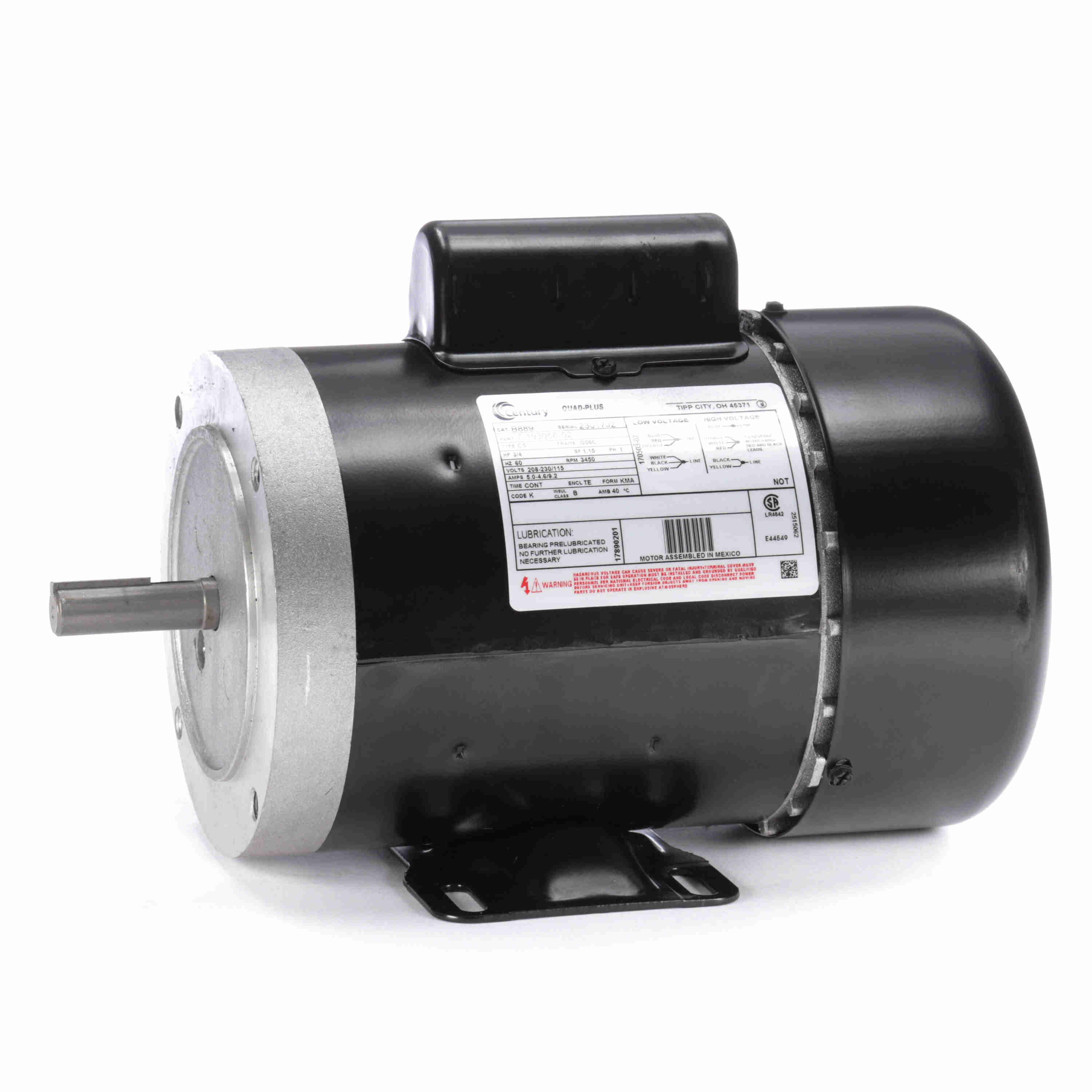

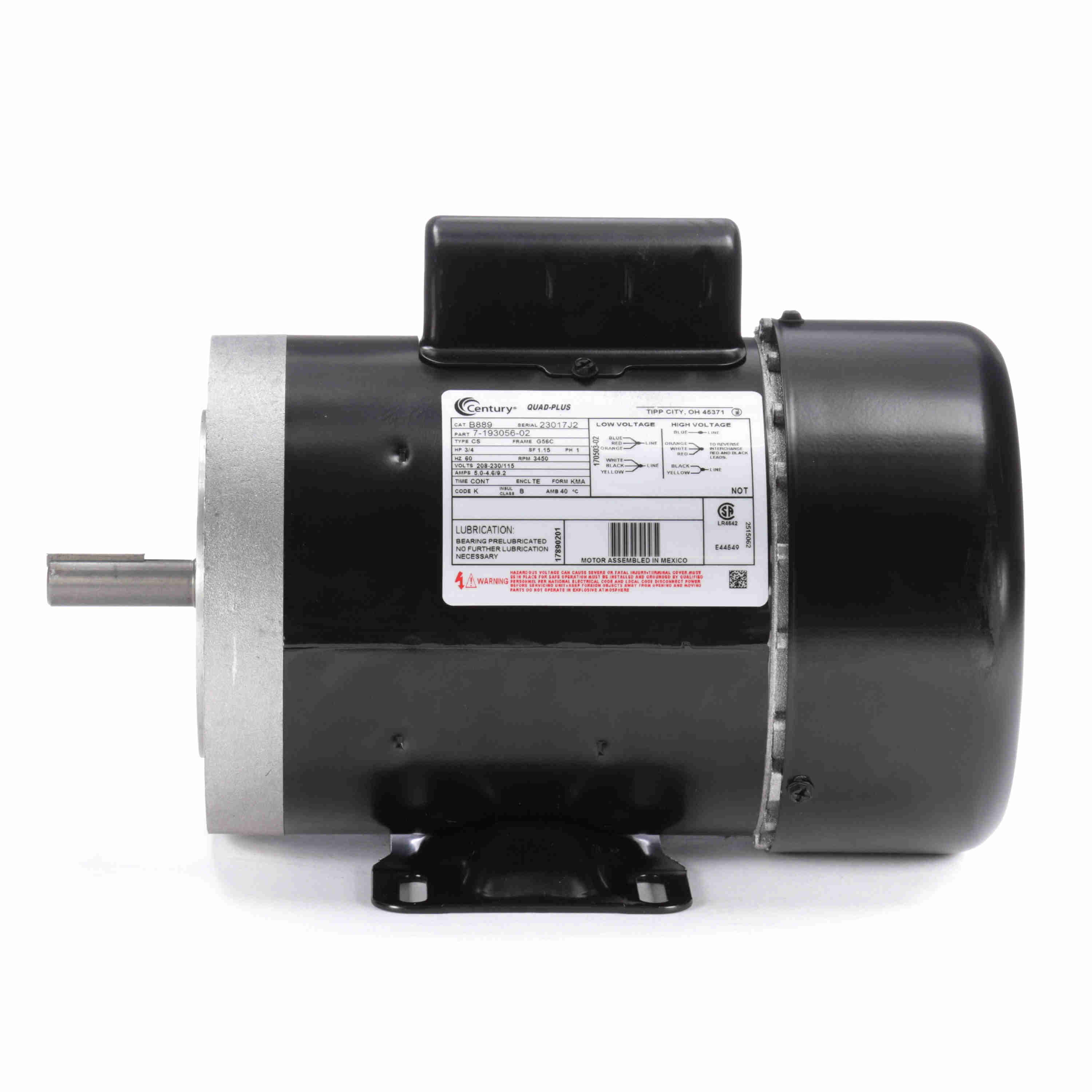

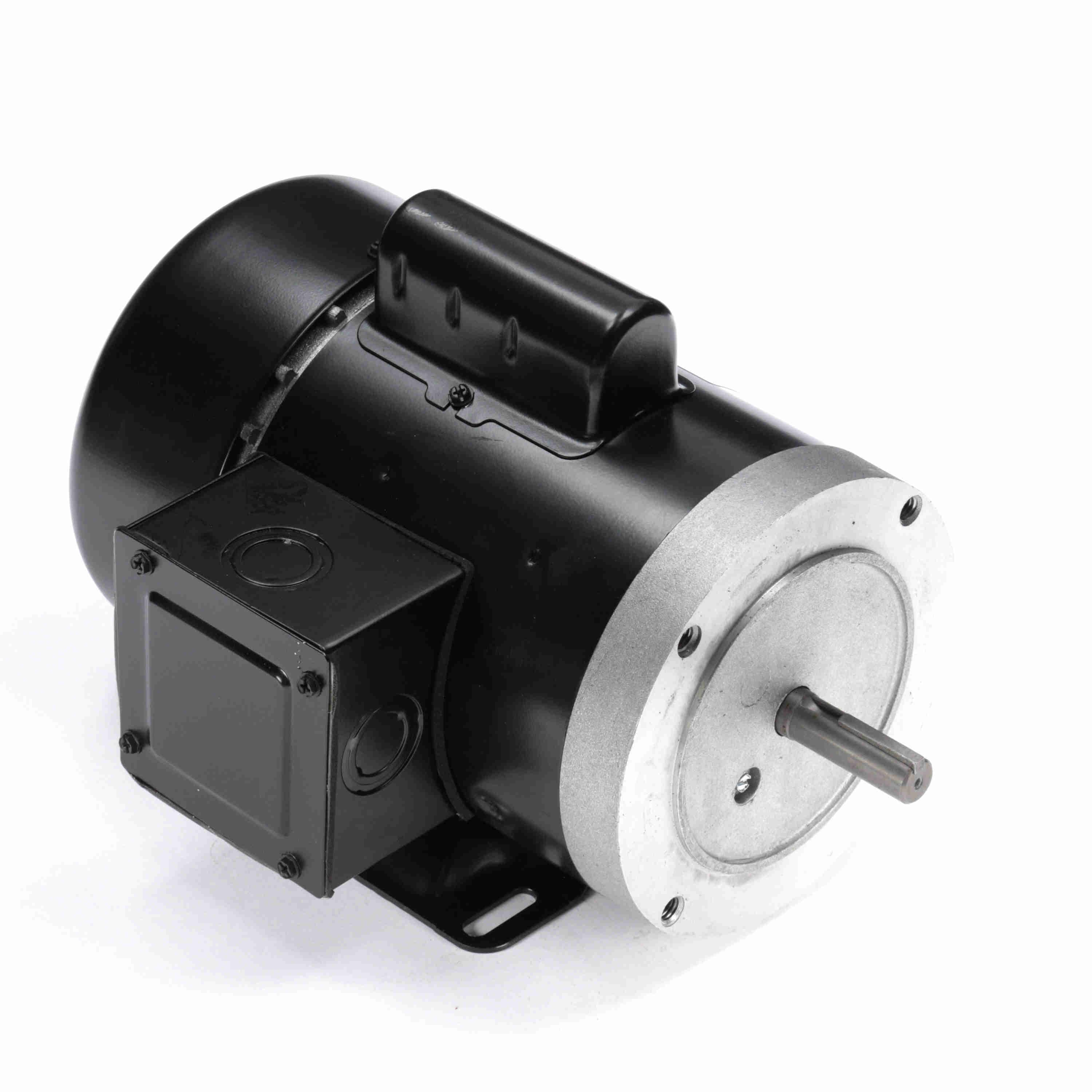

B889 Century 3/4HP Electric Motor, 3450RPM
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B889
Selected accessories will also be added to cart
$333.97 / Each
Quantity:
TEFC, G56C Frame, 115/208-230V 60Hz Single Phase, Rigid Base
Details
Features
Features
Heavy gauge steel frame and base
General Specifications
General Specifications
Model :
Catalog No :
B889
Part Description :
3/4,3450,TEFC,56C,1/60/208-230/115
Category :
Totally Enclosed Fan Cooled (TEFC)
Stock :
Yes
Nameplate Specifications
Nameplate Specifications
Output HP :
3/4 Hp
Output KW :
0.56 kW
Frequency :
60 Hz
Voltage :
208-230/115 V
Current :
5.0-4.6/9.2 A
Speed :
3450 rpm
Service Factor :
1.15
Phase :
1
Duty :
Continuous
Insulation Class :
B
Frame :
G56C
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
None
Ambient Temperature :
40 °C
UL :
Recognized
CSA :
Y
CE :
N
Technical Specifications
Technical Specifications
Electrical Type :
Capacitor Start, Induction Run, Single Or Dual Voltage
Starting Method :
Across The Line
Poles :
2
Rotation :
Reversible Counterclockwise
Mounting :
Rigid Base
Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball
Frame Material :
Rolled Steel
Shaft Type :
Keyed
Overall Length :
12.21 in
Frame Length :
6.00 in
Shaft Diameter :
0.625 in
Shaft Extension :
2.07 in
UPC :
786674013361
Weight :
26.00 LB
