/Products/Electric Motors/Single Phase/Century/Pressure Washer/B869 Century 6HP Pressure Washer Electric Motor, 3450 RPM
Click Image to Expand

Product ID: B869

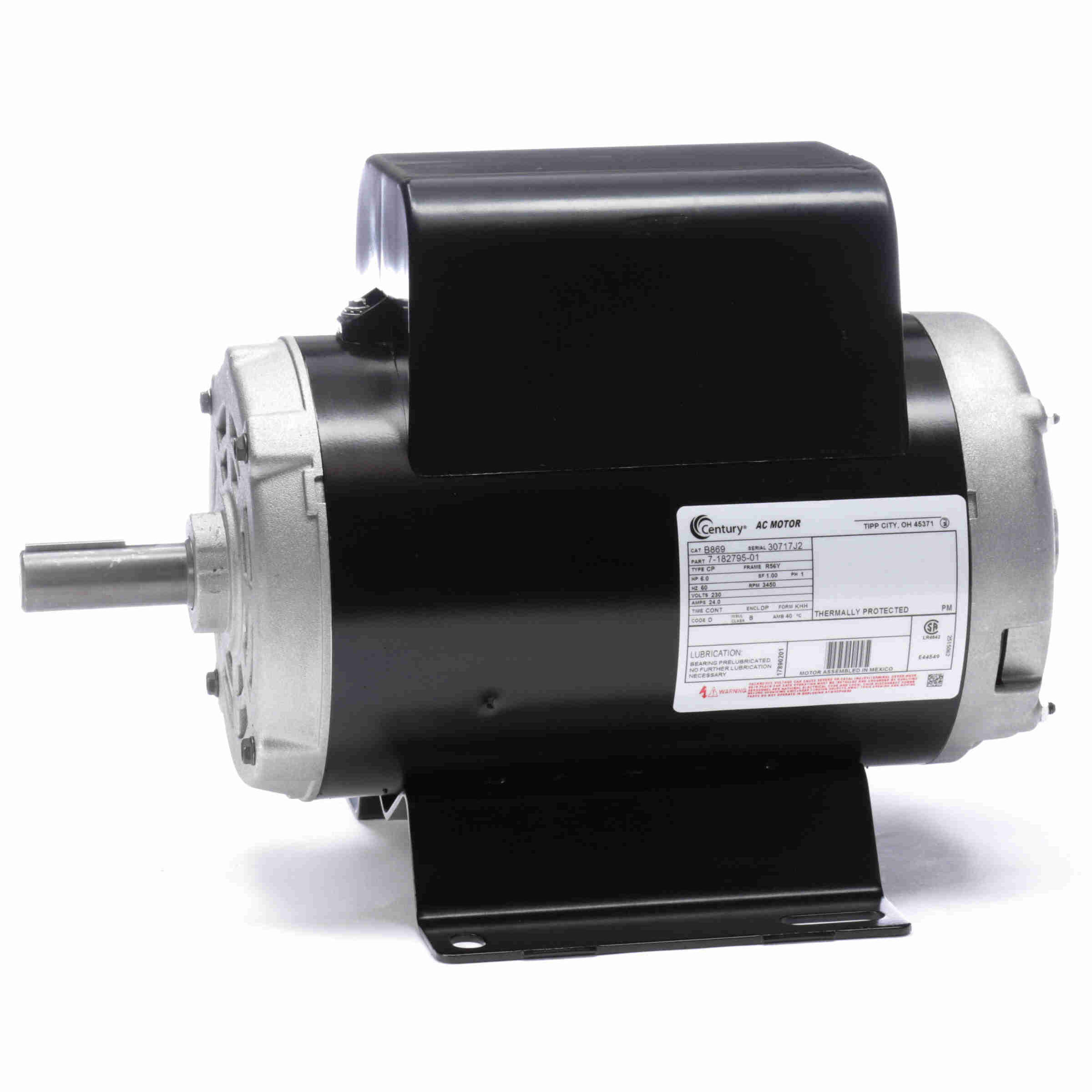

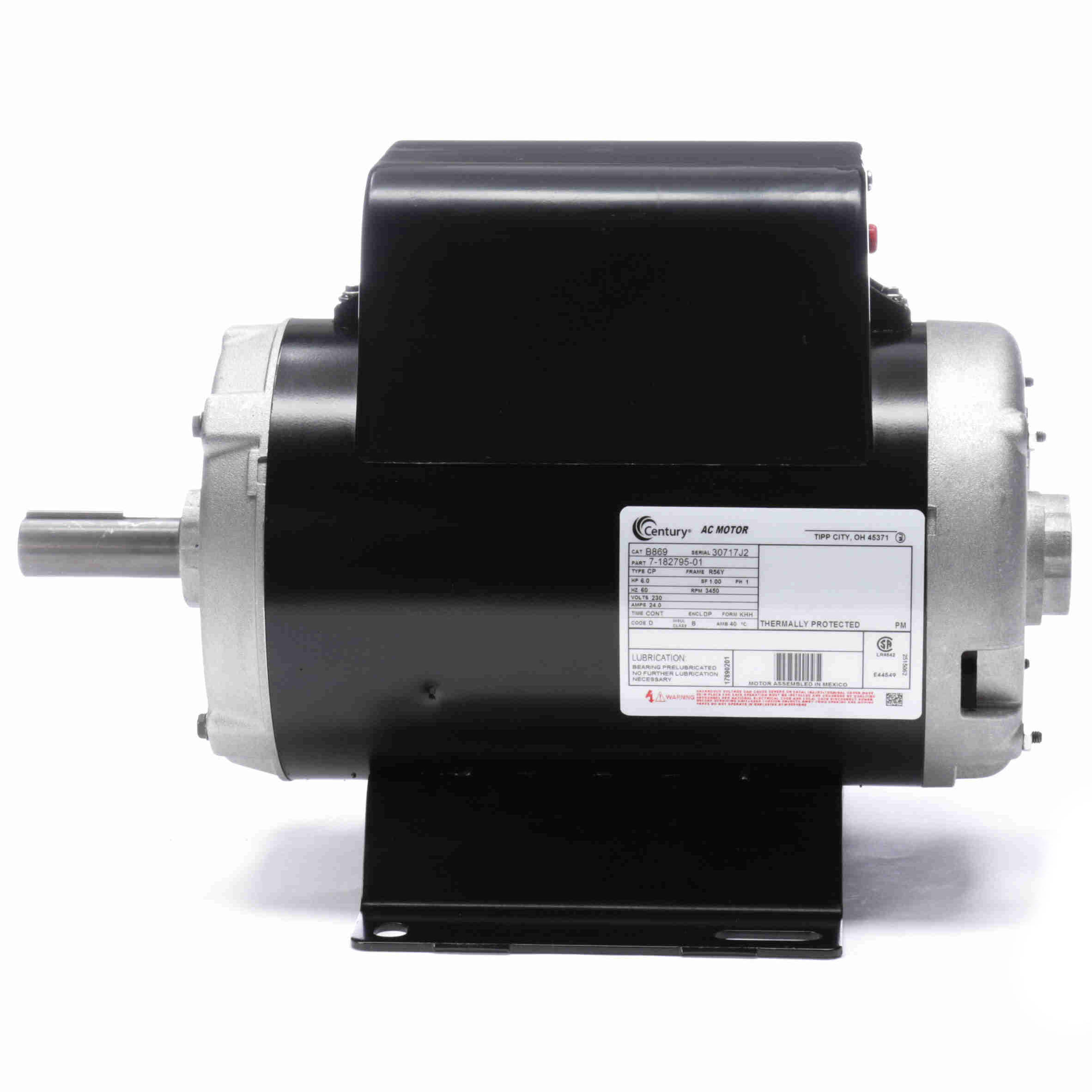

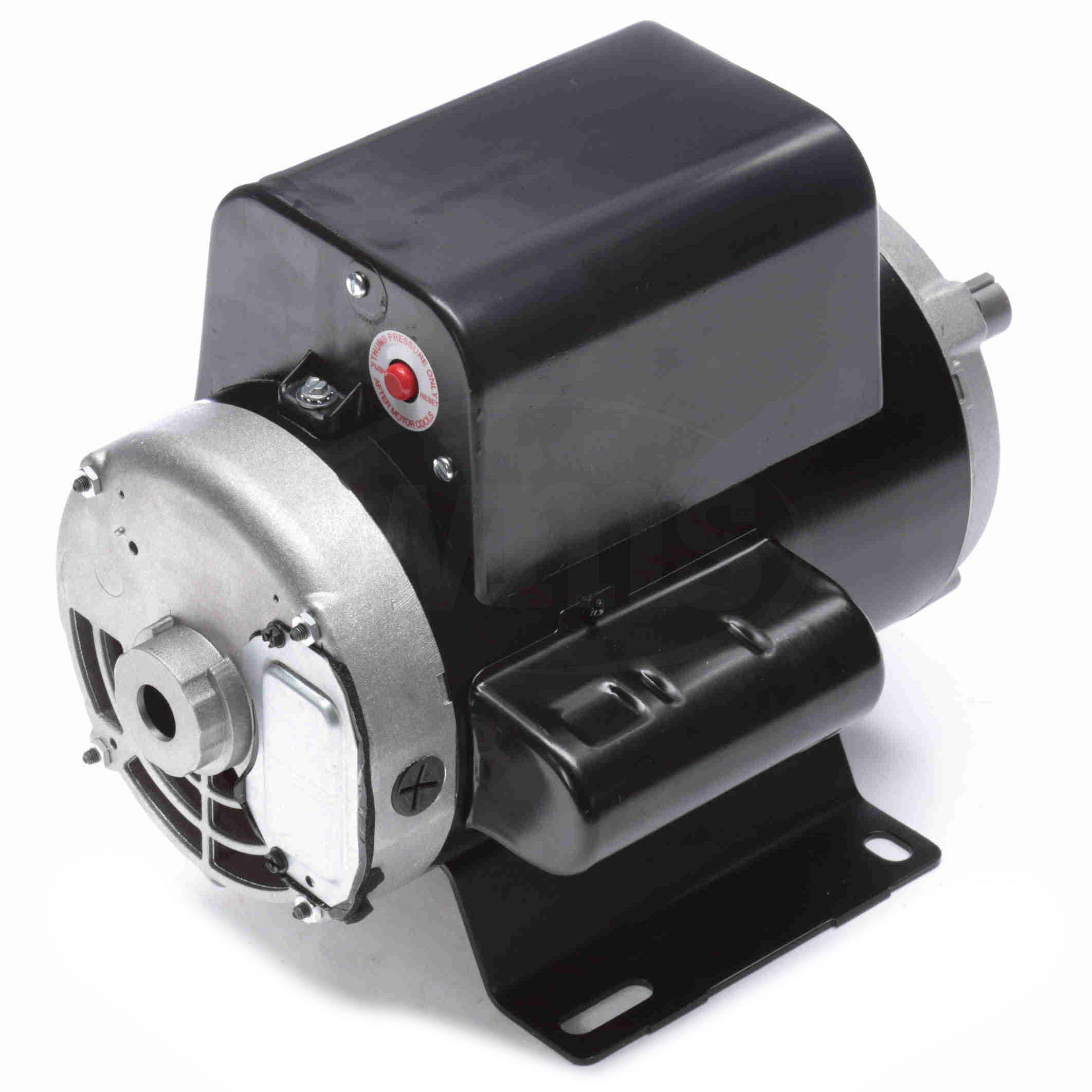

B869 Century 6HP Pressure Washer Electric Motor, 3450 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B869

Selected accessories will also be added to cart
$671.97 / Each
Quantity:
Drip Proof, R56Y Frame, 230V 60Hz Single Phase, Rigid Base

Features

Features
  • Ball bearings, shaft end mechanically locked on C-face models
  • Heavy gauge steel construction

General Specifications

General Specifications
Model : Catalog No :B869
Part Description :6,3450,DP,56Y,1/60/230 Category :Pressure Washers
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :6.0 Hp Output KW :4.5 kW
Frequency :60 Hz Voltage :230 V
Current :24.0 A Speed :3450 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :R56Y Enclosure :Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :2 Rotation :Clockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :14.56 in
Frame Length :8.75 in Shaft Diameter :0.875 in
Shaft Extension :2.31 in UPC :786674013323
Weight :50.00 LB
