/Products/Electric Motors/3 Phase/Century/Farm Duty/Milk Pump/B599 Century 1HP Milk Pump Duty Electric Motor, 3600RPM
Click Image to Expand

Product ID: B599

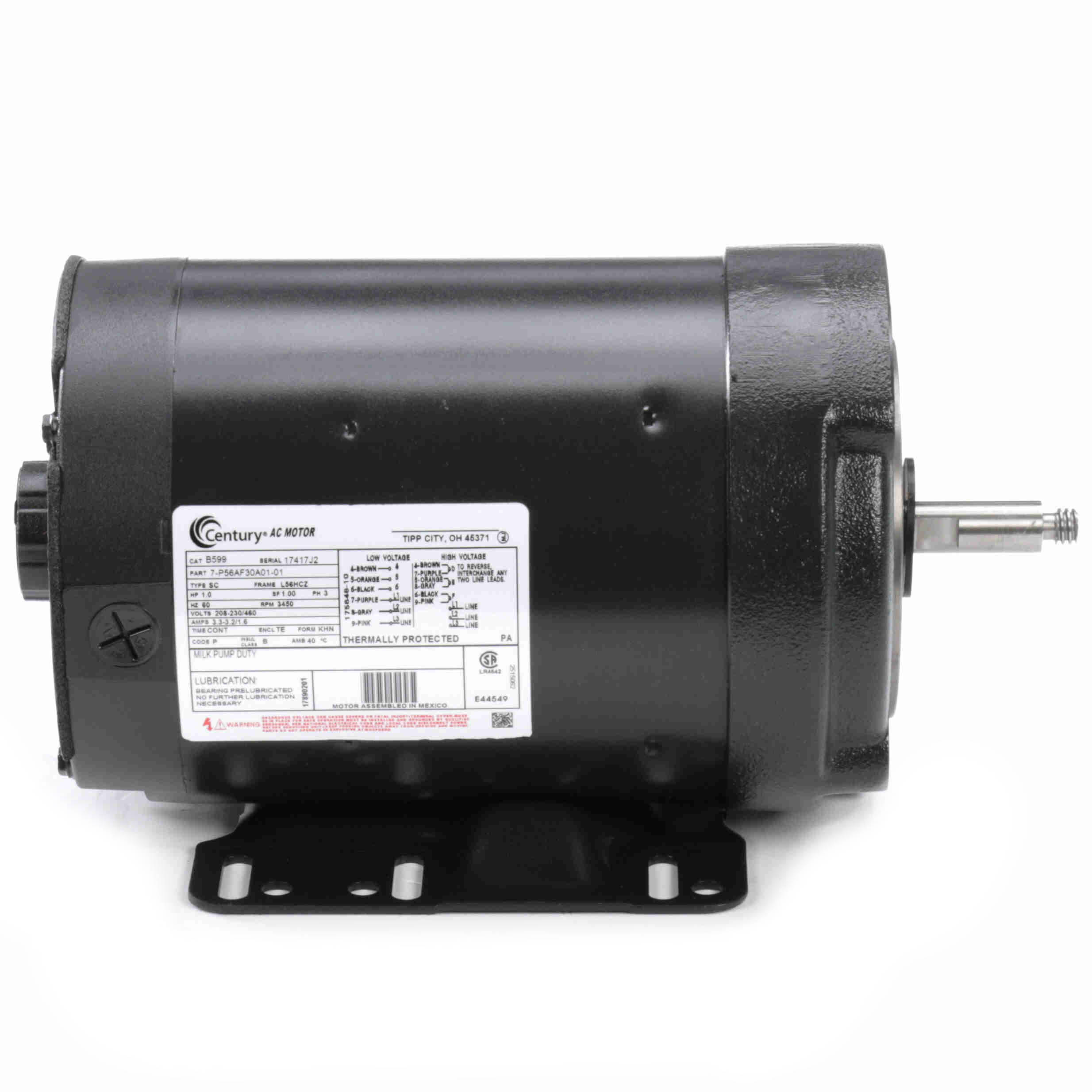

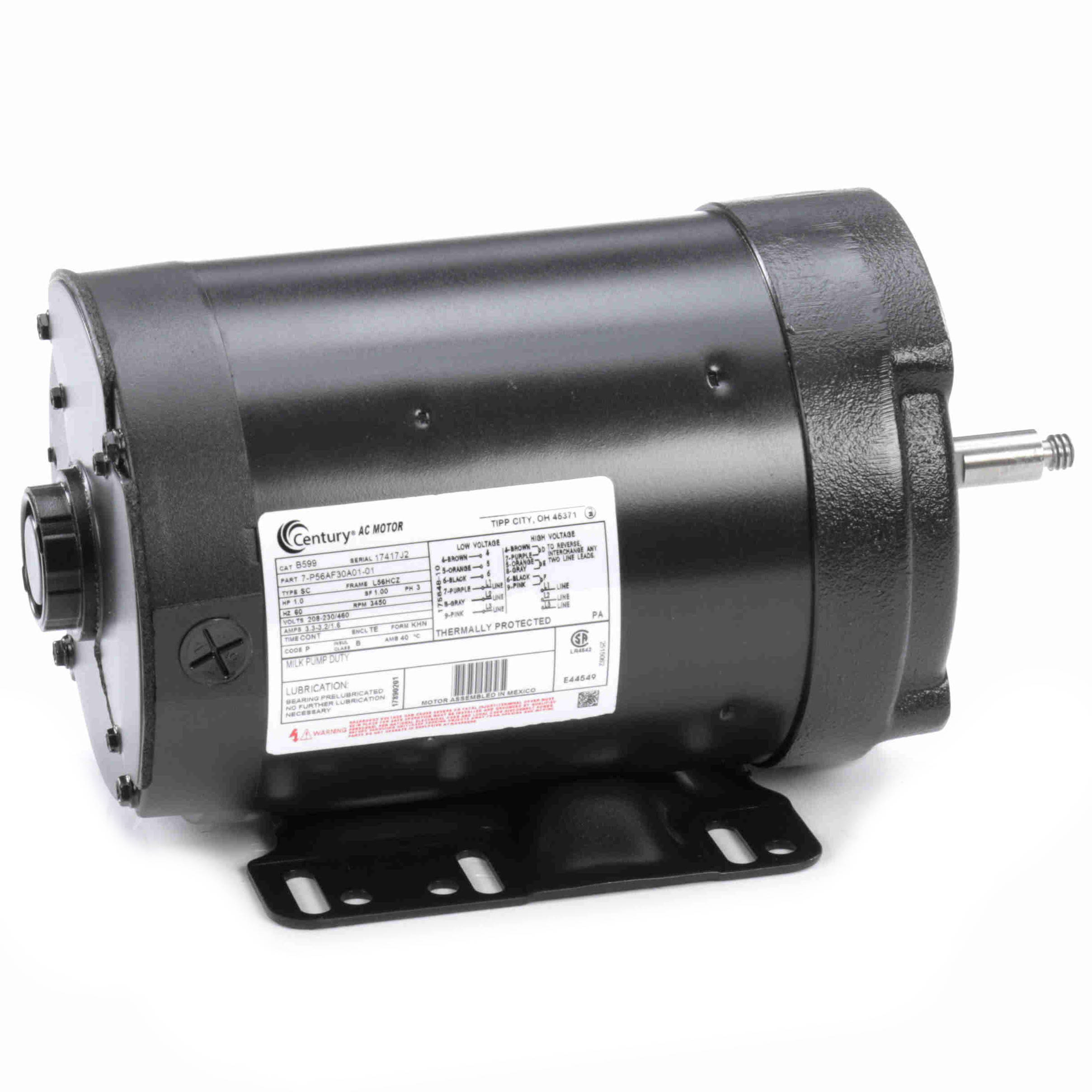

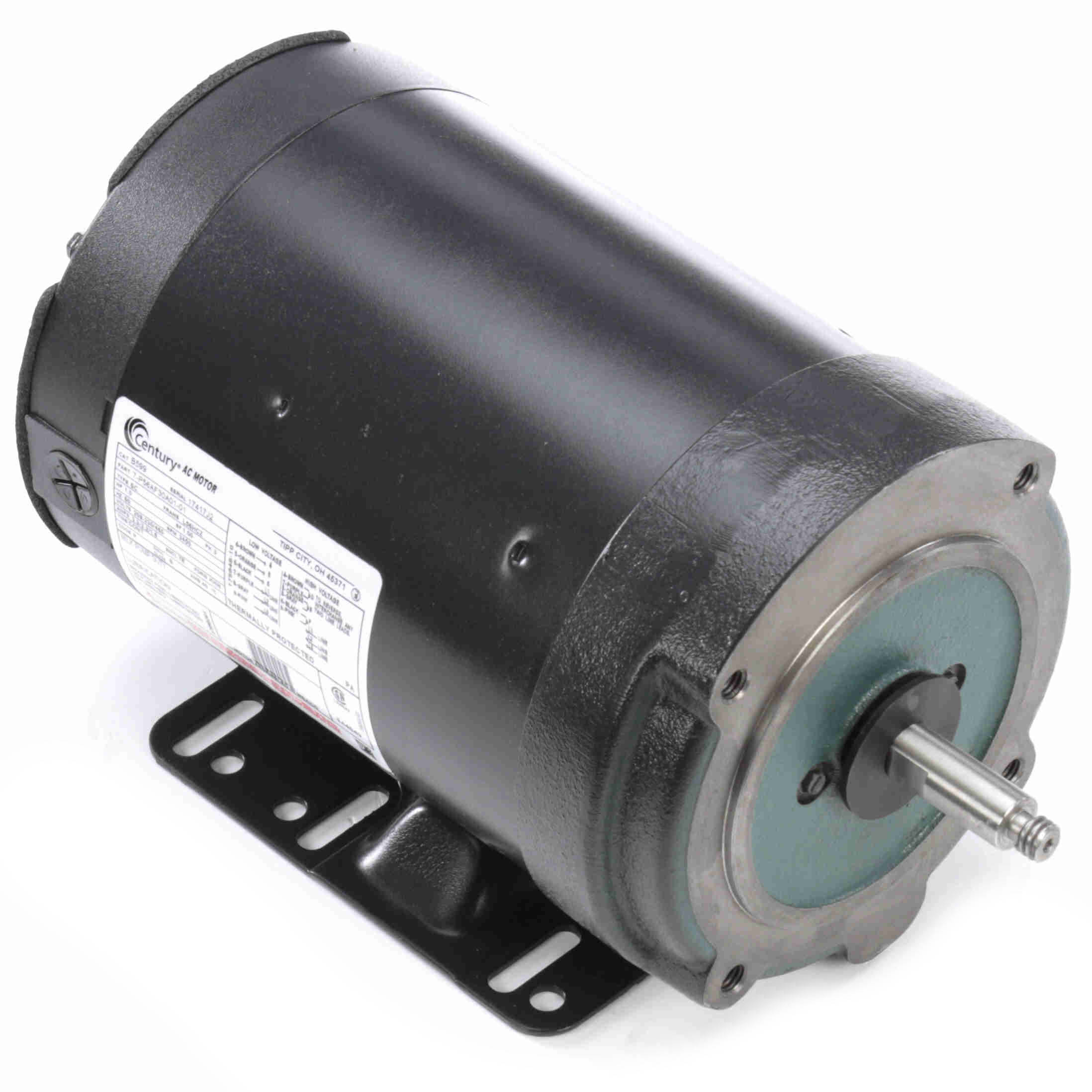

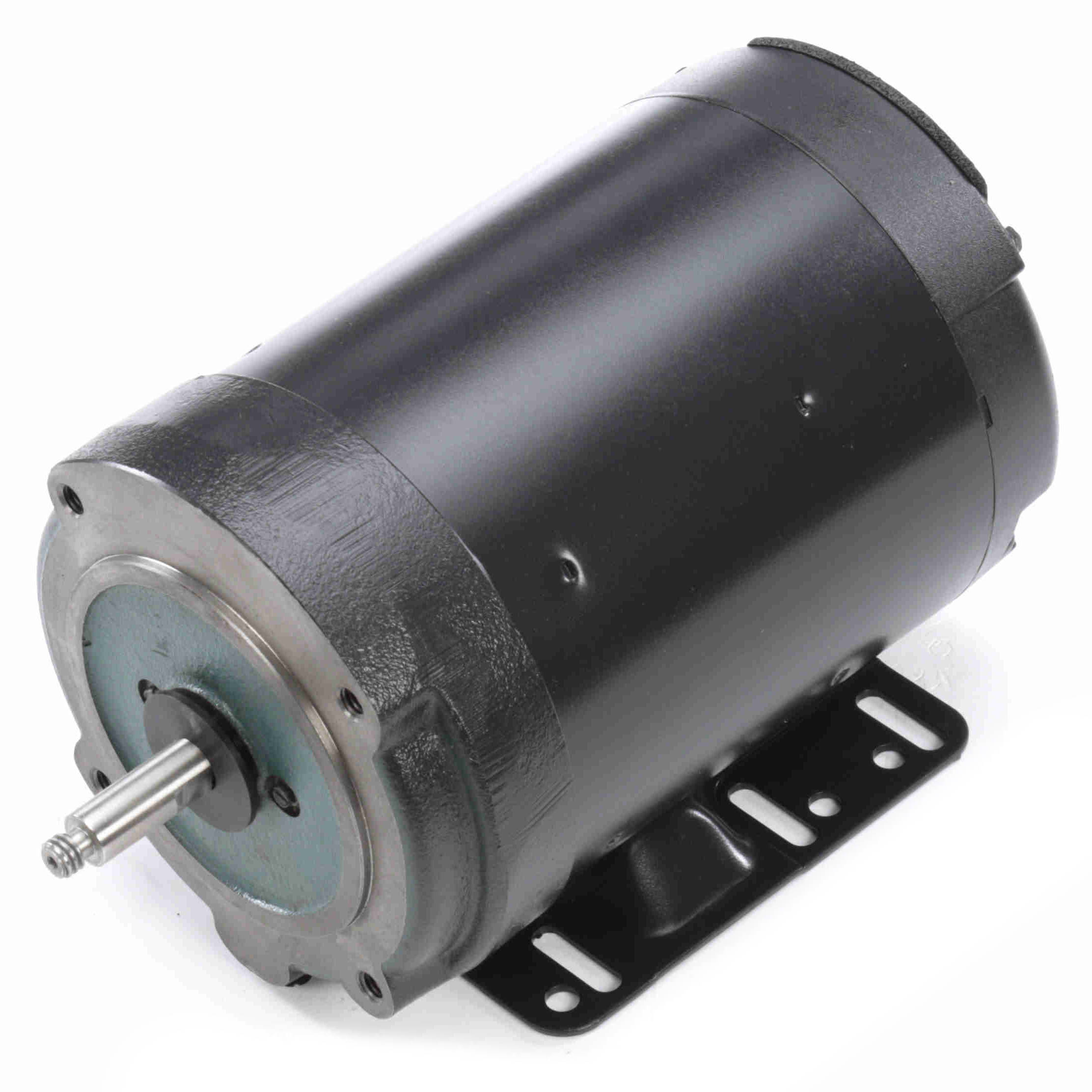

B599 Century 1HP Milk Pump Duty Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B599

Selected accessories will also be added to cart
$779.97 / Each
Quantity:
TENV, 56HCZ Frame, 208-230/460VAC 60Hz 3-Phase, 7-P56AF30A01-01, Rolled Steel, Rigid Base, C-Face, 5/8" Threaded Shaft

Features

  • Weatherproof features for washdown
  • Cast iron NEMA "C" end bracket
  • Stainless steel shaft
  • Auto overload protector
  • ACME right hand threads

General Specifications

UPC: 786674061379 Weight: 37.00 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.3-3.2/1.6 A Speed: 3450 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: L56HCZ Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 12.43 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.33 in
