/Products/Electric Motors/Single Phase/Century/Air Compressor/B387 Century 6HP Air Compressor Electric Motor, 3450RPM
Click Image to Expand

Product ID: B387

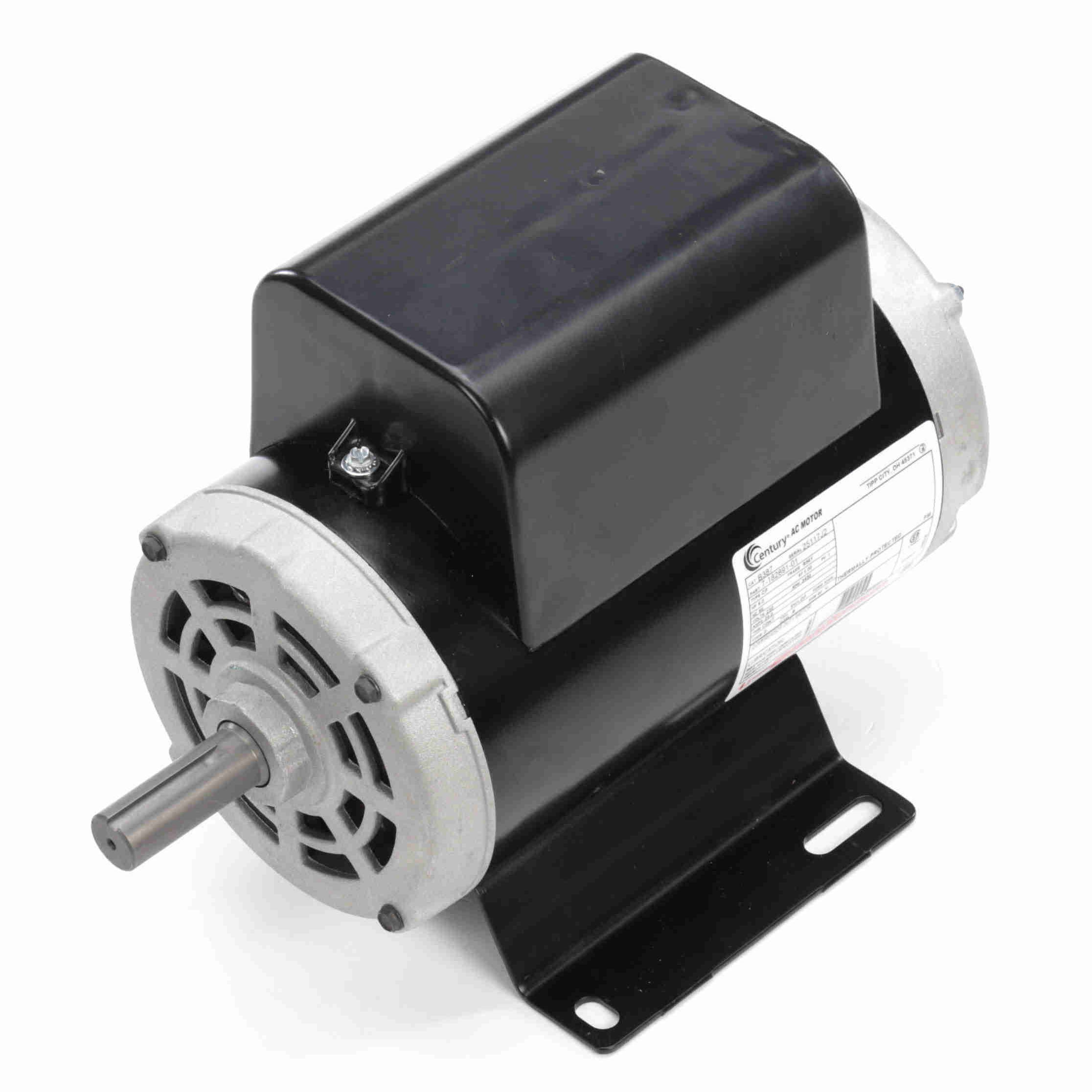

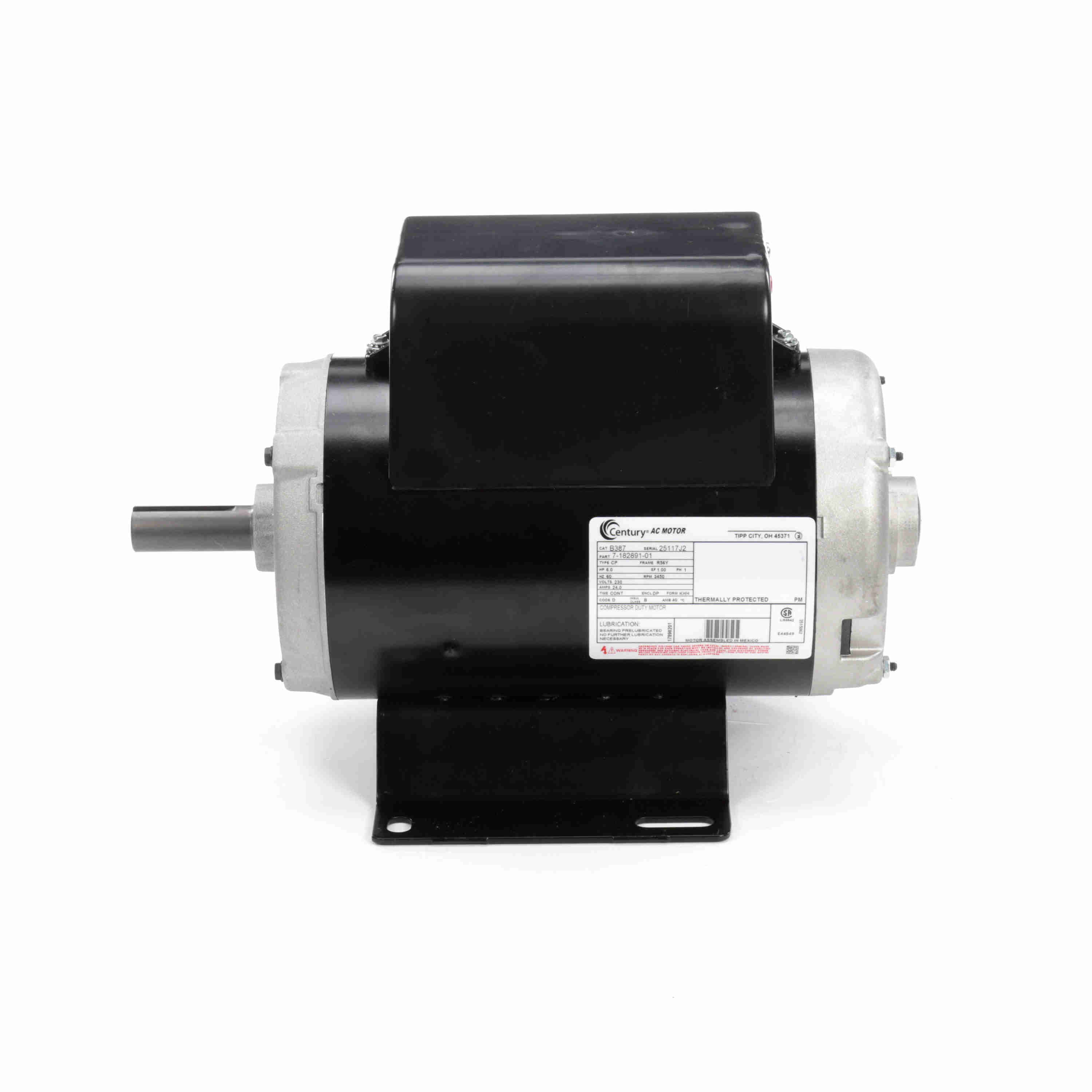

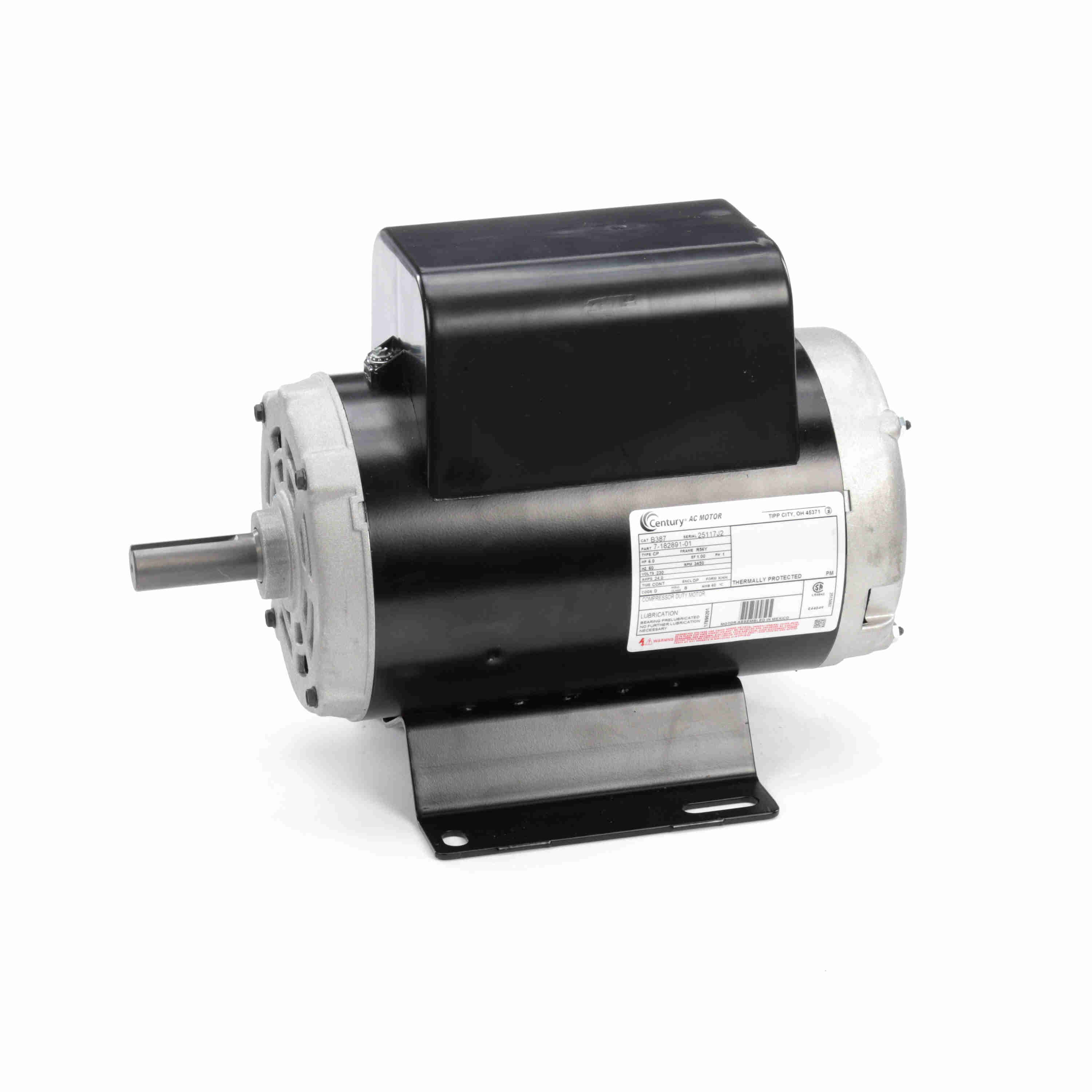

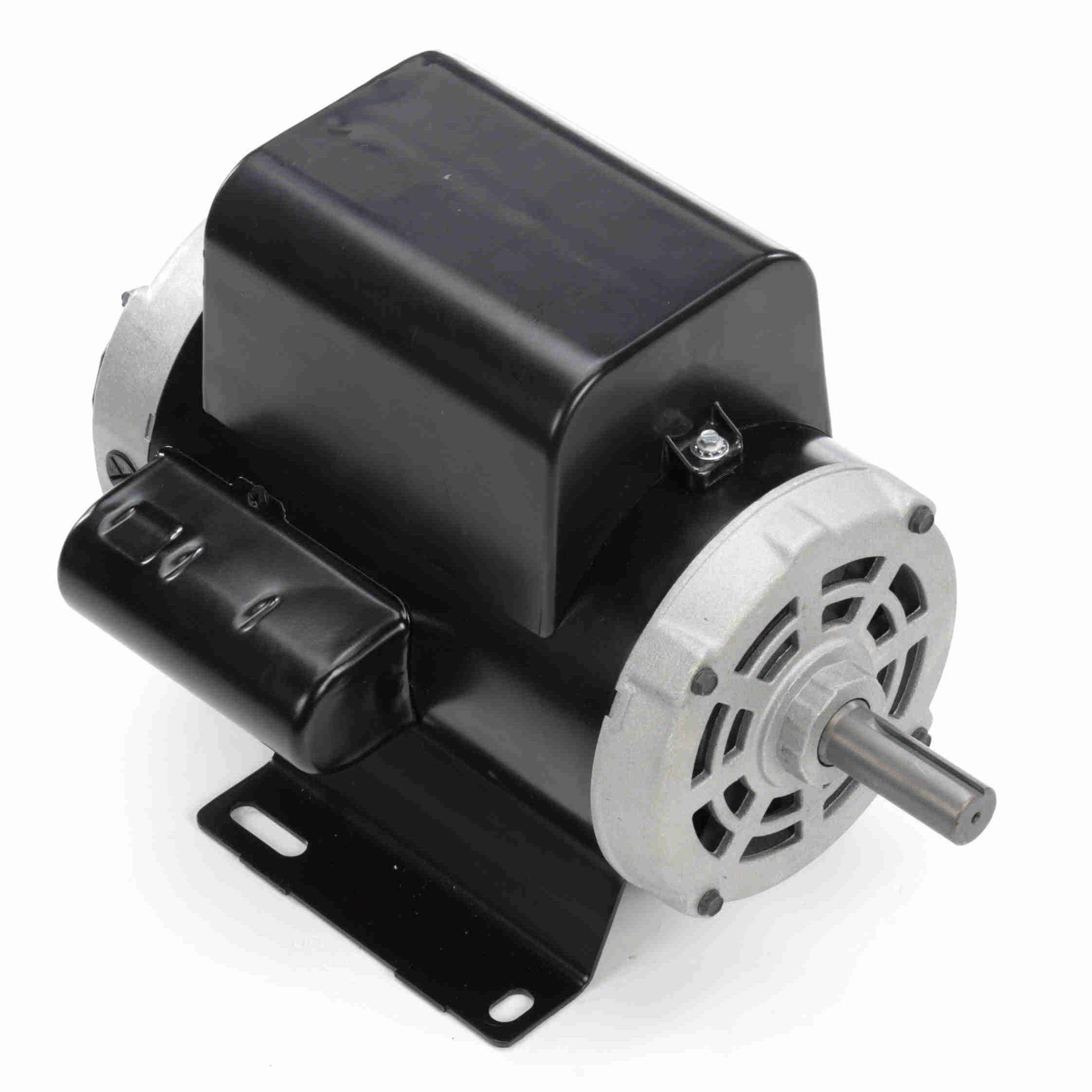

B387 Century 6HP Air Compressor Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B387

Selected accessories will also be added to cart
$680.97 / Each
Quantity:
Drip Proof, R56Y Frame, 230V Single Phase 60Hz, Rigid Base

Features

Features
  • High starting and breakdown torque
  • Heavy gauge steel frame and base

General Specifications

General Specifications
Model : Catalog No :B387
Part Description :6,3450,DP,56Y,1/60/230 Category :Air Compressor
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :6.0 Hp Output KW :4.5 kW
Frequency :60 Hz Voltage :230 V
Current :24.0 A Speed :3450 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :R56Y Enclosure :Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :2 Rotation :Clockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :14.56 in
Frame Length :8.75 in Shaft Diameter :0.875 in
Shaft Extension :2.31 in UPC :786674012432
Weight :53.00 LB

Speed & Load Characteristics
