/Products/Electric Motors/Single Phase/Century/Air Compressor/B385 Century 5HP Compressor Duty Electric Motor, 3450 RPM
Click Image to Expand

Product ID: B385

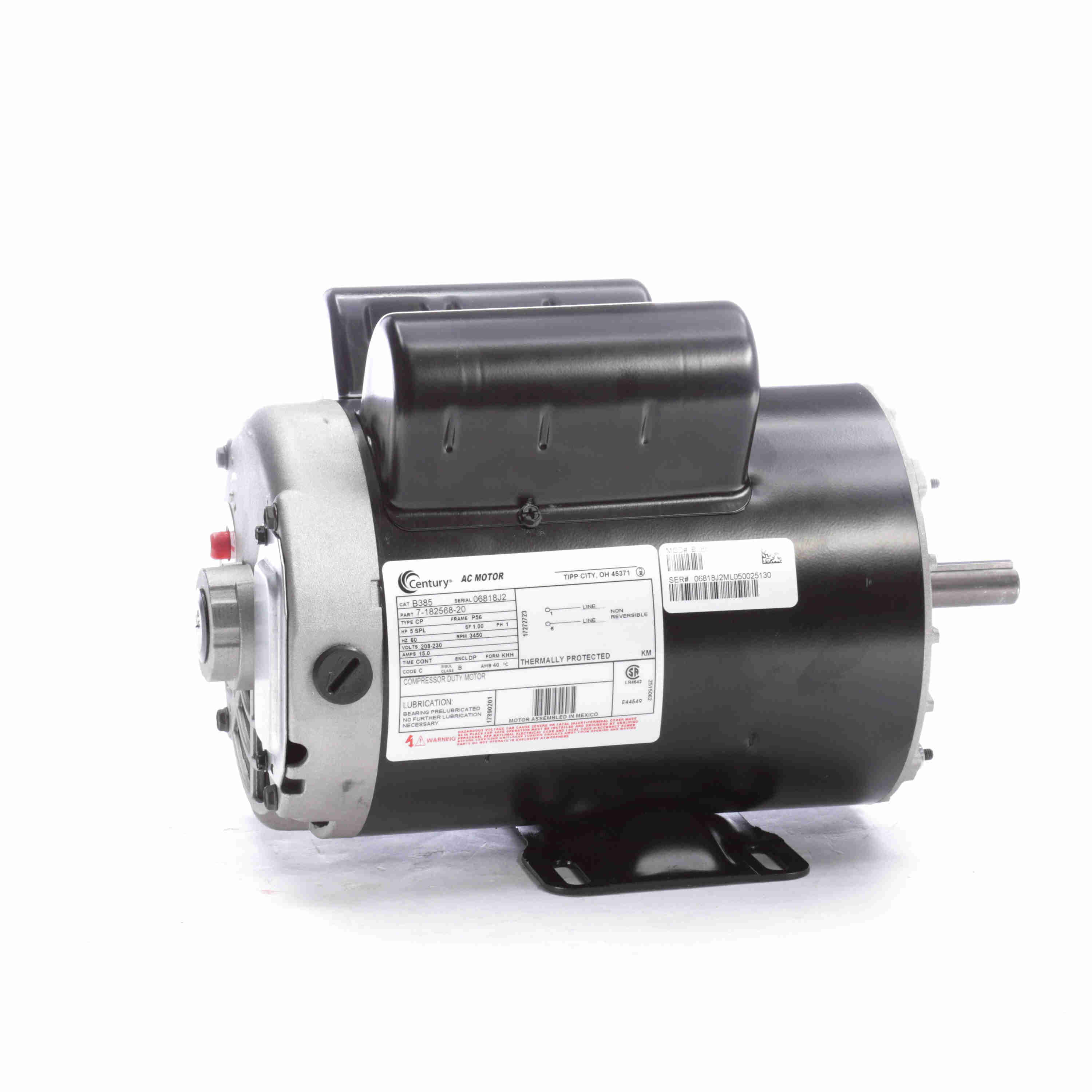

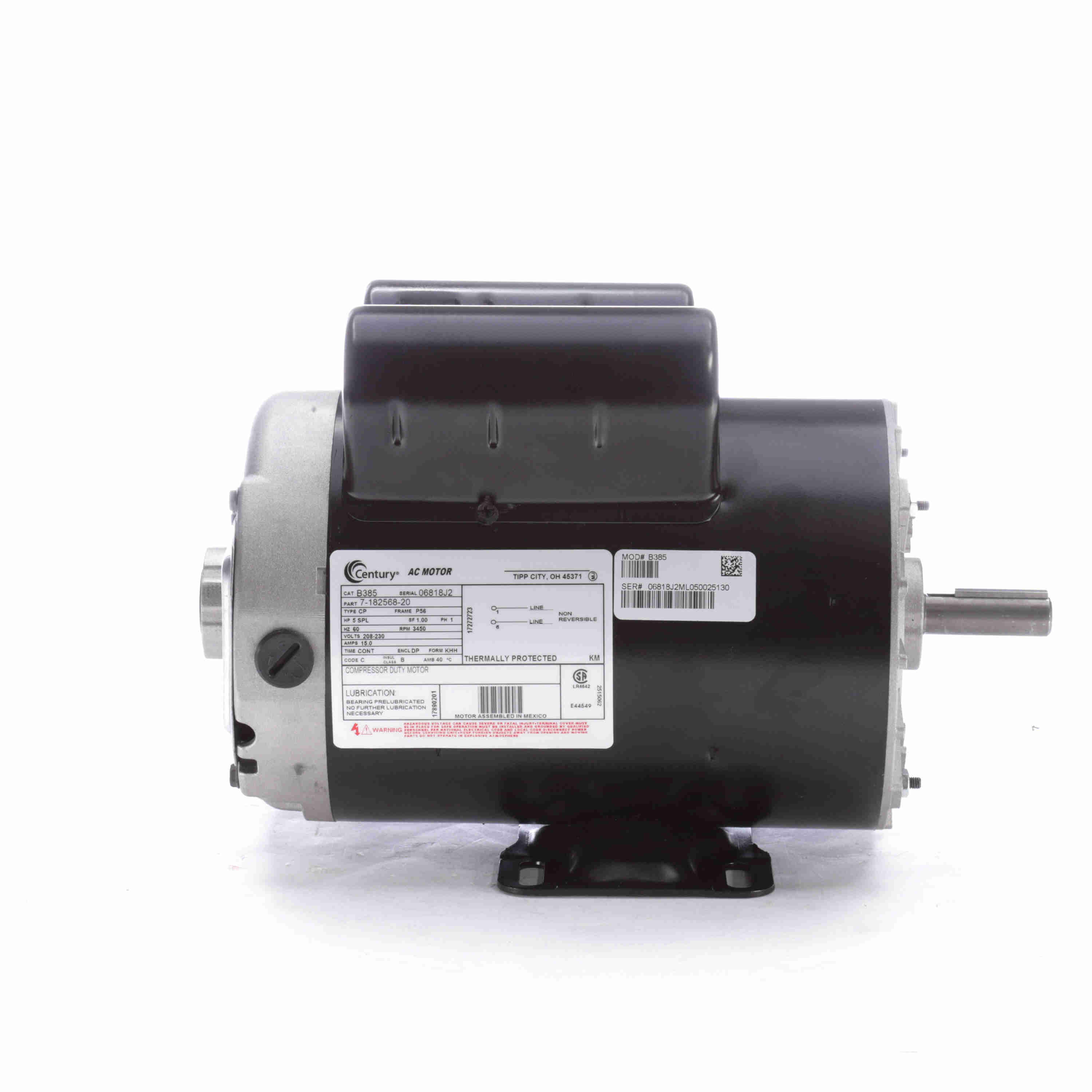

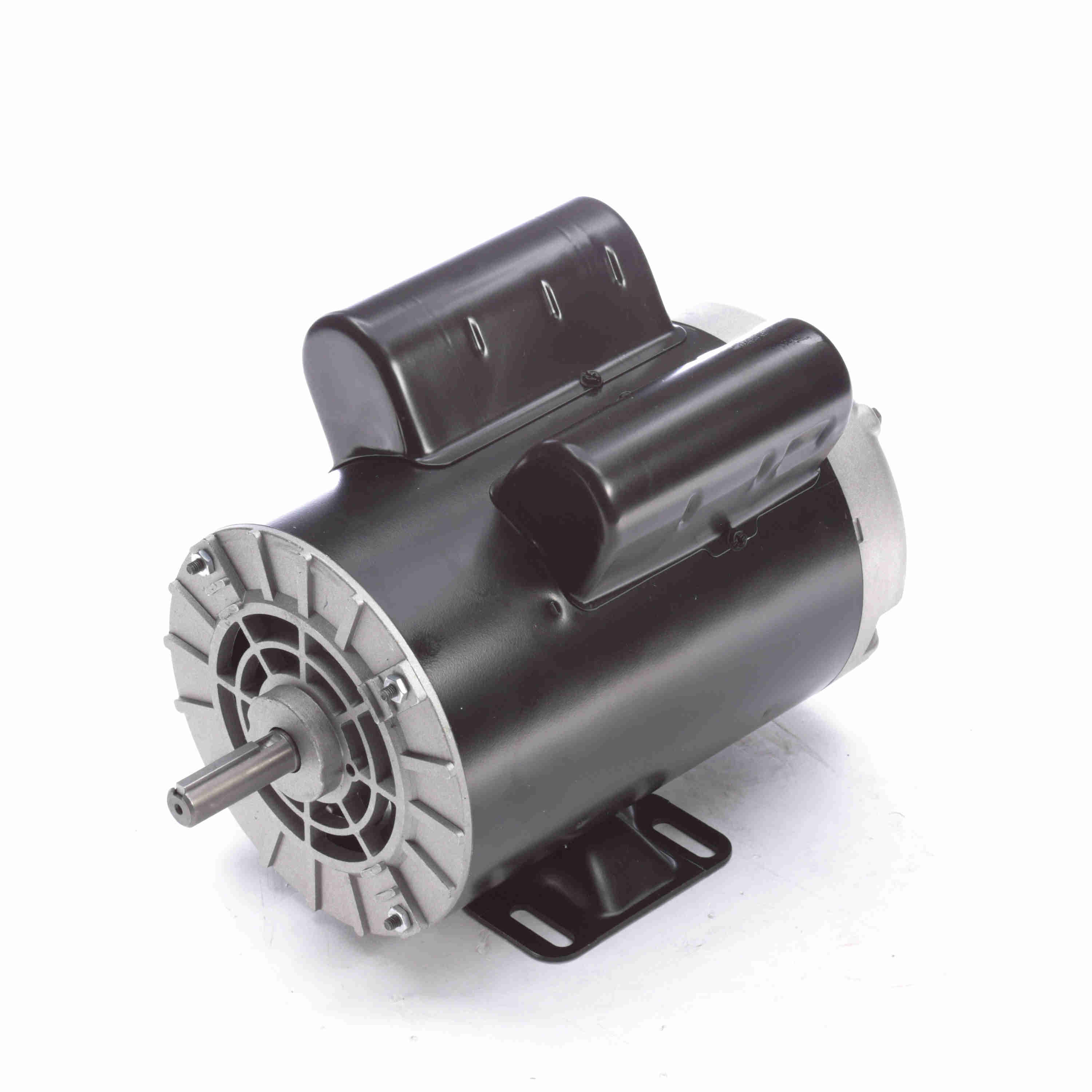

B385 Century 5HP Compressor Duty Electric Motor, 3450 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B385

Selected accessories will also be added to cart
$445.97 / Each
Quantity:
Drip Proof, P56 Frame, 208-230V 1-Phase 60Hz, Rigid Base

Features

Features
  • Heavy gauge steel frame and base
  • Manual thermal protection

General Specifications

General Specifications
Model : Catalog No :B385
Part Description :5SPL,3450,DP,56,1/60/208-230 Category :Air Compressor
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :5 SPL Hp Output KW :3.7 kW
Frequency :60 Hz Voltage :208-230 V
Current :15.0 A Speed :3450 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :P56 Enclosure :Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :2 Rotation :Clockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :12.59 in
Frame Length :8.00 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674012418
Weight :35.00 LB
