/Products/Electric Motors/Single Phase/Century/Air Compressor/B383 Century 3 SPL HP Air Compressor Electric Motor, 3450RPM
Click Image to Expand

Product ID: B383

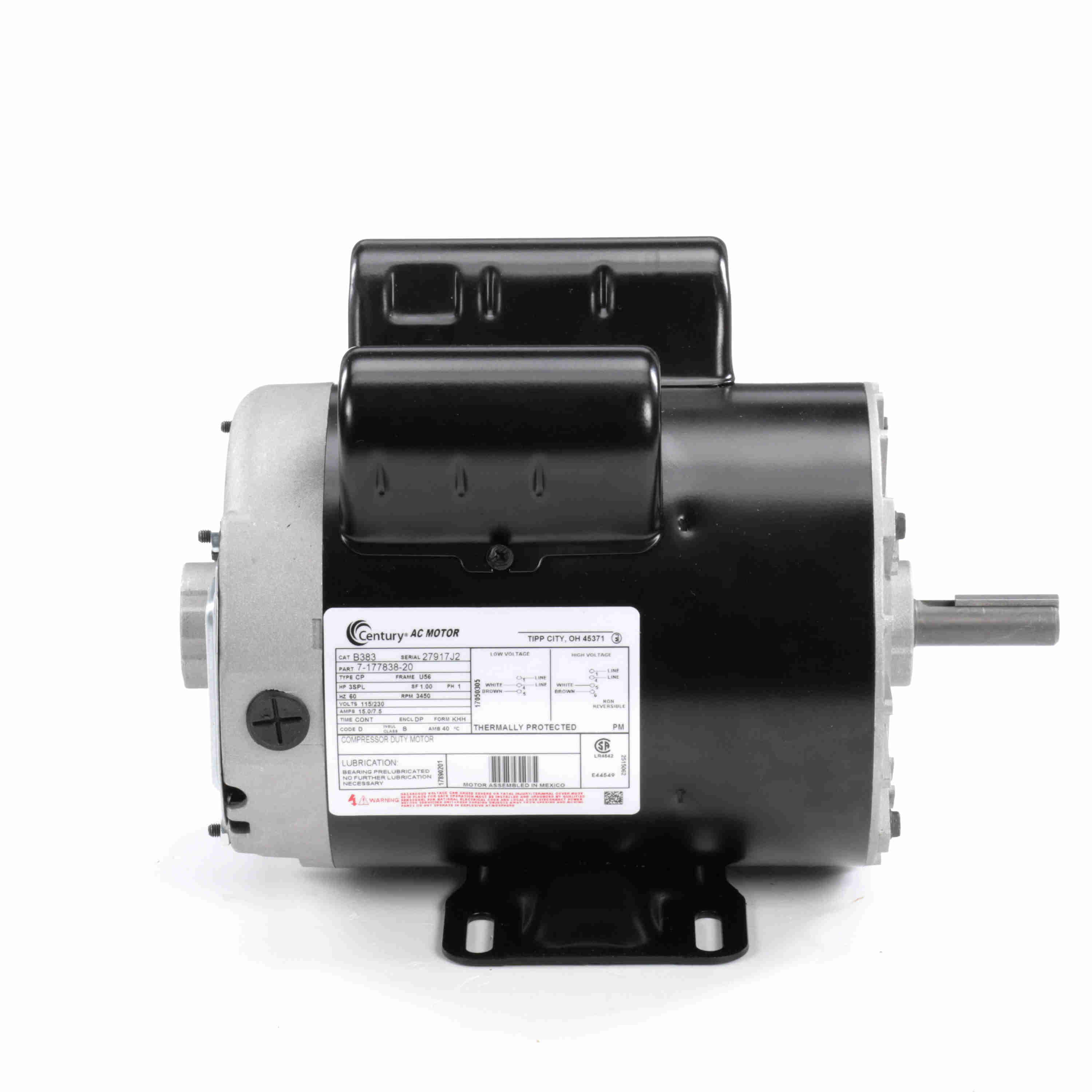

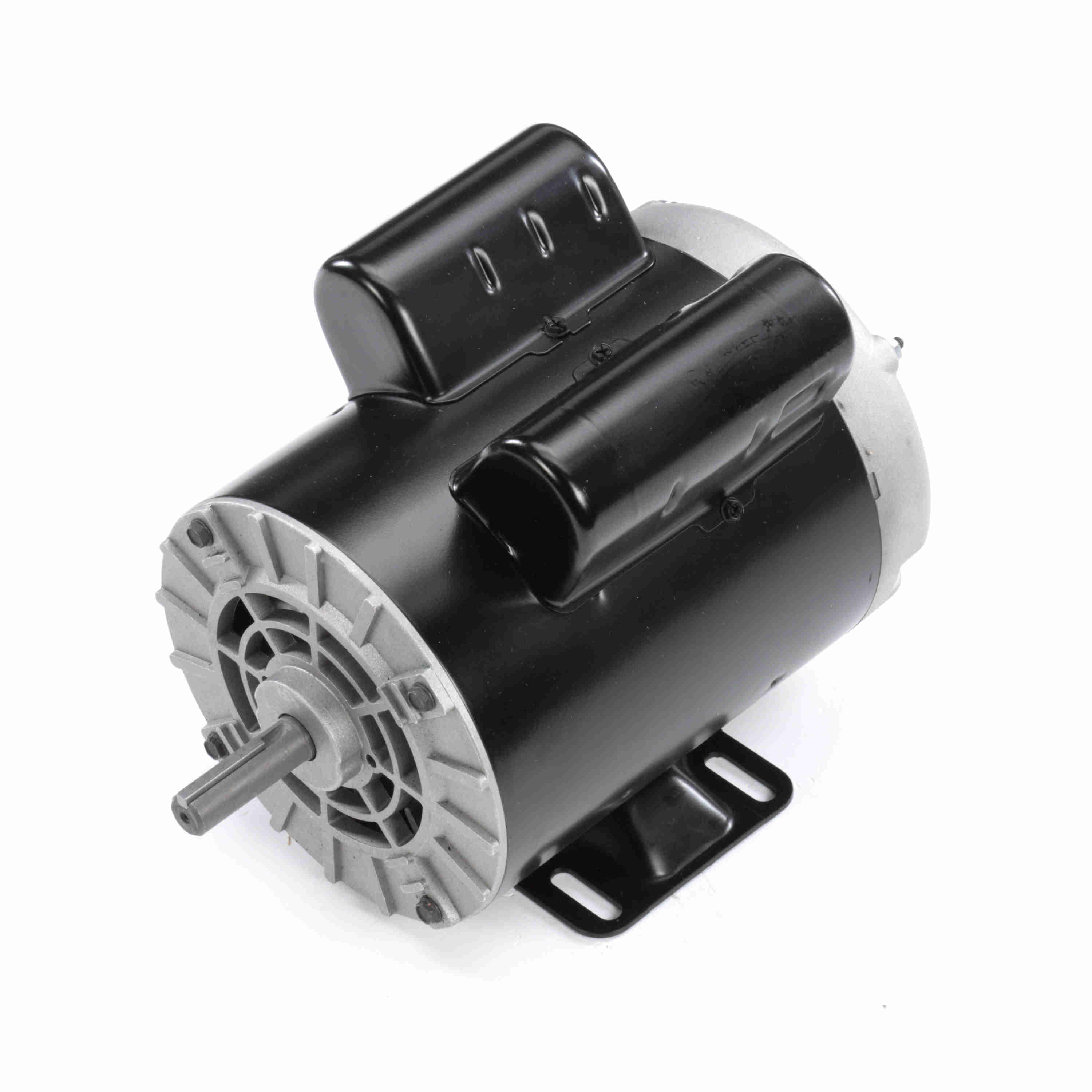

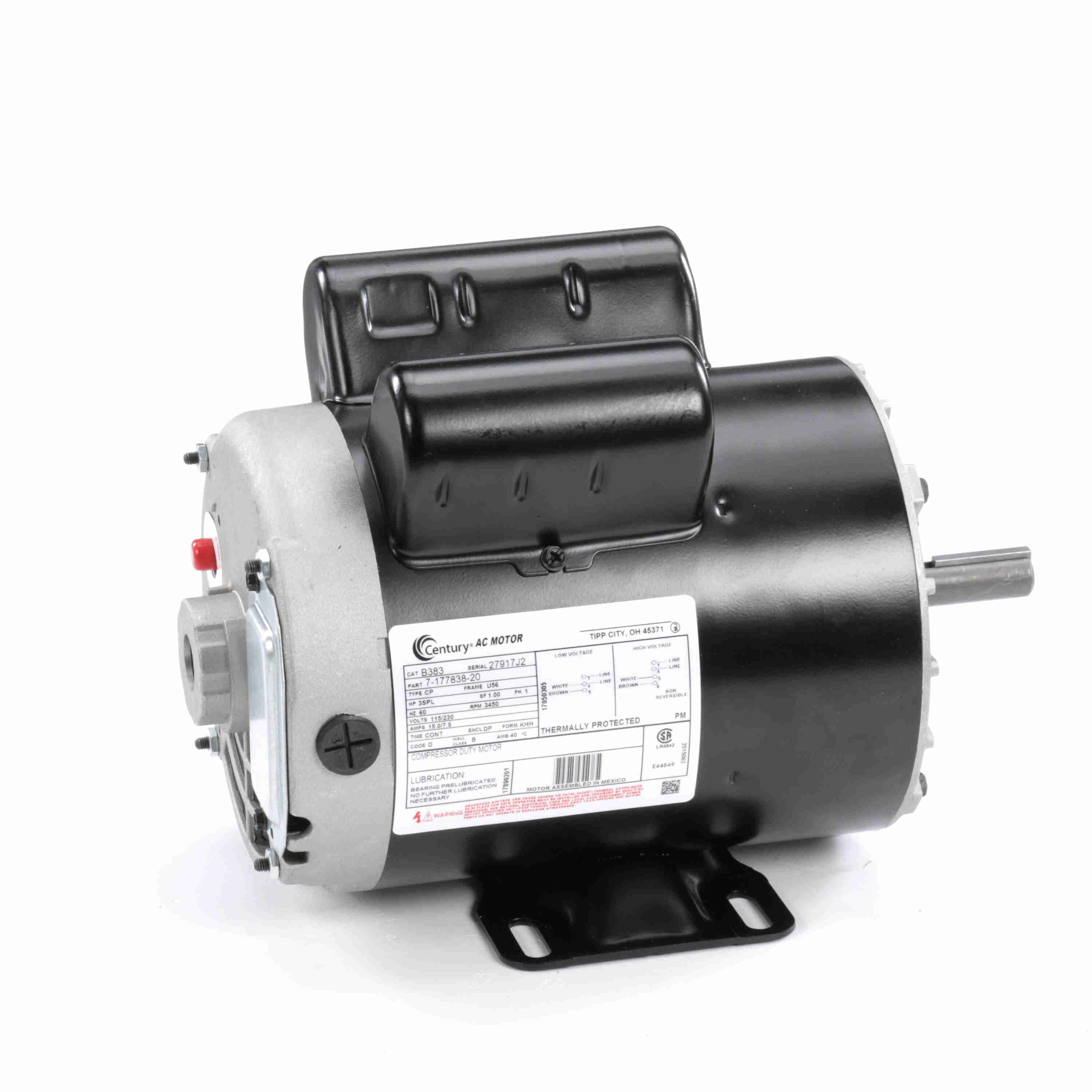

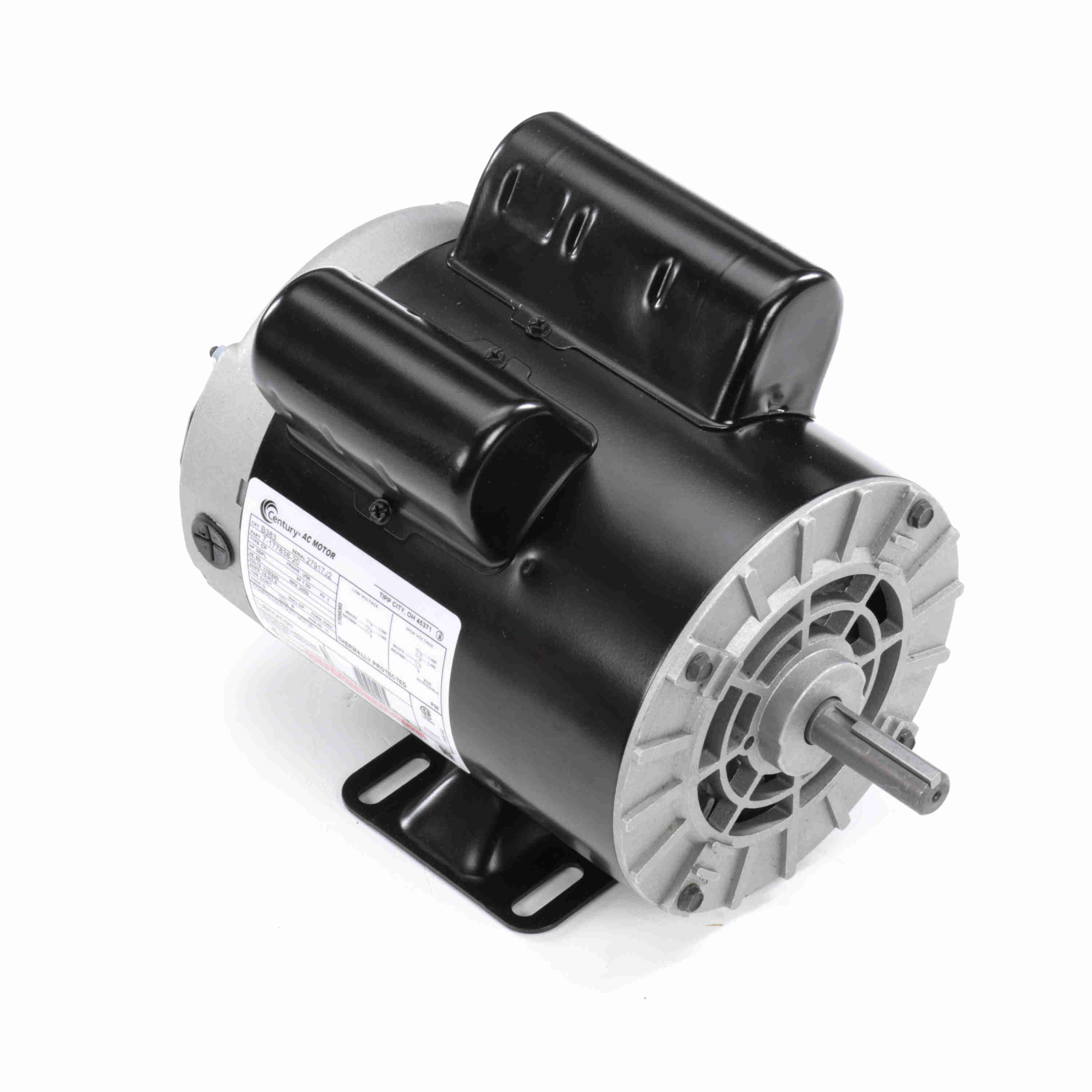

B383 Century 3 SPL HP Air Compressor Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B383

Selected accessories will also be added to cart
$398.97 / Each
Quantity:
Drip Proof, U56 Frame, 115/230V Single Phase 60Hz, Rigid Base, Capacitor Start, Capacitor Run

Features

Features
  • Heavy gauge steel frame and base
  • Manual thermal protection

General Specifications

General Specifications
Model : Catalog No :B383
Part Description :3SPL,3450,DP,56,1/60/115/230 Category :Air Compressor
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :3SPL Hp Output KW :2.2 kW
Frequency :60 Hz Voltage :115/230 V
Current :15.0/7.5 A Speed :3450 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :U56 Enclosure :Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :2 Rotation :Clockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :11.59 in
Frame Length :7.00 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674012395
Weight :30.00 LB

Speed & Load Characteristics
