Product ID: B317

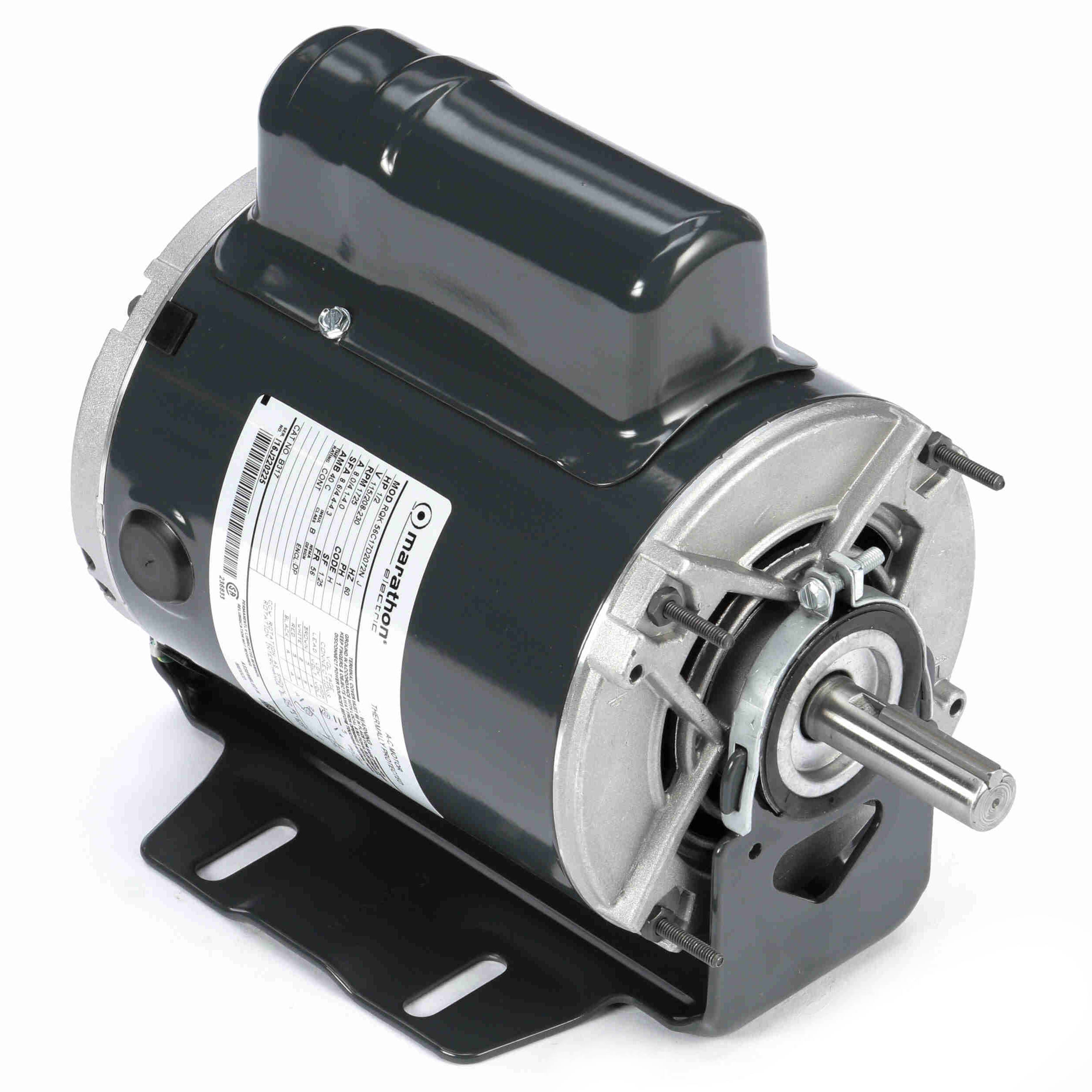

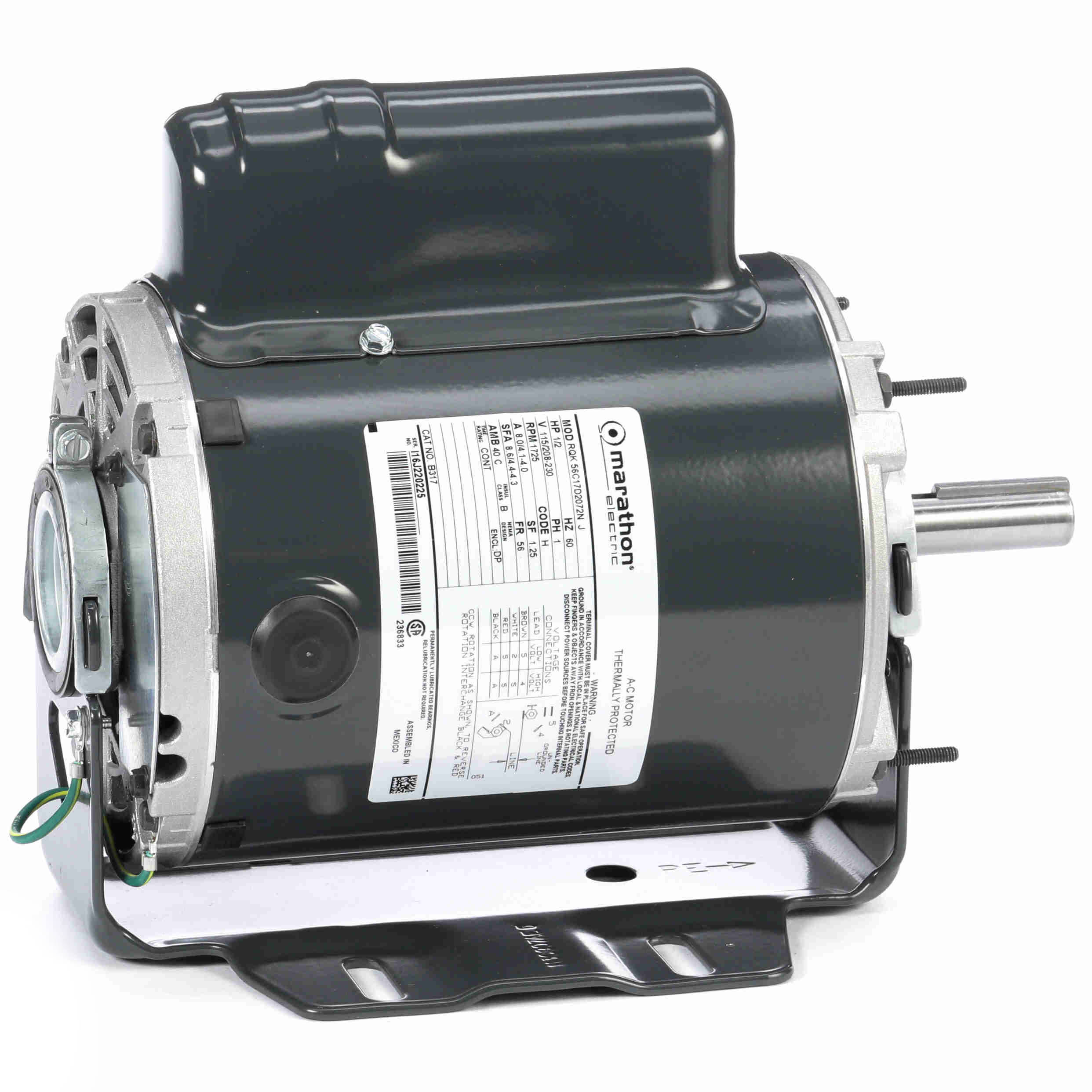

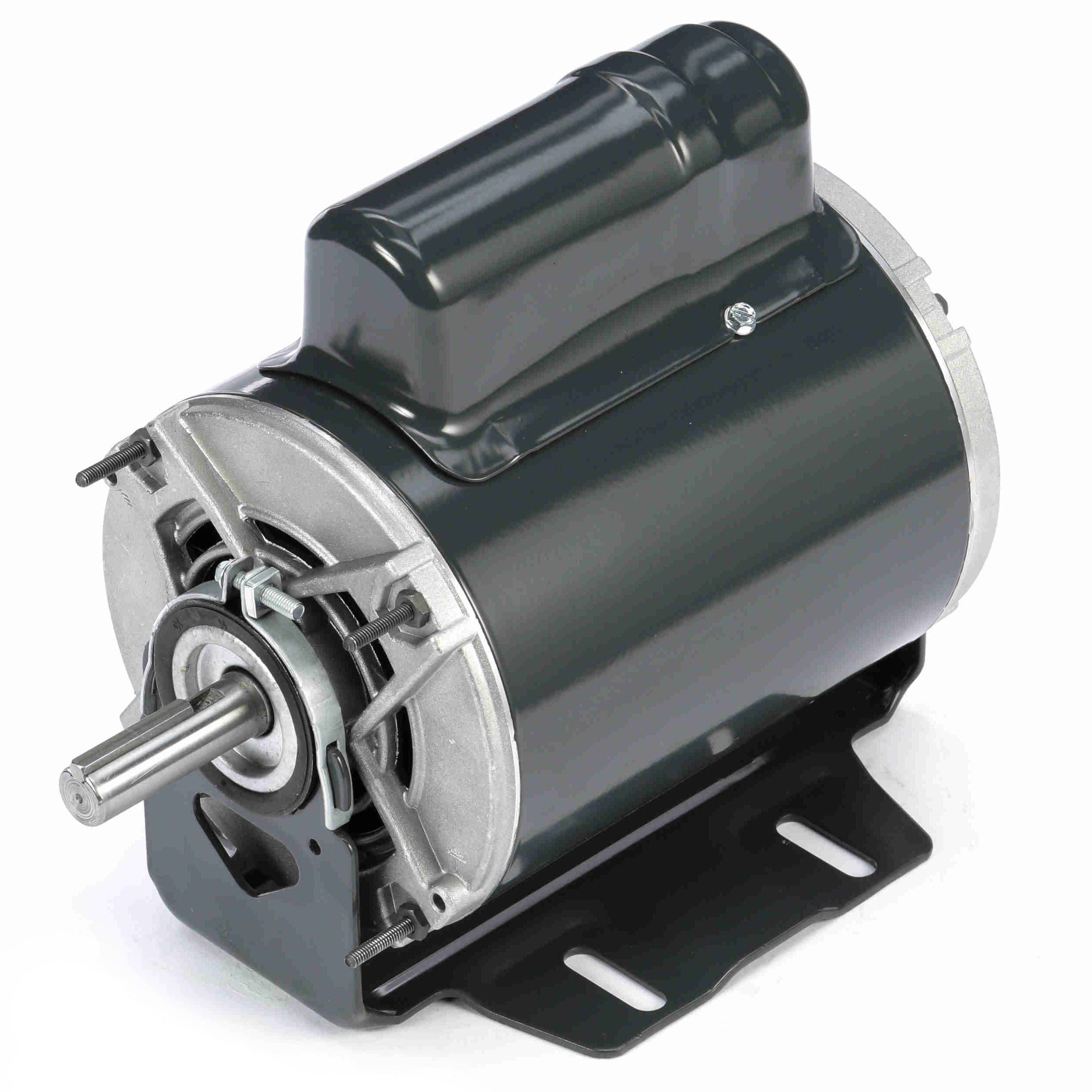

B317 Marathon Fan & Blower 1/2HP Electric Motor

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: B317

Selected accessories will also be added to cart

$489.97 / Each

Quantity:

1725RPM, ODP, 56 Frame, 1-Phase, 115/208-230V 60Hz

Details
Purchase Components

Features

Heavy gauge steel frame and base
Thermal protection, as noted
Capacitor start design for high starting torque
Capacitor start/capacitor run design for higher efficiency, as noted
48Y and 48YZ frame have 48/56 frame mounting holes

General Specifications

Model :	056C17D2072	Catalog No :	B317
Part Description :	1/2,1725,DP,56,1/60/115/208-230	Category :	Open Drip Proof (ODP)
Stock :	Yes

Nameplate Specifications

Output HP :	0.50 Hp	Output KW :	0.37 kW
Frequency :	60 Hz	Voltage :	115/208-230 V
Current :	8.0/4.1-4.0 A	Speed :	1725 rpm
Service Factor :	1.25	Phase :	1
Efficiency :	66 %	Duty :	Continous
Insulation Class :	B	Design Code :	NO DESIGN CODE
KVA Code :	H	Frame :	56
Enclosure :	Drip Proof	Overload Protector :	Automatic
Ambient Temperature :	40 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	N
IP Code :	22

Technical Specifications

Electrical Type :	Capacitor Start Induction Run	Starting Method :	Across The Line
Poles :	4	Rotation :	Selective Counterclockwise
Mounting :	Resilient Base - Extended Studs	Motor Orientation :	Horizontal
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	T
Overall Length :	10.32 in	Shaft Diameter :	0.625 in
Shaft Extension :	1.88 in	Assembly/Box Mounting :	F1 Only
UPC :	722856023179	Weight :	20.00 LB
