/Blowers/B23617 Fasco Draft Inducer Electric Motor, 3000RPM
Click Image to Expand

Product ID: B23617

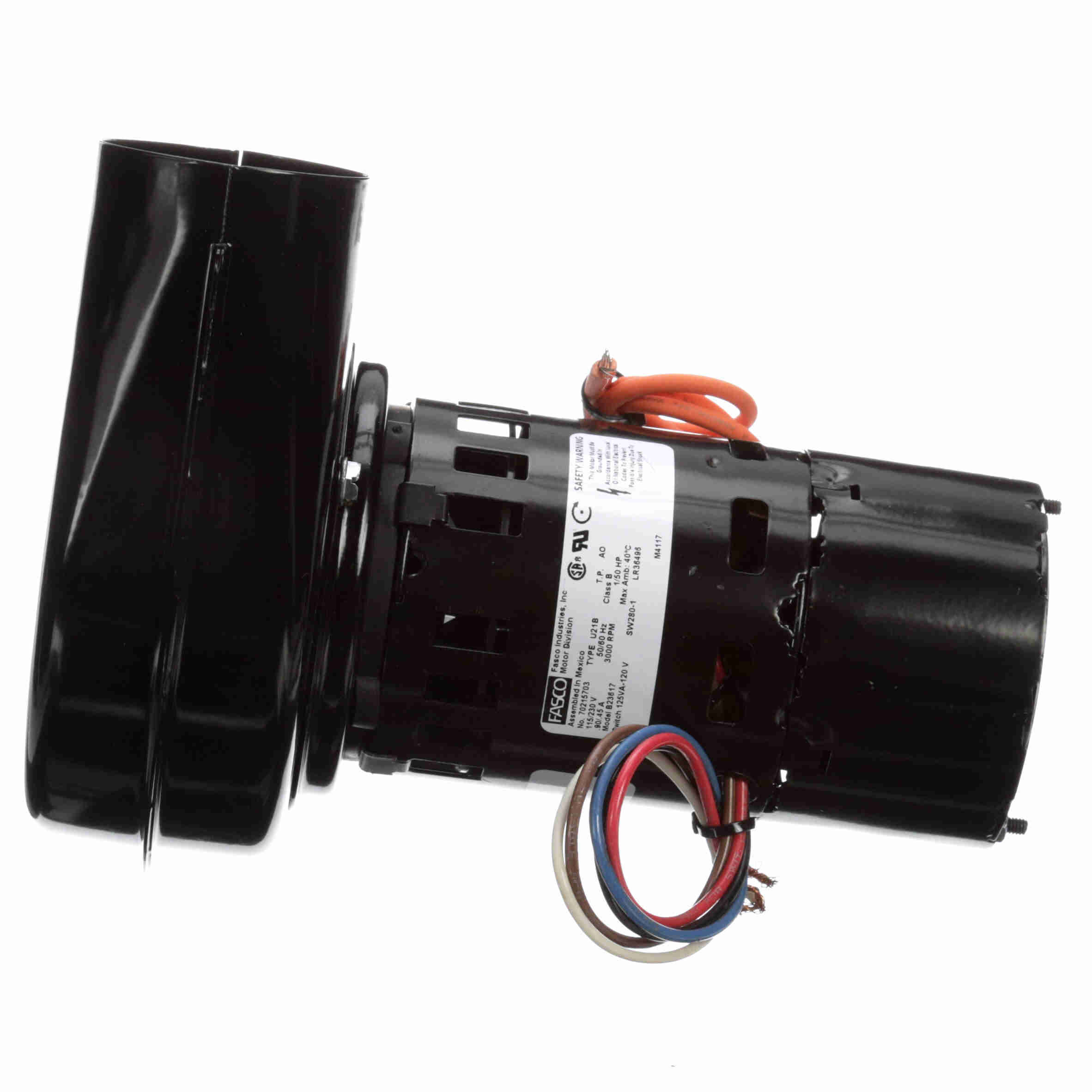

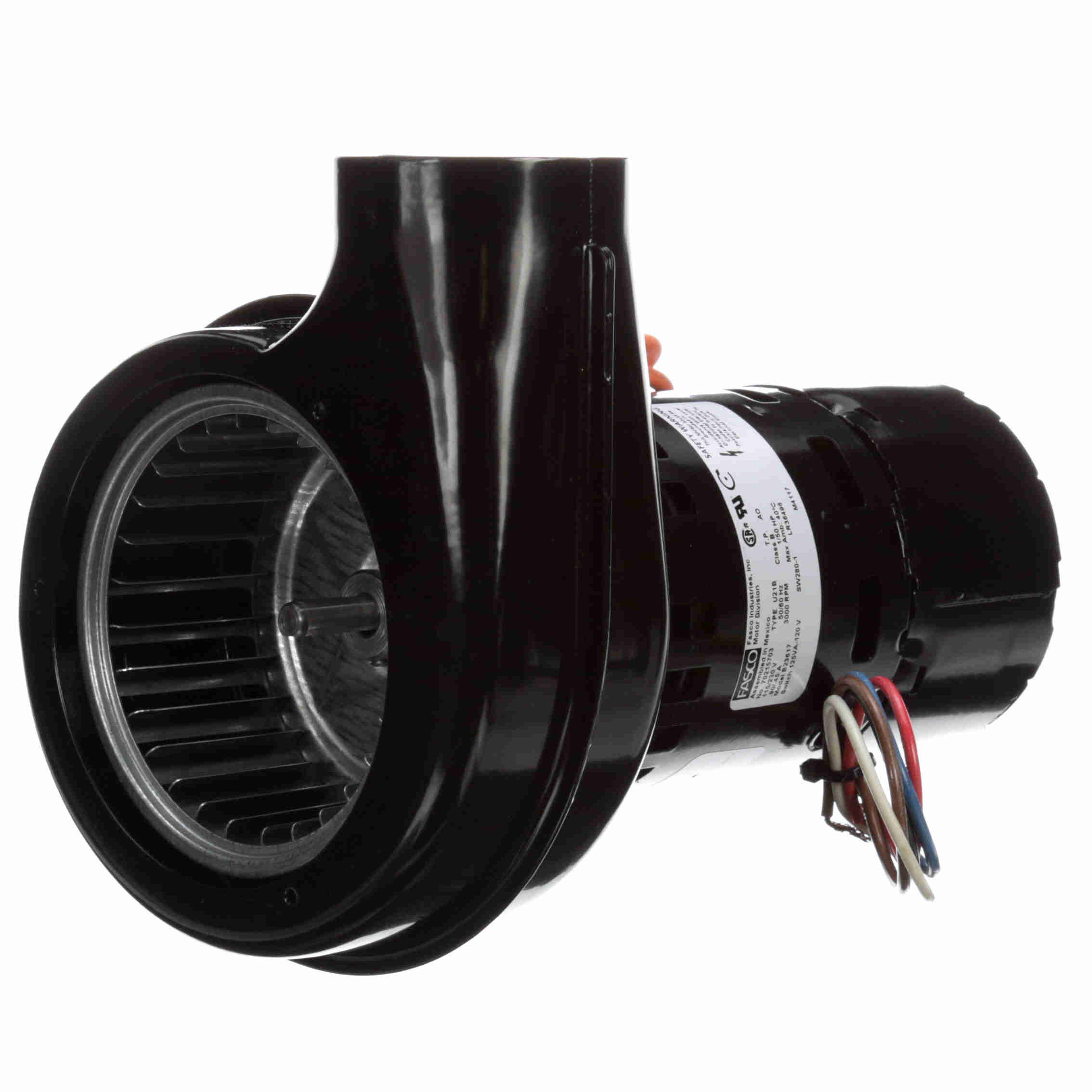

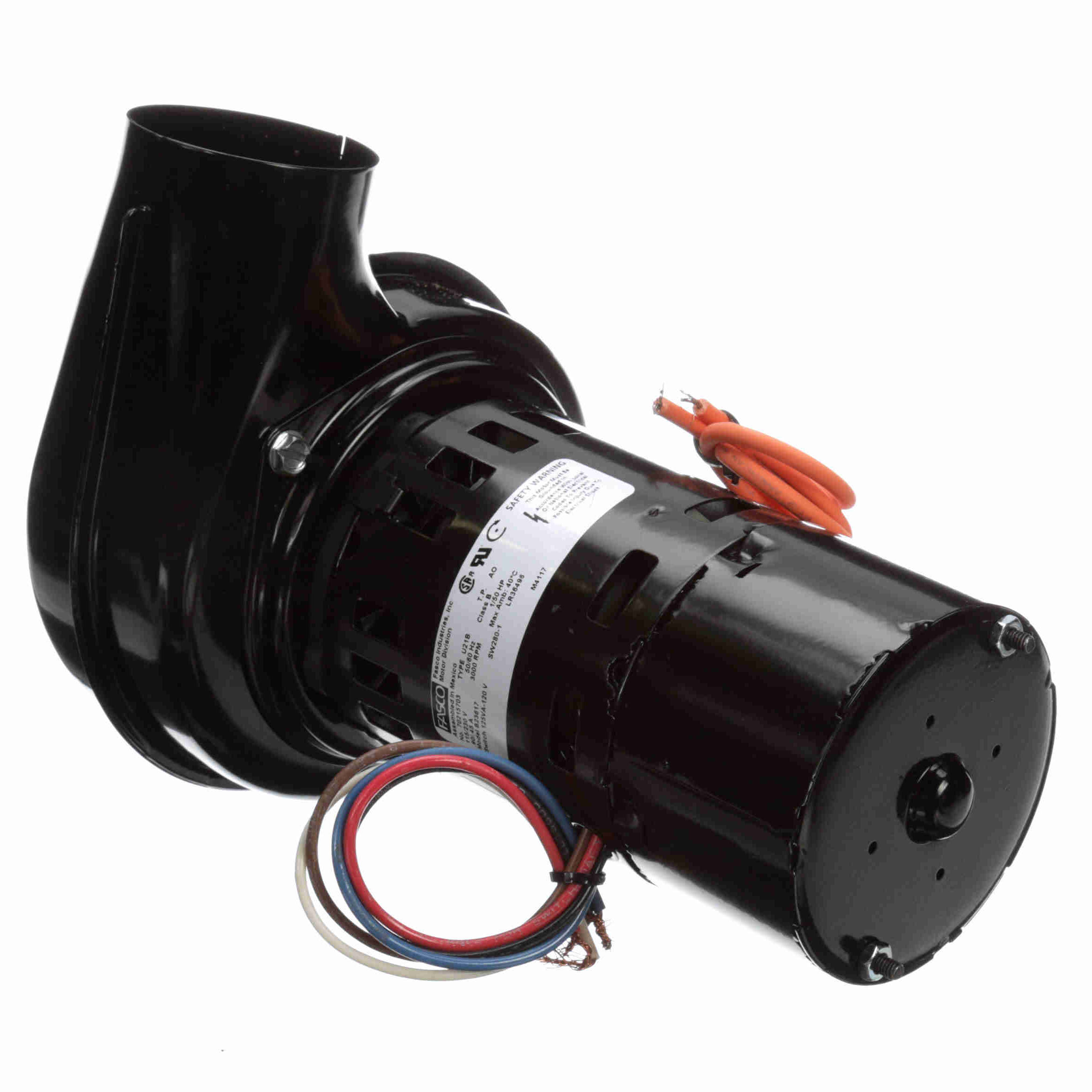

B23617 Fasco Draft Inducer Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: B23617

Selected accessories will also be added to cart
$141.97 / Each
Quantity:
Open Fan Cooled, 115/230VAC Single Phase 60Hz, Sleeve Bearing, Shaded Pole

Features

Features
  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 8-6" Leads with Strip, 9.5-7.5" and 8-6" Switch Leads with Strip

General Specifications

General Specifications
Model : Catalog No : B23617
Part Description : 70215703.BLOWER...1 SPD. Category : Draft Inducer
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Voltage : 115/230 V Motor Type : Shaded Pole
Overload Protector : Thermally Speed : 3000 RPM
Current : 0.90/0.45 A Number of Speeds : 1
Frequency : 50/60 Hz Phase : 1
Ambient Temperature : 40 °C UL : Yes
Insulation Class : B CSA : Yes

Technical Specifications

Technical Specifications
Blower Outlet Shape : Round Motor Enclosure : Open Fan Cooled
Blower Outlet Flange : No Bearing Type : Sleeve
UPC : 815585027003 Weight : 4.00 LB

Speed & Load Characteristics

CFM At Static Pressure
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
70 72 67 64 62 57 55 50 46 41 33
