/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/B1000 Century 5HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: B1000

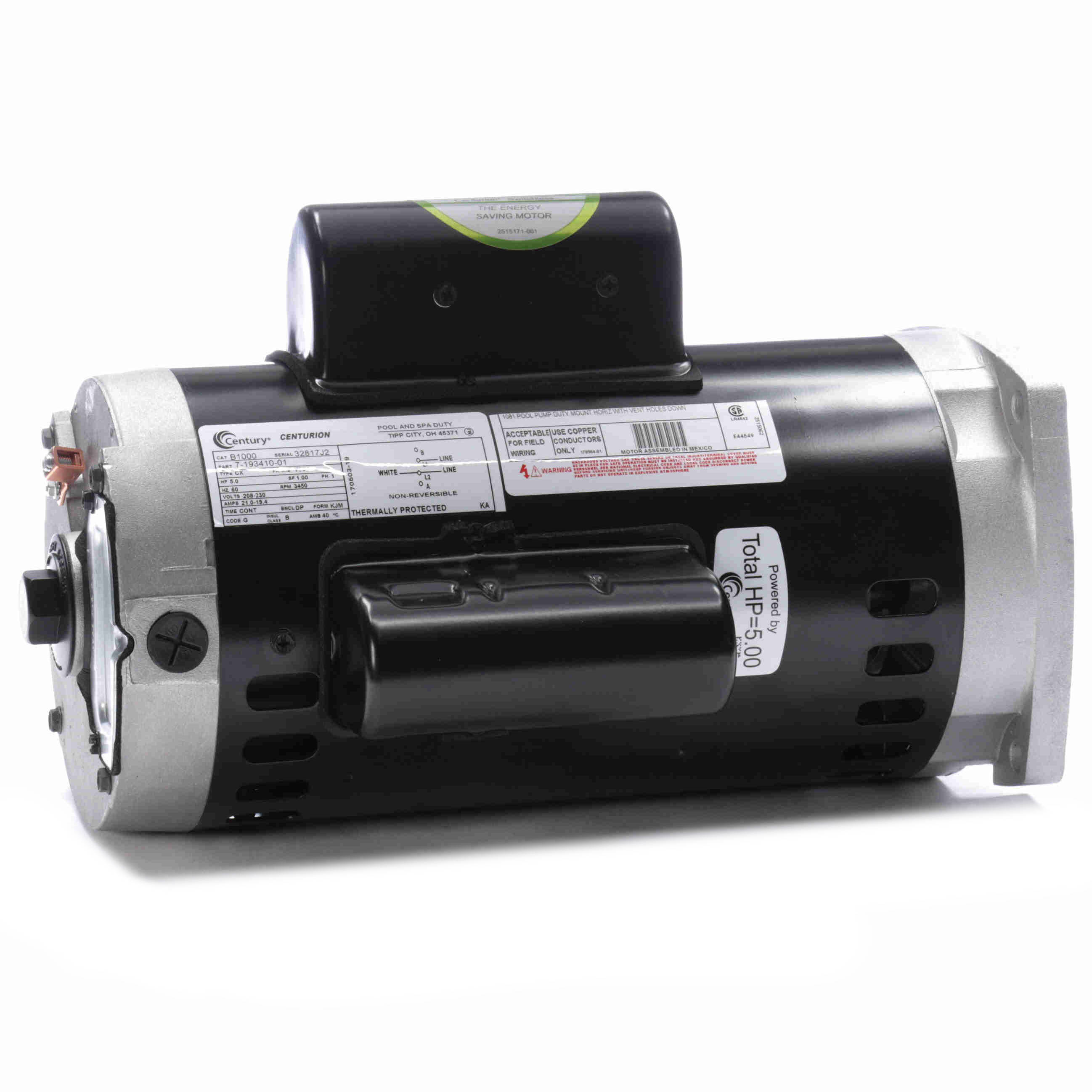

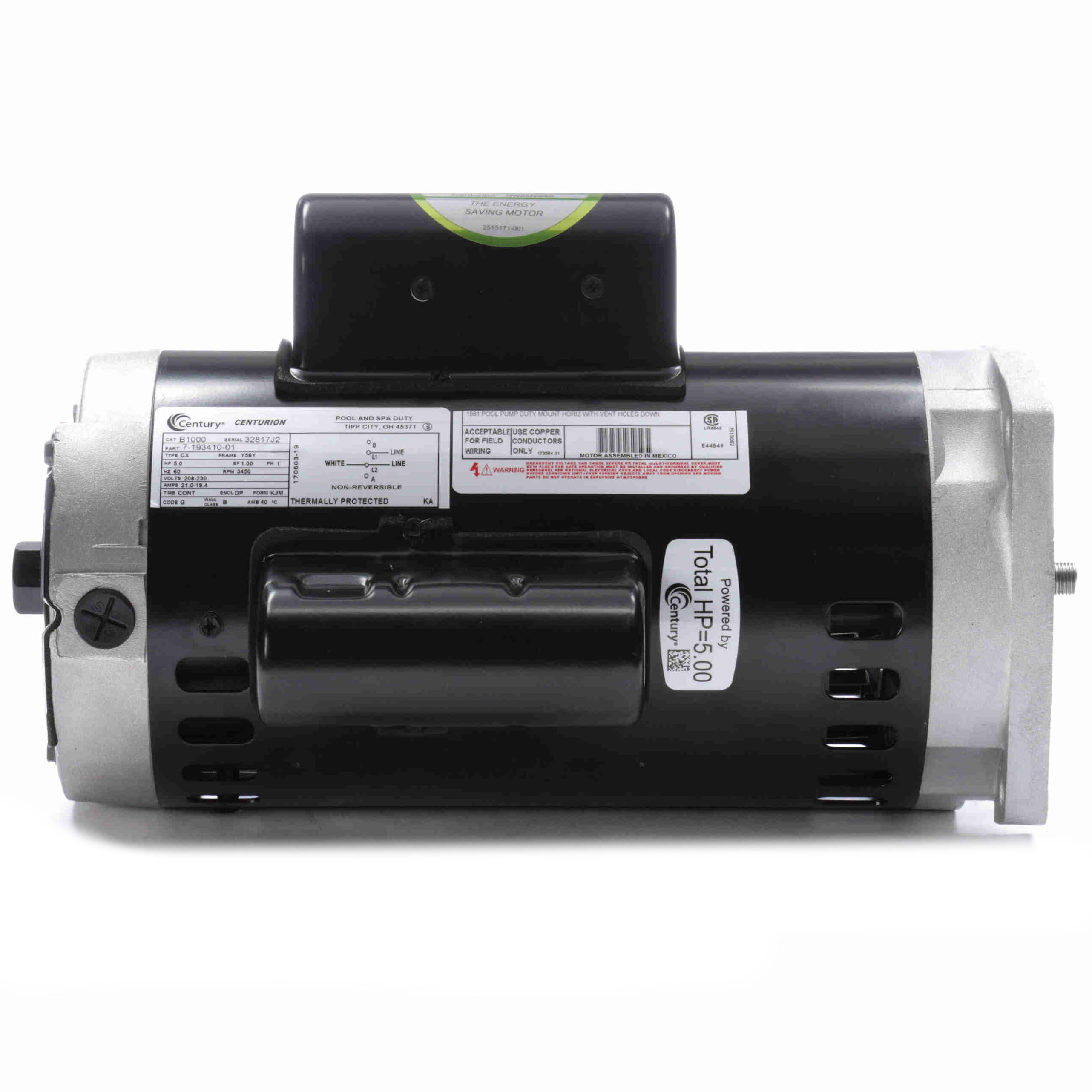

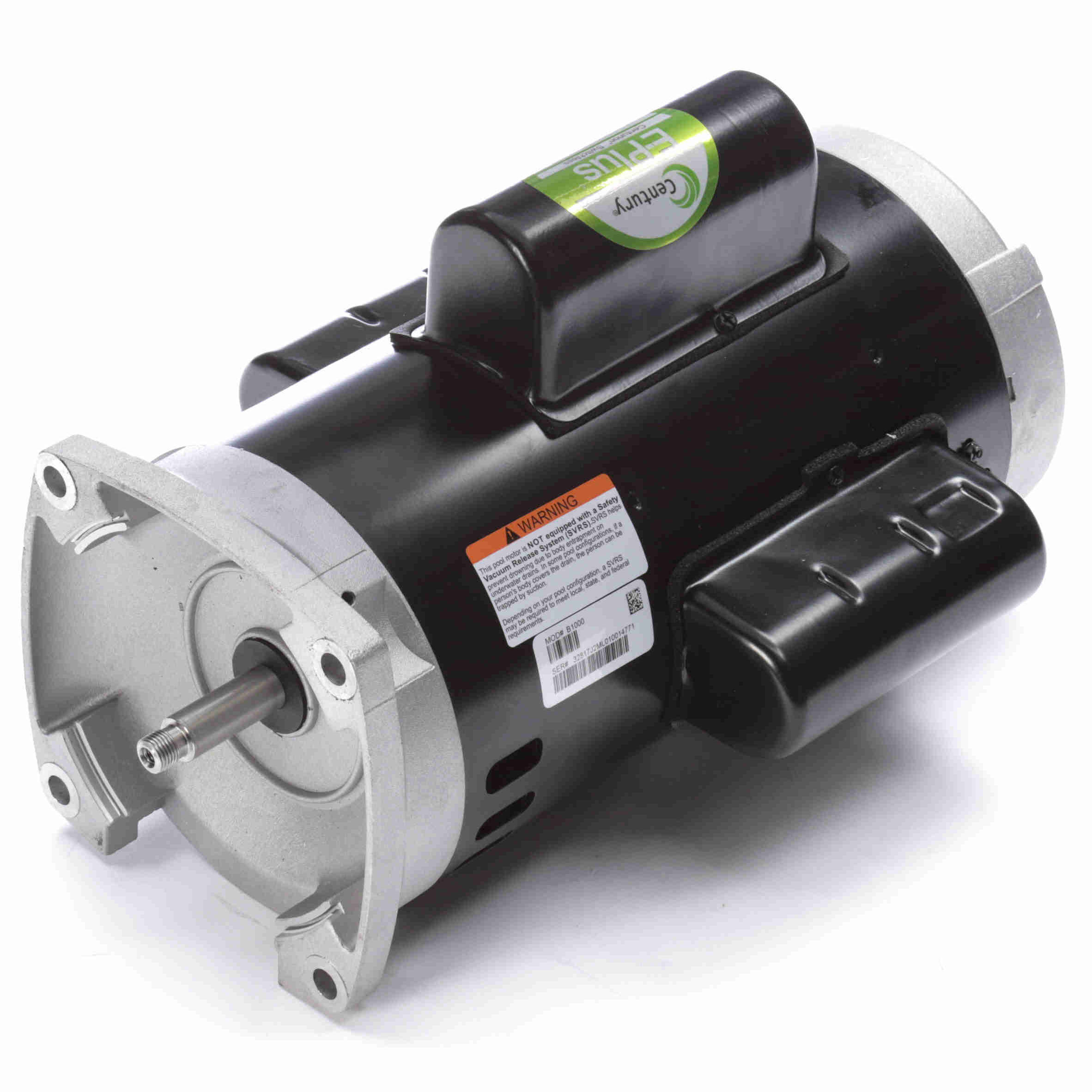

B1000 Century 5HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B1000

Selected accessories will also be added to cart
$986.97 / Each
Quantity:
ODP, 56Y Frame, 208-230VAC 60Hz Single Phase, Rolled Steel, CCW Pump End, Square Flange

Features

  • Sealed Ball Bearings
  • 40°C Ambient
  • Open Dripproof
  • UL 1081 Design
  • Pentair Pac Fab Replacement

General Specifications

UPC: 786674011794 Weight: 48 LB
Packaged Length: 19.5 IN Packaged Width: 11.5 IN
Packaged Height: 12 IN

Nameplate Specifications

Output HP: 5.0 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 21.0-19.4 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: Y56Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage Poles: 2
Rotation: Counterclockwise Pump End Mounting: Square Flange
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 14.90 in
Frame Length: 10.50 in Shaft Diameter: 0.625 in
Shaft Extension: 0.9444 in
