/Products/Pulleys & Sheaves/AK Single Groove/AK3210 3.25" X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK3210

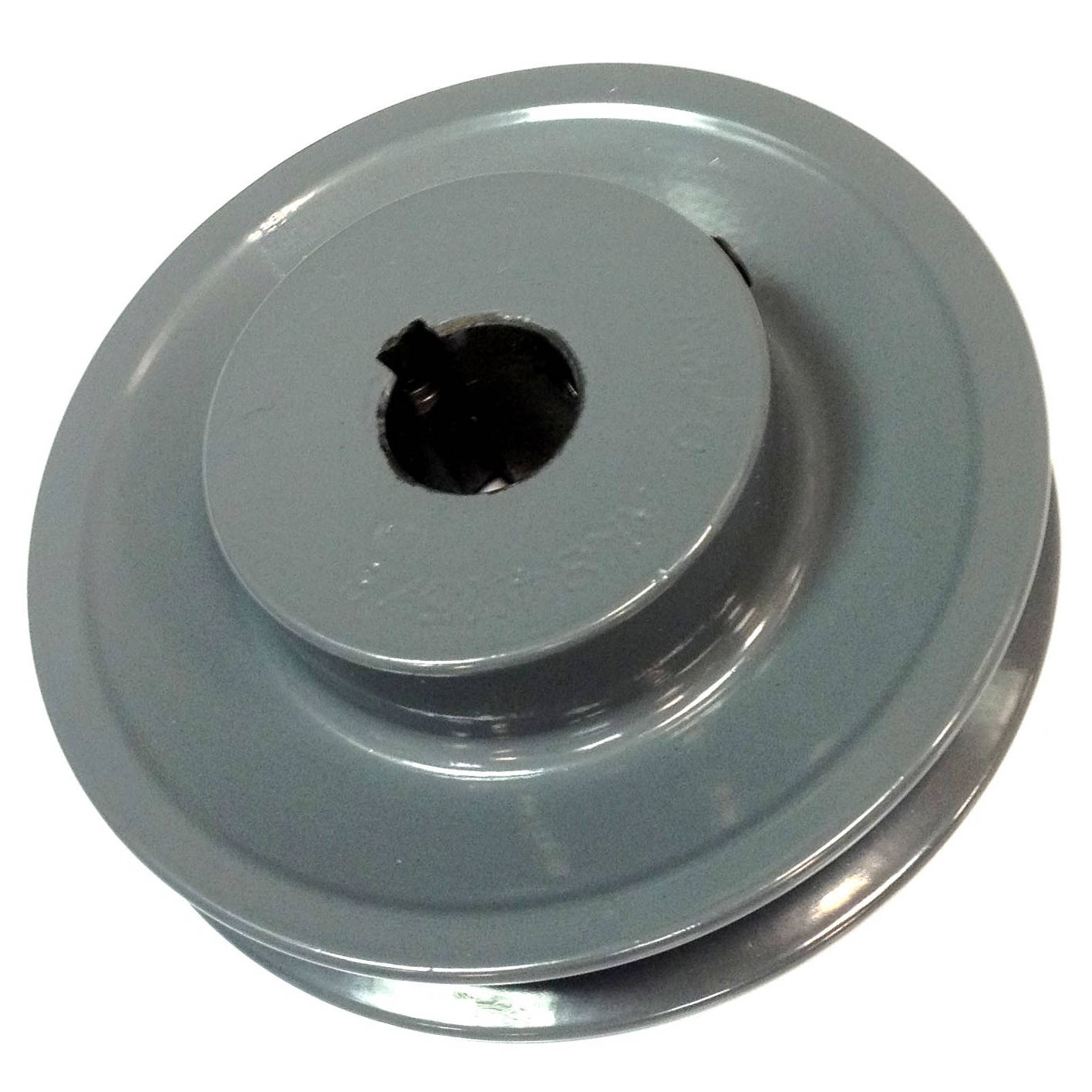

AK3210 3.25" X 5/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK32X5/8

Temporarily out of stock
Selected accessories will also be added to cart
$10.37 / Each

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leesonj
Part Number AK3210
AK32x5/8
Bore 5/8"
Sheave Cross Section AK
Outside Diameter 3.25"
Pulley Diameter “A” 3.00"
Pulley Diameter “3L” 2.66"

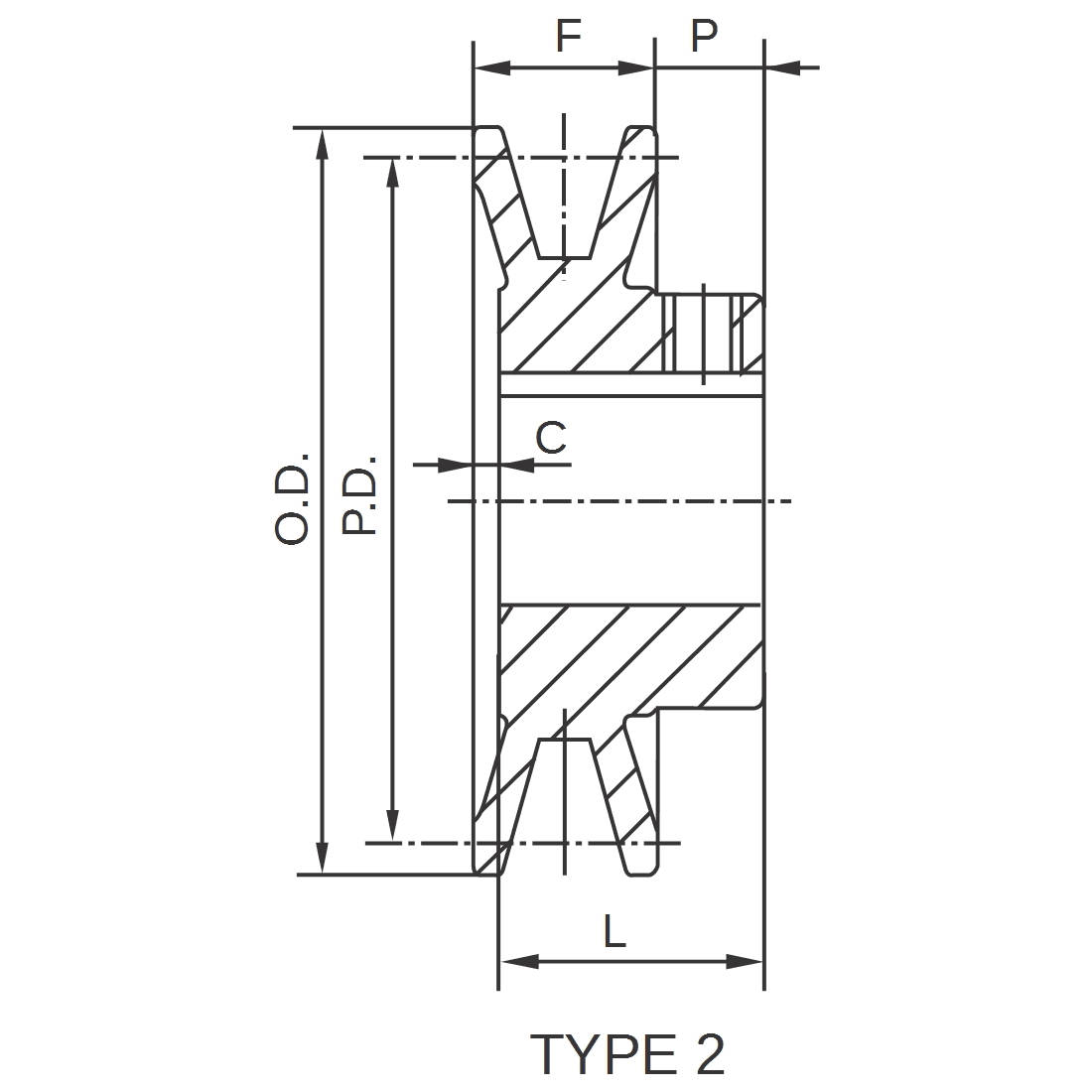

Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.8 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin China
UPC 624832030310
