/Products/Surplus Industrial/Connectors/Sockets/AH5269 Arrow Hart Ultra Grip Connector, 5-15R
Click Image to Expand

Product ID: AH5269

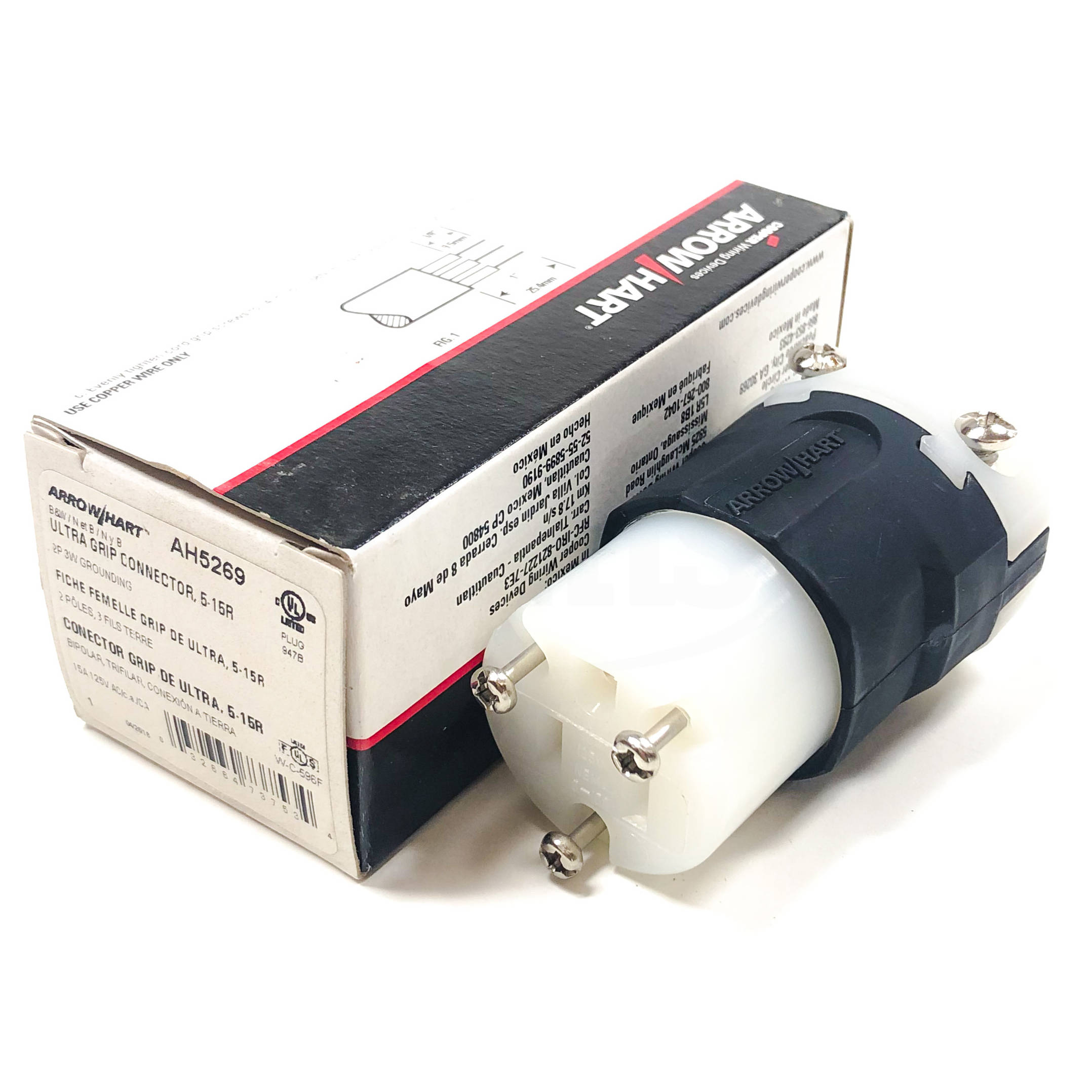

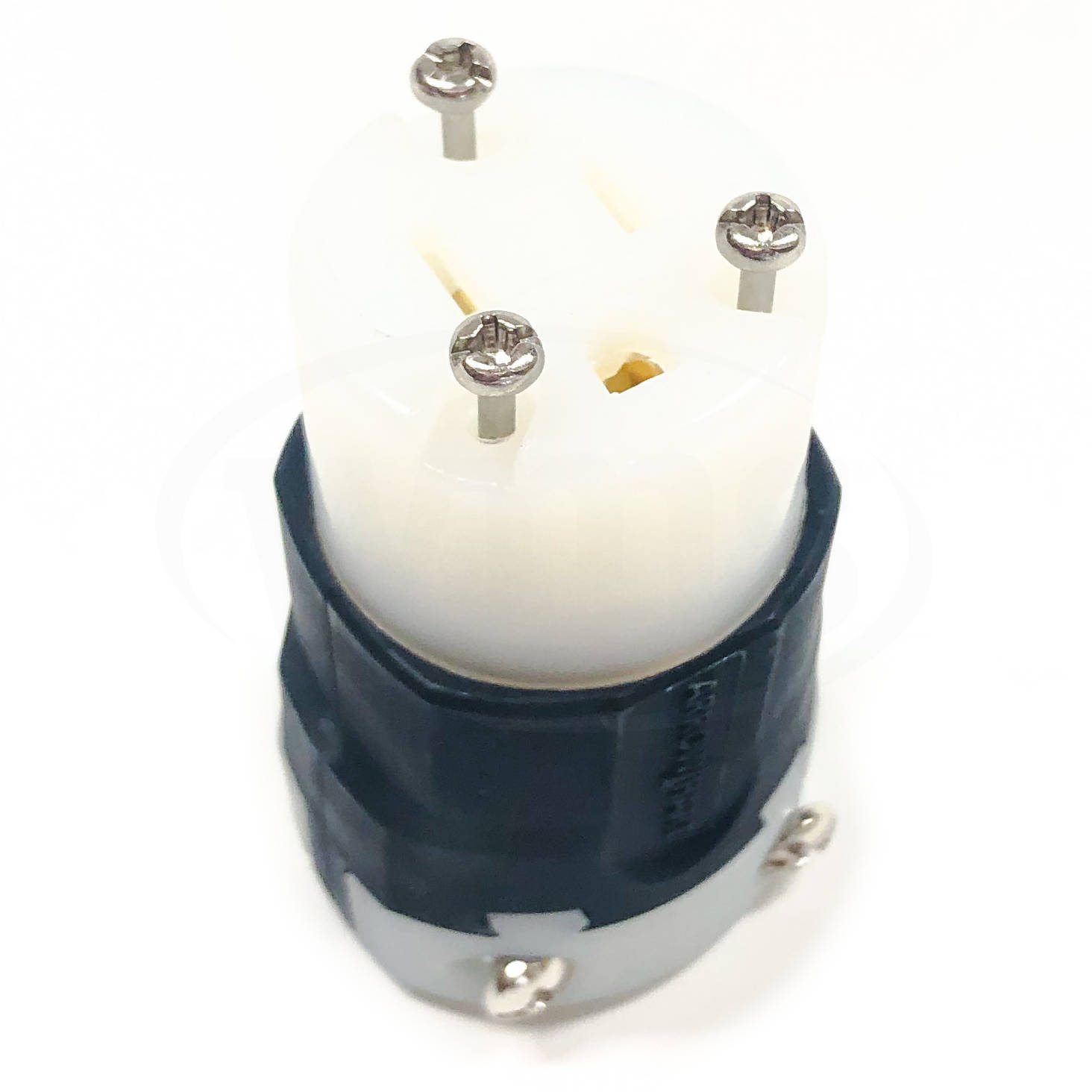

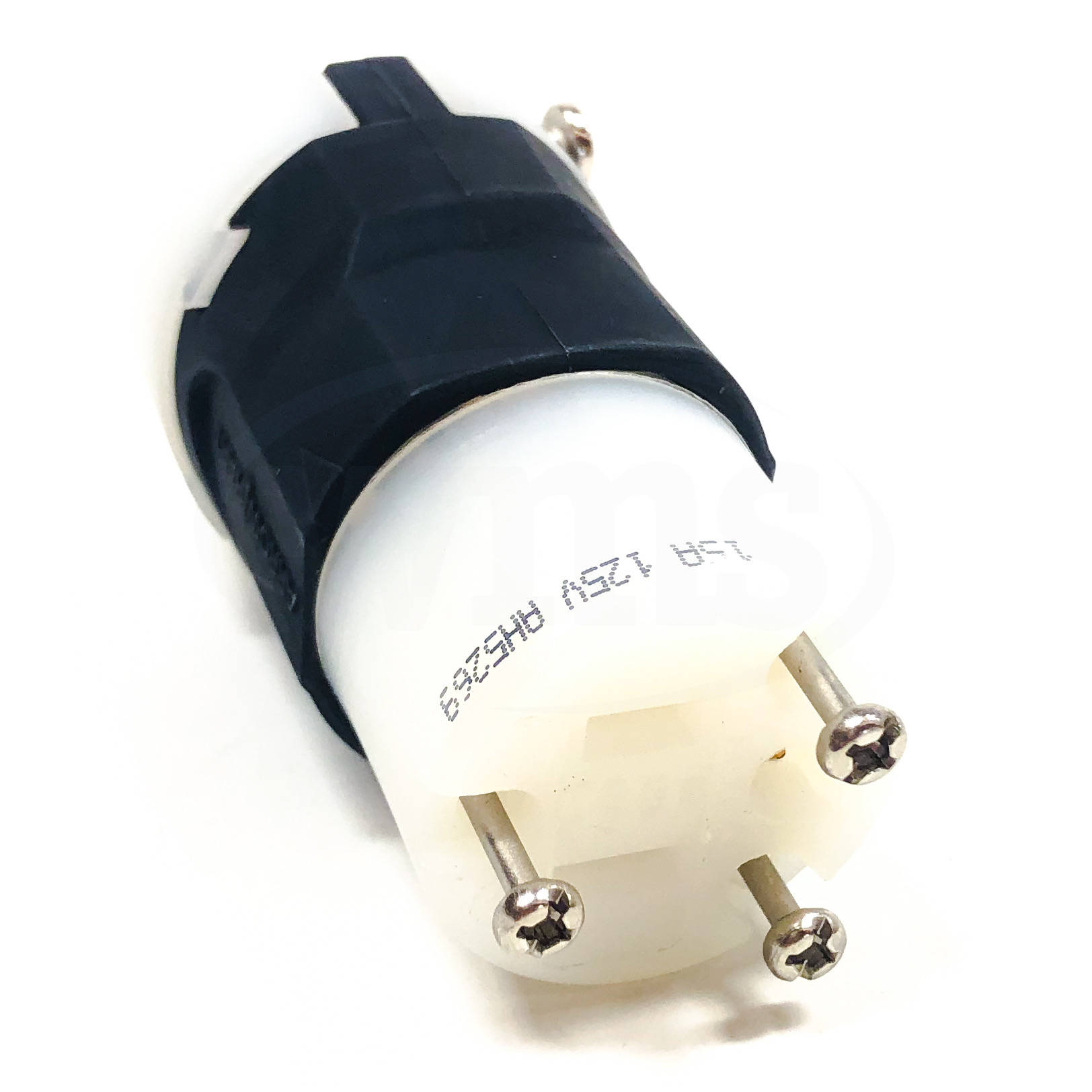

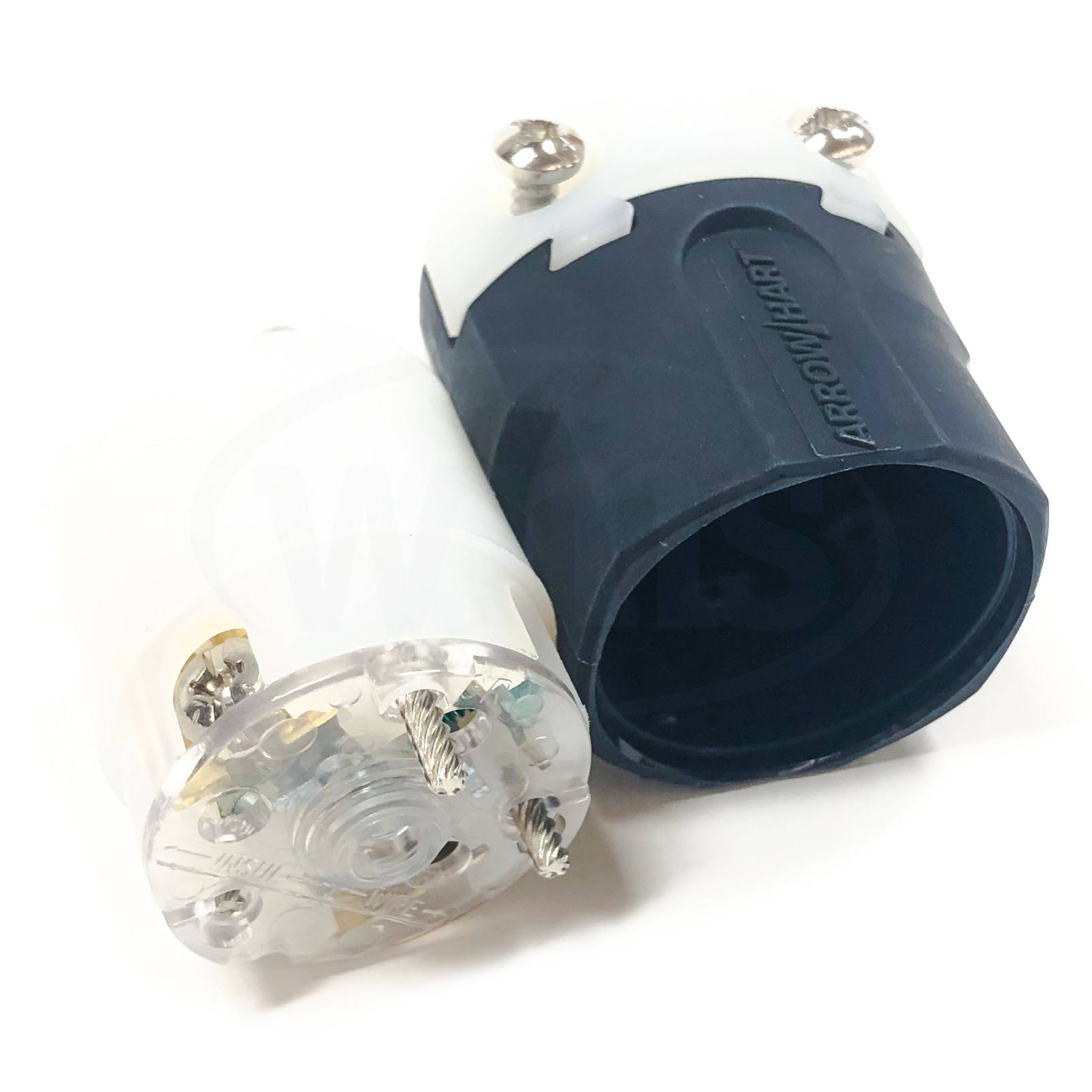

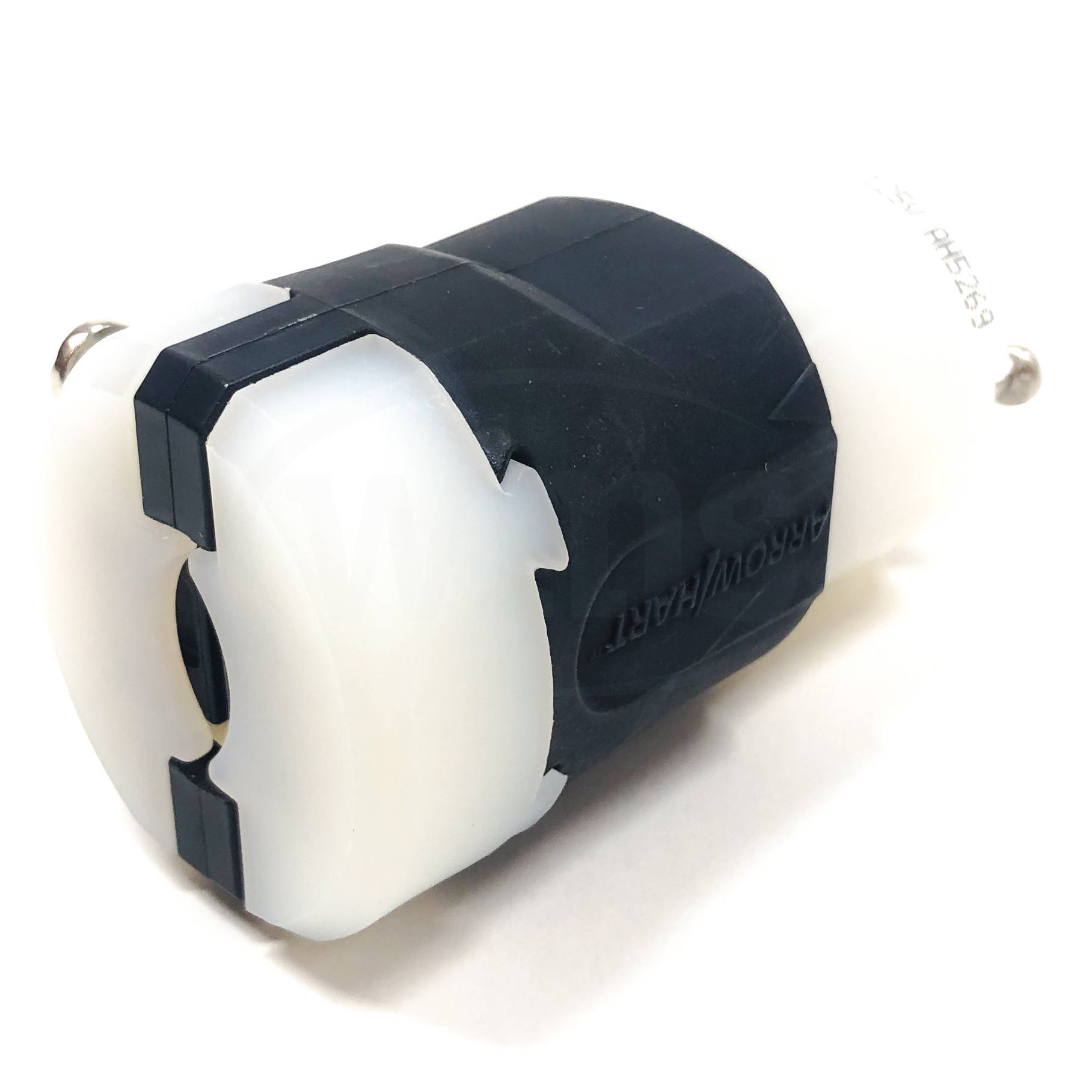

AH5269 Arrow Hart Ultra Grip Connector, 5-15R

MFG: Arrow Hart (Cooper Industries / Eaton)
MFG Part Number: AH5269

Available Stock: 4
Selected accessories will also be added to cart
$10.97 / Each
Quantity:
New, Surplus Stock. 15 Amps 125VAC

General specifications

Product Name
Eaton Arrow Hart ultra grip straight blade connector
Catalog Number
AH5269
UPC
032664737534
Product Length/Depth
2.23 IN
Product Height
2.1 IN
Product Width
3.61 IN
Product Weight
.195 LB
Warranty
Refer to warranty document.
Compliances
RoHS Compliant
Certifications
cULus Listed
NOM
Federal Specification Classification W-C-596F

Product specifications

Color
Black
Device type
Connector
Face/body material
Nylon
Wiring method
Back wire
Material
Nylon
Allowable wire size
#16 - #12 AWG
Amperage Rating
15A
Number Of Poles
Two-pole
Contact material
Brass
Type
Connector
Device grade
Extra heavy-duty industrial specification grade
NEMA configuration
5-15R
Style type
Straight body
Design type
Straight blade
Connection type
Screw
Number of wires
Three-wire
Receptacle type
Two-pole, three-wire, grounding
Cord range
0.33-0.66" in diameter
Voltage rating
125V
Application
Industrial
Packaging type
Core pack
