/Products/Pumps/Ashland Pump/Grinder Pumps/AGPR200WP2-20 Ashland 2HP Grinder Pump, 230VAC Single Phase
Click Image to Expand

Product ID: AGPR200WP2-20

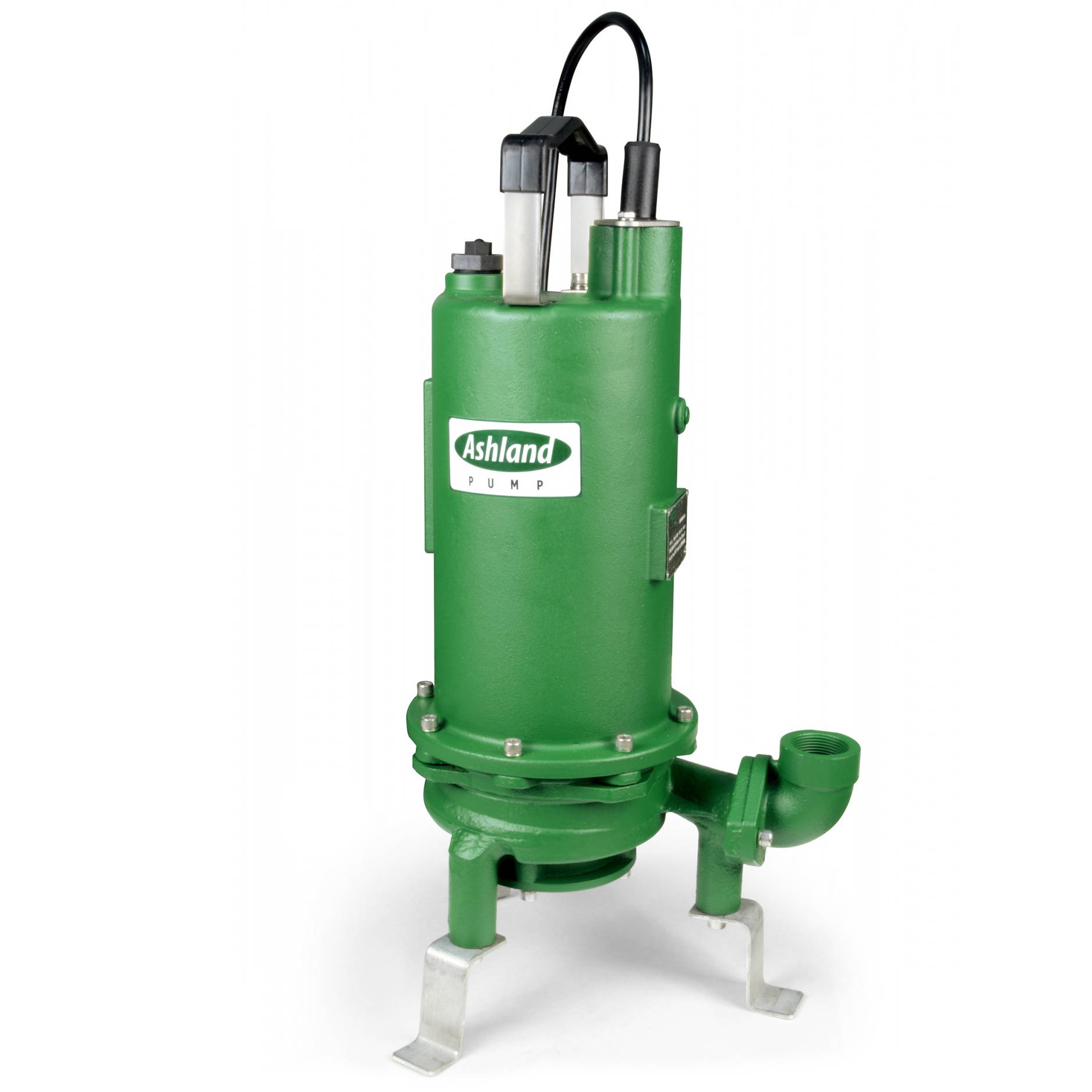

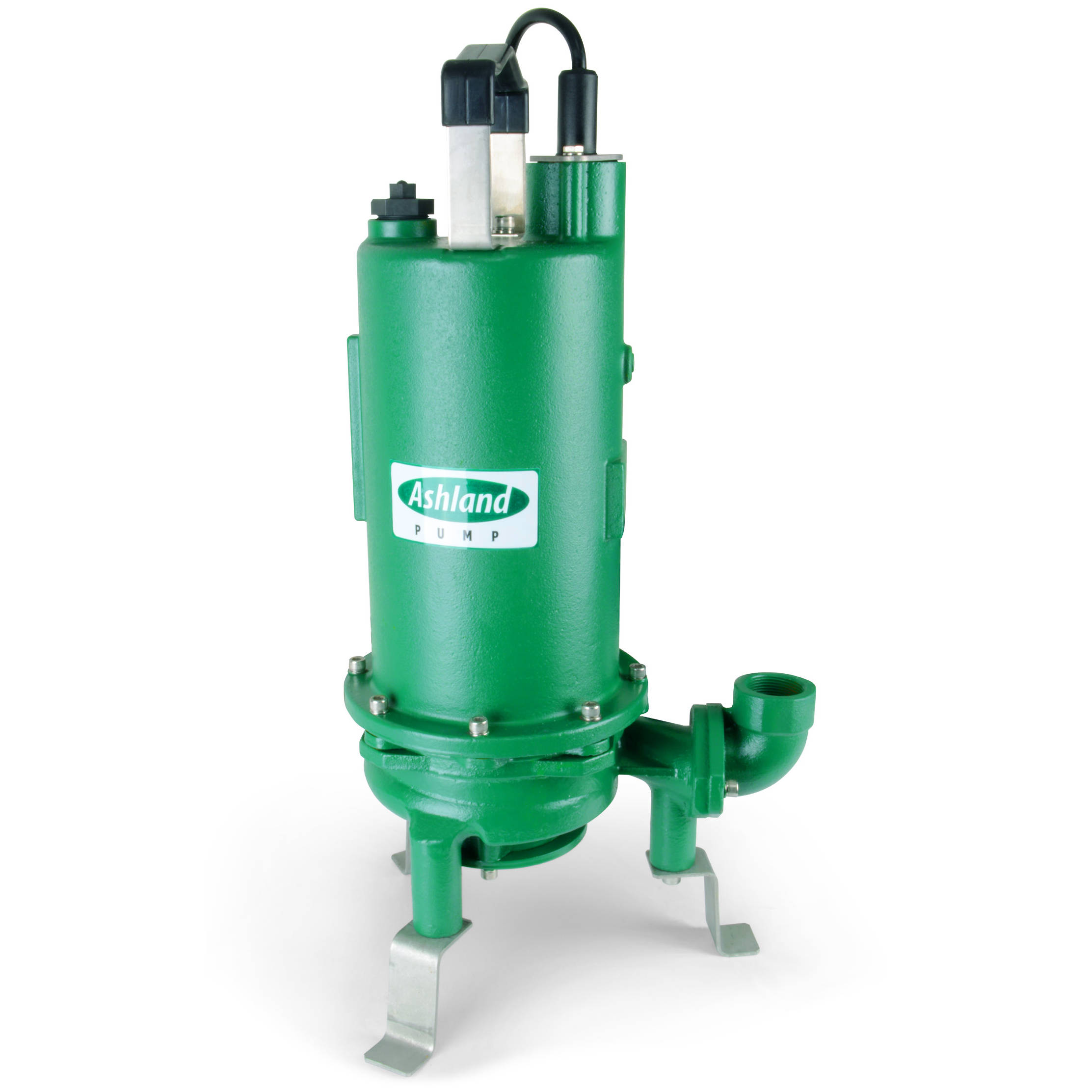

AGPR200WP2-20 Ashland 2HP Grinder Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: AGPR200WP2-20

Selected accessories will also be added to cart
$2,384.00 / Each
Quantity:
Piggy-back Switch, Cast Iron Construction, 20' Cord, 3450RPM, Noryl Impeller

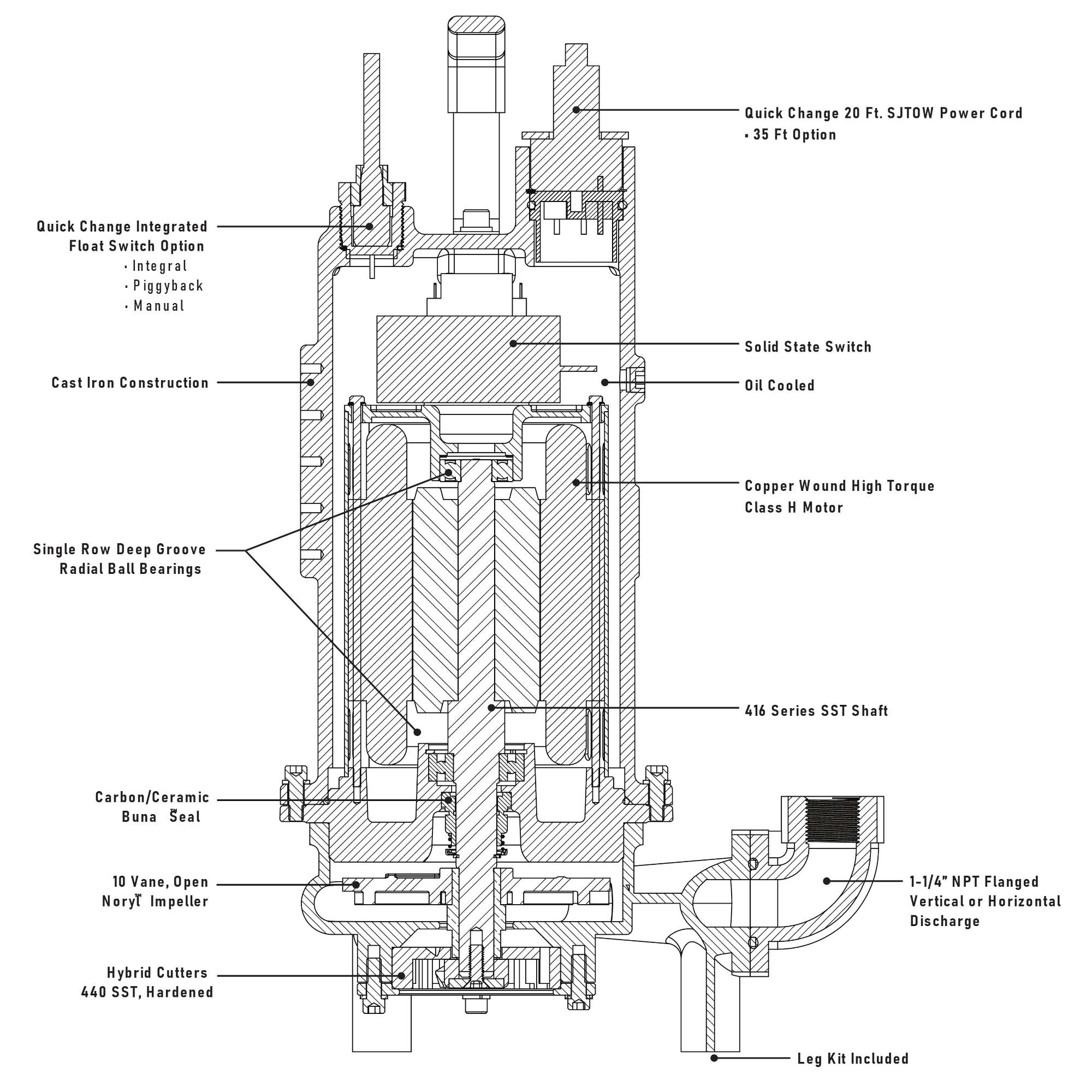

Features

  • Heavy duty cast iron construction
  • Single Carbon/Ceramic Buna-N Seal
  • 10 vane, open Noryl impeller
  • Quick change power cords
  • Quick change Integrated Float Switch Options
  • Single row deep groove radial ball bearings

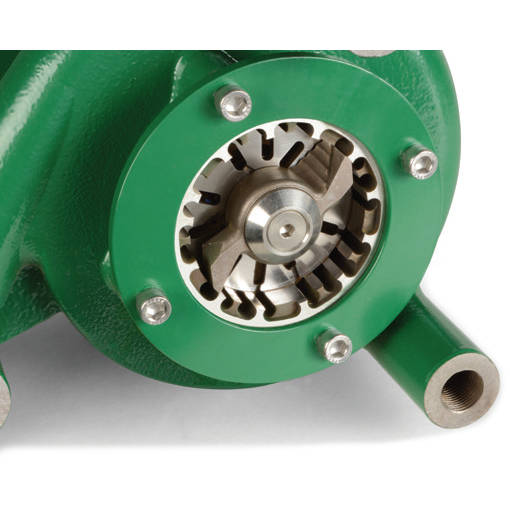

  • 440C SS Hybrid cutting system
  • Vertical or horizontal discharge

Specifications

Brand Ashland Pump
Model AGPR200WP2-20
HP 3/4HP
Voltage 230VAC 60Hz Single Phase
RPM 3450 RPM
Full Load Amps 15 Amps
NEMA Start Code G
Cord Type SJTOW
Cord Power Size 14 AWG/3C
Cord O.D. 0.36-0.37"
Solid State Relay SAMUSCO ESC225P
Start Capacitor Mars 11068
Run Capacitor Mars 12248
Switch Type Piggy-back
Discharge Size 1-1/4" NPT + Flanged Horizontal with Vertical Adapter
Impeller Type 10-Vane
Noryl
Cable Length 20'
Solids Composition Domestic Wastewater with Fibrous Solids
Maximum Liquid Temperature 140°F - Intermittent
104°F - Continuous
Acceptable pH Range 6 - 8
Winding Insulation 145°C
Insulation Class H
Sensor Cord Type 14AWG/3C (Single Phase)
Motor Housing Cast Iron
Casing Cast Iron
Impeller Noryl
Motor Shaft Stainless Steel 416
Hardware SS
O-Rings BUNA-N
Mechanical Seal Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6205
Cutters 440 Stainless Steel – Case Hardened 58-60 Rockwell
Motor Type CSCR (Single Phase)
Voltage Tolerance +/-10%
Service Factor 1.42
