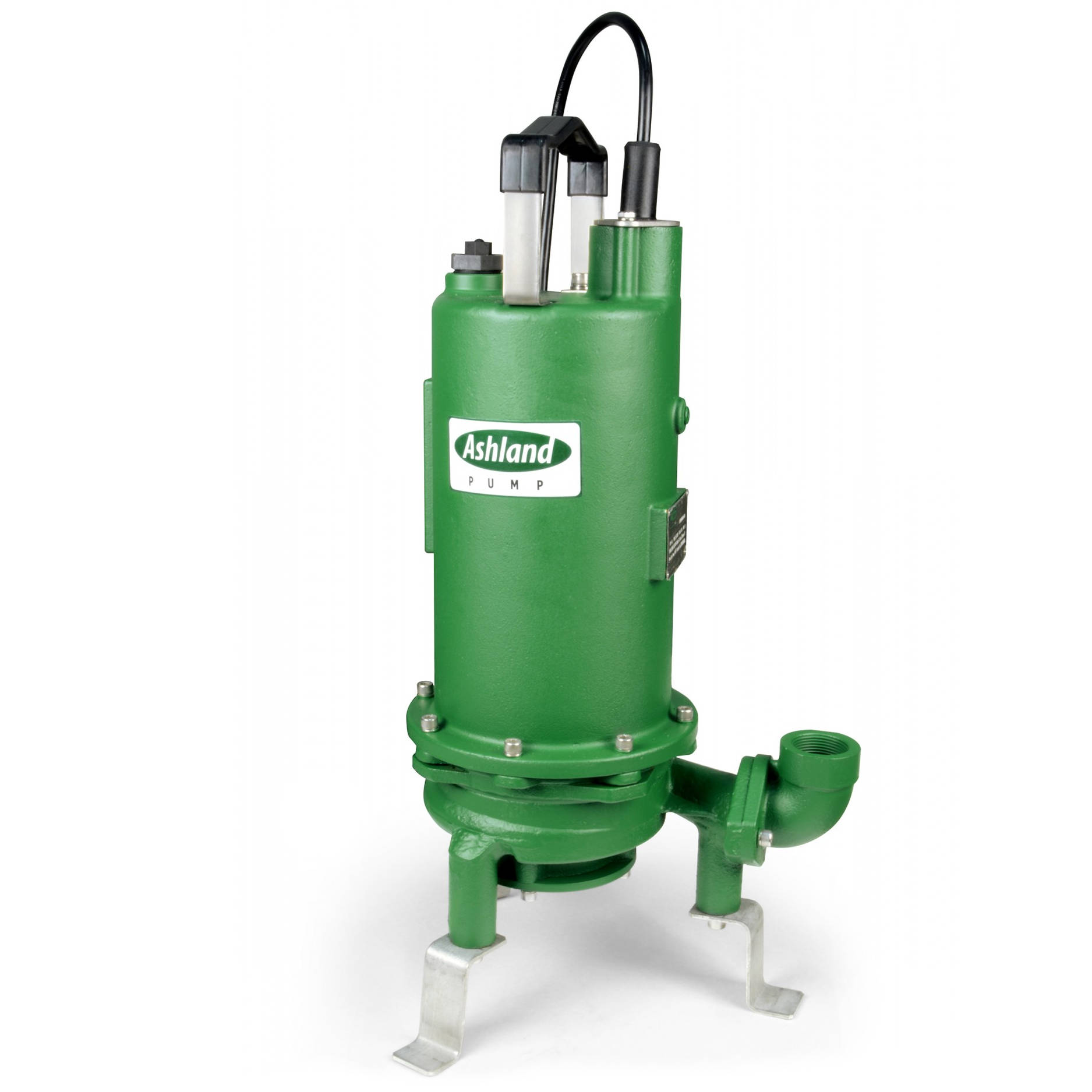

AGPR200M2-35 Ashland 2HP Grinder Pump, 230VAC Single Phase
Click Image to Expand
Previous Image
Next Image
Previous
Next
Previous
Next
Product ID: AGPR200M2-35
AGPR200M2-35 Ashland 2HP Grinder Pump, 230VAC Single Phase
MFG: Ashland Pump
MFG Part Number: AGPR200M2-35
Selected accessories will also be added to cart
$2,357.00 / Each
Quantity:
Cast Iron Construction, 35' Cord, 3450RPM, Noryl Impeller, 1-1/4" NPT Discharge
Details

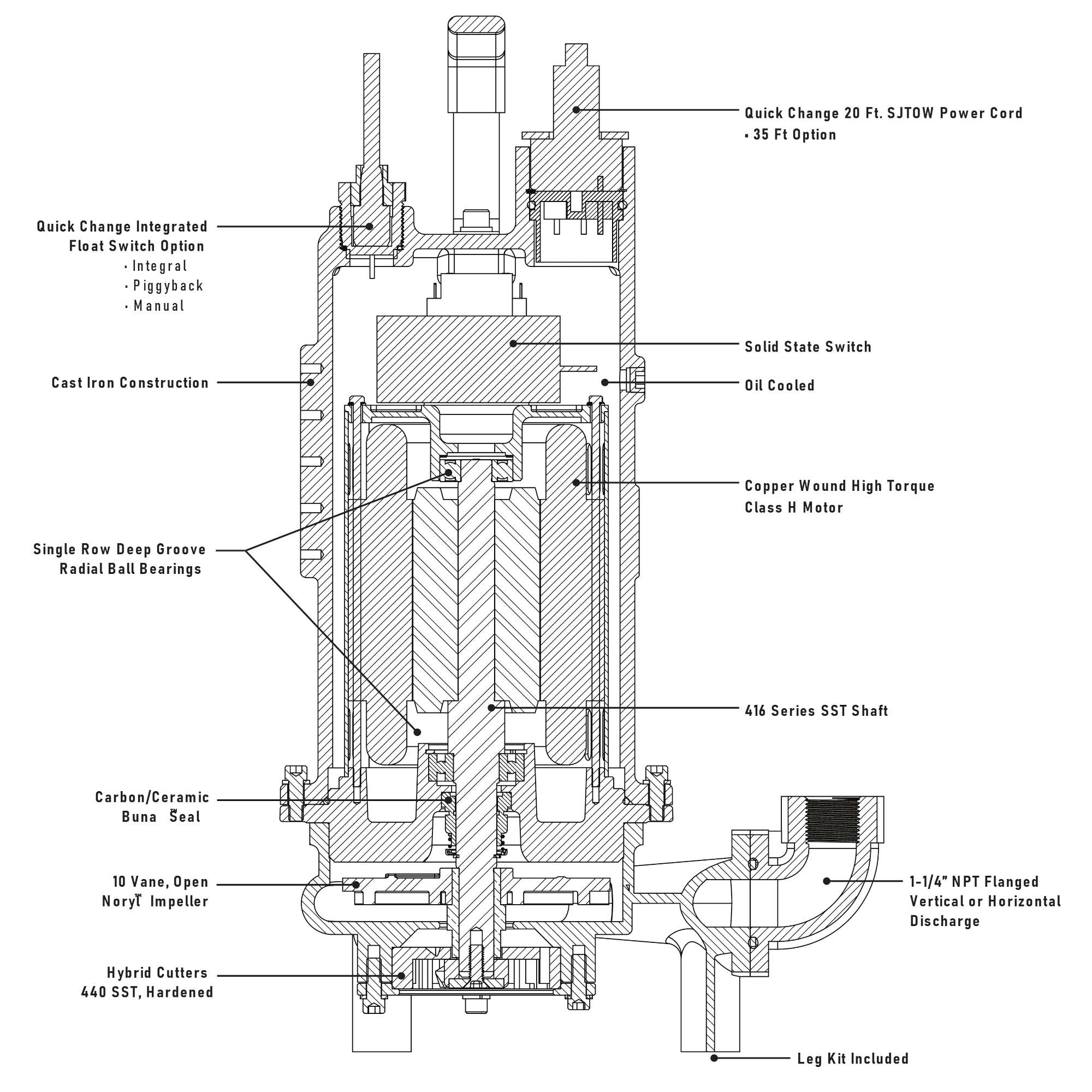

Features
Heavy duty cast iron construction
Single Carbon/Ceramic Buna-N Seal
10 vane, open Noryl impeller

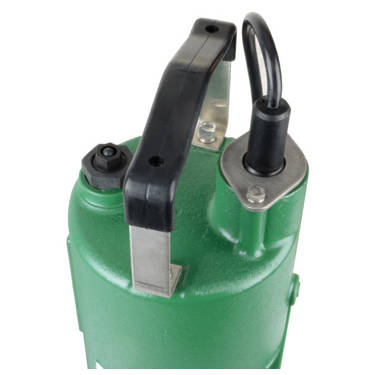

Quick change power cords
Quick change Integrated Float Switch Options
Single row deep groove radial ball bearings

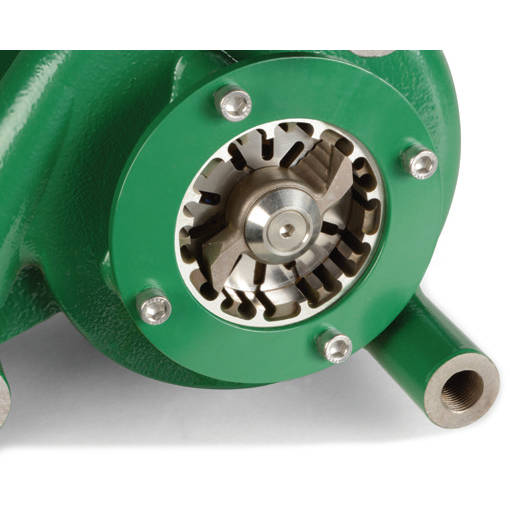

440C SS Hybrid cutting system
Vertical or horizontal discharge
Specifications
Brand
Ashland Pump
Model
AGPR200M2-35
HP
3/4HP
Voltage
230VAC 60Hz Single Phase
RPM
3450 RPM
Full Load Amps
15 Amps
NEMA Start Code
G
Cord Type
SJTOW
Cord Power Size
14 AWG/3C
Cord O.D.
0.36-0.37"
Solid State Relay
SAMUSCO ESC225P
Start Capacitor
Mars 11068
Run Capacitor
Mars 12248
Switch Type
N/A
Discharge Size
1-1/4" NPT + Flanged Horizontal with Vertical Adapter
Impeller Type
10-Vane
Noryl
Cable Length
35'
Solids Composition
Domestic Wastewater with Fibrous Solids
Maximum Liquid Temperature
140°F - Intermittent
104°F - Continuous
Acceptable pH Range
6 - 8
Winding Insulation
145°C
Insulation Class
H
Sensor Cord Type
14AWG/3C (Single Phase)
Motor Housing
Cast Iron
Casing
Cast Iron
Impeller
Noryl
Motor Shaft
Stainless Steel 416
Hardware
SS
O-Rings
BUNA-N
Mechanical Seal
Carbon Ceramic
Upper Bearing
6203
Lower Bearing
6205
Cutters
440 Stainless Steel – Case Hardened 58-60 Rockwell
Motor Type
CSCR (Single Phase)
Voltage Tolerance
+/-10%
Service Factor
1.42
Links
Ashland AGPR Electrical Data (PDF, 1 page, 40KB)
Ashland AGPR Features Data (PDF, 1 page, 194KB)
Ashland AGPR Performance Data (PDF, 1 page, 109KB)
Ashland AGPR Technical Data (PDF, 1 page, 46KB)
Ashland APGR Catalog Sheet (PDF, 2 pages, 896KB)
Ashland APGR Dimensional Data (PDF, 1 page, 105KB)
Minimum Submergence Level Recommendations (PDF, 1 page, 162KB)
